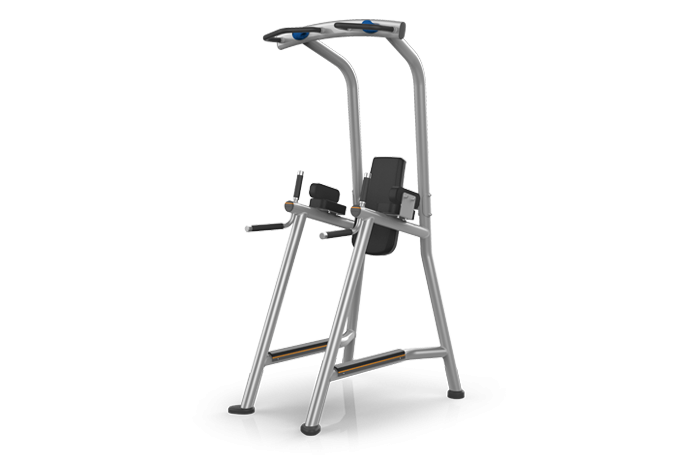

Matrix Commercial - MG-A63C-03 - 2013

Repair Parts for Matrix Commercial MG-A63C-03 FW223

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: MG-A63C-03

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
3 715701 1000327794 3 Handle set;;;;;MS10-KM;Iced Sliver; No Model Compatibility List $40.53 / Each

11
715702 1000327797 3 Handle set;;;;;MS10-KM;;lace white No Model Compatibility List $40.53 / Each

4,5,6,11
715703 1000327798 3 Handle set;;;;;MS10-KM;;black Glossy No Model Compatibility List $40.53 / Each

4,5,6,11
715689 1000327770 AC1 Support Set;Frame;R;painting;;Iced Slive No Model Compatibility List $579.64 / Each

3
715690 1000327773 AC1 Support Set;Frame;R;painting;;Lace White No Model Compatibility List $579.64 / Each

3,4,5,6
715691 1000327774 AC1 Support Set;Frame;R;painting;;Black Glos No Model Compatibility List $579.64 / Each

3,4,5,6
715692 1000327776 AC2 Support Set;Frame;L;painting;;Iced Slive No Model Compatibility List $572.88 / Each

3
715693 1000327779 AC2 Support Set;Frame;L;painting;;Lace White No Model Compatibility List $572.88 / Each

3,4,5,6
715694 1000327780 AC2 Support Set;Frame;L;painting;;Black Glos No Model Compatibility List $572.88 / Each

3,4,5,6
729152 Part of Kit 3 AE1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
A 715698 1000327788 AG1 Connecting Set;Grip;;painting;;Iced Sliv No Model Compatibility List $287.27 / Each

11
715699 1000327791 AG1 Connecting Set;Grip;;painting;;Lace Whit No Model Compatibility List $287.27 / Each

4,5,6,11
715700 1000327792 AG1 Connecting Set;Grip;;painting;;Black Glo No Model Compatibility List $287.27 / Each

4,5,6,11
715695 1000327782 AG2 Connecting Set;Back Pad;M;painting;;Iced No Model Compatibility List $91.23 / Each

4,5,6,12,13,14
715696 1000327785 AG2 Connecting Set;Back Pad;M;painting;;Lace No Model Compatibility List $91.23 / Each

4,5,6,12,13,14
715697 1000327786 AG2 Connecting Set;Back Pad;M;painting;;Blac No Model Compatibility List $91.23 / Each

4,5,6,12,13,14
B 713585 1000305258 B06 End Cap;;;ABS 746;Diam.76.2;FW202-KM No Model Compatibility List $3.64 / Each

9
B 713541 1000304951 B17 Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713539 1000304912 B18 Food Pad;ADJ Base;;PP;BL/Black C;FW201; No Model Compatibility List $42.22 / Each

3,4,5,6,12,13,14
B 713548 1000305030 B38 Plastic Cover;Foot Pad;down;Soft PVC;FW2 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 713557 1000305058 B44 Food Pad;ADJ Axle;down;PP;BL/Black C;FW2 No Model Compatibility List $8.42 / Each
Out Of Stock 		8,4,5,6,12,13,14
C 707821 1000096013 C15 Cap Two;ABS;GM40 No Model Compatibility List $4.19 / Each

9
C 715658 1000327662 C23 Connect Plate;;;painting;;Iced Sliver;FW No Model Compatibility List $11.80 / Each

3
715659 1000327665 C23 Connect Plate;;;painting;;Black Glossy;F No Model Compatibility List $11.80 / Each

3,4,5,6
715660 1000327666 C23 Connect Plate;;;painting;;Lace White;FW2 No Model Compatibility List $11.80 / Each

3,4,5,6
726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.66 / Each

C 708058 1000098627 C47 Cap;ABS;Black;50X100;GM45 No Model Compatibility List $2.89 / Each

9,4,5,6
D 713747 1000307453 D02 Foam;Handlebar;mid;;;30.4x5.0tx250L;FW2 No Model Compatibility List $16.87 / Each

11
Foam;Grip;Down;GM29 727453 089356 D11 Foam;Grip;Down;GM29 No Model Compatibility List $11.05 / Each

D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

D 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

728156 093333 E04 Foam;25.4x5.0Tx666L;MS10 No Model Compatibility List $36.48 / Each

Climbing Hold;L;Market;MS10 728164 093366 G09 Climbing Hold;L;Market;MS10 No Model Compatibility List $70.85 / Each

Climbing Hold;R;Market;MS10 728165 093367 G10 Climbing Hold;R;Market;MS10 No Model Compatibility List $65.60 / Each

726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

728981 Not Available J06 Sticker;Instruction;L; No Model Compatibility List $0.00 / Each
Out Of Stock
729261 See Pad Matrix J26 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
J 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $65.42 / Each

N 713604 1000305534 Not Shown Hardware Set;Semi-Assy;;;;FW223-KM;; No Model Compatibility List $92.92 / Each

1
Q 713746 1000307430 Q01 Plastic Cover;Frame;down;;;;FW223-KM; No Model Compatibility List $84.47 / Each

9,3
V 714304 1000313492 V01 EN LABEL;;FW223-KM; No Model Compatibility List $1.66 / Each

1
V 713705 1000306719 V03 Warning Label;;;;;;;Bolt down required; No Model Compatibility List $3.35 / Each

2
V 715270 1000322592 V03 Warning Label;;Bolt down required;;;;Fre No Model Compatibility List $3.35 / Each

2
V 713704 1000306716 V07 Warning Label;;;;;;;Working Bench; No Model Compatibility List $8.42 / Each

1
V 715272 1000322607 V07 Warning Label;;Working Bench;;;;French;F No Model Compatibility List $8.42 / Each

1
721552 1000384006 V20 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
Z 701836 004855-AC Z01 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Z 701376 004426-00 Z02 Screw;FH;M6X1.0PX12L;;PH;;BZN;; No Model Compatibility List $1.66 / Each

Z 708730 1000105174 Z04 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

Z 701470 004519-AE Z05 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

Z 701512 004548-AB Z06 Screw;Hex Socket;Round;M10x1.5Px45L;Adhe No Model Compatibility List $2.63 / Each

2
Z 704193 020465-AB Z07 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Z 701465 004518-00 Z09 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

SCREW;SH;M10X1.5PX105L;;HS;;CHM;; 725389 070791 Z10 SCREW;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

Z 708662 1000104691 Z11 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each
