Matrix Commercial - MG-A645-03 - 2014

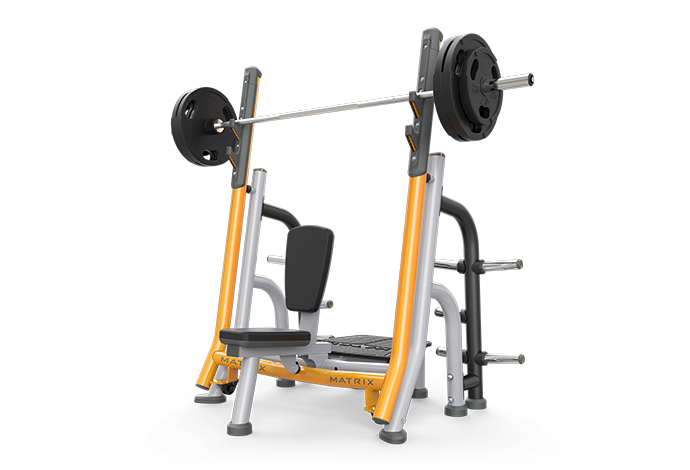

Repair Parts for Matrix Commercial MG-A645-03 FW207

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW207

Model Name: MG-A645-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16472.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700447	001401-A	B60	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701376	004426-00	B21	Screw;FH;M6X1.0PX12L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
701465	004518-00	Z12	Screw;SH;M10X1.5PX75L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each
701522	004555-AB	Z10	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701660	004696-AB	B58	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
702117	005144-AC	Z38	Washer;Flat;10.2X35.0X2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
704166	020379-00	C58	Nut;Hex;M8X1.25P;SS41;CHM;;	No	Model Compatibility List	$1.01 / Each
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705389	049043-AA	C17	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
708730	1000105174	Z06	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
709081	1000109127	V04	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
711994	1000224767	B68	Plastic Cover;-;-;PP;-;-;-;-	No	Model Compatibility List	$1.66 / Each	9
712494	1000229173	Z05	Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9;	No	Model Compatibility List	$3.02 / Each	2
712934	1000231572	Z01	SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM;	No	Model Compatibility List	$2.00 / Each
713539	1000304912	B18	Food Pad;ADJ Base;;PP;BL/Black C;FW201;	No	Model Compatibility List	$42.22 / Each	3,4,5,6,12,13,14
713541	1000304951	B17	Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713548	1000305030	B38	Plastic Cover;Foot Pad;down;Soft PVC;FW2	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713549	1000305031	B39	Boot;Hang Rod;1;PU;Gray/60461;FW201-KM;	No	Model Compatibility List	$25.32 / Each	3
713552	1000305041	B40	Boot;Hang Rod;2;PU;	No	Model Compatibility List	$30.39 / Each	3
713553	1000305044	B41	Boot;Hang Rod;3;PU;	No	Model Compatibility List	$32.08 / Each	3
713556	1000305050	B43	Boot;Hang Rod;;TPU;FW201-KM;	No	Model Compatibility List	$18.56 / Each	3
713557	1000305058	B44	Food Pad;ADJ Axle;down;PP;BL/Black C;FW2	No	Model Compatibility List	$8.42 / Each Out Of Stock	8,4,5,6,12,13,14
713559	1000305097	Not Shown	Storage Horn Set;Semi-Assy;;FW201-KM	No	Model Compatibility List	$780.75 / Each	1
713560	1000305099	3	Storage Horn Set;Semi-Assy;left;FW201-K	No	Model Compatibility List	$390.36 / Each	1
713561	1000305124	B15	End Cap;Hang Rod;;HDPE;Gray/80435;FW201-	No	Model Compatibility List	$3.35 / Each	9,3
713562	1000305125	B16	Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201-	No	Model Compatibility List	$8.42 / Each	3
713563	1000305131	4	Storage Horn Set;Semi-Assy;right;FW201-KM	No	Model Compatibility List	$390.36 / Each	1
713585	1000305258	B06	End Cap;;;ABS 746;Diam.76.2;FW202-KM	No	Model Compatibility List	$3.64 / Each	9
713600	1000305427	T08	Food Pad;;;SBR;;FW203-KM	No	Model Compatibility List	$233.19 / Each	12,13,14
713601	1000305475	AB6 Kit	Support set;Semi-Assy;front;;;FW207-KM;;	No	Model Compatibility List	$931.16 / Each	3
713602	1000305478	AB6	Support Seat Set;;front;FW207-KM;FW207-K	No	Model Compatibility List	$885.53 / Each	3,12,13,14
713629	1000305926	C05	Cover Board;Back Cover;;PA746;FW207-KM	No	Model Compatibility List	$16.41 / Each
713635	1000305968	B25	Plastic Cover;Hang Rod;;HDPE;Gray/80435;	No	Model Compatibility List	$3.35 / Each	9,3
713636	1000305970	B26	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713637	1000305972	B27	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713638	1000305974	B28	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713703	1000306714	V01	Warning Label;;;;;;;Olympic Bench;	No	Model Compatibility List	$8.42 / Each	1
713709	1000306755	B11	Bearing;;UCP 205B1;Diam.25;	No	Model Compatibility List	$21.94 / Each	8
713740	1000307173	B48	Plastic Cover;Nut;;;;;;	No	Model Compatibility List	$1.66 / Each
713770	1000307876	V02	LOGO Label;LOGO;;;;;;FW201-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
713794	1000308342	Z11	Screw;Hex;Hex Head;M10x1.5Px35L;Machine	No	Model Compatibility List	$1.66 / Each
714760	1000317876	T20	End Cap;;;PP;;Diam.X50.8;;	No	Model Compatibility List	$2.18 / Each	9
715271	1000322602	V01	Warning Label;;Olympic Bench;;;;French;F	No	Model Compatibility List	$5.04 / Each	1
715570	1000326218	AB6	Support Seat Set;;;painting;;MAT BLACK;F	No	Model Compatibility List	$888.91 / Each	3,4,5,6,12,13,14
715847	1000328632	AB1	Frame Set;;;painting;;IcedSliver;FW202;	No	Model Compatibility List	$528.94 / Each	3
715848	1000328636	AB1	Frame Set;;;painting;;LaceWhite;FW202;	No	Model Compatibility List	$528.94 / Each	3,4,5,6
715849	1000328637	AB1	Frame Set;;;painting;;BlackGlossy;FW202;	No	Model Compatibility List	$528.94 / Each	3,4,5,6
715853	1000328644	AB2	Frame Set;;L;painting;;IcedSliver;FW202;	No	Model Compatibility List	$542.46 / Each	3
715854	1000328648	AB2	Frame Set;;L;painting;;LaceWhite;FW202;	No	Model Compatibility List	$542.46 / Each	3,4,5,6
715855	1000328649	AB2	Frame Set;;L;painting;;BlackGlossy;FW202	No	Model Compatibility List	$542.46 / Each	3,4,5,6
715871	1000328702	2	Pedal Set1;;;PolarizedTitanium;FW203-KM;	No	Model Compatibility List	$792.12 / Each	8,9
715908	1000329104	AG1	CON Tube Set;;;painting;;IcedSliver;FW20	No	Model Compatibility List	$334.59 / Each	3
715909	1000329108	AG1	CON Tube Set;;;painting;;LaceWhite;FW207	No	Model Compatibility List	$334.59 / Each	3,4,5,6
715910	1000329109	AG1	CON Tube Set;;;painting;;BlackGlossy;FW2	No	Model Compatibility List	$334.59 / Each	3,4,5,6
715911	1000329113	AC1	base set;;;painting;;LaceWhite;FW207;?	No	Model Compatibility List	$189.25 / Each	3,4,5,6
715912	1000329114	AC1	base set;;;painting;;BlackGlossy;FW207;	No	Model Compatibility List	$189.25 / Each	3,4,5,6
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728977	N/A	V03	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729110	Part of Kit	AB8	Pulse Sensor Wire	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
729138	Part of Kit 2	AT1	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713629	1000305926	C05	Console Board Back Cover	No	Model Compatibility List	$13.08 / Each

View Drawing
