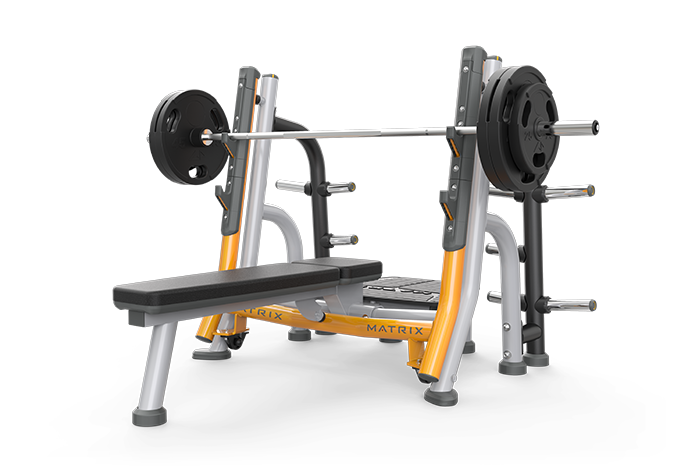

Matrix Commercial - MG-A678-02 - N/A

Repair Parts for Matrix Commercial MG-A678-02 MGFW257,MGFW285

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW257,MGFW285

Model Name: MG-A678-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16474.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713801	1000308375	B6	1" PILLOW BLOCK	No	Model Compatibility List	$62.04 / Each	1
713805	1000308416	Z42	1" Ext. SNAP RING	No	Model Compatibility List	$2.37 / Each	2
713808	1000308419	B26	1" Vinyl Cap	No	Model Compatibility List	$2.18 / Each	9
713809	1000308420	B24	2" x 2" RUBBER BUMPER	No	Model Compatibility List	$18.56 / Each	1
713810	1000308421	B22	HALF-ROUND RUBBER BUMPER	No	Model Compatibility List	$29.99 / Each
713817	1000308435	Z25	1 21/64" O.D. x 1 1/64" I.D. 14GA	No	Model Compatibility List	$2.37 / Each	1
713818	1000308436	Z30	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713819	1000308437	Z35	SCREW;HH;.375-16 x 1.50;ZN;	No	Model Compatibility List	$2.37 / Each
713821	1000308439	Z38	NUT;NLK;.375-16;ZN;	No	Model Compatibility List	$1.43 / Each	2
713826	1000308444	Z29	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713828	1000308446	Z28	WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06	No	Model Compatibility List	$1.43 / Each
713842	1000308473	V40	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
713937	1000309841	B7	2" X 3" END CAP	No	Model Compatibility List	$7.28 / Each
713947	1000309855	Z34	SCREW;HH;.313-18 x 1.75;ZN;	No	Model Compatibility List	$1.33 / Each	2
713949	1000309857	Z37	BHSCS 3/8 x 3/4"	No	Model Compatibility List	$3.02 / Each	1
713967	1000309953	Z32	SCREW;HH;.313-18 x 1.25;ZN;	No	Model Compatibility List	$2.37 / Each
713974	1000310007	B14	Round Leveler	No	Model Compatibility List	$20.05 / Each	3
713975	1000310008	B16	ROUND LEVELER BOOT	No	Model Compatibility List	$5.04 / Each	3
713978	1000310011	K10	Teardrop Boot	No	Model Compatibility List	$6.73 / Each	1
713979	1000310012	K9	Plastic Footpad	No	Model Compatibility List	$6.73 / Each
713980	1000310013	B19	Coped Bumper - Weight Horn	No	Model Compatibility List	$10.11 / Each	3
713981	1000310014	B20	End Cap	No	Model Compatibility List	$5.90 / Each
714008	1000310115	KZ2	FHSCS 1/4"-20 X 1/2"	No	Model Compatibility List	$1.33 / Each
714016	1000310219	Z33	SCREW;HH;.250-20 x 0.75;ZN;	No	Model Compatibility List	$1.33 / Each
714104	1000312089	Z31	SCREW;HH;.500-13 x 1.50;ZN;	No	Model Compatibility List	$3.02 / Each
714136	1000312193	B8	Take-Off Top Cap	No	Model Compatibility List	$38.84 / Each	9
714137	1000312195	B9	7.7 IN TAKE-OFF HOOK SPACER	No	Model Compatibility List	$35.46 / Each	2,3,4,5,6
714138	1000312197	B10	TAKE-OFF HOOK	No	Model Compatibility List	$59.12 / Each	1
714139	1000312199	B11	3.2 IN TAKE-OFF HOOK SPACER	No	Model Compatibility List	$18.56 / Each	2,3,4,5,6
714141	1000312203	B12	TAKE-OFF HOOK BOTTOM COVER	No	Model Compatibility List	$25.32 / Each	9
714142	1000312205	J13	Head Pad Plastic Cover	No	Model Compatibility List	$13.49 / Each	9,12,13,14
714143	1000312207	J15	BACK PAD PLASTICS	No	Model Compatibility List	$35.46 / Each	9,4,5,6,12,13,14
714153	1000312233	B23	3" ROUND END CAP	No	Model Compatibility List	$6.73 / Each
714160	1000312247	K4	End cap - weight horn 2.5lbs	No	Model Compatibility List	$5.04 / Each	9,3
714161	1000312249	K5	End cap - weight horn 5lbs	No	Model Compatibility List	$5.04 / Each	9,3
714162	1000312250	K6	End cap - weight horn 10lbs	No	Model Compatibility List	$5.04 / Each	9,3
714163	1000312253	K7	End cap - weight horn 25lbs	No	Model Compatibility List	$5.04 / Each	9,3
714164	1000312254	K8	End cap - weight horn 45lbs	No	Model Compatibility List	$5.04 / Each	9,3
714214	1000312420	J5	HEAD PAD	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
714215	1000312422	J4	36" Back Pad	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
714235	1000312700	Z27	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
714616	1000316508	AB2	M78 SEAT FRAME;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
714617	1000316509	AB2	M78 SEAT FRAME;Matrix Orange	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
714618	1000316510	AB3	A678 Breaker Frame;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714619	1000316511	AB3	A678 Breaker Frame;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714620	1000316512	AB3	A678 Breaker Frame;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714621	1000316532	AB1	WELDMENT, MAIN FRAME, A678;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
714622	1000316533	AB1	WELDMENT, MAIN FRAME, A678;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714623	1000316534	AB1	WELDMENT, MAIN FRAME, A678;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714771	1000318165	1	WEIGHT HORN SET	No	Model Compatibility List	$18.56 / Each	3
714772	1000318166	2	KIT TEARDROP FOOT	No	Model Compatibility List	$33.77 / Each	9,3
719680	1000363753	V41	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V41	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
719755	1000365189	Not Shown	Spotter Stand	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721552	1000384006	V43	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
