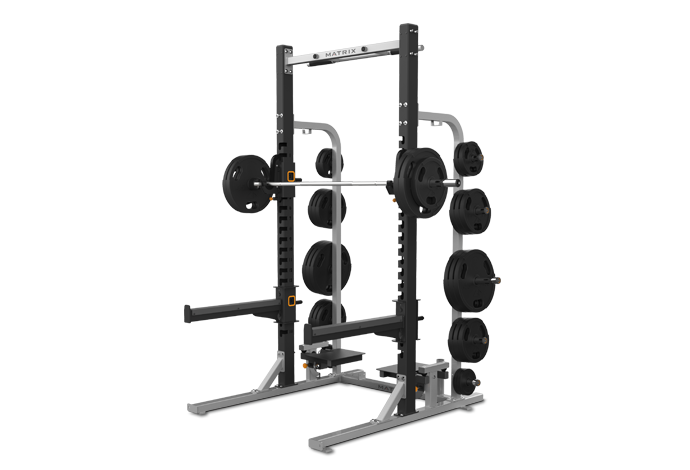

Matrix Commercial - MG-A690-04 - 2014

Repair Parts for Matrix Commercial MG-A690-04 MGPPR55,MGPPR54,MGPPR50

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-A690-04

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713810 1000308421 B28 HALF-ROUND RUBBER BUMPER No Model Compatibility List $29.99 / Each

S 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

Z 713814 1000308428 Z31 3/8" NUT No Model Compatibility List $1.43 / Each

Z 713818 1000308436 Z37 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

Z 713826 1000308444 Z32 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 B18 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

S 713938 1000309842 Spotter Stand 6 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
S 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.43 / Each

S 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

Z 714008 1000310115 Z48 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

Z 714031 1000310307 Z34 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

Z 714095 1000312066 Z35 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
714097 1000312070 Z36 SCREW;HH;.313-18 x 2.50;ZN; No Model Compatibility List $2.18 / Each

Z 714101 1000312084 Z33 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
P 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
B 714176 1000312298 B49 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

714538 1000315894 V44 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714609 1000316350 AB11 Support;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
P 714766 1000318109 Pull Up Bar Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
717337 1000344140 Pull Up Bar AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V44 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717443 1000345209 Z4 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717444 1000345210 B36 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717588 1000346151 AB2 WELDMENT, BASE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717589 1000346152 AB2 WELDMENT, BASE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717590 1000346153 AB2 WELDMENT, BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717591 1000346164 AB3 WELDMENT, BASE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717592 1000346165 AB3 WELDMENT, BASE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717593 1000346166 AB3 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717726 1000347140 AB1 Bottom Brace Assy;A Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717727 1000347141 AB1 Bottom Brace Assy;A Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717728 1000347142 AB1 Bottom Brace Assy;A Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717729 1000347153 B47 ABS Wear Guard No Model Compatibility List $0.00 / Each
Out Of Stock
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719680 1000363753 V46 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V46 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
719756 1000365191 AB6 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719757 1000365192 AB6 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719758 1000365193 AB6 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719759 1000365206 AB7 WELDMENT, WEIGHT STORAGE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719760 1000365207 AB7 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719761 1000365208 AB7 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720813 1000376728 AB4 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720814 1000376730 AB5 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721552 1000384006 V45 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
721931 1000386662 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721932 1000386663 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722170 1000388459 B25 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724744 1000426422 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		3
View Drawing
