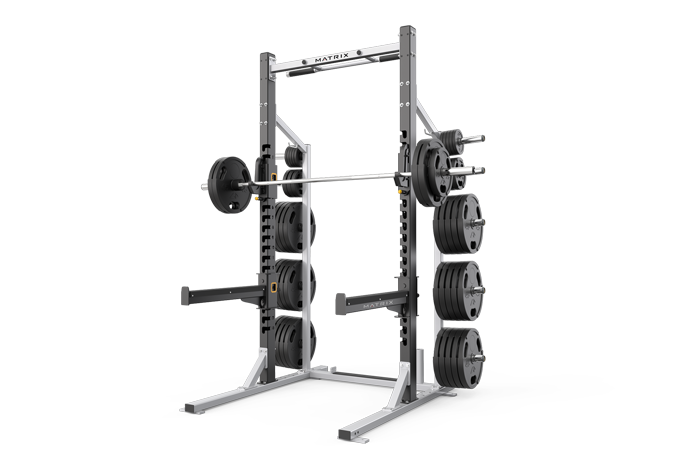

Matrix Commercial - MG-A690-05 - 2015

Repair Parts for Matrix Commercial MG-A690-05 MGPR80

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-A690-05

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
W 713806 1000308417 Weight Horn B4 2" x 2" END CAP No Model Compatibility List $5.46 / Each

W 713814 1000308428 Weight Horn Z8 3/8" NUT No Model Compatibility List $1.43 / Each

Z 713826 1000308444 Z13 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 Weight Horn B3 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

713839 1000308467 Weight Horn B2 End cap - weight horn No Model Compatibility List $5.90 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

W 713950 1000309858 Weight Horn Z10 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

Z 714008 1000310115 Z26 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

Z 714031 1000310307 Z14 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

Z 714101 1000312084 Z15 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714124 1000312155 Wieght Horn Z11 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 714152 1000312231 Pull Up B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714538 1000315894 Pull Up V2 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714609 1000316350 AB7 Support;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717376 1000344561 B10 Cap, Plastic 3"x2" 6-8 ga No Model Compatibility List $0.00 / Each
Out Of Stock
717377 1000344562 Pull Up V2 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717443 1000345209 Z18 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717444 1000345210 Weight Horn B11 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717726 1000347140 AB3 Bottom Brace Assy;A Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717727 1000347141 AB3 Bottom Brace Assy;A Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717728 1000347142 AB3 Bottom Brace Assy;A Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717729 1000347153 B9 ABS Wear Guard No Model Compatibility List $0.00 / Each
Out Of Stock
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
718939 1000354629 B23 5/16" HOLE PLUG; NYLON No Model Compatibility List $0.00 / Each
Out Of Stock
719769 1000365315 Weight Horn B9 JA/JD Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719776 1000365386 W Horn R AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719777 1000365387 W Horn L AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720771 1000375920 V24 Decal;Warning;Bench;English No Model Compatibility List $0.00 / Each
Out Of Stock
720772 1000375921 V24 Decal;Warning;PR;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
720773 1000375926 V27 Decal;Warning;Sled Press;English No Model Compatibility List $0.00 / Each
Out Of Stock
720774 1000375927 V27 Decal;Warning;Sled Press;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
721090 1000380539 W Horn R Set Magnum Weight Horn Rack;Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721091 1000380540 W Horn R Set Magnum Weight Horn Rack;Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721092 1000380541 W Horn R Set Magnum Weight Horn Rack;Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721093 1000380554 W Horn L Set Magnum Weight Horn Rack;Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721094 1000380555 W Horn L Set Magnum Weight Horn Rack;Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721095 1000380556 W Horn L Set Magnum Weight Horn Rack;Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721096 1000380569 AB1 Base Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721097 1000380570 AB1 Bace Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721098 1000380571 AB1 Base Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721099 1000380584 AB2 Weldment, A690 Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721100 1000380585 AB2 Weldment, A690 Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721101 1000380586 AB2 Weldment, A690 Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V25 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
721822 1000385730 Not Shown Hardware Kit;Complete;A690-05; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722170 1000388459 B11 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
722511 1000393235 AB5 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722512 1000393237 AB4 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724744 1000426422 Safe Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
