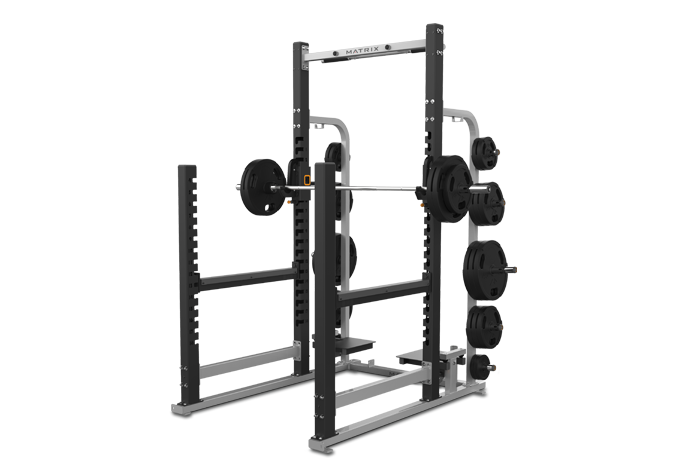

Matrix Commercial - MG-A694-04 - 2014

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713810 1000308421 B17 HALF-ROUND RUBBER BUMPER No Model Compatibility List $29.99 / Each

S 713811 1000308424 Spotter Stand 2 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

Z 713814 1000308428 Z37 3/8" NUT No Model Compatibility List $1.43 / Each

Z 713826 1000308444 Z18 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 B28 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

S 713938 1000309842 Spotter Stand 6 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
S 713939 1000309846 Spotter Stand 5 1/2" JAM NUT No Model Compatibility List $1.43 / Each

S 713940 1000309847 Spotter Stand 3 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

Z 714008 1000310115 Z22 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

Z 714031 1000310307 Z19 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

Z 714095 1000312066 Z20 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z21 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
Z 714101 1000312084 Z39 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
P 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K8 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K6 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
Z 714236 1000312711 Z26 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

714280 1000313143 B13 1/4" ABS No Model Compatibility List $13.49 / Each

1
714538 1000315894 Pull Up Bar V2 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714550 1000315993 B25 2" TUBING EXTRUSION No Model Compatibility List $103.06 / Each

1
714552 1000316004 AB3 WELDMENT, LOWER BASE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714553 1000316005 AB3 WELDMENT, LOWER BASE LH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714554 1000316006 AB3 WELDMENT, LOWER BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714555 1000316014 AB2 WELDMENT, LOWER BASE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714556 1000316015 AB2 WELDMENT, LOWER BASE RH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714557 1000316016 AB2 WELDMENT, LOWER BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
P 714766 1000318109 Pull Up Bar Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
717337 1000344140 Pull Up Bar AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock
3
717377 1000344562 Pull Up Bar V2 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717443 1000345209 Z38 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
2

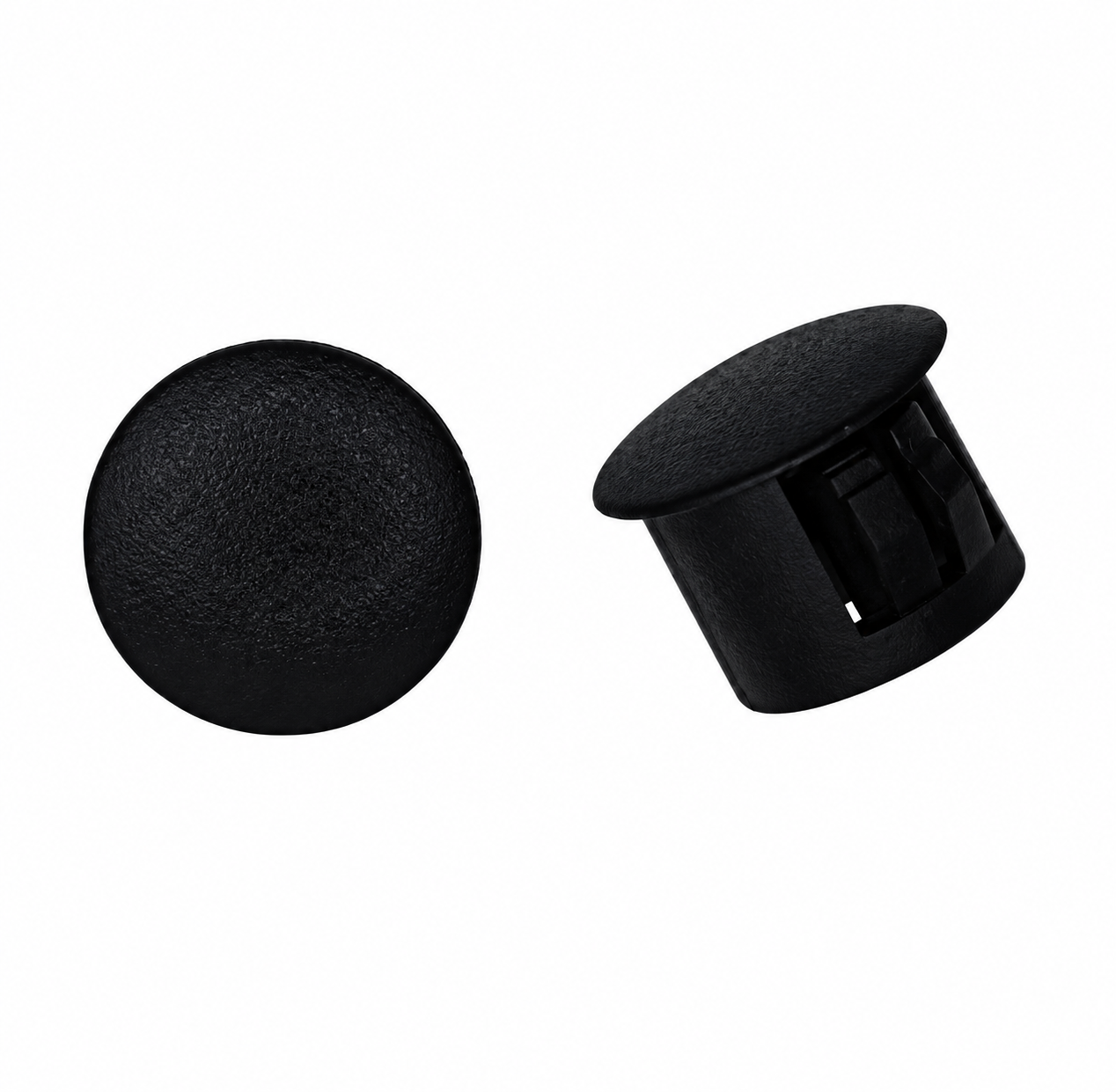

717444 1000345210 B36 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717726 1000347140 AB1 Bottom Brace Assy;A Series;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717727 1000347141 AB1 Bottom Brace Assy;A Series;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717728 1000347142 AB1 Bottom Brace Assy;A Series;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
717793 1000347646 AB12 Weldment;Safety Bar;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
717794 1000347647 AB12 Weldment;Safety Bar;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
717795 1000347648 AB12 Weldment;Safety Bar;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock
2
719680 1000363753 V33 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V33 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
719756 1000365191 AB9 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
719757 1000365192 AB9 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719758 1000365193 AB9 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719759 1000365206 AB10 WELDMENT, WEIGHT STORAGE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
719760 1000365207 AB10 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
719761 1000365208 AB10 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720720 1000375165 AB11 Weldment;Safety Bar;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
9,3,4,5,6
720804 1000376344 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720805 1000376345 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720813 1000376728 AB5 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock
3
720814 1000376730 AB4 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock
3
720852 1000377636 AB7 Weldment, Upright - Short Left No Model Compatibility List $0.00 / Each
Out Of Stock
3
720853 1000377638 AB8 Weldment, Upright - Short Right No Model Compatibility List $0.00 / Each
Out Of Stock
3
721552 1000384006 V34 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
722170 1000388459 B15 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock
9
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
724745 1000426423 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock
9
729066 Order Spotter Stand Set Spotter Stand 1 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock
3
