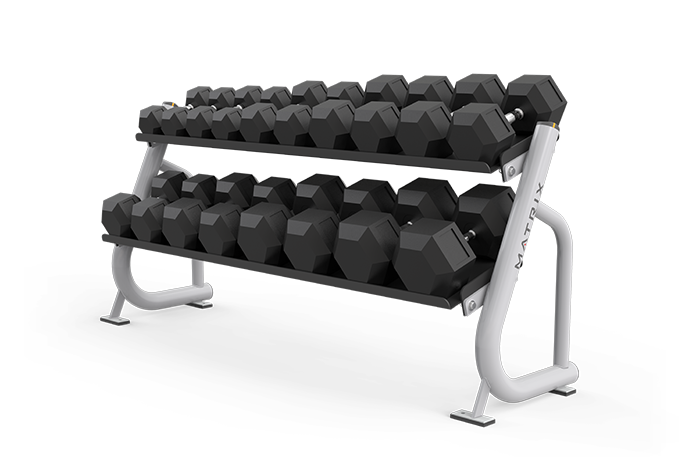

Matrix Commercial - MG-A697-02 - N/A

Repair Parts for Matrix Commercial MG-A697-02 MGFW274

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW274

Model Name: MG-A697-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16493.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

721507	1000383540	AB1	WELDMENT, SIDE FRAME, LEFT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721508	1000383541	AB1	WELDMENT, SIDE FRAME, LEFT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721509	1000383542	AB1	WELDMENT, SIDE FRAME, LEFT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721510	1000383555	AB2	WELDMENT, SIDE FRAME, RIGHT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721511	1000383556	AB2	WELDMENT, SIDE FRAME, RIGHT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721512	1000383557	AB2	WELDMENT, SIDE FRAME, RIGHT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721481	1000383458	B3	BRACE, SHELF, A688;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721480	1000383457	B4	7ga. PLASMA;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
714090	1000312050	B9	1/4" Plastic (836-198 - Purchase Raw Material PN)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
713981	1000310014	B10	End Cap	No	Model Compatibility List	$5.90 / Each
713833	1000308451	B11	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
714538	1000315894	V6	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
717377	1000344562	V6	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
719680	1000363753	V7	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V7	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
721552	1000384006	V8	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714235	1000312700	Z12	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
714127	1000312161	Z13	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714104	1000312089	Z14	SCREW;HH;.500-13 x 1.50;ZN;	No	Model Compatibility List	$3.02 / Each
713984	1000310019	Z15	SCREW;HH;.500-13 x 2.00;ZN;	No	Model Compatibility List	$3.02 / Each

View Drawing
