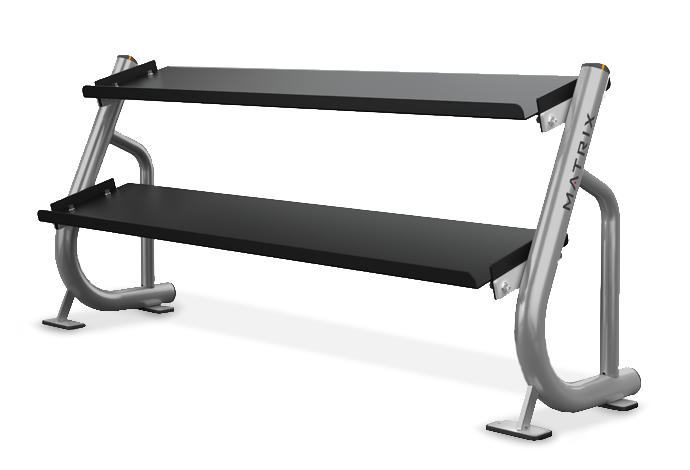

Replacement Parts for Matrix Commercial MG-A697-03 Freeweight

Matrix Commercial - MG-A697-03 - N/A

Repair Parts for Matrix Commercial MG-A697-03 FW221

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW221

Model Name: MG-A697-03

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16494.0-base.pdf

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700447	001401-A	B05	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	1
701657	004694-AC	B09	Screw;Hex Socket;Flat;M8x1.25Px10L	No	Model Compatibility List	$1.66 / Each	1
702102	005132-00	Z03	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	1
704035	020124-A	Z02	Screw;Hex Socket;Socket Head;M12X1.75PX4	No	Model Compatibility List	$3.35 / Each	1
706373	061531-AA	B06	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	1
708743	1000105261	Z01	Nut;Nylon;M12x1.75P;G12.9;CHM	No	Model Compatibility List	$1.38 / Each	1
713551	1000305040	G03	Stopper;;;painting;;Black2;FW218-KM;	No	Model Compatibility List	$33.77 / Each	1
713555	1000305049	G01	Connect Plate;;;painting;;Black2;FW218-K	No	Model Compatibility List	$40.53 / Each	1
713585	1000305258	B08	End Cap;;;ABS 746;Diam.76.2;FW202-KM	No	Model Compatibility List	$3.64 / Each	1
713704	1000306716	V07	Warning Label;;;;;;;Working Bench;	No	Model Compatibility List	$8.42 / Each	1
713888	1000309285	G04	Screw;Hex Socket;Socket Head;M12X1.75PX3	No	Model Compatibility List	$3.35 / Each	1
715272	1000322607	V07	Warning Label;;Working Bench;;;;French;F	No	Model Compatibility List	$8.42 / Each	1
715719	1000327837	AB2	Support Set;;R;painting;;Iced Sliver;FW2	No	Model Compatibility List	$197.70 / Each	1
715720	1000327840	AB2	Support Set;;R;painting;;Lace White;FW22	No	Model Compatibility List	$197.70 / Each	1
715721	1000327841	AB2	Support Set;;R;painting;;Black Glossy;FW	No	Model Compatibility List	$196.01 / Each	1
715722	1000327843	AB1	Support Set;;L;painting;;Iced Sliver;FW2	No	Model Compatibility List	$204.46 / Each	1
715723	1000327846	AB1	Support Set;;L;painting;;Lace White;FW22	No	Model Compatibility List	$204.46 / Each	1
715724	1000327847	AB1	Support Set;;L;painting;;Black Glossy;FW	No	Model Compatibility List	$204.46 / Each	1
728977	N/A	V01	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
