Matrix Commercial - MG-A77-03 - 2014

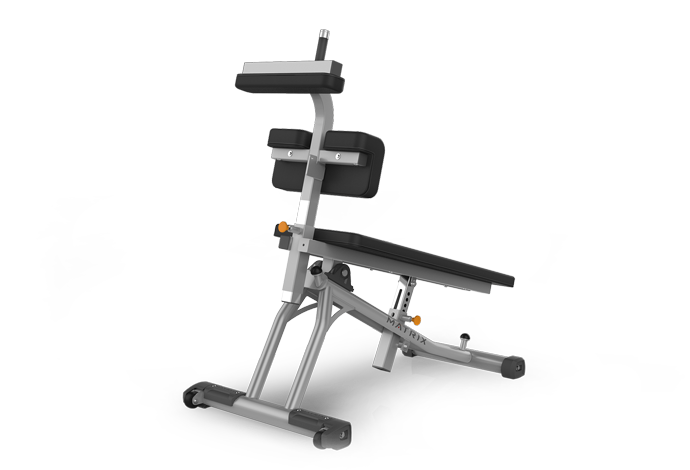

Repair Parts for Matrix Commercial MG-A77-03 FW214

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW214

Model Name: MG-A77-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16497.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701668	004702-00	Z08	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701836	004855-AC	Z11	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701901	004929-00	Z13	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
702098	005130-00	Z09	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702711	009356-B	C46	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704002	020092-AB	Z03	Screw;Hex Socket;Round;M8x1.25Px35L;Adhe	No	Model Compatibility List	$3.35 / Each
704012	020101-AB	Z05	SCREW;SH;M8X1.25PX55L;;HS;;CHM;;	No	Model Compatibility List	$3.35 / Each
704014	020104-AC	Z01	Screw;Hex Socket;Round;M10x1.5Px30L;Cr;	No	Model Compatibility List	$3.64 / Each	2
704019	020108-ZAB	Z02	Screw;Hex Socket;Round;M8x1.25Px90L;Zinc	No	Model Compatibility List	$4.00 / Each	2
704193	020465-AB	Z06	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705401	049061-BA	T20	END CAP	No	Model Compatibility List	$3.64 / Each	9
705423	049130-AA	C29	Cover;Square Tube;50X50 ;GM153	No	Model Compatibility List	$1.66 / Each	9,3
705459	049249-00	Z07	Screw;SH;M10X1.5PX65L;;HS;;CHM;;	No	Model Compatibility List	$3.35 / Each
707822	1000096014	D24	Bushing;15x19x20T;GM40	No	Model Compatibility List	$4.65 / Each
708730	1000105174	Z10	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
708954	1000107585	T04	End Cover;Grip;GM57-KM	No	Model Compatibility List	$6.73 / Each	9,11
709081	1000109127	V07	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
709543	1000201207	D20	Plastic Cover;;ABS;DG;;;GM61;	No	Model Compatibility List	$1.77 / Each
710353	1000209696	H11	FOAM;HANDLEBAR;Diam.34X5.0TX120L;GM61-KM	No	Model Compatibility List	$6.73 / Each	11
712400	1000228717	2	PIN SET;SA;;GM71-KM;;;	No	Model Compatibility List	$67.57 / Each	12,13,14
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each
713567	1000305186	C28	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713568	1000305187	C09	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713569	1000305188	C10	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713589	1000305327	Q11	End Cap;;;	No	Model Compatibility List	$11.80 / Each	9
713605	1000305549	G04	Connet Sleeve;Transmission;;20#;FW212-G0	No	Model Compatibility List	$13.49 / Each	3
713673	1000306380	J03	Air Stick;;;;;;	No	Model Compatibility List	$19.50 / Each	1
713674	1000306382	G03	Axle, Swivel;Adjustable;;45#;FW214	No	Model Compatibility List	$13.49 / Each	8
713704	1000306716	V02	Warning Label;;;;;;;Working Bench;	No	Model Compatibility List	$8.42 / Each	1
713706	1000306727	V03	Warning Label;;;;;;;Adjustable Stops 2;	No	Model Compatibility List	$3.35 / Each	1
713709	1000306755	B11	Bearing;;UCP 205B1;Diam.25;	No	Model Compatibility List	$21.94 / Each	8
713765	1000307861	V05	Adjustable Indication Decal;;;;;;;FW214-	No	Model Compatibility List	$3.35 / Each	7,3
713770	1000307876	V04	LOGO Label;LOGO;;;;;;FW201-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714783	1000318259	V06	Adjustable Indication Decal;;;;;;;FW214;	No	Model Compatibility List	$8.42 / Each	7,3
714867	1000318892	Q03	Plastic Pad;;;SBR;;;FW212-KM;	No	Model Compatibility List	$1.66 / Each	9,12,13,14
715269	1000322587	V03	Warning Label;;Adjustable Stop 2;;;;Fren	No	Model Compatibility List	$3.02 / Each	1
715272	1000322607	V02	Warning Label;;Working Bench;;;;French;F	No	Model Compatibility List	$8.42 / Each	1
715323	1000323826	4	ADJ Base Set;Semi-Assy;;;;FW214-KM;;	No	Model Compatibility List	$136.86 / Each	3
715741	1000327889	AC1	base set;;;painting;;Iced Sliver;FW214;	No	Model Compatibility List	$219.67 / Each	3
715742	1000327892	AC1	base set;;;painting;;Black Glossy;FW214;	No	Model Compatibility List	$219.67 / Each	3,4,5,6
715743	1000327893	AC1	base set;;;painting;;Lace White;FW214;	No	Model Compatibility List	$219.67 / Each	3,4,5,6
715744	1000327895	1	Link Set;;;;FW214-KM;;Iced Sliver	No	Model Compatibility List	$91.23 / Each	3
715745	1000327901	1	Link Set;;;;FW214-KM;;Black Glossy	No	Model Compatibility List	$91.23 / Each	3,4,5,6
715746	1000327903	1	Link Set;;;;FW214-KM;;Lace White	No	Model Compatibility List	$91.23 / Each	3,4,5,6
715747	1000327907	3	Adjustment set;;;;FW214-KM;;Iced Sliver	No	Model Compatibility List	$196.01 / Each	1
715782	1000328173	3	Adjustment set;;;;FW214-KM;;Black Glossy	No	Model Compatibility List	$196.01 / Each	4,5,6
715783	1000328176	3	Adjustment set;;;;FW214-KM;;Lace White	No	Model Compatibility List	$196.01 / Each	4,5,6
715784	1000328181	AB1	Frame Set;;;painting;;Iced Sliver;FW214;	No	Model Compatibility List	$528.94 / Each	3
715785	1000328186	AB1	Frame Set;;;painting;;Black Glossy;FW214	No	Model Compatibility List	$528.94 / Each	3,4,5,6
715786	1000328187	AB1	Frame Set;;;painting;;Lace White;FW214;	No	Model Compatibility List	$528.94 / Each	3,4,5,6
725263	103403	L05	Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
726765	084666	Z04	Screw;SH;M10X1.5PX160L;;HS;;CHM;;	No	Model Compatibility List	$8.42 / Each
726766	084667	Z08	Screw;SH;M10X1.5PX175L;;HS;;CHM;;	No	Model Compatibility List	$9.10 / Each
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728977	N/A	V01	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729118	Part of Kit 1	AG1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AD1	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AG2	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J04	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
