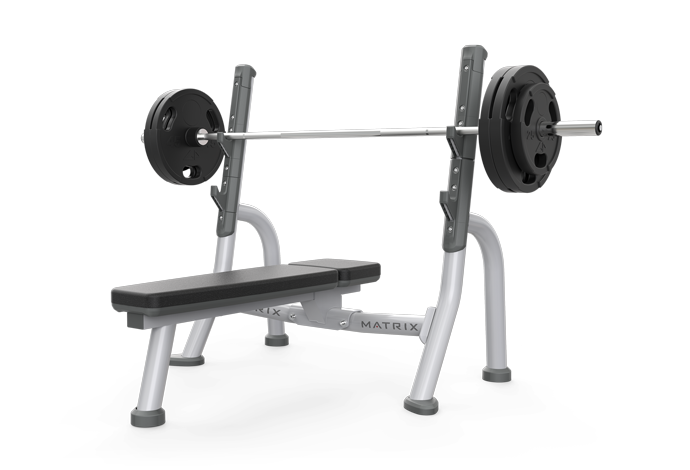

Matrix Commercial - MG-A78-03 - 2014

Repair Parts for Matrix Commercial MG-A78-03 FW201

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW201

Model Name: MG-A78-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701376	004426-00	B21	Screw;FH;M6X1.0PX12L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
701522	004555-AB	Z10	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701660	004696-AB	B20	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705389	049043-AA	C07	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
708730	1000105174	Z13	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
711984	1000224684	Z12	Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1	No	Model Compatibility List	$0.00 / Each Out Of Stock
711994	1000224767	B68	Plastic Cover;-;-;PP;-;-;-;-	No	Model Compatibility List	$1.66 / Each	9
712934	1000231572	Z01	SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM;	No	Model Compatibility List	$2.00 / Each
713539	1000304912	B18	Food Pad;ADJ Base;;PP;BL/Black C;FW201;	No	Model Compatibility List	$42.22 / Each	3,4,5,6,12,13,14
713541	1000304951	B17	Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713545	1000304993	C09	Cover;Back Cover;;ABS	No	Model Compatibility List	$38.99 / Each
713547	1000305004	C11	Plastic Cover;Back Cover;;	No	Model Compatibility List	$13.49 / Each	9,4,5,6
713548	1000305030	B38	Plastic Cover;Foot Pad;down;Soft PVC;FW2	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713549	1000305031	B39	Boot;Hang Rod;1;PU;Gray/60461;FW201-KM;	No	Model Compatibility List	$25.32 / Each	3
713552	1000305041	B40	Boot;Hang Rod;2;PU;	No	Model Compatibility List	$30.39 / Each	3
713553	1000305044	B41	Boot;Hang Rod;3;PU;	No	Model Compatibility List	$32.08 / Each	3
713554	1000305047	B45	Boot;Hang Rod;;PU;FW201-KM;	No	Model Compatibility List	$16.87 / Each	3
713556	1000305050	B43	Boot;Hang Rod;;TPU;FW201-KM;	No	Model Compatibility List	$18.56 / Each	3
713557	1000305058	B44	Food Pad;ADJ Axle;down;PP;BL/Black C;FW2	No	Model Compatibility List	$8.42 / Each Out Of Stock	8,4,5,6,12,13,14
713559	1000305097	1	Storage Horn Set;Semi-Assy;;FW201-KM	No	Model Compatibility List	$780.75 / Each	1
713560	1000305099	3	Storage Horn Set;Semi-Assy;left;FW201-K	No	Model Compatibility List	$390.36 / Each	1
713562	1000305125	B16	Boot;Hang Rod;;SBR+NBR;Gray/80435;FW201-	No	Model Compatibility List	$8.42 / Each	3
713563	1000305131	4	Storage Horn Set;Semi-Assy;right;FW201-KM	No	Model Compatibility List	$390.36 / Each	1
713600	1000305427	T08	Food Pad;;;SBR;;FW203-KM	No	Model Compatibility List	$233.19 / Each	12,13,14
713634	1000305966	B15	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713635	1000305968	B25	Plastic Cover;Hang Rod;;HDPE;Gray/80435;	No	Model Compatibility List	$3.35 / Each	9,3
713636	1000305970	B26	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713637	1000305972	B27	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713638	1000305974	B28	End Cap;Hang Rod;;HDPE;Gray/80435;;FW201	No	Model Compatibility List	$3.35 / Each	9,3
713740	1000307173	B48	Plastic Cover;Nut;;;;;;	No	Model Compatibility List	$1.66 / Each
713794	1000308342	Z11	Screw;Hex;Hex Head;M10x1.5Px35L;Machine	No	Model Compatibility List	$1.66 / Each
714760	1000317876	T20	End Cap;;;PP;;Diam.X50.8;;	No	Model Compatibility List	$2.18 / Each	9
715825	1000328538	AC1	base set;;;painting;;Iced Sliver;FW201;	No	Model Compatibility List	$165.59 / Each	3
715836	1000328612	AC1	base set;;;painting;;LaceWhite;FW201;	No	Model Compatibility List	$165.59 / Each	3,4,5,6
715837	1000328613	AC1	base set;;;painting;;BlackGlossy;FW201;	No	Model Compatibility List	$165.59 / Each	3,4,5,6
715838	1000328614	AB1	Frame Tube Set;;F/R;painting;;IcedSliver	No	Model Compatibility List	$310.93 / Each	3
715839	1000328618	AB1	Frame Tube Set;;F/R;painting;;LaceWhite;	No	Model Compatibility List	$310.93 / Each	3,4,5,6
715840	1000328619	AB1	Frame Tube Set;;F/R;painting;;BlackGloss	No	Model Compatibility List	$310.93 / Each	3,4,5,6
715841	1000328620	AB5	Frame Set;;L;painting;;IcedSliver;FW201;	No	Model Compatibility List	$310.93 / Each	3
715842	1000328624	AB5	Frame Set;;L;painting;;LaceWhite;FW201;	No	Model Compatibility List	$310.93 / Each	3,4,5,6
715843	1000328625	AB5	Frame Set;;L;painting;;BlackGlossy;FW201	No	Model Compatibility List	$310.93 / Each	3,4,5,6
715844	1000328626	AG1	CON Tube Set;;;painting;;IcedSliver;FW20	No	Model Compatibility List	$214.60 / Each	3
715845	1000328630	AG1	CON Tube Set;;;painting;;LaceWhite;FW201	No	Model Compatibility List	$214.60 / Each	3,4,5,6
715846	1000328631	AG1	CON Tube Set;;;painting;;BlackGlossy;FW2	No	Model Compatibility List	$214.60 / Each	3,4,5,6
715871	1000328702	2	Pedal Set1;;;PolarizedTitanium;FW203-KM;	No	Model Compatibility List	$792.12 / Each	8,9
719690	1000363913	Not Shown	Back Pad Support Set;Semi-Assy;;REWORK S	No	Model Compatibility List	$664.14 / Each	3,4,5,6,12,13,14
719755	1000365189	Not Shown	Spotter Stand	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
729011	Order Kit	AB8	Pedal Axle	No	Model Compatibility List	$0.00 / Each Out Of Stock
729024	Order Kit 2	AT1	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729261	See Pad Matrix	C10	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
