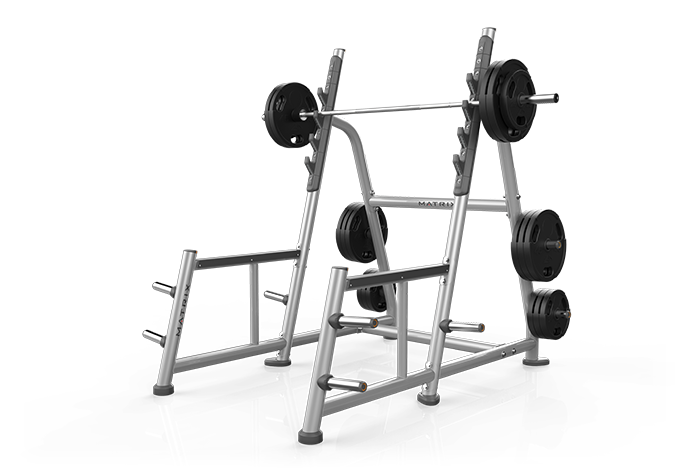

Matrix Commercial - MG-A81-02 - 2013

Repair Parts for Matrix Commercial MG-A81-02 MGFW279

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW279

Model Name: MG-A81-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16507.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713826	1000308444	Z16	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713949	1000309857	Z17	BHSCS 3/8 x 3/4"	No	Model Compatibility List	$3.02 / Each	1
713974	1000310007	B6	Round Leveler	No	Model Compatibility List	$20.05 / Each	3
713975	1000310008	B9	ROUND LEVELER BOOT	No	Model Compatibility List	$5.04 / Each	3
713978	1000310011	K10	Teardrop Boot	No	Model Compatibility List	$6.73 / Each	1
713979	1000310012	K9	Plastic Footpad	No	Model Compatibility List	$6.73 / Each
713980	1000310013	B24	Coped Bumper - Weight Horn	No	Model Compatibility List	$10.11 / Each	3
713981	1000310014	B20	End Cap	No	Model Compatibility List	$5.90 / Each
713991	1000310088	Z13	Washer, Curved, 1/2"	No	Model Compatibility List	$3.02 / Each
713992	1000310089	Z14	SCREW;HH;.500-13 x 4.00;ZN;	No	Model Compatibility List	$5.04 / Each	2
714008	1000310115	Z19	FHSCS 1/4"-20 X 1/2"	No	Model Compatibility List	$1.33 / Each
714120	1000312143	Z18	1/4" x 1/2" BOLT	No	Model Compatibility List	$1.43 / Each	2
714127	1000312161	Z15	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714138	1000312197	B21	TAKE-OFF HOOK	No	Model Compatibility List	$59.12 / Each	1
714139	1000312199	B25	3.2 IN TAKE-OFF HOOK SPACER	No	Model Compatibility List	$18.56 / Each	2,3,4,5,6
714141	1000312203	B22	TAKE-OFF HOOK BOTTOM COVER	No	Model Compatibility List	$25.32 / Each	9
714160	1000312247	K4	End cap - weight horn 2.5lbs	No	Model Compatibility List	$5.04 / Each	9,3
714161	1000312249	K5	End cap - weight horn 5lbs	No	Model Compatibility List	$5.04 / Each	9,3
714162	1000312250	K8	End cap - weight horn 10lbs	No	Model Compatibility List	$5.04 / Each	9,3
714163	1000312253	K7	End cap - weight horn 25lbs	No	Model Compatibility List	$5.04 / Each	9,3
714164	1000312254	K6	End cap - weight horn 45lbs	No	Model Compatibility List	$5.04 / Each	9,3
714297	1000313452	B31	2" TUBING EXTRUSION	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714538	1000315894	V10	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714698	1000317248	AB6	WELDMENT, FRAME BRACE, A81;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714699	1000317249	AB6	WELDMENT, FRAME BRACE, A81;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714700	1000317250	AB6	WELDMENT, FRAME BRACE, A81;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714771	1000318165	1	WEIGHT HORN SET	No	Model Compatibility List	$18.56 / Each	3
714772	1000318166	2	KIT TEARDROP FOOT	No	Model Compatibility List	$33.77 / Each	9,3
717377	1000344562	V10	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
719680	1000363753	V12	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V12	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
719701	1000363994	V31	Decal;Warning;Sled;English	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
719702	1000363997	V31	Decal;Warning;Sled;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
721552	1000384006	V11	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721608	1000384672	AB3	Weldment;Frame Brace;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721609	1000384673	AB3	Weldment;Frame Brace;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721610	1000384674	AB3	Weldment;Frame Brace;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721611	1000384687	AB5	WELDMENT, REAR FRAME, RIGHT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721612	1000384688	AB5	WELDMENT, REAR FRAME, RIGHT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721613	1000384689	AB5	WELDMENT, REAR FRAME, RIGHT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721614	1000384702	AB4	WELDMENT, REAR FRAME, LEFT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721615	1000384703	AB4	WELDMENT, REAR FRAME, LEFT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721616	1000384704	AB4	WELDMENT, REAR FRAME, LEFT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721635	1000384894	AB1	WELDMENT, SIDE FRAME, RIGHT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721636	1000384895	AB1	WELDMENT, SIDE FRAME, RIGHT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721637	1000384896	AB1	WELDMENT, SIDE FRAME, RIGHT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721638	1000384909	AB2	WELDMENT, SIDE FRAME, LEFT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721639	1000384910	AB2	WELDMENT, SIDE FRAME, LEFT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721640	1000384911	AB2	WELDMENT, SIDE FRAME, LEFT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6

View Drawing
