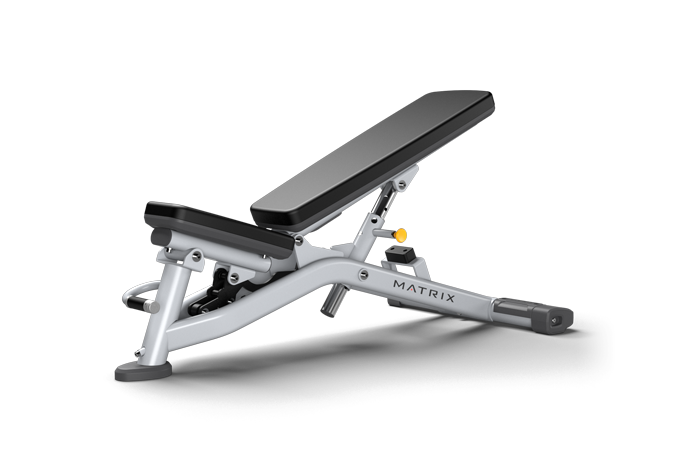

Matrix Commercial - MG-A82 - 2016

Repair Parts for Matrix Commercial MG-A82 FW320

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW320

Model Name: MG-A82

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17047.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701376	004426-00	Z02	Screw;FH;M6X1.0PX12L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
701431	004479-ABX	Z13	Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A	No	Model Compatibility List	$2.00 / Each
701465	004518-00	Z15	Screw;SH;M10X1.5PX75L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each
701670	004703-AF	Z11	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each
701836	004855-AC	Z03	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701901	004929-00	Z05	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
701968	005007-00	Z18	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
702001	005040-AC	Z14	Washer;Flat;f8.5xf19.0x1.5t;;White Zinc;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
702006	005043-7	Z23	Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro	No	Model Compatibility List	$1.66 / Each
702030	005062-00	Z17	Washer;Flat;10.2x19x2.0T;Chromed	No	Model Compatibility List	$1.59 / Each
702098	005130-00	Z12	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702162	005199-B	Z22	Washer;Teflon;13.2x26x1.0T	No	Model Compatibility List	$1.66 / Each	2
702711	009356-B	C46	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704126	020292-00	Z25	Screw;Button Head;M8X1.25PX55L-20L;;Hex	No	Model Compatibility List	$1.85 / Each
704193	020465-AB	Z08	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705270	039654-00	Z09	C-Clip;S-12	No	Model Compatibility List	$2.00 / Each	2
708402	1000102675	H03	Stopper Block;Pull Pin;GM43	No	Model Compatibility List	$7.02 / Each
708446	1000102862	Z04	Screw;Hex Socket;Round;M8x1.25Px30L;Cr P	No	Model Compatibility List	$2.00 / Each
708662	1000104691	Z16	Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP	No	Model Compatibility List	$3.64 / Each
708698	1000104911	Z19	Screw;RND;M12x1.75Px105L;HS;G8.8;CHM;BP	No	Model Compatibility List	$10.14 / Each	2
709078	1000108924	Z01	Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8	No	Model Compatibility List	$9.10 / Each
709081	1000109127	V02	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
711198	1000217438	J23	Handle Pull Pin;;;TPP;Black Orange;;GM59	No	Model Compatibility List	$13.49 / Each
713545	1000304993	C12	Cover;Back Cover;;ABS	No	Model Compatibility List	$38.99 / Each
713548	1000305030	B38	Plastic Cover;Foot Pad;down;Soft PVC;FW2	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713557	1000305058	B44	Food Pad;ADJ Axle;down;PP;BL/Black C;FW2	No	Model Compatibility List	$8.42 / Each Out Of Stock	8,4,5,6,12,13,14
713567	1000305186	C08	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713568	1000305187	C09	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713569	1000305188	C10	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713629	1000305926	C05	Cover Board;Back Cover;;PA746;FW207-KM	No	Model Compatibility List	$16.41 / Each
718551	1000351370	D39	Foam;;;Diam.34x5.0tx85L;Grip;FW320;	No	Model Compatibility List	$5.90 / Each	11
719680	1000363753	V07	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
720322	1000371560	C18	Cap;Elliptical;;TPU;;Diam.50.0xDiam.100.	No	Model Compatibility List	$6.73 / Each
720329	1000371666	B14	Connect Axle;SLIDE;Short;20CrMo;Chrome;F	No	Model Compatibility List	$57.43 / Each	7,8,12,13,14
720331	1000371671	B18	Cushion;;;PU;;;FW320;	No	Model Compatibility List	$70.95 / Each
720333	1000371777	AJ02	ADJ Tube Set;Semi-Assy;;;;FW320;;	No	Model Compatibility List	$280.51 / Each	3
720334	1000371797	Not Shown	Hardware Set;Semi-Assy;;;;FW320;	No	Model Compatibility List	$67.57 / Each	1
720335	1000371801	J10	Swivel Axle;Guide Rail;;20CrMo;Chrome;FW	No	Model Compatibility List	$25.32 / Each	7,8,9,12,13,14
720336	1000371804	B13	Swivel Axle;Guide Rail;;20CrMo;White Zin	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9
720337	1000371806	B12	Swivel Axle;Guide Rail;;20CrMo;White Zin	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9
720338	1000371809	B11	Swivel Axle;;;20CrMo;White Zinc;F20x160L	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
720339	1000371820	H04	Key;Flat;6x6x18;S45C;;	No	Model Compatibility List	$2.18 / Each	9
720340	1000371827	B08	Bushing;Connecting;Inner;POM;;FW320;	No	Model Compatibility List	$6.73 / Each	8
720343	1000371832	G01	Fixing Axle;FIX;Down;20CrMo;White Zinc;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
720344	1000371833	G02	Fixing Axle;FIX;Rear;20CrMo;White Zinc;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
720358	1000371956	Not Shown	Manual;;;English;;FW320	No	Model Compatibility List	$11.80 / Each	1
720359	1000371958	V03	EN LABEL;;;;;;;FW320	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720360	1000371959	V01	Adjustable Indication Decal;	No	Model Compatibility List	$5.90 / Each	7,3
720442	1000372859	B50	Bushing;Fixing Plate;Outer;POM;Black;FW3	No	Model Compatibility List	$6.73 / Each	8,3,4,5,6
720445	1000372882	V06	Bar Code Label;;;;;;;FW320	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720629	1000374356	H02	Pull Pin;Pull pin;;45#;thermal refining;	No	Model Compatibility List	$33.77 / Each	12,13,14
720811	1000376604	Z20	Washer;Arc;Diam.12XDiam.28X4.8t;SS41;Whi	No	Model Compatibility List	$10.11 / Each	2
720821	1000376827	J12	PLASTIC LINER;Seat Adjustment;;PA66;BL/B	No	Model Compatibility List	$5.90 / Each
720833	1000377272	Z24	Shim;Adjust;;ABS;;;FW320;	No	Model Compatibility List	$0.00 / Each Out Of Stock
722135	1000387933	1	Frame set;;;Iced Sliver;FW320;painting;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722136	1000387934	AJ17	Frame Set;;;painting;;Iced Sliver;FW320;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722137	1000387954	AJ05	seat set;;;;FW320;painting;Iced Sliver	No	Model Compatibility List	$72.64 / Each	12,13,14
722138	1000387967	AJ06	Back Pad Fixing Teube Set;;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
722139	1000387990	AJ04	Sliding Sleeve Set;;;;FW320;painting;Ice	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722140	1000388005	AJ08	Adjustment set;;;;FW320;painting;Iced Sl	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
722141	1000388016	AM01	ADJ Plate Set;Incline;;Iced Sliver;FW320	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,10
722142	1000388029	AB1	Stabilizer Welding Set;;;painting;;Iced	No	Model Compatibility List	$104.75 / Each	1
722143	1000388035	AJ03	Fixed chipset;;;;FW320;painting;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
722509	1000393222	B39	Spring;Compression;1.3x12.7x38Lx7;SWP;	No	Model Compatibility List	$1.66 / Each
725263	103403	L05	Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
725805	076692	F14	Nut;Nylock;M12x1.75P;;Chrome;	No	Model Compatibility List	$1.66 / Each
726766	084667	Z08	Screw;SH;M10X1.5PX175L;;HS;;CHM;;	No	Model Compatibility List	$9.10 / Each
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
729261	See Pad Matrix	J13	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713629	1000305926	C05	Console Board Back Cover	No	Model Compatibility List	$13.08 / Each
