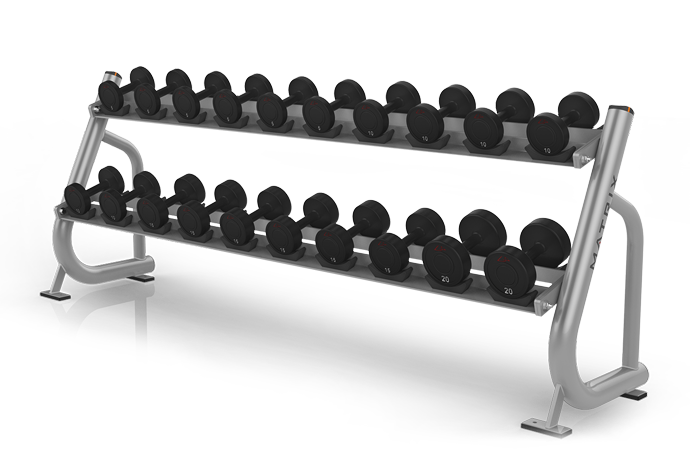

Matrix Commercial - MG-A84-02 - 2013

Repair Parts for Matrix Commercial MG-A84-02 MGFW280

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW280

Model Name: MG-A84-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16509.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

721376	1000382839	AB1	Dumbbell Shelf;Weldment;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721510	1000383555	AB2	WELDMENT, SIDE FRAME, RIGHT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721511	1000383556	AB2	WELDMENT, SIDE FRAME, RIGHT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721512	1000383557	AB2	WELDMENT, SIDE FRAME, RIGHT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721507	1000383540	AB3	WELDMENT, SIDE FRAME, LEFT;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721508	1000383541	AB3	WELDMENT, SIDE FRAME, LEFT;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721509	1000383542	AB3	WELDMENT, SIDE FRAME, LEFT;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
713981	1000310014	B5	End Cap	No	Model Compatibility List	$5.90 / Each
713833	1000308451	B6	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
714538	1000315894	V13	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
717377	1000344562	V13	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
721552	1000384006	V14	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719680	1000363753	V15	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V15	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
714205	1000312386	Z4	DUMBBELL CRADLE	No	Model Compatibility List	$14.59 / Each	1
714235	1000312700	Z7	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
713826	1000308444	Z8	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
714127	1000312161	Z9	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
713814	1000308428	Z10	3/8" NUT	No	Model Compatibility List	$1.43 / Each
714079	1000311963	Z11	Screw;HH;.375-16x1.25;Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock
713984	1000310019	Z12	SCREW;HH;.500-13 x 2.00;ZN;	No	Model Compatibility List	$3.02 / Each

View Drawing
