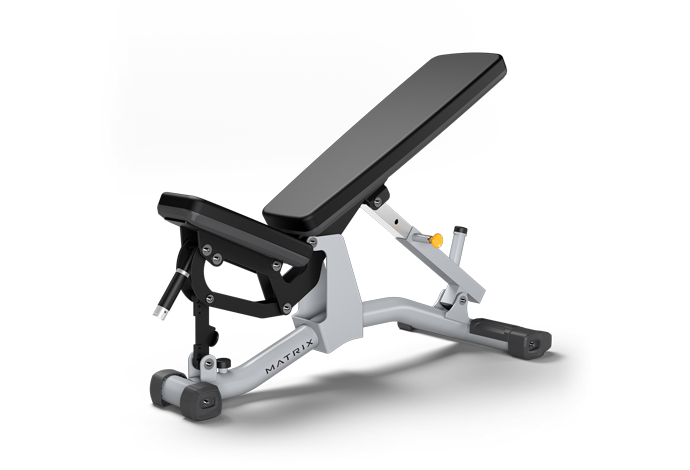

Matrix Commercial - MG-A85-03 - 2014

Repair Parts for Matrix Commercial MG-A85-03 FW210

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW210

Model Name: MG-A85-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16452.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701470	004519-AE	Z14	Screw;Round;Hex Socket;M10x1.5Px80L	No	Model Compatibility List	$4.94 / Each
701668	004702-00	Z01	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701836	004855-AC	Z06	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701901	004929-00	Z04	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
702098	005130-00	Z05	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702117	005144-AC	Z02	Washer;Flat;10.2X35.0X2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
702711	009356-B	C46	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704025	020115-A	Z09	Screw;SH;M10X1.5PX95;;HS;;CHM;;	No	Model Compatibility List	$8.42 / Each	2
704126	020292-00	Z03	Screw;Button Head;M8X1.25PX55L-20L;;Hex	No	Model Compatibility List	$1.85 / Each
704193	020465-AB	Z12	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705423	049130-AA	T16	Cover;Square Tube;50X50 ;GM153	No	Model Compatibility List	$1.66 / Each	9,3
705466	049258-00	Z07	Screw;SH;M10X1.5PX100L;;HS;;CHM;	No	Model Compatibility List	$1.66 / Each	2
707822	1000096014	D24	Bushing;15x19x20T;GM40	No	Model Compatibility List	$4.65 / Each
708730	1000105174	Z11	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
709081	1000109127	V02	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
709287	1000112545	D15	Bushing;;GM10	No	Model Compatibility List	$5.59 / Each
711198	1000217438	J23	Handle Pull Pin;;;TPP;Black Orange;;GM59	No	Model Compatibility List	$13.49 / Each
711233	1000217980	D20	GRIP;-;EPDM;;;GM69;	No	Model Compatibility List	$6.73 / Each
712007	1000224911	V08	WARNING LABEL;FRENCH;SMALL;;;GM01;	No	Model Compatibility List	$3.35 / Each
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each
713545	1000304993	C12	Cover;Back Cover;;ABS	No	Model Compatibility List	$38.99 / Each
713567	1000305186	C08	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713568	1000305187	C09	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713569	1000305188	C10	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713570	1000305197	J07	Axle, Swivel;Swivel;;20#;FW210-KM;Diam.1	No	Model Compatibility List	$20.25 / Each	8
713571	1000305203	J08	Axle, Swivel;Swivel;;20#;FW210-KM;Diam.1	No	Model Compatibility List	$13.49 / Each	8
713572	1000305209	AJ2	Support Set;SEAT PAD;;painting;;Black2;F	No	Model Compatibility List	$123.34 / Each	3,4,5,6,12,13,14
713573	1000305213	J11	Axle, Swivel;Swivel;;20#;FW210-KM	No	Model Compatibility List	$15.18 / Each	8
713618	1000305791	G08	SLEEVE;Support Tube;;20#;FW212	No	Model Compatibility List	$8.42 / Each
713629	1000305926	C14	Cover Board;Back Cover;;PA746;FW207-KM	No	Model Compatibility List	$16.41 / Each
713690	1000306596	7	Support rods;seat;;;FW210-KM;;assmebly	No	Model Compatibility List	$415.71 / Each	3,12,13,14
713691	1000306597	6	Link Set;;;1;FW210-KM;;ASSEMBLY	No	Model Compatibility List	$74.33 / Each	3
713692	1000306598	3	Link Set;;;2;FW210-KM;;assembly	No	Model Compatibility List	$59.12 / Each	3
713693	1000306602	8	Pull Pin Set;;;FW210-KM;assembly	No	Model Compatibility List	$50.67 / Each
713694	1000306604	1	Adjustment set;;;tube;FW210-KM;;assembly	No	Model Compatibility List	$150.38 / Each	3
713696	1000306608	4	Link Set;;;;FW210-KM;;assembly	No	Model Compatibility List	$37.15 / Each	3
713698	1000306613	Z08	Screw;Socket Head;M10X1.5PX150L;;Hex Soc	No	Model Compatibility List	$6.73 / Each
713767	1000307864	V01	Adjustable Indication Decal;;;;;;;FW210-	No	Model Compatibility List	$8.42 / Each	7,3
713794	1000308342	Z13	Screw;Hex;Hex Head;M10x1.5Px35L;Machine	No	Model Compatibility List	$1.66 / Each
715670	1000327701	AC1	Frame Set;;;painting;;Iced Sliver;FW210-	No	Model Compatibility List	$643.86 / Each	3
715671	1000327707	5	Handlebar Set;Semi-Assy;;;;FW210-KM;Iced	No	Model Compatibility List	$50.67 / Each	11
715672	1000327710	AC1	Handlebar Set;Semi-Assy;;;;FW210-KM;;lac	No	Model Compatibility List	$45.60 / Each	4,5,6,11
715673	1000327711	AC1	Handlebar Set;Semi-Assy;;;;FW210-KM;;bla	No	Model Compatibility List	$45.60 / Each	11
715674	1000327719	2	Adjust set;;;;;FW210-KM;Iced Sliver;	No	Model Compatibility List	$113.20 / Each	1
715675	1000327723	2	Adjust set;;;;;FW210-KM;;black Glossy	No	Model Compatibility List	$69.26 / Each	4,5,6
715676	1000327724	2	Adjust set;;;;;FW210-KM;Milk White;	No	Model Compatibility List	$76.02 / Each	1
725263	103403	L05	Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
725389	070791	Z10	SCREW;SH;M10X1.5PX105L;;HS;;CHM;;	No	Model Compatibility List	$6.73 / Each
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
728977	N/A	V03	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729118	Part of Kit 1	AH3	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AH2	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AG2	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AG3	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729172	Part of Kit 5	AH1	Swing Arm Set;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729191	Part of Kit 6	AG1	Vertical Stabilizer Arm;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729194	Part of Kit 7	AJ1	Incline Arm;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J13	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713629	1000305926	C14	Console Board Back Cover	No	Model Compatibility List	$13.08 / Each
