Matrix Commercial - MG-A86-03 - 2014

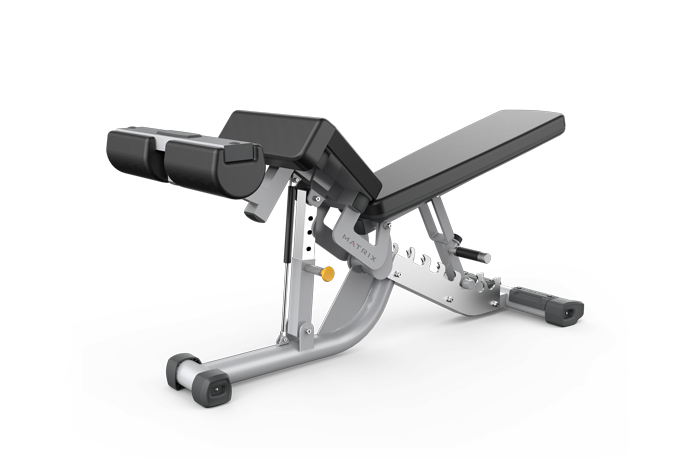

Repair Parts for Matrix Commercial MG-A86-03 FW211

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW211

Model Name: MG-A86-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16513.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701670	004703-AF	Z01	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each
701901	004929-00	Z04	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
702098	005130-00	Z05	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702711	009356-B	D51	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704002	020092-AB	Z02	Screw;Hex Socket;Round;M8x1.25Px35L;Adhe	No	Model Compatibility List	$3.35 / Each
704126	020292-00	Z03	Screw;Button Head;M8X1.25PX55L-20L;;Hex	No	Model Compatibility List	$1.85 / Each
704193	020465-AB	Z08	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705402	049062-BA	T16	END CAP	No	Model Compatibility List	$3.64 / Each
705422	049128-AA	C15	End Cap;Back	No	Model Compatibility List	$1.79 / Each
705467	049258-AB	Z10	Screw;SH;M10X1.5PX100L;;HS;;CHM;	No	Model Compatibility List	$3.35 / Each
707822	1000096014	D24	Bushing;15x19x20T;GM40	No	Model Compatibility List	$4.65 / Each
708402	1000102675	H15	Stopper Block;Pull Pin;GM43	No	Model Compatibility List	$7.02 / Each
708730	1000105174	Z13	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
709008	1000108191	Z07	Screw;RND;M10x1.5Px75L;MT;HS;CST;CHM;BP	No	Model Compatibility List	$9.10 / Each
709081	1000109127	V02	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
709287	1000112545	D15	Bushing;;GM10	No	Model Compatibility List	$5.59 / Each
709480	1000200622	D09	Axle;Pull pin;1;45#;Chrome;GM61;F16x102;	No	Model Compatibility List	$0.00 / Each Out Of Stock
709543	1000201207	D21	Plastic Cover;;ABS;DG;;;GM61;	No	Model Compatibility List	$1.77 / Each
711198	1000217438	J23	Handle Pull Pin;;;TPP;Black Orange;;GM59	No	Model Compatibility List	$13.49 / Each
711233	1000217980	D20	GRIP;-;EPDM;;;GM69;	No	Model Compatibility List	$6.73 / Each
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each
713545	1000304993	C12	Cover;Back Cover;;ABS	No	Model Compatibility List	$38.99 / Each
713550	1000305038	G09	ADJ plate;;;SPHC;CHM;FW211-KM	No	Model Compatibility List	$179.11 / Each
713565	1000305170	Not Shown	hardware set;;;;FW211-KM;	No	Model Compatibility List	$62.50 / Each	1
713566	1000305172	Not Shown	Manual set;Semi-Assy;;FW211-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
713567	1000305186	C08	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713568	1000305187	C09	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713569	1000305188	C10	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713618	1000305791	G08	SLEEVE;Support Tube;;20#;FW212	No	Model Compatibility List	$8.42 / Each
713623	1000305848	C18	Logo Cover;LOGO;;NYLON 6;Gray/75140;FW20	No	Model Compatibility List	$8.42 / Each
713693	1000306602	3	Pull Pin Set;;;FW210-KM;assembly	No	Model Compatibility List	$50.67 / Each
713711	1000306765	J30	SLEEVE;ADJ;;;;FW211-KM;;POM+GF	No	Model Compatibility List	$8.42 / Each
713714	1000306791	C13	Axle;;;45#;FW211-KM	No	Model Compatibility List	$16.87 / Each
713717	1000306863	2	Adjust set;;;FW211-KM	No	Model Compatibility List	$190.94 / Each
713718	1000306864	AJ3	Adjustable Set;;;painting;FW211-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock
713719	1000306990	J50	Air Stick;;18KG;480L;;FW211-KM;	No	Model Compatibility List	$24.83 / Each
713731	1000307084	Z12	Screw;Hex Socket;Socket Head;M10X1.5PX19	No	Model Compatibility List	$13.49 / Each
713768	1000307865	V01	Adjustable Indication Decal;;;;;;;FW211-	No	Model Compatibility List	$3.35 / Each
713794	1000308342	Z14	Screw;Hex;Hex Head;M10x1.5Px35L;Machine	No	Model Compatibility List	$1.66 / Each
714448	1000314781	V30	EN LABEL;;;;;;;FW211;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
715737	1000327875	1	Seat Adjustable Set;;;;;FW211;Iced Slive	No	Model Compatibility List	$47.29 / Each
715738	1000327876	AH1	Seat Adjustable Set;;;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock
715739	1000327885	6	Back pad adjust set;;;;;FW211-KM;Iced Sl	No	Model Compatibility List	$131.79 / Each	4,5,6,12,13,14
715740	1000327886	AH2	Back pad adjust set;;;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
715776	1000328098	AC1	base set;;;painting;;Iced Sliver;FW211-K	No	Model Compatibility List	$376.84 / Each
715778	1000328141	4	Back Pad Support Set;;;;;FW211;Iced Sliv	No	Model Compatibility List	$101.37 / Each	3,4,5,6,12,13,14
715779	1000328142	AJ1	Frame Back PAD Support Set;;;painting;;I	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
715780	1000328155	5	Support Seat Set;;;seat pad;;FW211;Iced	No	Model Compatibility List	$256.85 / Each	3,12,13,14
715781	1000328156	AJ2	Support Seat Set;SEAT PAD;;painting;;Ice	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
717815	1000347755	Not Shown	Manual;Assembly Manual;;English;L type;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717816	1000347757	Not Shown	Manual;Assembly Manual;;English;U type;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717950	1000348932	B41	Fixing Plate;L-Type;D;painting;;Black Ma	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717951	1000348933	B40	Fixing Plate;;D;painting;;Black Matte;FW	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717952	1000348934	B46	Sleeve;LOCATION;D;painting;;Black Matte;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717953	1000348935	B48	Sleeve;LOCATION;D;painting;;Black Matte;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719680	1000363753	V07	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
722509	1000393222	B39	Spring;Compression;1.3x12.7x38Lx7;SWP;	No	Model Compatibility List	$1.66 / Each
725263	103403	L05	Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
725361	070563	Z11	SCREW;SH;M10X1.5PX105L;;HS;SM41;CHM;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
726707	084241	Z06	Screw Set;M6X1.0PX5L;BP;POT	No	Model Compatibility List	$0.39 / Each
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
728615	095639	Z46	Screw;TH;M8x1.25Px35L;-;HS;-;BED;BP;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J40	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
