Replacement Parts for Matrix Commercial MG-MOPT13-04 Rack Options & Components

Matrix Commercial - MG-MOPT13-04 - 2016

Repair Parts for Matrix Commercial MG-MOPT13-04 MGPAS1168

Brand: Matrix Commercial

Category: Rack Options & Components

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGPAS1168

Model Name: MG-MOPT13-04

Version: 2016

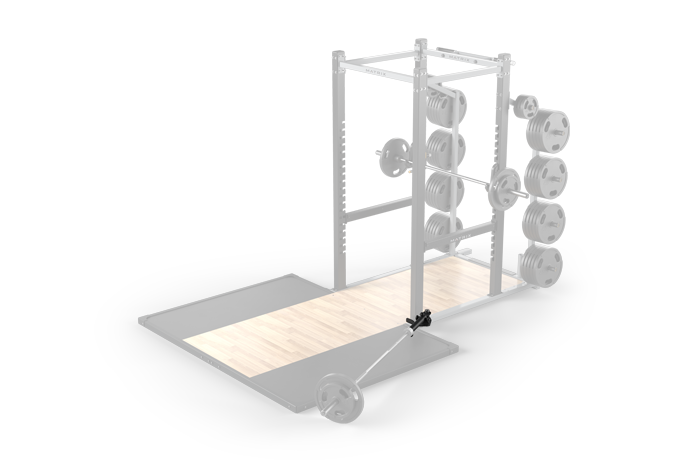

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16577.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

724323	1000418040	AB1	WELDMENT; MOUNTING PLATE	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3
722720	1000398098	AB2	WELDMENT; BAR HOLDER - OPT13	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
713988	1000310085	B4	1"ID x 1 1/4"OD" FLANGED BUSHING	No	Model Compatibility List	$10.92 / Each
714181	1000312308	B5	1" SPLIT COLLAR	No	Model Compatibility List	$16.87 / Each	1
713816	1000308434	B7	1 1/64"ID MACHINE BUSHING	No	Model Compatibility List	$1.43 / Each	8,4,5,6
714176	1000312298	B9	1/2" BRASS BUSHING	No	Model Compatibility List	$5.04 / Each
723166	1000404452	B12	Half Round Rubber Bumper;Hard;	No	Model Compatibility List	$0.00 / Each Out Of Stock
722837	1000398830	B16	2" ROUND END CAP	No	Model Compatibility List	$0.00 / Each Out Of Stock
723084	1000403375	Service Assy	Knuckle Assy;OPT13-04;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
723085	1000403376	Service Assy	WELDMENT; PIVOT KNUCKLE, OPT13	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,3
721552	1000384006	V13	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713842	1000308473	V14	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
713940	1000309847	Z7	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
722836	1000398829	Z10	SCREW;SHLDR;.500 x 4.75L	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
713824	1000308442	Z11	SCREW;SET; .3125-18 X 1.00;SS	No	Model Compatibility List	$1.43 / Each
713950	1000309858	Z12	3/4" FLAT WASHER	No	Model Compatibility List	$1.33 / Each
713814	1000308428	Z15	3/8" NUT	No	Model Compatibility List	$1.43 / Each
