Matrix Commercial - MG-MR47-04 - 2015

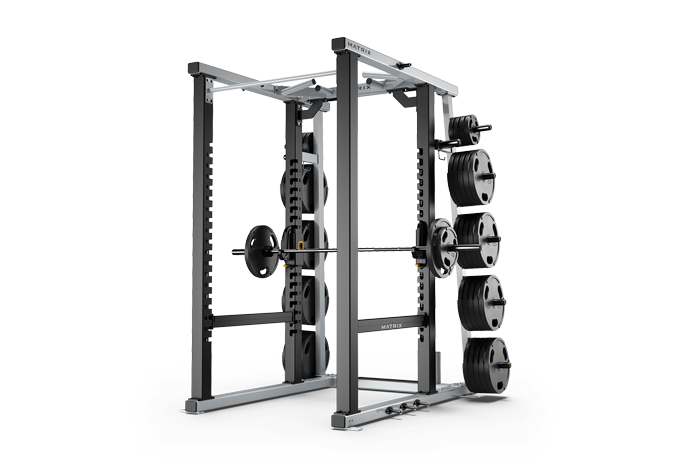

Repair Parts for Matrix Commercial MG-MR47-04 MGPR86,RMGPR86

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-MR47-04

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
W 713807 1000308418 Weight Horn B4 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

Z 713826 1000308444 Z15 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 Weight Horn B2 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

713839 1000308467 Weight Horn B3 End cap - weight horn No Model Compatibility List $5.90 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

W 713950 1000309858 Weight Horn Z9 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

P 713986 1000310083 Pull Up B3 2" ROUND END CAP No Model Compatibility List $5.04 / Each

Z 714008 1000310115 Z31 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

Z 714031 1000310307 Z17 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

714109 1000312099 Z18 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

714124 1000312155 Weight Horn Z7 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714127 1000312161 Z14 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

Z 714235 1000312700 Z16 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

714538 1000315894 V20 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

716826 1000339764 AB9 Weldment;Pull Up Bar;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716827 1000339765 AB9 Weldment;Pull Up Bar;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716828 1000339766 AB9 Weldment;Pull Up Bar;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717377 1000344562 V20 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717444 1000345210 B27 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717930 1000348678 B30 1/4" ABS Guard No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717949 1000348824 Pull Up AB1A Weldment;Pull Up Bar No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718520 1000351185 Pull Up Bar Set Pull Up Bar Set;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718521 1000351186 Pull Up Bar Set Pull Up Bar Set;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718522 1000351187 Pull Up Bar Set Pull Up Bar Set;L No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock

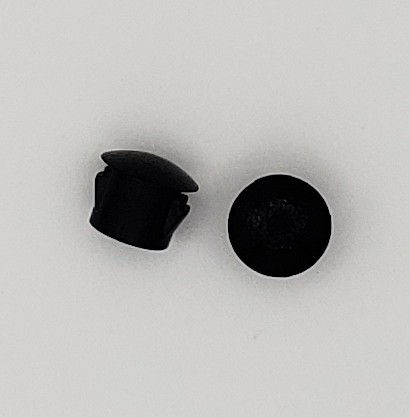

718939 1000354629 B29 5/16" HOLE PLUG; NYLON No Model Compatibility List $0.00 / Each
Out Of Stock
719680 1000363753 V22 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V22 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
719701 1000363994 V21 Decal;Warning;Sled;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719702 1000363997 V21 Decal;Warning;Sled;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719762 1000365231 W Horn AB1 L Rear Right Plate WLDMT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719763 1000365232 W Horn AB1 R Rear Right Plate WLDMT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719770 1000365316 Weight Horn B8 JM Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720107 1000368611 AB11 Weldment;MR Corner Bracket;Black Ridge No Model Compatibility List $163.90 / Each

2,3,4,5,6
720109 1000368620 W Horn R Set Weight Storage;Reversed;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720110 1000368621 W Horn R Set Weight Storage;Reversed;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720111 1000368622 W Horn R Set Weight Storage;Reversed;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720112 1000368634 W Horn L Set Weight Storage;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720113 1000368635 W Horn L Set Weight Storage;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720114 1000368636 W Horn L Set Weight Storage;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720233 1000369528 AB7 WELDMENT, LH FRONT POST;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
720975 1000378942 AB8 WELDMENT, RH FRONT POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721172 1000381186 AB1 Base Connector Assy;MR47-04;Iced Silver No Model Compatibility List $900.74 / Each

3
721173 1000381187 AB1 Base Connector Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721174 1000381188 AB1 Base Connector Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721186 1000381201 AB2 Base Assy;MR47-04;Iced Silver No Model Compatibility List $1274.23 / Each

3
721187 1000381202 AB2 Base Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721188 1000381203 AB2 Base Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721200 1000381216 AB3 Base Assy;MR47-04;Iced Silver No Model Compatibility List $1274.23 / Each

3
721201 1000381217 AB3 Base Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721202 1000381218 AB3 Base Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721214 1000381230 B26 Band Holder;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721552 1000384006 B28 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
721826 1000385734 Not Shown Hardware Kit;Complete;MR47-04; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722170 1000388459 B23 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
722274 1000390401 B32 Band Peg Attachment;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722749 1000398358 AB4 Top Assy;MR47;Iced Silver No Model Compatibility List $741.88 / Each

1
722750 1000398359 AB4 Top Assy;MR47;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722751 1000398360 AB4 Top Assy;MR47;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722763 1000398373 AB5 Top Assy;MR47;Iced Silver No Model Compatibility List $741.88 / Each

1
722764 1000398374 AB5 Top Assy;MR47;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722765 1000398375 AB5 Top Assy;MR47;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724745 1000426423 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
