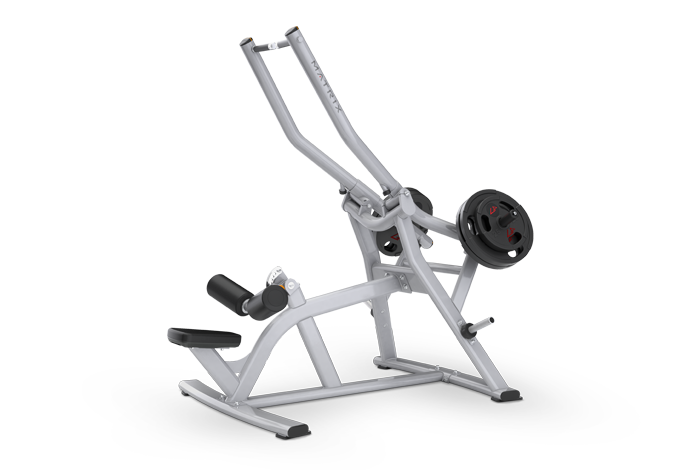

Matrix Commercial - MG-PL33 - 2014

Repair Parts for Matrix Commercial MG-PL33 PL08

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL33

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
H 700122 000454-H H22 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

1
C 700519 001523-E C14 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

1
D 701159 004077-A2 D18 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

1
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

1
Z 701436 004482-AB Z14 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

1
Z 701522 004555-AB Z01 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

1
D 701836 004855-AC D10 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

1
701968 005007-00 Z09 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

1
Z 701981 005017-00 Z03 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

1
B 702014 005048-AC B31 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

1
Z 702098 005130-00 Z13 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

1
Z 702102 005132-00 Z08 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

1
D 702530 008522-C D12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

1
Z 702531 008523-B Z04 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

1
C 702536 008546-F C13 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

1
H 702671 009289-F H07 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

1
D 702711 009356-B D16 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
D 702721 009371-E D17 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

1
C 704001 020090-00 C15 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

1
D 704034 020123-AC D22 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

1
Z 704189 020459-00 Z12 Washer;Flat;10.2X28.5X3.0T No Model Compatibility List $1.85 / Each

1
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

1
705031 031751-J H20 Axle;Pin;Market;GM09 No Model Compatibility List $13.42 / Each

1
B 706373 061531-AA B26 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

1
V 707078 1000090043 V14 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
B 707084 1000090177 B60 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

1
H 707798 1000095593 H14 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

1
H 707799 1000095594 H15 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

1
Z 707946 1000097206 Z11 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

1
Z 708453 1000102869 Z07 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

1
D 708459 1000102875 D40 Screw;Hex Socket;BH;M10x1.5Px25L;Cr Plat No Model Compatibility List $3.35 / Each

1
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

1
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

1
Z 708654 1000104681 Z19 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

1
B 708658 1000104685 B23 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Z 709078 1000108924 Z05 Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $9.10 / Each

1
V 709081 1000109127 V05 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

1
D 709809 1000203426 D20 BLOCK;ARM TUBE;;;PAINTING;;;;;PL08KM-G3; No Model Compatibility List $91.23 / Each

1
D 710215 1000207633 D15 Swivel Axle;20cm;PL01 No Model Compatibility List $76.96 / Each

1
D 713585 1000305258 D11 End Cap;;;ABS 746;Diam.76.2;FW202-KM No Model Compatibility List $3.64 / Each

1
C 713593 1000305377 C07 Cover;Back Cover;;PA746;FW203-KM No Model Compatibility List $11.80 / Each

1
V 713703 1000306714 V04 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
Z 713794 1000308342 Z15 Screw;Hex;Hex Head;M10x1.5Px35L;Machine No Model Compatibility List $1.66 / Each

1
717511 1000345659 C16 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

1
N 717860 1000348046 Not Shown Hardware Set;Semi-Assy;;;;PL08BKM-G3;; No Model Compatibility List $94.61 / Each

1
V 718324 1000350544 V02 Instructional Labe;;;;PC;;;PL08B No Model Compatibility List $15.18 / Each

1
V 718782 1000353466 V10 Adjustable Indication Decal;Leg Pad Adju No Model Compatibility List $2.18 / Each

1
H 719252 1000358938 H21 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

1
719367 1000360712 1 Frame Set;Semi-Assy;;;;PL08BKM-G3;Iced S No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719368 1000360718 AC1 User frame set;Semi-Assy;;;;PL08BKM-G3;I No Model Compatibility List $0.00 / Each
Out Of Stock 		1
4 719369 1000360731 4 Stabilizer set;Semi-Assy;;Iced Sliver;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
5 719370 1000360737 5 Adjust set;Semi-Assy;;;;PL08BKM-G3;Iced No Model Compatibility List $15.18 / Each

1
719371 1000360743 6 Pedal Arm set;Semi-Assy;left;;;PL08BKM-G No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719372 1000360750 7 Pedal Arm set;Semi-Assy;right;;Iced Sliv No Model Compatibility List $316.00 / Each

1
719513 1000362248 D30 Stopper Block;;;SBR;BL/Black C;;PL08B-KM No Model Compatibility List $6.73 / Each

1
H 725014 100995 H10 Stopper Ring;Leg Pad;ABS;GM42 No Model Compatibility List $2.83 / Each

1
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

1
Stopper;Pad;PL01 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $17.55 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

1
Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

1
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

1
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
Foam;Grip;24.0x5;PL08 728689 095995 D08 Foam;Grip;24.0x5;PL08 No Model Compatibility List $11.31 / Each

1
728690 095997 Not Shown Manual;Assembly Guide;PL08 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

1
Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

1
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729032 Order Kit 7 AD3 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
