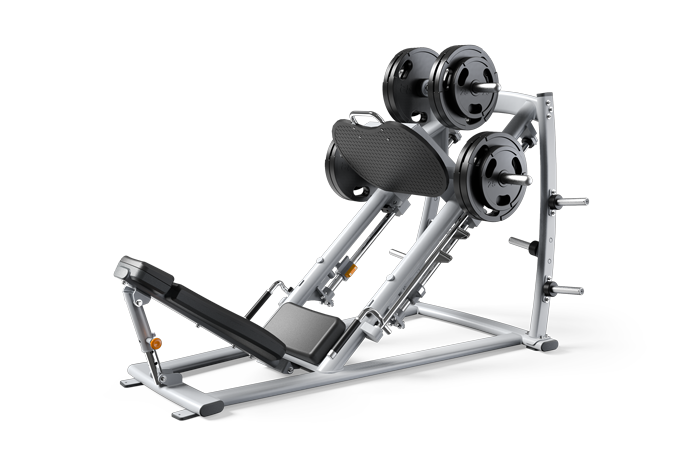

Matrix Commercial - MG-PL70 - 2014

Repair Parts for Matrix Commercial MG-PL70 PL04

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL70

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
E 700195 000615-D E07 Foam;Elastomer;24x5.0tx185L No Model Compatibility List $15.81 / Each

1
G 700309 000926-AA G09 Cap;Tube;BL;FW91 No Model Compatibility List $1.66 / Each

9,3
700436 001381-B P20 Foot Pad;Rubber No Model Compatibility List $127.66 / Each

9,3,12,13,14
Z 701465 004518-00 Z16 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

E 701496 004535-AC E19 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
B 701505 004539-AD B19 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

Z 701520 004553-AB Z19 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

701551 004579-AB P26 Screw;Sink Hex Socket;M8x1.25Px25L;Cr Pl No Model Compatibility List $1.79 / Each

2
B 701633 004654-00 B20 SCREW;RND;Diam.4X15L;SM;PH;;BZN;;POT No Model Compatibility List $3.69 / Each

2
E 701836 004855-AC E08 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

P 701898 004926-AC P37 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

701968 005007-00 Z15 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Z 702102 005132-00 Z14 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
P 702119 005145-AC P34 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

Z 702531 008523-B Z12 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

E 702711 009356-B E10 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

E 702721 009371-E E05 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

C 703464 014788-E C21 Metal Pin; Pull Pin Yes Model Compatibility List $36.48 / Each

3,12,13,14
P 703806 017469-G P35 Grip;Pedal;Rod;25X538.9L;GM10 No Model Compatibility List $56.58 / Each

8,9,3,11
P 704002 020092-AB P33 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $3.35 / Each

Z 704007 020098-AD Z10 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
Z 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

G 704193 020465-AB G12 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

C 705562 050468-A C20 Bushing;Brass No Model Compatibility List $3.64 / Each

8
C 706373 061531-AA C16 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
H 706489 062738-A H07 Screw;Oval;M6x10L;-;HS;-;BED;-;-; No Model Compatibility List $1.66 / Each

2
H 706555 063446-A H09 Screw;SH;M6x1.0Px20L;-;HS;-;-;-;-; No Model Compatibility List $1.85 / Each

2
B 707073 1000090024 B27 Screw;PH;M10X1.5PX30L;;;;;;SP No Model Compatibility List $8.42 / Each

2
V 707078 1000090043 V10 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
J 707084 1000090177 J09 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
E 707338 1000092152 E12 Copper Sleeve, Grip Upper No Model Compatibility List $42.38 / Each

3,11
Z 707339 1000092154 Z07 Mandrel;Back Pad;PL04KM-G3 No Model Compatibility List $13.99 / Each

4,5,6,12,13,14
V 707403 1000092545 V100 Sticker;Weight ;PL04KM-G3 No Model Compatibility List $3.35 / Each

3
J 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $65.42 / Each

707440 1000092670 J29 Plastic Cover;Head pad;GM40 No Model Compatibility List $19.79 / Each

707449 1000092784 B28 Fixing Sleeve;GuideRode;Rubber;GM49 No Model Compatibility List $2.96 / Each

D 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

708037 1000098086 J22 Spring Pin;;Diam.4x20;;; No Model Compatibility List $2.18 / Each

2,12,13,14
Z 708452 1000102868 Z21 Screw;RND;M10x120L-32L;-;HS;-;CHM;BP;G12 No Model Compatibility List $6.73 / Each

2
708471 004573-AE G11 / Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; No Model Compatibility List $2.18 / Each

2
E 708486 1000102912 E20 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

Z 708662 1000104691 Z22 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

Z 708671 1000104701 Z13 Screw;RND;M12x1.75Px35L;-;HS;-;CHM;BP;G1 No Model Compatibility List $2.18 / Each

2
Z 708730 1000105174 Z11 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

V 709081 1000109127 V05 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

709206 1000111093 J04 Sleeve;Adj Tube;GM55-KM No Model Compatibility List $5.15 / Each

P 709717 1000202350 P38 SNAP RING;EXTERNAL; No Model Compatibility List $2.18 / Each

2
V 712007 1000224911 V13 WARNING LABEL;FRENCH;SMALL;;;GM01; No Model Compatibility List $3.35 / Each

J 713573 1000305213 J16 Axle, Swivel;Swivel;;20#;FW210-KM No Model Compatibility List $15.18 / Each

8
V 713703 1000306714 V31 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
H 713912 1000309527 H04 Handlebar;Adjust;;PC;Pantone :137C;;PL21 No Model Compatibility List $5.90 / Each

11
715521 1000324927 Not Shown Insert;Assembly;;English;Torque;GM01 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
V 715802 1000328439 V11 Decal;Weight;10lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
V 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
H 717470 1000345362 H06 Protect Sleeve;Stopper;;POM;;Black 6C;PL No Model Compatibility List $3.35 / Each

3,4,5,6
J 717495 1000345567 J17 ADJ Rod;;;;;PL211; No Model Compatibility List $13.49 / Each

3
J 717502 1000345602 J08 SLEEVE;Swivel;;20#;Chrome;PL211;Diam.15x No Model Compatibility List $10.11 / Each

7,3,12,13,14
B 717510 1000345658 B29 Cushion;Elevation;;NBR;;Black 6C;PL212; No Model Compatibility List $7.25 / Each

3,4,5,6,10
717511 1000345659 C11 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

B 717865 1000348105 B18 Stopper Block;;;ABS;BL/Black C;;PL04B; No Model Compatibility List $8.42 / Each

4,5,6
717867 1000348139 4 ROLLER 18" No Model Compatibility List $395.43 / Each

8
P 717868 1000348141 P22 Axle, central;Hanging Rod;Up;45#;Hard Cr No Model Compatibility List $302.48 / Each

8,3
P 717869 1000348142 P23 Axle, central;Hanging Rod;Down;45#;Hard No Model Compatibility List $463.03 / Each

8,3
V 717870 1000348143 V01 Adjustable Indication Decal;;;;;;;PL04B No Model Compatibility List $2.18 / Each

7,3
717875 1000348181 Not Shown Manual;Assembly;;;;PL04B No Model Compatibility List $0.00 / Each
Out Of Stock 		3
N 717876 1000348184 Not Shown Hardware Set;Semi-Assy;;;;PL04B; No Model Compatibility List $153.76 / Each

1
V 717877 1000348189 V02 Marking;EN 957;;;PETP;;;PL04B No Model Compatibility List $1.66 / Each

1
P 717947 1000348772 P14 Stopper Pad;Limit;;NBR;BL/Black C;;;PL04 No Model Compatibility List $11.80 / Each

4,5,6,12,13,14
A 718188 1000349465 AG1 Side Frame;;L;painting;;Iced Sliver;PL04 No Model Compatibility List $557.67 / Each

3
A 718189 1000349466 AG2 Side Frame;;R;painting;;Iced Sliver;PL04 No Model Compatibility List $557.67 / Each

3

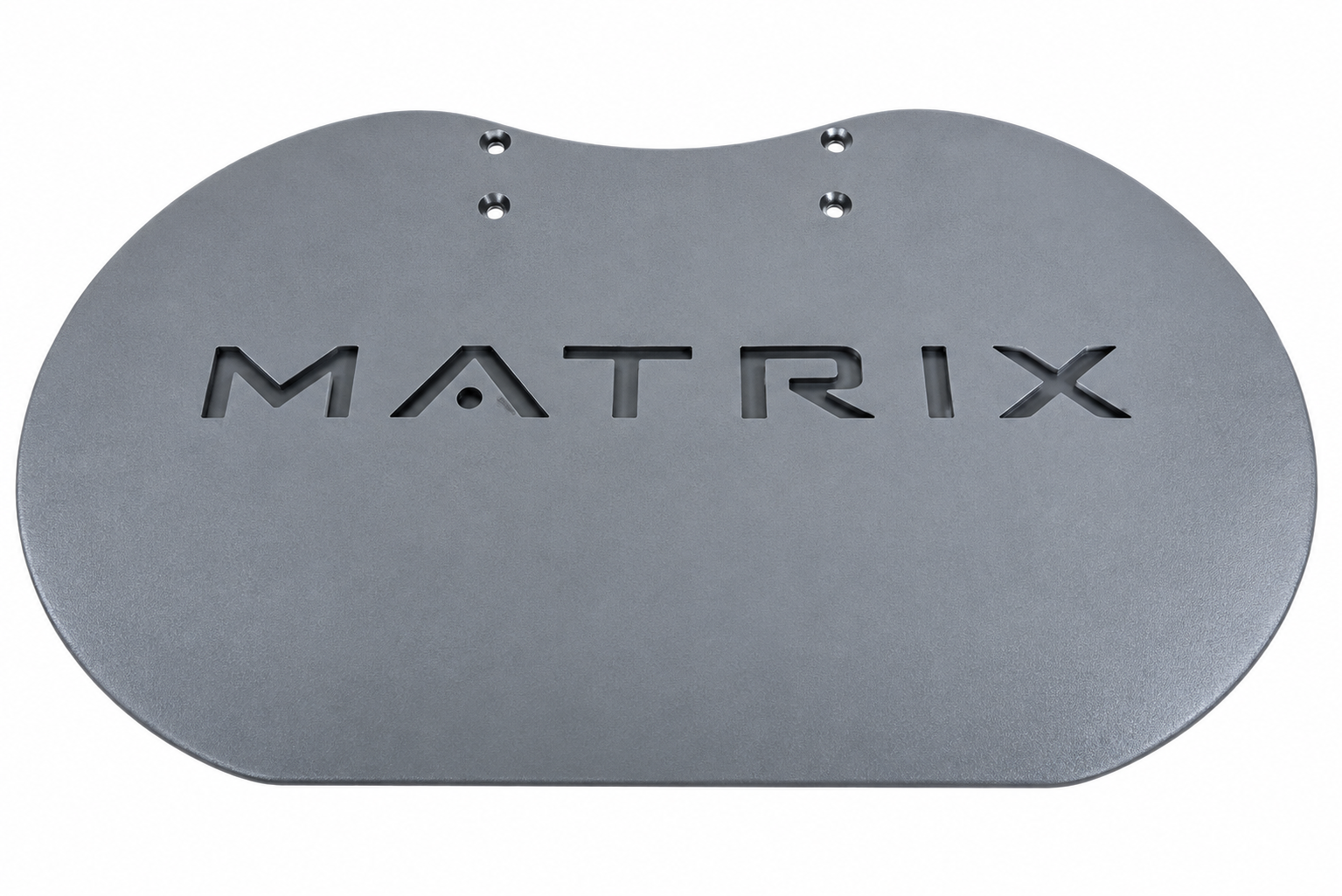

718192 1000349469 AP2 PEDAL;;;painting;;Iced Sliver;PL04KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
P 718423 1000350849 P21 Stopper Plate;Foot Pedal;L;SPHC;;CHM;PL0 No Model Compatibility List $48.98 / Each

8,9,3
P 718424 1000350850 P24 Stopper Plate;Foot Pedal;Rt;SPHC;;CHM;PL No Model Compatibility List $48.98 / Each

8,9,3
R 718425 1000350852 R60 Snap Ring;Internal C-Shaped;R-60;65MN;Bl No Model Compatibility List $1.66 / Each

2
V 718426 1000350863 V14 Instructional Labe;;;;;;;PL04B No Model Compatibility List $15.18 / Each

1
H 718546 1000351304 H08 Stopper Block;;down;NBR;BL/Black C;;PL04 No Model Compatibility List $3.35 / Each

4,5,6
E 718552 1000351381 E18 Stopper Ring;;;20#;White Zinc;PL04B;; No Model Compatibility List $16.87 / Each

1
J 718622 1000352277 J21 Stopper Pin;;;20CrMo;;PL210-KM;Diam.8x46 No Model Compatibility List $11.80 / Each

12,13,14
A 719308 1000359485 AG5 Connect Base Set;;;Painting;;Iced Sliver No Model Compatibility List $67.57 / Each

3
719340 1000360002 1 Frame set;;;Iced Sliver;PL04B;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719341 1000360008 2 Base Set;;;Iced Sliver;PL04B;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
3 719342 1000360014 3 Adjustment set;;;Iced Sliver;PL04B;; No Model Compatibility List $15.18 / Each

1
5 719343 1000360020 5 Adjustment Tube Set;;left down;Iced Sliv No Model Compatibility List $33.77 / Each

3
6 719344 1000360026 6 Adjustment Tube Set;;right down;Iced Sli No Model Compatibility List $33.77 / Each

3
719345 1000360032 AJ1 Back Pad Fixing Teube Set;;;Iced Sliver; No Model Compatibility List $90.97 / Each

4,5,6,12,13,14
719346 1000360038 AP1 Pedal Set;;;Iced Sliver;PL04B;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
7 719355 1000360161 7 Handle Set;;left;;PL04B;; No Model Compatibility List $490.07 / Each

11
8 719356 1000360162 8 Handle Set;;right;;PL04B;; No Model Compatibility List $490.07 / Each

11
P 722286 1000390624 P29 Bearing;Linear;LUCD 40 D-2LS;Diam.40;SKF No Model Compatibility List $611.75 / Each

8
Screw;SH;M10X1.5PX105L;;HS;;CHM;; 725410 070969 Z07 Screw;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $31.30 / Each

726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

Axle;40x1283;SKF;GCR15;Market;PL04 728233 093707 B22 Axle;40x1283;SKF;GCR15;Market;PL04 No Model Compatibility List $1232.82 / Each

Rubber Pad;PU;Black;PL04 728234 093708 B23 Rubber Pad;PU;Black;PL04 No Model Compatibility List $15.31 / Each

Bearing Base;LSCS40-SKF;Market;PL04 728235 093709 B24 Bearing Base;LSCS40-SKF;Market;PL04 No Model Compatibility List $263.54 / Each

Storage SetExrta-Work;Cr;PL04 728237 093743 AG3 Storage SetExrta-Work;Cr;PL04 No Model Compatibility List $121.08 / Each

Rubber Ring;Peadl;Black;PL04 728247 093777 P19 Rubber Ring;Peadl;Black;PL04 No Model Compatibility List $30.34 / Each

Rubber Ring;PU;Black;PL04 728403 094567 G10 Rubber Ring;PU;Black;PL04 No Model Compatibility List $21.09 / Each

Gasker;36x3t;SPHC;PL04 728422 094731 E13 Gasker;36x3t;SPHC;PL04 No Model Compatibility List $1.66 / Each

Bushing, CU MS,PL04 728423 094732 E14 Bushing, CU MS,PL04 No Model Compatibility List $8.42 / Each

729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AH03 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729032 Order Kit 7 Q01 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock 		9,10
729033 Order Kit 8 AG2 Arm Rest set;;RD;painting;;;EP580-2KM;DM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J06 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
