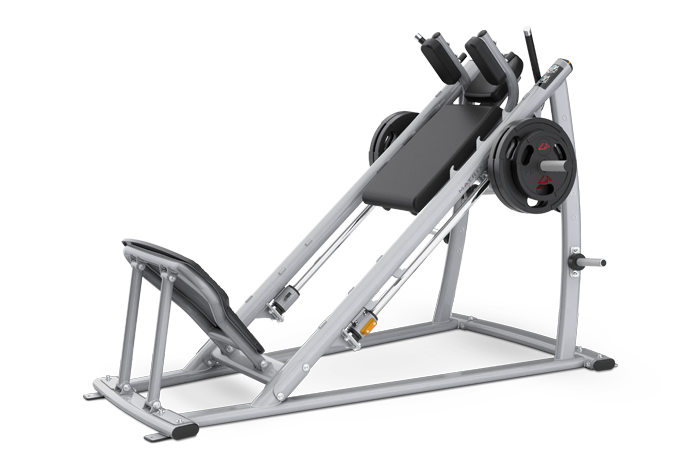

Matrix Commercial - MG-PL71 - 2014

Repair Parts for Matrix Commercial MG-PL71 PL212

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PL212

Model Name: MG-PL71

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17070.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700192	000610-A	E02	Foam Grip;25.4x5.0t x 215L	No	Model Compatibility List	$11.36 / Each	11
700448	001402-A	Q05	End Cap;Round	No	Model Compatibility List	$1.79 / Each	9
701427	004476-Z	Z12	BOLT SH M8X16	No	Model Compatibility List	$1.66 / Each
701657	004694-AC	Z13	Screw;Hex Socket;Flat;M8x1.25Px10L	No	Model Compatibility List	$1.66 / Each	2
701836	004855-AC	Z02	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
702026	005058-AB	Z14	Washer;Flat;12x26x2T;Chromed	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
702142	005173-A	Z07	WASHER;ARC;Diam.10.5XDiam.20.0X2.0T;;;	No	Model Compatibility List	$1.01 / Each	2
702232	005357-00	M09	C-Clip;Internal;R-62	No	Model Compatibility List	$3.35 / Each
702711	009356-B	C46	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704193	020465-AB	Z06	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
706373	061531-AA	C08	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
706489	062738-A	Z04	Screw;Oval;M6x10L;-;HS;-;BED;-;-;	No	Model Compatibility List	$1.66 / Each	2
707078	1000090043	V08	Sticker ;Storage;PL02	No	Model Compatibility List	$1.66 / Each	1
707449	1000092784	B13	Fixing Sleeve;GuideRode;Rubber;GM49	No	Model Compatibility List	$2.96 / Each

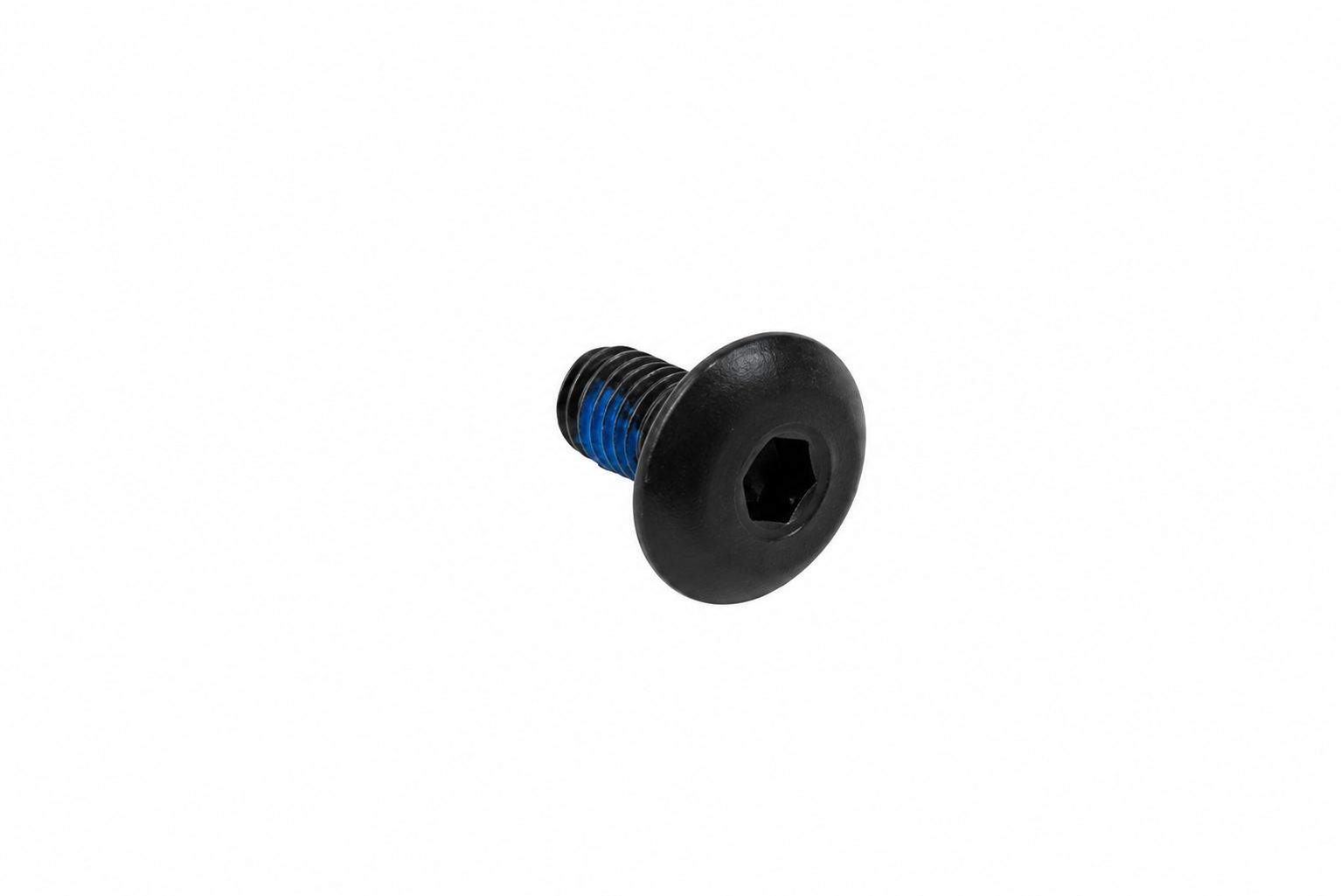

707539	1000093311	Z01	SCREW;TH;M8X1.25PX15L;;HS;G8.8;;;BP	No	Model Compatibility List	$1.85 / Each	2
708048	1000098549	D33	Bushing;30x25x20mm;GM44	No	Model Compatibility List	$10.82 / Each	8
708446	1000102862	Z03	Screw;Hex Socket;Round;M8x1.25Px30L;Cr P	No	Model Compatibility List	$2.00 / Each
708451	1000102867	Z05	Screw;Hex Socket;Round;M10x1.5Px100L;Cr	No	Model Compatibility List	$12.95 / Each	2

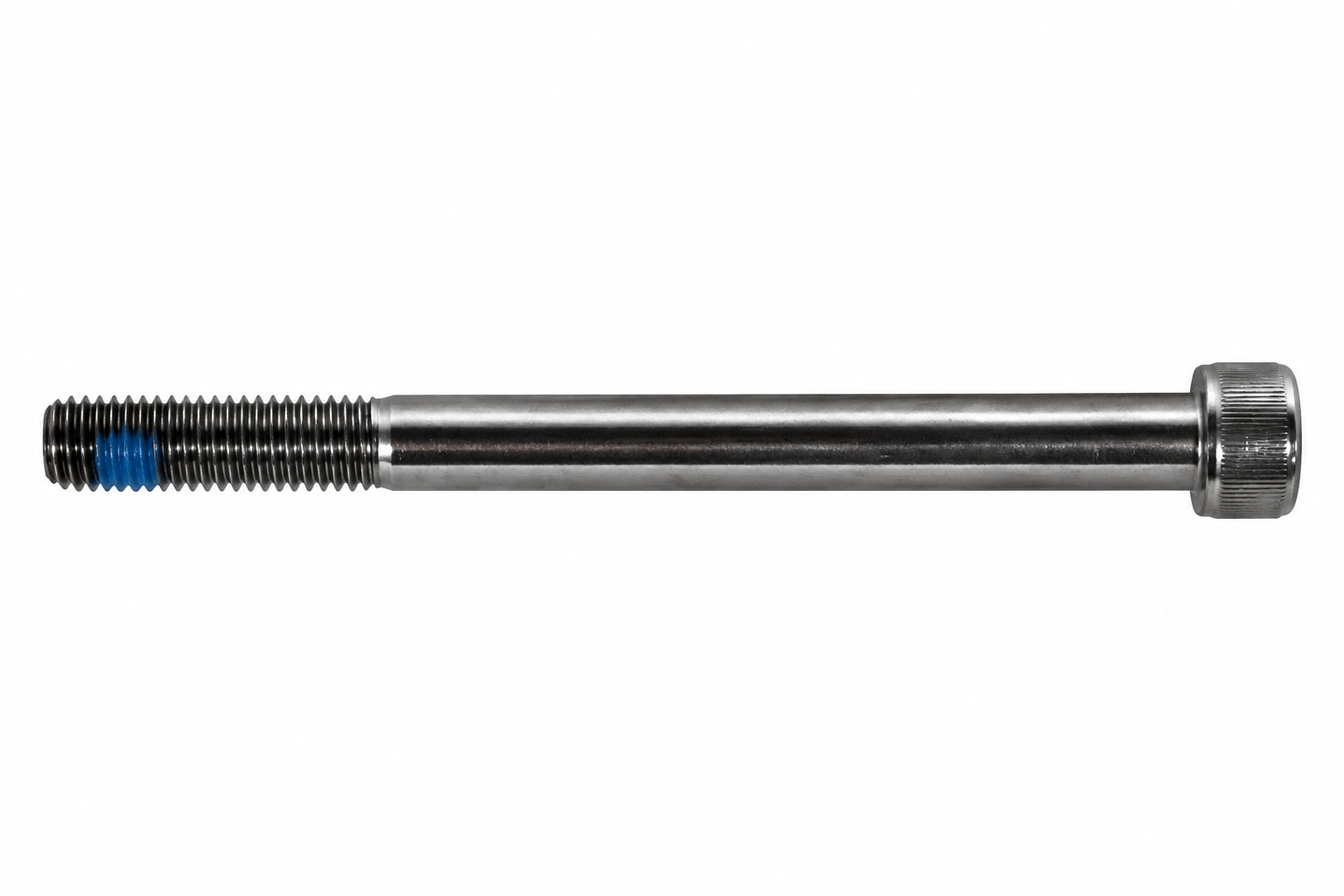

708452	1000102868	Z19	Screw;RND;M10x120L-32L;-;HS;-;CHM;BP;G12	No	Model Compatibility List	$6.73 / Each	2
708662	1000104691	Z09	Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP	No	Model Compatibility List	$3.64 / Each
708666	1000104695	Z18	Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP	No	Model Compatibility List	$2.57 / Each
708671	1000104701	Z16	Screw;RND;M12x1.75Px35L;-;HS;-;CHM;BP;G1	No	Model Compatibility List	$2.18 / Each	2
708691	1000104733	Z21	Screw;HH;M12x40L;-;HE;-;CHM;-;G8.8;	No	Model Compatibility List	$5.90 / Each	2
708730	1000105174	Z08	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
708743	1000105261	Z15	Nut;Nylon;M12x1.75P;G12.9;CHM	No	Model Compatibility List	$1.38 / Each	2
709081	1000109127	V11	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
713028	1000232600	V10	Warning Label;-;-;-;PC;-;-	No	Model Compatibility List	$7.28 / Each	1
713600	1000305427	P08	Food Pad;;;SBR;;FW203-KM	No	Model Compatibility List	$233.19 / Each	12,13,14
713912	1000309527	H02	Handlebar;Adjust;;PC;Pantone :137C;;PL21	No	Model Compatibility List	$5.90 / Each	11
715803	1000328440	V12	Decal;Weight;25lbs;;;;;FW13B-KM	No	Model Compatibility List	$3.02 / Each	7,3
717469	1000345355	J16	Seat Pad;;PU;Black;;PL212;	No	Model Compatibility List	$354.87 / Each	4,5,6,12,13,14
717470	1000345362	H06	Protect Sleeve;Stopper;;POM;;Black 6C;PL	No	Model Compatibility List	$3.35 / Each	3,4,5,6
717472	1000345378	E03	Spring;Recoil (constant force);Diam.3.5;	No	Model Compatibility List	$5.90 / Each	2
717475	1000345388	E04	Spring;Recoil (constant force);Diam.3.5;	No	Model Compatibility List	$6.73 / Each	2
717476	1000345391	Not Shown	Hardware Set;Semi-Assy;;;;PL212;	No	Model Compatibility List	$253.47 / Each	1
717477	1000345399	Not Shown	Manual;Assembly;;English;;PL212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717478	1000345402	V07	EN LABEL;;70x42;;PETP;;;PL212	No	Model Compatibility List	$1.66 / Each	1
717507	1000345628	B16	Axle, central;;;15Cr;;PL212;Diam.40x1333	No	Model Compatibility List	$976.79 / Each	8
717508	1000345647	M06	Stopper Block;;;NBR;BL:Y10;Black 6C;PL21	No	Model Compatibility List	$28.70 / Each	4,5,6
717509	1000345652	V06	Instructional Labe;;;;;;;PL212	No	Model Compatibility List	$15.18 / Each	1
717510	1000345658	M10	Cushion;Elevation;;NBR;;Black 6C;PL212;	No	Model Compatibility List	$7.25 / Each	3,4,5,6,10
717511	1000345659	C02	Cap;Elliptical;;TPU;BL/Black C;Diam.50.0	No	Model Compatibility List	$15.18 / Each
717514	1000345684	E07	Stopper Ring;Grip;;20#;White Zinc;PL212;	No	Model Compatibility List	$11.80 / Each
717814	1000347751	AB5	Weight Storage Horn-Extrawork;;;Cr Plat	No	Model Compatibility List	$133.48 / Each	3
717911	1000348611	B21	End Cap;;;;BL/Black C;Diam.89;PL212;PP+T	No	Model Compatibility List	$6.73 / Each	9,4,5,6
718298	1000350306	H05	Bearing;Linear;LM40UU;Diam.40;;PL212	No	Model Compatibility List	$92.92 / Each	8
718425	1000350852	R60	Snap Ring;Internal C-Shaped;R-60;65MN;Bl	No	Model Compatibility List	$1.66 / Each	2
718648	1000352543	V13	Decal;Weight;105 LBS;;;;;Staring Resista	No	Model Compatibility List	$3.35 / Each	7,3
719251	1000358936	J15	Cap;Hang Rod;;PA6/TPE;BL/Black C;;PL212;	No	Model Compatibility List	$5.90 / Each	9,3,4,5,6
719303	1000359455	AC1	base set;;F;Painting;;Iced Sliver;PL212;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719304	1000359461	AC2	base set;;Rear;Painting;;Iced Sliver;PL2	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719305	1000359467	AB1	Connecting Set;;Rear;Painting;;Iced Sliv	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719306	1000359473	AG1	Connecting Set;;F;Painting;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719307	1000359479	AB4	Support Set;Frame;R;Painting;;Iced Slive	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719308	1000359485	AG2	Connect Base Set;;;Painting;;Iced Sliver	No	Model Compatibility List	$67.57 / Each	3
719309	1000359515	G02	block;;;Painting;;Iced Sliver;PL212;	No	Model Compatibility List	$32.08 / Each	1
719310	1000359521	AP1	Pedal Set;;;Painting;;Iced Sliver;PL212;	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9
719311	1000359527	AG3	Disassembly connect set;;;Painting;;Iced	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719312	1000359533	1	Adjust Grip Set;;;Iced Sliver;PL212;;	No	Model Compatibility List	$35.46 / Each	11
719313	1000359539	2	Fixing Set;;;Iced Sliver;PL212;;Back pad	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
719314	1000359545	3	Adjustment set;;;Iced Sliver;PL212;;	No	Model Compatibility List	$224.74 / Each	1
719315	1000359551	4	Handle Set;;;Iced Sliver;PL212;;	No	Model Compatibility List	$62.37 / Each	11
719317	1000359579	AB3	Support Set;Frame;L;painting;;Iced Slive	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722287	1000390626	M11	Bearing;Linear;LBCD 40 D-2LS;Diam.40;SKF	No	Model Compatibility List	$430.92 / Each
726607	083458	Z62	Washer;Lock;8.2x13.5x2.0t	No	Model Compatibility List	$2.00 / Each
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
728247	093777	P19	Rubber Ring;Peadl;Black;PL04	No	Model Compatibility List	$30.34 / Each
728779	097335	C17	Rubber PadBlack;PL07KM-G3	No	Model Compatibility List	$8.42 / Each
729261	See Pad Matrix	J44	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
