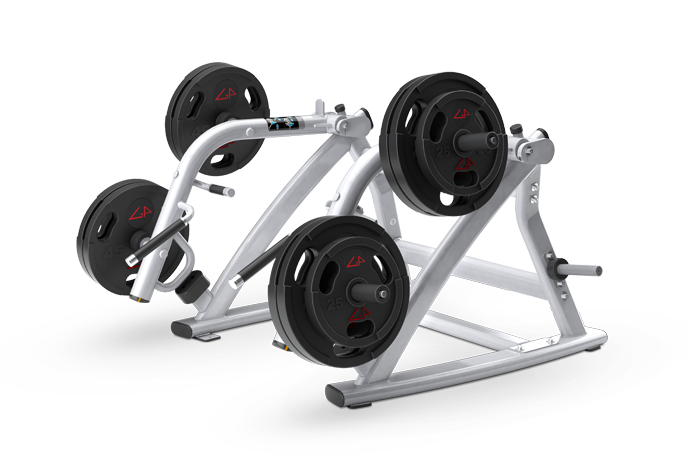

Matrix Commercial - MG-PL79 - 2014

Repair Parts for Matrix Commercial MG-PL79 PL09

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PL09

Model Name: MG-PL79

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17073.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700308	000926-A	C18	Cap;Tube;PVC;FW91	No	Model Compatibility List	$1.79 / Each	9,3
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701159	004077-A2	D15	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701505	004539-AD	Z22	Screw;Round;Hex Socket;M8X1.25PX25L;Chromed	No	Model Compatibility List	$2.00 / Each
701836	004855-AC	Z23	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701968	005007-00	Z25	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z05	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
701992	005031-AC	Z10	WASHER;FLT;Diam.20.2XDiam.30.0X2.0T;;CHM	No	Model Compatibility List	$1.66 / Each
702006	005043-7	Z07	Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro	No	Model Compatibility List	$1.66 / Each
702102	005132-00	Z24	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702229	005354-00	D22	C-Clip;Internal;R-42	No	Model Compatibility List	$1.79 / Each
702531	008523-B	Z06	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702711	009356-B	D19	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	D18	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
706373	061531-AA	C14	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
707078	1000090043	V14	Sticker ;Storage;PL02	No	Model Compatibility List	$1.66 / Each	1
708449	1000102865	Z03	Screw;Hex Socket;Round;M10x1.5Px70L;Cr P	No	Model Compatibility List	$8.42 / Each	2
708453	1000102869	Z26	Screw;Hex Socket;Round;M12x1.75Px25L;Cr	No	Model Compatibility List	$3.43 / Each	2
708591	1000103978	M01	CON Tube;weight lifting;Outer	No	Model Compatibility List	$120.02 / Each	3,10
708592	1000103979	M02	CON Tube;weight lifting;Inner	No	Model Compatibility List	$212.71 / Each	3,10
708654	1000104681	Z19	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
708658	1000104685	Z20	RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
708662	1000104691	Z04	Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP	No	Model Compatibility List	$3.64 / Each
709008	1000108191	Z09	Screw;RND;M10x1.5Px75L;MT;HS;CST;CHM;BP	No	Model Compatibility List	$9.10 / Each
709081	1000109127	V05	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
713585	1000305258	D21	End Cap;;;ABS 746;Diam.76.2;FW202-KM	No	Model Compatibility List	$3.64 / Each	9
713703	1000306714	V04	Warning Label;;;;;;;Olympic Bench;	No	Model Compatibility List	$8.42 / Each	1
715803	1000328440	V12	Decal;Weight;25lbs;;;;;FW13B-KM	No	Model Compatibility List	$3.02 / Each	7,3
717501	1000345601	D12	Axle, central;Swivel;;40CRMO;;PL211;;	No	Model Compatibility List	$37.15 / Each	8
717511	1000345659	C19	Cap;Elliptical;;TPU;BL/Black C;Diam.50.0	No	Model Compatibility List	$15.18 / Each
717866	1000348119	Not Shown	Hardware Set;Semi-Assy;;;;PL09BKM-G3;;	No	Model Compatibility List	$97.99 / Each	1
718325	1000350546	V02	Instructional Labe;;;;PC;;;PL09B	No	Model Compatibility List	$15.18 / Each	1
718651	1000352554	V07	Decal;Weight;36BBLS;;;;;starting resista	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
719458	1000361732	1	User frame set;Semi-Assy;left;;;PL09BKM-	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719459	1000361739	2	User frame set;Semi-Assy;right;;;PL09BKM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719461	1000361746	3	Pedal Arm set;Semi-Assy;left;;;PL09BKM-G	No	Model Compatibility List	$692.87 / Each	8,9,3
719463	1000361753	4	Pedal Arm set;Semi-Assy;right;;;PL09BKM-	No	Model Compatibility List	$692.87 / Each	8,9,3
719464	1000361789	AG1	Connecting Set;Stabilizer;;painting;;Ice	No	Model Compatibility List	$32.08 / Each	1
719465	1000361795	AG2	Connecting Set;;D;painting;;Iced Sliver;	No	Model Compatibility List	$35.46 / Each	1
719466	1000361802	AG3	Connecting Set;;U;painting;;Iced Sliver;	No	Model Compatibility List	$37.15 / Each	1
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
727015	086682	B09	Stopper;Pad;PL01	No	Model Compatibility List	$17.55 / Each
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728183	093488	D13	Fixing Ring;Swivel Arm;PL01	No	Model Compatibility List	$11.73 / Each
728741	096434	D16	Foam;Grip;Up;PL09	No	Model Compatibility List	$18.77 / Each
728742	096435	D17	Foam;Grip;Down;PL09	No	Model Compatibility List	$32.03 / Each
728744	096459	Not Shown	Manual;Assembly Guide;PL09	No	Model Compatibility List	$24.96 / Each
729012	Order Kit 1	4	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729024	Order Kit 2	AM01	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729027	Order Kit 3	AH03	Sleeve Set;Semi-Assy;;;;TM658E-2KM;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
