Matrix Commercial - MX-FW62 - 2002

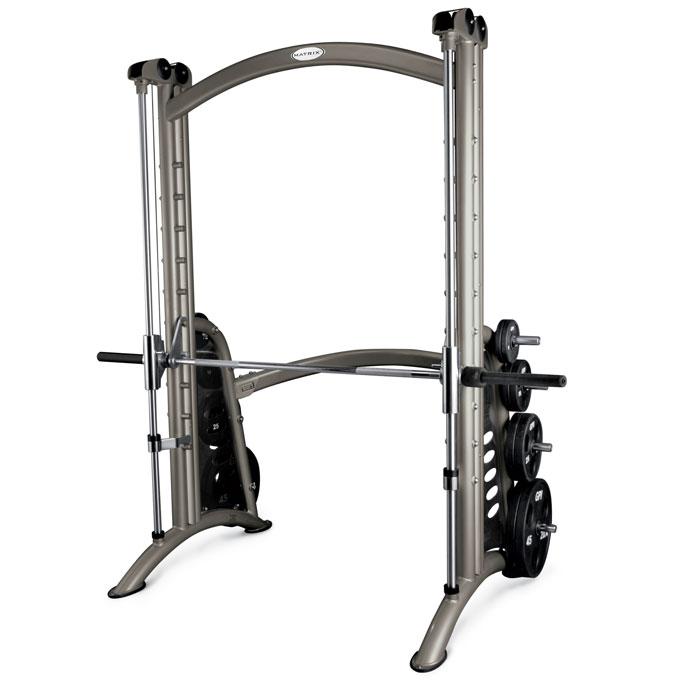

Repair Parts for Matrix Commercial MX-FW62 FW62

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW62

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700147 000516-B B21 Foot pad;Tube;;Rubber;;;;FW62 No Model Compatibility List $14.79 / Each

9,3,12,13,14
B 700232 000751-C B17 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
N 700235 000754-CA N10 Elastomer;Rubber;BL;FW62 No Model Compatibility List $9.10 / Each

1
N 700253 000783-AA N11 Stopper Pad;Rubber;FW62 No Model Compatibility List $1.66 / Each

12,13,14
B 700277 000847-CA B42 Bushing;Nylon No Model Compatibility List $8.81 / Each

8
B 700387 001190-A B20 90 Pulley, G7-34 No Model Compatibility List $23.32 / Each

8
B 700496 001512-C B22 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
B 700518 001522-B B48 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

B 700680 001783-DA B18 Accent Board;Right No Model Compatibility List $140.24 / Each

4,5,6
B 700681 001784-AA B45 Left Accent Board, Acrylic Fiber No Model Compatibility List $182.62 / Each

4,5,6
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
M 701162 004079-A3 M11 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

701186 004125-A N07 Flange Bushing, FW62 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
701277 004344-A B30 Screw;Round Phillips;M4x0.7Px15L No Model Compatibility List $1.66 / Each

2
Z 701408 004462-00 Z24 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

Z 701553 004581-AC Z26 Screw;Sink Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701654 004693-AD B43 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

Z 701693 004720-AC Z16 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
701764 004786-00 Z17 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $3.64 / Each

Z 701776 004794-AC Z13 Screw;Oval;Hex Socket;M12X1.75PX25L No Model Compatibility List $3.69 / Each

2
701789 004804-00 Z18 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

Z 701792 004808-AF Z19 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701799 004814-AB Z20 Screw;Umbrella Hex Socket;M10x1.5Px100L No Model Compatibility List $18.23 / Each

2
Z 701864 004887-00 Z30 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

Z 701914 004943-00 Z23 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701968 005007-00 Z11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

Z 701981 005017-00 Z22 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Z 702098 005130-00 Z15 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

Z 702102 005132-00 Z12 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
M 702199 005253-A M15 Washer;Swivel No Model Compatibility List $3.35 / Each

2
M 702230 005355-00 M09 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

702231 005356-00 M13 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

M 702242 005367-00 M14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702367 006554-C V03 Decal;Weight No Model Compatibility List $3.35 / Each

7,3
702375 006578-A V01 Instructional Placard, FW62 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
702525 008456-A Z25 Connecting Plate, FW62 No Model Compatibility List $18.15 / Each

3
B 702548 008593-D B23 Cover;Aluminum;Cover Board;Anodzing;;FW62 No Model Compatibility List $118.27 / Each

9
B 702728 009381-A B16 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
B 702730 009383-D B26 Support Rod;Hook;;S45C;;Cr Plate;;;FW62 No Model Compatibility List $16.12 / Each

3
B 702734 009387-G B34 Guide Rail No Model Compatibility List $566.02 / Each

9
B 702737 009390-C B31 Snug Base;Guide Rail, SS41 No Model Compatibility List $27.38 / Each

9,3
B 702738 009391-C B32 Belt Fixing Ring No Model Compatibility List $8.42 / Each

15
B 702769 009617-F B25 Steel Cable, 4.8 x 2330L No Model Compatibility List $27.07 / Each

4,5,6
A 702936 013395-Z AM4 Left Sliding Sleeve No Model Compatibility List $1.30 / Each

3
A 702937 013396-Z AN2 Left Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
702938 013398-Z AM1 Right Sliding Sleeve No Model Compatibility List $1.30 / Each

3
A 702939 013399-Z AN1 Right Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
n 703456 014757-A not shown Hardware Pack No Model Compatibility List $321.33 / Each

4,5,6
703695 015812-A AG1 Upper Cross Tube Frame, Champagne [FW62] No Model Compatibility List $280.18 / Each

3,4,5,6
703696 015815-A AN3 Smith Bar [FW62] MX / G2 No Model Compatibility List $817.88 / Each
Out Of Stock 		1
B 703704 015824-AA B24 Balance Block;FW62 No Model Compatibility List $231.89 / Each

1
Z 704193 020465-AB Z21 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

N 704302 022373-C N12 Stopper Sleeve, STK41 [FW62] No Model Compatibility List $40.14 / Each

3
704818 025539-A AB1 Frame, Right Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704819 025539-AB AB1 Frame, Right Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704820 025539-AC AB1 Frame, Right Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704821 025539-AD AB1 Frame, Right Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704822 025540-A AB2 Frame, Left Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704823 025540-AB AB2 Frame, Left Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704824 025540-AC AB2 Frame, Left Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704825 025540-AD AB2 Frame, Left Side, MX-FW62 No Model Compatibility List $1162.15 / Each

3
704862 025602-A AG2 Frame Rear Support Connecting Tube, Champagne No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
B 705029 031484-B B33 Stopper Plate No Model Compatibility List $14.20 / Each

3
B 705030 031487-A B35 Stopper, Frame No Model Compatibility List $9.10 / Each

3
M 716149 1000333566 M10 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
Z 728950 991674-00 Z27 Settle Bolt, M6 x 1.0P x 4L No Model Compatibility List $1.66 / Each

2
