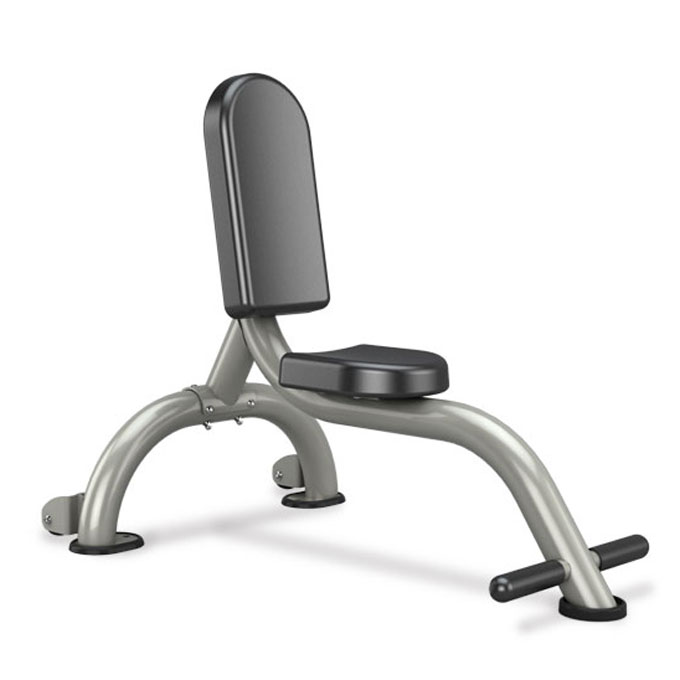

Matrix Commercial - MX-FW84 - 2002

Repair Parts for Matrix Commercial MX-FW84 FW84

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW84

Model Name: MX-FW84

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17079.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700146	000515-A	B10	Foot pad;Rubber;100;FW10	No	Model Compatibility List	$9.10 / Each
700166	000554-A	C05	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700225	000737-C	B32	Levelling Foot W/ Jam Nut Foam	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,9,3
700307	000925-B	B31	End Cap;M38.1x3.0T	No	Model Compatibility List	$1.79 / Each
700447	001401-A	B11	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701654	004693-AD	B33	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each
701760	004780-AC	B12	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701795	004810-AC	C07	Screw;Umbrella Hex Scoket;M8x1.25Px90L	No	Model Compatibility List	$1.33 / Each	2
701970	005009-AB	C09	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each
702098	005130-00	C08	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
703698	015821-A	AC1	REAR FOOT SUPPORT TUBE ASSEMBLY(CHAMPAGNE)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3,4,5,6
703699	015821-AB	AC1	REAR FOOT SUPPORT TUBE ASSEMBLY (PLATINUM)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
703700	015821-AC	AC1	REAR FOOT SUPPORT TUBE ASSEMBLY(SILK PEARL)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
703701	015821-AD	AC1	REAR FOOT SUPPORT TUBE ASSEMBLY(ANTHRACITE)	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,9,3,4,5,6,12,13,14
704168	020393-AB	C10	Nut;AC;M8X1.25P;SS41;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,4,5,6,12,13,14
704432	024094-Z1	AB1	MAIN FRAME SET (CHAMPAGNE)	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
704433	024094-Z2	AB1	MAIN FRAME (PLATINUM)	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
704434	024094-Z3	AB1	MAIN FRAME (SILK PEARL)	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
704435	024094-Z4	AB1	MAIN FRAME (ANTHRACITE)	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,4,5,6,12,13,14
704653	024629-A	not shown	Hardware Pack	No	Model Compatibility List	$39.96 / Each	4,5,6

View Drawing
