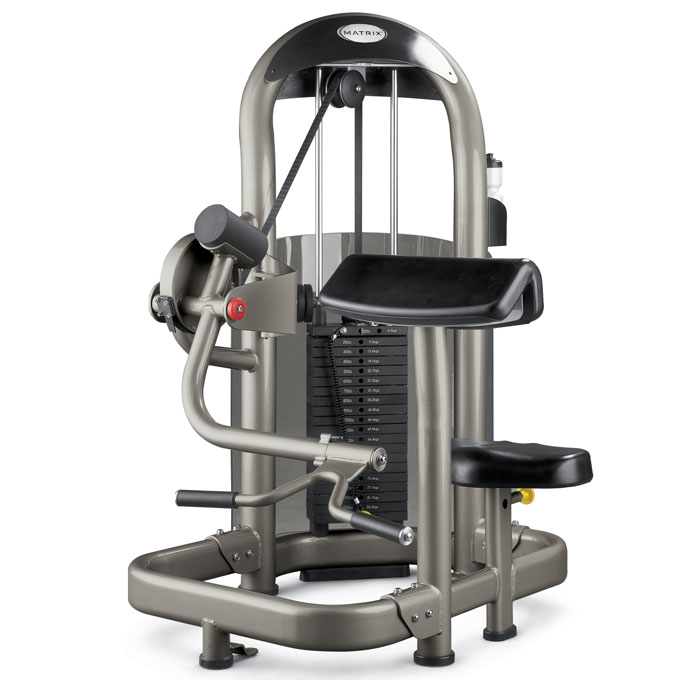

Matrix Commercial - MX-S40 - 2002-2004

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
G 700139 000508-D G07 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B21 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C13 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
C 700145 000514-C C10 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
E 700178 000588-D E11 Foam Grip;24x5.0tx130L No Model Compatibility List $2.63 / Each

B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700398 001240-F Q07 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
C 700457 001415-BA C49 End Cover;Seat Tube Sleeve;Nylon No Model Compatibility List $1.72 / Each

9,3,12,13,14
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700526 001529-B B27 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
F 700548 001585-F F28 Rubber Stop No Model Compatibility List $1.79 / Each

1
700577 001711-CA J04 Pad, Seat(BLACK) No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
700578 001711-CB J04 Pad, Seat(RED) Pad, Seat (CABERNET) No Model Compatibility List $185.07 / Each

12,13,14
700579 001711-CD J04 Pad, Seat,(PURLISH RED) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700580 001711-CE J04 Pad, Seat,(GRAY) Pad, Seat, (STONE) No Model Compatibility List $185.07 / Each

12,13,14
700581 001711-CF J04 Pad, Seat,(BROWN) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700582 001711-CG J04 Pad, Seat,(BLACKLISH GREEN) FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
700625 001744-DB J05 CUSHION(RED) FOAM(GM14-105DB) No Model Compatibility List $0.00 / Each
Out Of Stock
3
700626 001744-DD J05 CUSHION(PURPLISH RED) FOAM(M14-J05DD) No Model Compatibility List $268.01 / Each

3
700627 001744-DE J05 CUSHION(GRAY) FOAM(GM14-J05DE) No Model Compatibility List $367.07 / Each

3
700628 001744-DF J05 CUSHION(BROWN) FOAM(GM14-J05DF) No Model Compatibility List $268.01 / Each

3
700629 001744-DG J05 CUSHION(BLACKISH GREEN) FOAM(GM14-J05DG) No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
F 701159 004077-A2 F09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

E 701181 004112-00 E12 Dry Bearing;Flange;LEF-3030 LFF-3030 No Model Compatibility List $6.99 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701470 004519-AE F17 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

F 701493 004534-AC F15 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

B 701496 004535-AC B29 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
G 701522 004555-AB G11 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701617 004636-AC B27 Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

701622 004641-A C50 Screw;Umbrella Cross Tapped;5x20L No Model Compatibility List $2.00 / Each

2
C 701668 004702-00 C15 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
K 701693 004720-AC K18 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
G 701760 004780-AC G12 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
E 701763 004785-AC E14 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
701789 004804-00 G15 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

701833 004851-00 F29 Set Screw;M5x0.8Px5L;Cr No Model Compatibility List $1.43 / Each

2
E 701836 004855-AC E21 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

L 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
B 701888 004918-00 B40 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.34 / Each

G 701914 004943-00 G16 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

B 701937 004973-00 B32 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
701939 004975-00 B23 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

701968 005007-00 F26 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

701970 005009-AB E18 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

F 701980 005016-00 F24 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

F 702057 005084-AB F23 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

F 702102 005132-00 F25 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K19 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

702178 005220-00 D24 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702214 005322-B not shown HARDWARE KIT(2) MX-S40 No Model Compatibility List $0.00 / Each
Out Of Stock
1
702217 005330-00 B34 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702373 006570-A V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
F 702520 008448-D F11 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
F 702674 009293-H F08 ROTATING AXLE CENTER 20X247.5L SCM4 No Model Compatibility List $27.79 / Each

8
F 702690 009317-CB F22 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
E 702703 009342-C E08 Rotating Grip;SS41;25.4x136.5L No Model Compatibility List $18.95 / Each

11
702705 009345-D F18 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $6.29 / Each

8,3
E 702711 009356-B E20 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

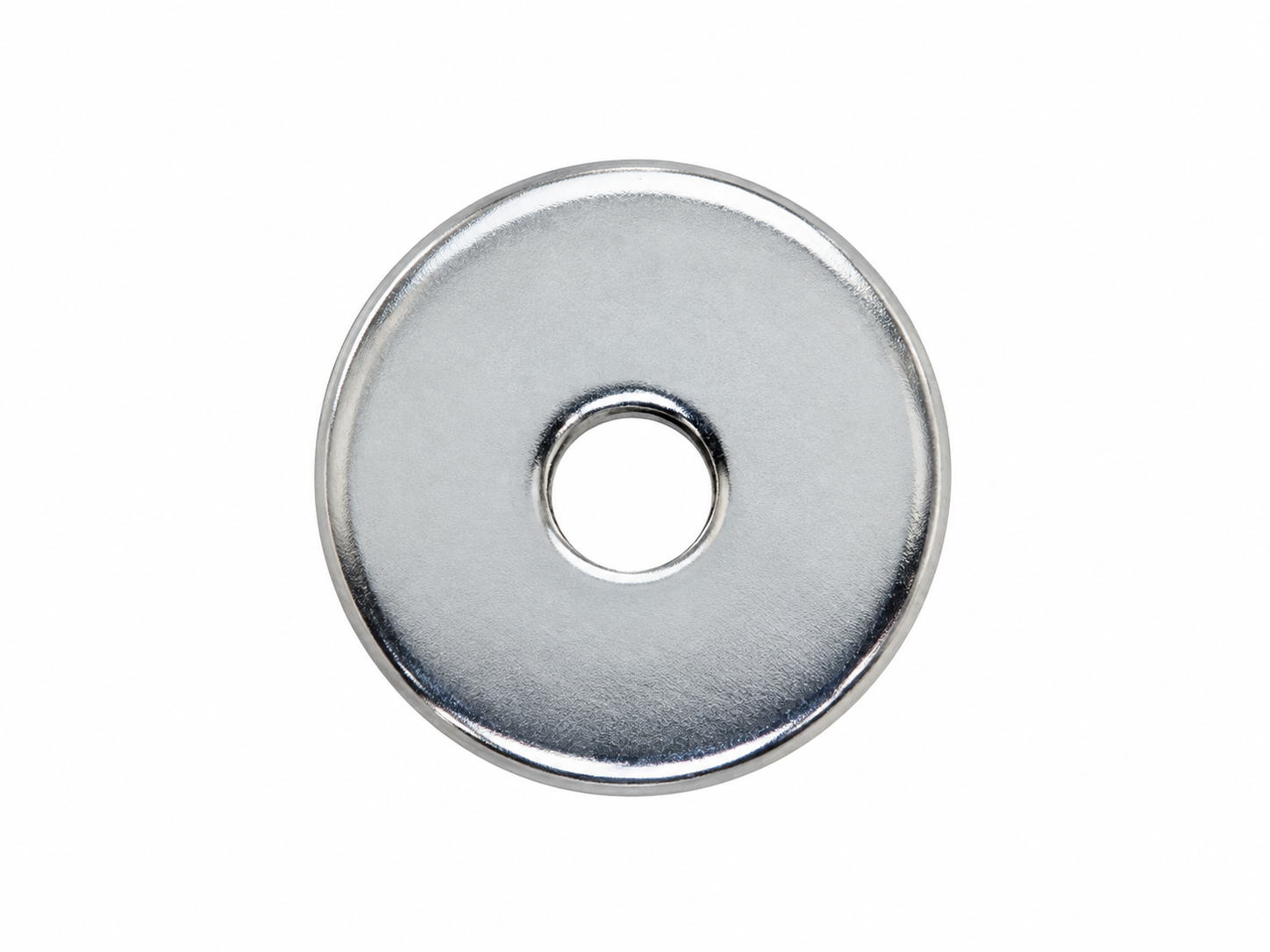

E 702713 009358-AA E05 Washer;Swivel Axle;Painting; No Model Compatibility List $20.18 / Each

2,8
E 702716 009360-AA E09 Washer;Grip;Chromed No Model Compatibility List $2.83 / Each

K 702719 009365-00 K17 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702958 013420-Z1 Q02 UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $73.92 / Each

9
C 702965 013422-Z1G2 C12 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
703200 013507-Z1 AF1 CAM FRAME(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
703201 013507-Z2 AF1 CAM FRAME SET(PLATINUM) No Model Compatibility List $795.89 / Each

3
703202 013507-Z3 AF1 CAM FRAME(SILK PEARL) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
3
703203 013507-Z4 AF1 CAM FRAME(ANTHRACITE) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,4,5,6,12,13,14
703205 013509-Z1 AE1 GM14 HANDLE KITS (CHAMPAGNE) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,11
703206 013509-Z2 AE1 GM14 HANDLE KITS (PLATINUM) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
11
703207 013509-Z3 AE1 GM14 HANDLE KITS (SILK PEARL) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
11
703208 013509-Z4 AE1 GM14 HANDLE KITS (ANTHRACITE) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
7,4,5,6,12,13,14,11
703210 013510-Z1 not shown PAD KIT(BLACK) GM14 No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
703211 013510-Z2 not shown PAD KIT(DESERT) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703212 013510-Z3 not shown PAD KIT(CABERNET) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703213 013510-Z4 not shown PAD KIT(MIST) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703214 013510-Z5 not shown PAD KIT(GLADE) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703215 013510-Z6 not shown PAD KIT(AMETHYST) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703216 013510-Z7 not shown PAD KIT(STONE) GM14 No Model Compatibility List $453.05 / Each

12,13,14
703218 013512-ZG2 AK1 TOP WEIGHT PLATE GM14 No Model Compatibility List $243.05 / Each

3
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
703604 015730-A AC1 GM14BASE FRAME WELDING SET(PAINT) PGM14-2CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
703605 015730-AB AC1 GM14BASE FRAME WELDING SET(PAINT) PGM14B-2PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock
3
703606 015730-AC AC1 GM14BASE FRAME WELDING SET(PAINT) PGM14C-2SILK PEARL No Model Compatibility List $0.00 / Each
Out Of Stock
3
703607 015730-AD AC1 GM14BASE FRAME WELDING SET(PAINT) PGM14D-2ANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,4,5,6,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
A 703646 015781-A AG1 GM14LOWER CONNECTING WELDING SET PGM14-2(CHAMPAGNE) No Model Compatibility List $612.25 / Each

4,5,6
703647 015781-AB AG1 GM14 LOWER CONNECTING WELDING SET PGM14B-2(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock
1
703648 015781-AC AG1 GM14 LOWER CONNECTING WELDING SET PGM14C-2(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock
1
703649 015781-AD AG1 GM14 LOWER CONNECTING WELDING SET PGM14D-2(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock
7,4,5,6,12,13,14
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

G 704193 020465-AB G14 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

704532 024123-Z1 AB1 MAIN FRAME GM14(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
704533 024123-Z2 AB1 MAIN FRAME GM14(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock
3
704534 024123-Z3 AB1 MAIN FRAME GM14(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock
3
704535 024123-Z4 AB1 MAIN FRAME GM14(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,4,5,6,12,13,14
F 705079 035711-A F19 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
705103 035801-A not shown Assembly Manual;GM14-V40A; EP67-US(ENGLISH) No Model Compatibility List $0.00 / Each
Out Of Stock
3
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
E 707527 1000093249 E15 Screw;BH;M8X1.25PX25L;;HS;G8.8;NKL;;BP No Model Compatibility List $2.00 / Each

2
J 710444 1000210289 J04 SEAT PAD;-;PU;MIST BLUE;-; No Model Compatibility List $84.47 / Each

12,13,14
J 710492 1000210657 J05 CUSHION;-;PU;BLACK;-; No Model Compatibility List $85.77 / Each

3,4,5,6

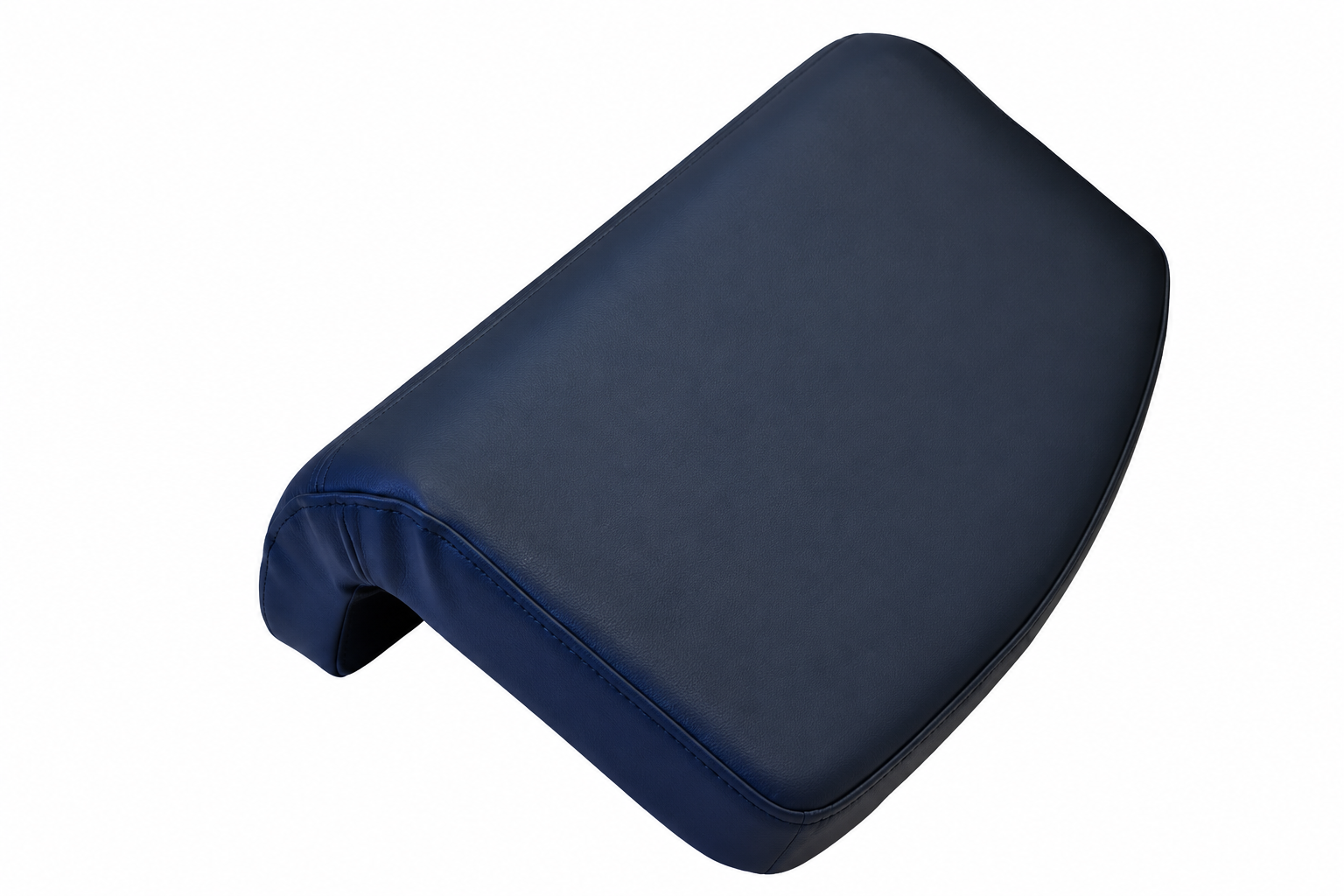

J 710493 1000210660 J05 CUSHION;-;PU;MIST BLUE;-; No Model Compatibility List $84.47 / Each

3
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Welding Set;Seat Pad;GM14 725997 079137 AJ1 Welding Set;Seat Pad;GM14 No Model Compatibility List $500.37 / Each

B 957398 005330-00 B34 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
