Matrix Commercial - OPT17-02 - 2013

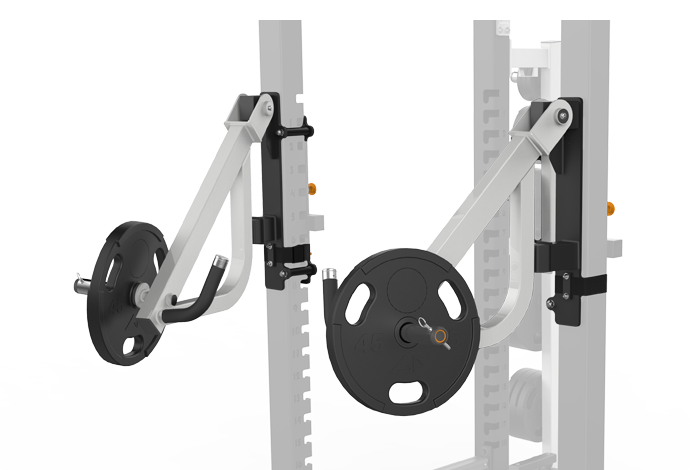

Repair Parts for Matrix Commercial OPT17-02 MGAS1047

Brand: Matrix Commercial

Category: Rack Options & Components

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGAS1047

Model Name: OPT17-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16616.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713802	1000308395	B18	FLANGE BEARING - 1"	No	Model Compatibility List	$21.89 / Each
713806	1000308417	Band Holder B2	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B11	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713815	1000308429	B15	2" x 3" Rubber Block	No	Model Compatibility List	$23.63 / Each	1
713817	1000308435	Z19	1 21/64" O.D. x 1 1/64" I.D. 14GA	No	Model Compatibility List	$2.37 / Each	1
713828	1000308446	Z14	WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06	No	Model Compatibility List	$1.43 / Each
713835	1000308453	Z20	1 9/16"OD x 7/16"ID WASHER	No	Model Compatibility List	$3.28 / Each	2
713838	1000308466	B30	Flat Bumper - Weight Horn	No	Model Compatibility List	$3.02 / Each
713839	1000308467	B31	End cap - weight horn	No	Model Compatibility List	$5.90 / Each
713935	1000309773	Z1	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each
713937	1000309841	B26	2" X 3" END CAP	No	Model Compatibility List	$7.28 / Each
713940	1000309847	Z7	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
713946	1000309854	Z10	NUT;NLK;.250-20;ZN;	No	Model Compatibility List	$1.43 / Each
713947	1000309855	Z16	SCREW;HH;.313-18 x 1.75;ZN;	No	Model Compatibility List	$1.33 / Each	2
713949	1000309857	Z24	BHSCS 3/8 x 3/4"	No	Model Compatibility List	$3.02 / Each	1
713950	1000309858	Z23	3/4" FLAT WASHER	No	Model Compatibility List	$1.33 / Each
713976	1000310009	K2	CAP, END TUBE, 31.8MM	No	Model Compatibility List	$7.28 / Each
713977	1000310010	K1	COLLAR, TUBE, 31.8MM	No	Model Compatibility List	$15.18 / Each
713986	1000310083	Band Holder B4	2" ROUND END CAP	No	Model Compatibility List	$5.04 / Each
714008	1000310115	Z5	FHSCS 1/4"-20 X 1/2"	No	Model Compatibility List	$1.33 / Each
714111	1000312103	Z8	SCREW;HH;.500-13 x 5.50;ZN;	No	Model Compatibility List	$6.73 / Each	2
714127	1000312161	Z9	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714152	1000312231	B28	1 1/2" Round End Cap	No	Model Compatibility List	$2.18 / Each	9
714360	1000314057	B17	1" CRR - 4 1/4"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714361	1000314060	B13	1/4" x 1" F.S. - 3"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714365	1000314077	B21	1/4" ABS	No	Model Compatibility List	$20.25 / Each	1
714366	1000314078	B22	1/4" ABS	No	Model Compatibility List	$18.56 / Each	1
714367	1000314079	B25	3/8" x 2 1/2" Quick Release Shoulder Pin w/ Ring	No	Model Compatibility List	$18.56 / Each	12,13,14
714766	1000318109	Kit 1	HAND GRIP 1.25 DIA 0-12"LONG	No	Model Compatibility List	$48.98 / Each
715212	1000321234	Band Hold L	BAND HOLDER JAMMIN ARMS LEFT	No	Model Compatibility List	$510.35 / Each	3
715213	1000321235	Band Hold R	BAND HOLDER JAMMIN ARMS RIGHT	No	Model Compatibility List	$510.35 / Each	3
715220	1000321256	1	JAMMIN ARM OPT17R LEFT	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
715221	1000321257	2	JAMMIN ARM OPT17R RIGHT	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717410	1000344873	AB1	Weldment;Left Bracket;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717411	1000344874	AB1	Weldment;Right Bracket;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6
717931	1000348681	B32	1" Grip;3.25" Long;Closed End	No	Model Compatibility List	$0.00 / Each Out Of Stock
718749	1000353136	K3	1.25" Grip;Order by 1" increments;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719614	1000363119	B27	2" Medium Duty Black Nylon Webbing	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
719908	1000367003	B3	1"OD x 1/2"ID PIPE - 3 1/2"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720192	1000369221	Z6	SCREW;FH;.250-20 x 1.25;ZN;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
720993	1000379407	B32	Spring Pin Assy;Body Spring Pin;	No	Model Compatibility List	$35.46 / Each
721291	1000381597	AB2	Band Peg Assembly Mount left OPT17R	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3
721292	1000381601	AB4	Weldment, Left Arm opt17;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721293	1000381602	AB4	Weldment, Left Arm opt17;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721294	1000381603	AB4	Weldment, Left Arm opt17;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721295	1000381615	3	BAND HOLDER JAMMIN ARMS LEFT	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721299	1000381631	AB2	Band Peg Assembly Mount Right OPT17R	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3
721300	1000381633	AB4	Weldment, Right Arm opt17;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721301	1000381634	AB4	Weldment, Right Arm opt17;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721302	1000381635	AB4	Weldment, Right Arm opt17;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721303	1000381647	4	BAND HOLDER JAMMIN ARMS RIGHT	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
728995	Order Band Holder Set	Band Holder AB1	WELDMENT BAND HOLDER	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
