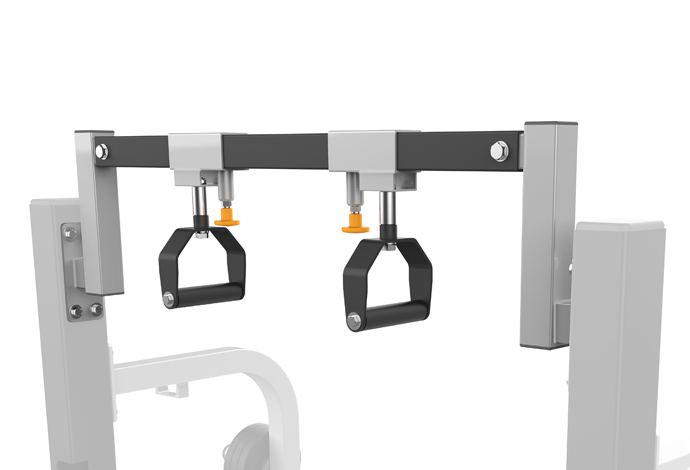

Matrix Commercial - OPT2-02 - 2013

Repair Parts for Matrix Commercial OPT2-02 MGAS1053

Brand: Matrix Commercial

Category: Rack Options & Components

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGAS1053

Model Name: OPT2-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16622.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B17	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B4	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713819	1000308437	Z12	SCREW;HH;.375-16 x 1.50;ZN;	No	Model Compatibility List	$2.37 / Each
713826	1000308444	Z11	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713939	1000309846	Z15	1/2" JAM NUT	No	Model Compatibility List	$1.43 / Each
713940	1000309847	Z5	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
713941	1000309848	Z13	SCREW;HH;.500-13 x 3.50;ZN;	No	Model Compatibility List	$5.04 / Each	2
714048	1000310445	AB7	Rubber Coated Swivel Handle Outer Frame	No	Model Compatibility List	$147.00 / Each	3,11
714127	1000312161	Z16	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714175	1000312296	B8	Flange Bushing - 3/4"OD x 1/2"ID	No	Model Compatibility List	$10.92 / Each	8
714399	1000314390	B3	UPPER PULL UP BAR	No	Model Compatibility List	$231.50 / Each	1
714400	1000314391	B6	1" O.D. X 1/2" I.D. PIPE - 1 3/4"	No	Model Compatibility List	$62.50 / Each	1
714401	1000314396	Z14	SCREW;HH;.500-13 x 2.75;ZN;	No	Model Compatibility List	$3.02 / Each	2
714538	1000315894	V18	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714672	1000316932	B10	1" Grip;Order by 1" increments	No	Model Compatibility List	$0.00 / Each Out Of Stock
714945	1000319977	AB1	OPT2 Mounts;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
714946	1000319978	AB1	OPT2 Mounts;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,4,5,6
714947	1000319979	AB1	OPT2 Mounts;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,4,5,6
714948	1000319987	AB2	UPPER HANDLE SLIDE BRACKET;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6,11
714949	1000319988	AB2	UPPER HANDLE SLIDE BRACKET;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6,11
714950	1000319989	AB2	UPPER HANDLE SLIDE BRACKET;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6,11
717377	1000344562	V18	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
717789	1000347601	Not Shown	OPT Service Kit Set;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
718307	1000350427	B9	1 1/4" Rubber Grip 5.375"	No	Model Compatibility List	$0.00 / Each Out Of Stock	11

View Drawing
