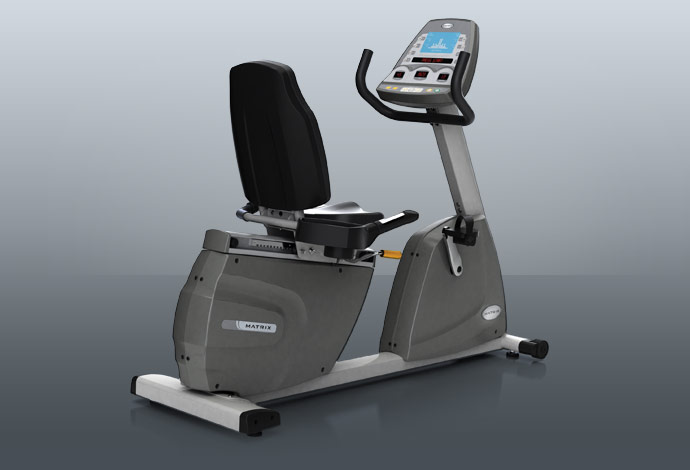

Matrix Commercial - R1x-01 - 2012

Repair Parts for Matrix Commercial R1x-01 RB302

Brand: Matrix Commercial

Category: Recumbent

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

RB302

Model Name: R1x-01

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700214	000693-A	190	Foam Tape;Double Sided;25x16x1t	No	Model Compatibility List	$1.66 / Each	1
704084	020205-00	177	Screw;Phillip;Round;3x8L;Gap;;Zn-BL	No	Model Compatibility List	$1.66 / Each
705471	049265-A	178	Screw;Phillip;Round;3x5L;Gap;;Zn-BL	No	Model Compatibility List	$1.66 / Each	2
706799	065640-A	183	Screw;Round Cross Tapped;M3X30L	No	Model Compatibility List	$2.00 / Each
717744	1000347305	Not Shown	Battery;With Protect circuit;;;;7.4V 148	No	Model Compatibility List	$182.49 / Each Out Of Stock	4,5,6
726184	080675	180	Membrane Keypad;Left;plane 4Keys;RB85	No	Model Compatibility List	$18.95 / Each
726185	080676	181	Membrane Keypad;Right;plane 4Keys;RB85	No	Model Compatibility List	$18.95 / Each
726186	080677	182	Membrane Keypad;Down;plane 7Keys;RB85	No	Model Compatibility List	$34.50 / Each
726188	080679	191	Quickly Key Wire;200L;(TKP H6630R1-06)x2	No	Model Compatibility List	$12.06 / Each
726222	080773	185	Data Load Wire;200L;(JST/XAP-14)x2;RB85;	No	Model Compatibility List	$21.61 / Each
726230	080834	186	Display Board Wire;100L;JST XHP-5+JST XA	No	Model Compatibility List	$8.42 / Each
726231	080835	187	Cardio Wire;250L;RJ-45HSG 8P+JST XAP-5;R	No	Model Compatibility List	$16.33 / Each
726232	080836	188	C-Safe Wire;250L;RJ-45HSG 8P+JST XAP-8;R	No	Model Compatibility List	$17.76 / Each
726422	081745	Q53	Screw;Umbrella Cross;M5x0.8Px8L;Stainless	No	Model Compatibility List	$1.66 / Each
726432	081786	189	Receiver Set;Pulse;CB66-W14B;	No	Model Compatibility List	$8.42 / Each
726433	081788	184	Plastic;3x20L	No	Model Compatibility List	$1.66 / Each
726949	086174	192	LCM Module Wire Set;WIRE+CORD;CB66	No	Model Compatibility List	$18.04 / Each
727584	090139	151	Console Set;ES;H006S001;R1x-01	No	Model Compatibility List	$1.30 / Each
727585	090140	174	Overlay;Manipulate;Up;ENG;U1x-01	No	Model Compatibility List	$48.52 / Each
727586	090141	175	Overlay;Manipulate;Middle;ENG;U1x-01	No	Model Compatibility List	$34.27 / Each
727587	090142	176	Overlay;Manipulate;Down;ENG;U1x-01	No	Model Compatibility List	$21.03 / Each
727643	090284	171	Cover;Console Faceplate;ABS;MX CL/GY;U1x-01;	No	Model Compatibility List	$35.93 / Each
727644	090285	172	Cover;Console Back;ABS;MX CL/GY;U1x-01;	No	Model Compatibility List	$35.39 / Each
727645	090286	173	Battery Cover;ABS;Gray(80435);U1x-01;	No	Model Compatibility List	$3.35 / Each
727892	091950	152	Program upload board Set;MX-U/R/E1x	No	Model Compatibility List	$37.41 / Each
727893	091953	155	Display Baord Set;MX-U/R/E1x	No	Model Compatibility List	$77.97 / Each
727894	091954	156	Hand Pluse Board Set;MX-U/R/E1x	No	Model Compatibility List	$93.08 / Each

View Drawing
