Matrix Commercial - R1x - 02 - 2016

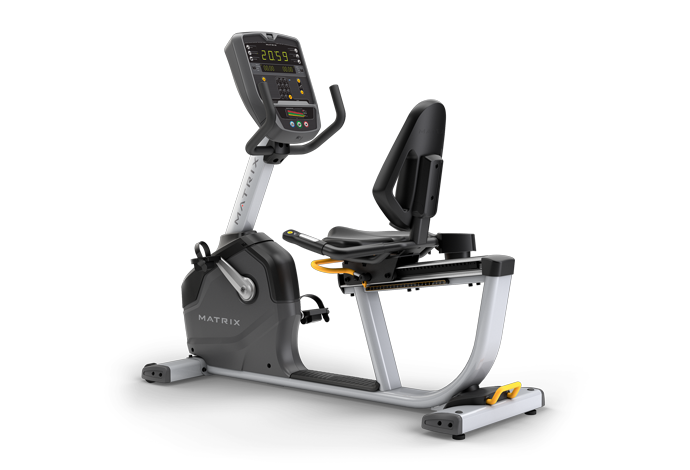

Repair Parts for Matrix Commercial R1x - 02 RB162,EP592

Brand: Matrix Commercial

Category: Recumbent

Type: Stationary Bikes

Model Name: R1x - 02

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700024 000041-AA J19 Transport Wheel Yes Model Compatibility List $9.10 / Each

Q 700571 001681-A Q25 Fix Pillar;PP;TM81 No Model Compatibility List $1.90 / Each

U 701159 004077-A2 U03 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

701304 004366-00 S09 Screw;Phillip;BH;M5x0.8Px8L; No Model Compatibility List $2.00 / Each

Q 701310 004369-AF Q10 Screw;Phillip;BH;Stainess;M5x0.8Px15L; No Model Compatibility List $0.39 / Each

2
J 701335 004385-AD J13 Screw;Button Head;M5x0.8Px12L;Cutting;Ph No Model Compatibility List $1.66 / Each

Z 701437 004482-AC Z21 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $2.00 / Each

Z 701502 004538-AC Z11 Screw;Socket Head;M8x1.25Px20L;;Hex Sock No Model Compatibility List $3.35 / Each

Z 701631 004653-00 Z33 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $2.00 / Each

U 701658 004695-AB U05 Screw;Hex Socket;Flat;M8x1.25Px12L No Model Compatibility List $2.00 / Each

Z 701971 005009-AC Z72 WASHER;SPL;Diam.8.2XDiam.15.4X2.0T;SSTSU No Model Compatibility List $1.66 / Each

J 702004 005042-00 J17 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

S 702046 005075-00 S05 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702178 005220-00 J14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702193 005239-00 T05 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

U 702229 005354-00 U09 C-Clip;Internal;R-42 No Model Compatibility List $1.79 / Each

702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

P 702299 005811-00 P25 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

U 703809 017657-00 U07 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

Q 703852 018652-B Q22 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

J 703990 020069-00 J16 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; Yes Model Compatibility List $1.79 / Each

U 704192 020465-A U06 Washer;Flat;10.2x25x2.0T No Model Compatibility List $2.00 / Each

706754 065248-A P06 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

709912 1000204420 U01 Fixing Plate;Idler;;SPHC;176x130x15.3x4; No Model Compatibility List $0.00 / Each
Out Of Stock
P 710386 1000209857 P09 Console Wire;1200(MOLEX,50-57-9408x2);EP Yes Model Compatibility List $91.23 / Each

7,4,5,6
H 710664 1000212092 H11 Screw;SH;M8X1.25PX35L;MT;HS;SST;-; No Model Compatibility List $1.66 / Each

710758 1000213278 P20 Screw;TRHW;FX5x10L;SM;PS;-;WZN;;G8.8;Gre No Model Compatibility List $0.00 / Each
Out Of Stock 		2
D 710769 1000213447 D11 ENDCAP;TUBE;31.8;FK01003;EP609 No Model Compatibility List $1.66 / Each

Z 710934 1000215465 Z71 SCREW;SH;M8X1.25PX15L;;MT;HS;SST;-; No Model Compatibility List $1.66 / Each

Z 711554 1000221258 Z42 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.79 / Each

712643 1000230018 Z81 Screw;SH;M8x1.25Px25L;HS;SST;BP; No Model Compatibility List $2.18 / Each

Z 712644 1000230019 Z82 Washer;FLT;8.2x16.0x2.0t;SST; No Model Compatibility List $1.33 / Each

T 712715 1000230349 T04 Screw;;;;;;;;; No Model Compatibility List $9.10 / Each

4 712717 1000230354 4 Fixed chipset;Idler;;;U-3x/5x/7x-05-F;; Yes Model Compatibility List $59.12 / Each

712718 1000230356 U04 Axle;Idler;;SS41;Anti-rust oil coating;C No Model Compatibility List $0.00 / Each
Out Of Stock
D 712866 1000231078 D15 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.66 / Each

713167 1000233513 P18 Wire Tie;Releasible;KSS HV-250SBK;250L;N No Model Compatibility List $0.00 / Each
Out Of Stock
713368 1000301942 S06 Screw;-;Hex Head;M6x1.0Px16L;-;-;Black Z No Model Compatibility List $1.66 / Each

Q 713374 1000301966 Q13 Cover;Back;;ABS/PA757;Gray/80435;;RB307; No Model Compatibility List $8.42 / Each

H 713375 1000301967 H05 Fixing Plate;AL Rail;;SS41;9.0t;BED;RB30 No Model Compatibility List $21.94 / Each

H 713376 1000301968 H06 ADJ plate;;;SPHC;4.0t;BED;RB307; No Model Compatibility List $3.35 / Each

B 713379 1000301971 B19 Spacing Sleeve;Guide Rail;;SS41;White Zi No Model Compatibility List $3.35 / Each

P 713449 1000303372 P12 Protect Bushing;-;-;-;BL/Black C;GEQ-262 No Model Compatibility List $1.66 / Each

Z 713491 1000304372 Z12 Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T; No Model Compatibility List $1.66 / Each

U 713498 1000304387 U10 Spring Extension 15.8x2.5x83.0Lx23.75N Yes Model Compatibility List $16.87 / Each

H 713506 1000304422 H16 Screw;Oval Head;M6x1.0Px16L;;Hex Socket; No Model Compatibility List $1.79 / Each

H 713509 1000304430 H08 ADJ plate;stopper;;SPHC;31x22.3x6;BAN;RB No Model Compatibility List $9.10 / Each

Z 713519 1000304478 Z13 Screw;Button Head;M5x0.8Px12L;-;Phillip; No Model Compatibility List $1.79 / Each

713743 1000307358 38 Idler Set;;;;CB92;; No Model Compatibility List $0.00 / Each
Out Of Stock
Z 714410 1000314452 Z41 Screw;Socket Head;M8x1.25Px50L-30L;P-T;H No Model Compatibility List $3.35 / Each

Z 714412 1000314460 Z43 Washer;Spring Lock;Diam.8.5xDiam.13.5x1. No Model Compatibility List $1.66 / Each

J 714874 1000319375 J21 Cap;;;PVC;BL/Black C;;; No Model Compatibility List $1.66 / Each

Z 715558 1000326130 Z23 Screw;TRUSS Head;M5x0.8Px13L;;Phillip;St No Model Compatibility List $1.33 / Each

A 717405 1000344817 AD01 Seat Slide Set;Semi-Assy;;;;RB162; No Model Compatibility List $326.14 / Each

12,13,14
717418 1000344914 H02 Adjustable Plate;Slippery Base;;POM+20%F No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 717421 1000344983 B09 Fixing Plate;E-PORT;;SPHC;67x81.2x35.36x No Model Compatibility List $5.90 / Each

3
717433 1000345136 AD2 Seat Set;;;painting;;Flat Black;RB162; No Model Compatibility List $60.81 / Each

4,5,6,12,13,14
D 717437 1000345160 D24 Back Pad;;PU,Self-Skin,Vesicant;Black;;R No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
D 717438 1000345162 D42 Kettle Rack;Consoel Mast;;ABS/PA757;Q520 No Model Compatibility List $18.56 / Each

4,5,6
D 717439 1000345163 D07 Seat Pad;;PU,Self-Skin,Vesicant;Black;;R No Model Compatibility List $99.68 / Each

4,5,6,12,13,14
717440 1000345166 H01 Elliptical Track;;;610L;AL 6063;Anodizin No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3,4,5,6
Q 717448 1000345247 Q03 Cover;Frame;Front-Up;ABS/PA757;Q520-7-3; No Model Compatibility List $23.63 / Each

9,3
Q 717449 1000345248 Q04 Repair Cover;Frame;back;ABS/PA757;Q520-7 No Model Compatibility List $15.18 / Each

9,3,4,5,6
Q 717450 1000345249 Q05 Rubber Cushion;Frame;;SBR;Q520-7-3;;RB16 No Model Compatibility List $47.29 / Each

3
Q 717451 1000345250 Q06 End Cap;Guide Rail;front;ABS/PA757;Q520- No Model Compatibility List $3.35 / Each

9
Q 717452 1000345251 Q07 Fixing Bracket;Label;;ABS/PA757;Q520-7-3 No Model Compatibility List $3.35 / Each

2,3,4,5,6
Q 717453 1000345252 Q12 End Cap;Guide Rail;back;ABS/PA757;Q520-7 No Model Compatibility List $5.90 / Each

9,4,5,6
Q 717454 1000345253 Q11 Cover;Handle;back;TPR;Q520-7-3;;RB162; No Model Compatibility List $13.49 / Each

9,4,5,6,11
2 717457 1000345278 2 Crank set;;left;;;RB162;; No Model Compatibility List $84.47 / Each

3 717458 1000345280 3 Crank set;;right;;;RB162;; No Model Compatibility List $84.47 / Each

717459 1000345282 Not Shown Manual;Assembly/Manipulate;;English;;RB1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 717632 1000346358 B40 Decal;Rail;0.25mm;PVC;;;Left;;RB162 No Model Compatibility List $3.35 / Each

7,9,3
B 717633 1000346367 B17 grip-Extrawork;;;Dipping PVC;orange;RB16 No Model Compatibility List $33.77 / Each

S 717785 1000347577 S01 Generator;;350W;480rpm;;50.6VA;(Steel ri No Model Compatibility List $591.47 / Each

P 717790 1000347631 P04 DC Power Wire;;;;;20AWG;750mm;DC025M+H66 No Model Compatibility List $18.56 / Each

4,5,6
S 717791 1000347632 S02 LCB;Generator;;L13CA1_H001;;;;MATRIX R-1 No Model Compatibility List $305.86 / Each

D 717799 1000347715 D32 Foam;;BLACK;28.4x3.0tx228L;Grip;RB162; No Model Compatibility List $13.49 / Each

4,5,6,11
N 717800 1000347722 Not Shown Hardware Set;;;;RB162; No Model Compatibility List $50.67 / Each

1
P 718660 1000352777 P11 Quick Key Extended Wire;;;Black;;22AWG*8 No Model Compatibility List $84.47 / Each

9,4,5,6
P 718665 1000352796 P07 Connect;;;;;;750L;TKP-8P+(TKP-3P)X2+110? No Model Compatibility List $25.32 / Each

1
R 719239 1000358248 R08 Bearing;Ball;6005ZZ;?25x?47x12T;TPI;C3 No Model Compatibility List $17.24 / Each

B 719321 1000359601 B41 Decal;Rail;;;;Right;;RB162 No Model Compatibility List $3.35 / Each

7,9,3
Q 719628 1000363341 Q01 cover-Extrawork;frame;left;Screen print; No Model Compatibility List $59.12 / Each

9,3
Q 719629 1000363342 Q02 cover-Extrawork;frame;right;Screen print No Model Compatibility List $59.12 / Each

9,3
719956 1000367382 P17 Battery;Rechargeable;12V;;;1.2Ah;NP1.2 No Model Compatibility List $0.00 / Each
Out Of Stock
Q 720644 1000374445 Q15 Cover;Arm Rest;front;ABS/PA757;Q520-7-3; No Model Compatibility List $5.90 / Each

A 721089 1000380525 AG1 grip-Extrawork;grip;front;Dipping plasti No Model Compatibility List $96.30 / Each

12,13,14,11
721132 1000380815 P02 Network Signal;;;;;;1150mm;;QS3205615600 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721133 1000380816 P05 TV Signal Wire;;;;;;1150mm;;FM-0086-NBG7 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
A 721307 1000381729 AJ3 Stabilizer set;Semi-Assy;front;;;RB162;; No Model Compatibility List $111.51 / Each

1
A 721308 1000381730 AJ4 Stabilizer set;Semi-Assy;back;;;RB162;;S No Model Compatibility List $147.00 / Each

4,5,6
1 721309 1000381731 1 Drive set;Semi-Assy;;;;RB162;;SBOM No Model Compatibility List $118.27 / Each

A 721321 1000381837 AC01 Console mast set;Semi-Assy;;;;RB162;;SBO No Model Compatibility List $99.68 / Each

7
P 721720 1000385236 P13 GND;;;Yellow/Green1;;14AWG 1015;800;Diam No Model Compatibility List $6.73 / Each

1
R 721930 1000386657 R10 Belt;POLY-V;FIBERGLASS;430-J10;;Wu De Fu No Model Compatibility List $50.67 / Each

721995 1000387042 T01 Crank;;L;painting;BP-920S;MATRIX/SL/GY;R No Model Compatibility List $0.00 / Each
Out Of Stock
721996 1000387045 T02 Crank;;R;painting;BP-920S;MATRIX/SL/GY;R No Model Compatibility List $0.00 / Each
Out Of Stock
722306 1000390875 G12 Screw;Round Head;M3x0.5Px30L;;Phillip;St No Model Compatibility List $0.00 / Each
Out Of Stock 		2
G 722338 1000391118 G11 Screw;Round Head;M3x0.5Px12L;Machine Thr No Model Compatibility List $1.66 / Each

7,2,4,5,6,12,13,14
722366 1000391521 Z51 Screw;Socket Head;M8x1.25Px60L-30L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock 		2
722389 1000391682 P15 Battery Set;;;;;1015 16AWG;350;;E1-F No Model Compatibility List $0.00 / Each
Out Of Stock
A 722604 1000395435 AQ7 Hand Pulse Grip Set;;left;;;;RB162; No Model Compatibility List $36.48 / Each

12,13,14,11
A 722605 1000395437 AQ8 Hand Pulse Grip Set;;right;;;;RB162; No Model Compatibility List $36.48 / Each

12,13,14,11
722613 1000395799 AR11 Transmission set+Tools;;;;;;RB162;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
5 722865 1000399165 5 Hand Pulse Grip Set;Semi-Assy;left;;;;RB No Model Compatibility List $50.67 / Each

12,13,14,11
6 722866 1000399167 6 Hand Pulse Grip Set;Semi-Assy;right;;;;R No Model Compatibility List $50.67 / Each

12,13,14,11
726115 080058 Q28 Rubber;1.0t;CB66; No Model Compatibility List $8.42 / Each

Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

728337 094065 U08 SCREW;TRH;M5X0.8PX13L; No Model Compatibility List $1.66 / Each

728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $12.04 / Each

Cap;Stabilizer;Right-Front;ABS/PA757;P80 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $9.44 / Each

Foot Pad;Adjustable;M12X58H;12.9;EP304; 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $33.85 / Each

Foot Pedal Set w/Strap 9/16” 1004804 0000090518 0 1 Foot Pedal Set w/Strap 9/16” Yes Model Compatibility List $56.99 / Each

J 020069-00 020069-00 J16 1 SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 Yes Model Compatibility List $6.99 / Each
