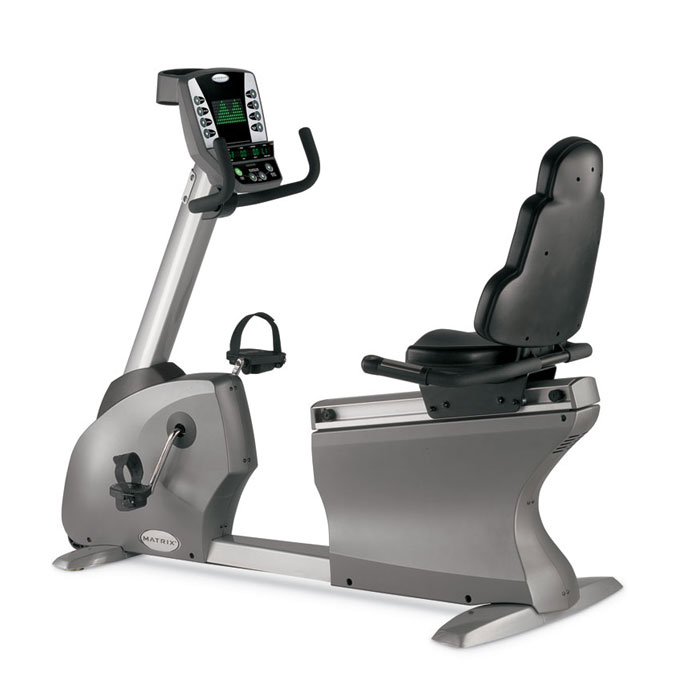

Matrix Commercial - R5x-06-G3 - 2006-2008

Repair Parts for Matrix Commercial R5x-06-G3 RB83

Brand: Matrix Commercial

Category: Recumbent

Type: Stationary Bikes

Model Name: R5x-06-G3

Version: 2006-2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Wire set Pair with ER-002428 (Used) 1022750 BR-002684 0 1 Wire set Pair with ER-002428 (Used) No Model Compatibility List $32.49 / Each

1,4
Wire harness HR (Used) 1022719 0000088454 0 1 Wire harness HR (Used) No Model Compatibility List $16.79 / Each

1
Pulley with needle bearing only (Used) 1022735 0000090893a 0 1 Pulley with needle bearing only (Used) No Model Compatibility List $41.99 / Each

1
Foot Pedal Set w/Strap 9/16” 1004804 0000090518 0 1 Foot Pedal Set w/Strap 9/16” Yes Model Compatibility List $56.99 / Each

Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $32.99 / Each
Heart Rate HR Receiver Board 1001738 0000083655 Heart Rate HR Receiver Board Yes Model Compatibility List $88.99 / Each

Pulley Axle Set;MX-R5X-F;US;RB91 727773 0000090893 4 Pulley Axle Set;MX-R5X-F;US;RB91 Yes Model Compatibility List $572.86 / Each

727757 090809 17 Stabilizer Set;Rear;H5x-F; No Model Compatibility List $653.33 / Each

Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

Console Back Cover 726656 0000083865 178 Console Back Cover No Model Compatibility List $135.36 / Each

726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

A 703731 015914-BA AC2 Stationary Handlebar;PVC Dipping;;;RB80 No Model Compatibility List $176.44 / Each

12,13,14,11
705680 055135-Z AC4 Console Mast Set;MX-R5x, NO CUPHOLDER No Model Compatibility List $348.01 / Each

7
A 705762 056056-Z AD1 Seat Slider Set No Model Compatibility List $590.49 / Each

12,13,14
A 703558 015362-AB AD2 Back Pad Tube;BL;;;;RB50 Yes Model Compatibility List $112.06 / Each

3,4,5,6,12,13,14
A 705761 056055-Z AD5 Seat HR Handlebar Set;Includes HR Grips;RB83 R2650HRT(RB79) No Model Compatibility List $358.98 / Each

7,12,13,14,11
A 705682 055138-Z AD6 Seat Roller Set Yes Model Compatibility List $94.61 / Each
8,12,13,14
A 703553 015307-AA AJ1 Front Stabilizer Set;SL/GY;;F;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $404.90 / Each

4,5,6
HR Grip Set Left 726844 0000085590 AK1 HR Grip Set Left Yes Model Compatibility List $84.86 / Each

HR Grip Set Right 726845 0000085591 AK2 HR Grip Set Right No Model Compatibility List $84.86 / Each

A 710776 1000213547 AN1 CONSOLE SET;H001S004;EP301;ES;EN;EP301; Yes Model Compatibility List $1300.00 / Each

7
729011 Order Kit AT101 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock
728982 Not Orderable B44 Main Frame Set;-;PAINTING;MM330 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 703852 018652-B B69 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

B 701823 004844-00 B70 Set Screw;M6X1.0PX16.0L No Model Compatibility List $1.66 / Each

726223 080783 C08 Water Bottle Holder No Model Compatibility List $22.57 / Each

703835 018586-BA C11 Guide Rail Rubber Washer No Model Compatibility List $8.42 / Each

2,9
C 701947 004983-A C21 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

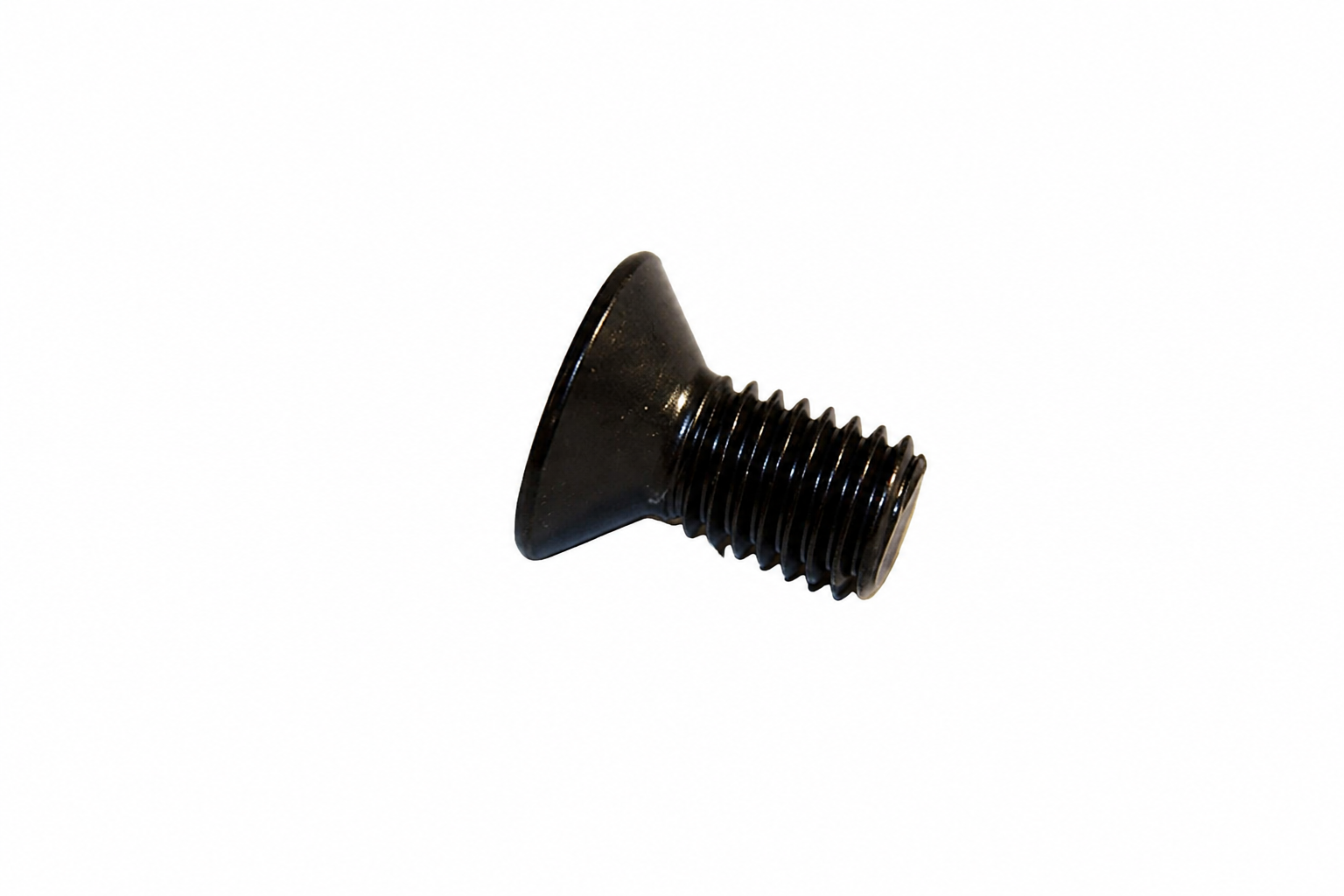

C 701661 004697-AD C22 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
726919 085999 D04 Seat Adjustable Grip Set;RB50 No Model Compatibility List $55.74 / Each
Out Of Stock
D 700401 001246-A D18 Bushing;U-Shaped No Model Compatibility List $9.10 / Each

8
D 702765 009585-B D27 Adjustment Block;Position;;S45C;16x93.5L;Zn Pl No Model Compatibility List $32.08 / Each

1
D 702287 005482-C D28 Spring;Compress;Adjust;SWPB; No Model Compatibility List $9.10 / Each

2
701909 004935-00 D51 Nut;Nylon;M6X1.0P No Model Compatibility List $2.00 / Each

701897 004926-00 D52 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

D 976932 004926-00 D52 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

D 702201 005258-D D53 Washer;Wheel;;WZN; No Model Compatibility List $1.66 / Each

2,8
D 701824 004845-00 D54 Set Screw;M12x1.75Px12.0L No Model Compatibility List $1.66 / Each

2
D 701402 004456-00 D55 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

D 701480 004526-AB D56 Screw;Round;Hex Socket;M6X1.0PX30L No Model Compatibility List $1.79 / Each

2
D 701960 005003-00 D57 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

701381 004435-00 D58 Screw;FH;M5X0.8PX10L;;PH;;BAN;;BP No Model Compatibility List $2.00 / Each

2
D 702488 008016-A D59 Washer;Lock;8.4X18.0X3.0T;S45C No Model Compatibility List $1.79 / Each

2
729229 Part of Kit AK1 or AK2 D65 HR Grip Plastic;Upper No Model Compatibility List $0.00 / Each
Out Of Stock 		7,9,12,13,14,11
D 705007 029033-AA D71 Seat Pad Set;RB80/RB81 Used Yes Model Compatibility List $250.46 / Each

12,13,14
D 705006 029032-AA D73 Back Pad Set;RB80/RB81 USED Yes Model Compatibility List $297.49 / Each

4,5,6,12,13,14
D 700090 000334-F D75 Cover;Back Pad Set;;ABS;;BL;;RB50 No Model Compatibility List $50.05 / Each

9,4,5,6,12,13,14
D 705227 039173-AA D77 Seat Position Tooth Plate;BL;;;;R No Model Compatibility List $69.86 / Each

3,12,13,14

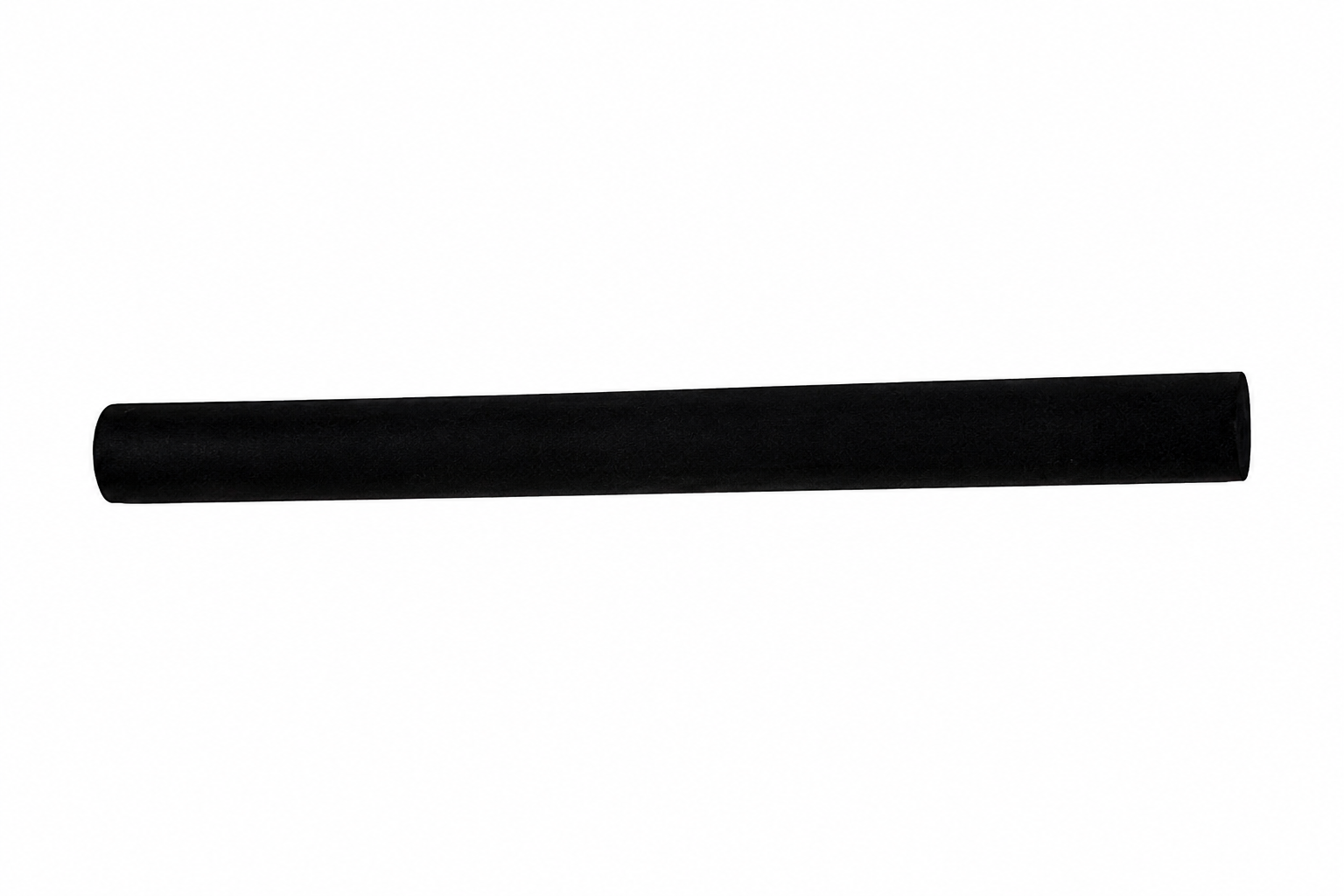

D 700224 000730-CA D78 Foam Grip;Handlebar;Dipping;22x3tx320L No Model Compatibility List $14.01 / Each

12,13,14,11
D 705763 056060-AA D79 Seat Tube End Cap;1-1/4";Material:PP; Yes Model Compatibility List $1.66 / Each

9,3,12,13,14
D 706967 067654-AA D80 Seat Position Indicator Plate;BLACK;RB50B; Yes Model Compatibility List $60.87 / Each

3,4,5,6,12,13,14
D 701712 004729-00 D81 Screw;Hex Socket;BH;M8x1.25Px16L;Zn-B No Model Compatibility List $1.66 / Each

2
D 701976 005014-00 D82 Washer;Spring;8.0x17.0x1.5T No Model Compatibility List $1.79 / Each

2
D 701631 004653-00 D85 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $2.00 / Each

H 705684 055142-Z H01 Aluminum Seat Rail Set;MX-R5x R2650HRT(RB79) No Model Compatibility List $495.85 / Each

7,9,12,13,14
H 702482 007919-C H02 Fix Plate;Aluminum Rail;;SPC;6.0t;;;RB50 No Model Compatibility List $9.10 / Each

9,3
H 700379 001170-00 H03 Stopper Wheel;Seat Yes Model Compatibility List $7.54 / Each

8,12,13,14
H 702587 008770-A H05 Seat Axle;Stopper;;SS41;12.0x85L;Zn Plate;;; Yes Model Compatibility List $8.84 / Each

3,8
H 1033149 008770-A H05 Seat Roller Axle Set (Used) Yes Model Compatibility List $20.00 / Each

3,8
H 702054 005082-00 H12 Washer;Flat;5.0x16.0x1.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
701286 004355-00 H13 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

H 701535 004566-00 H15 Screw;Plain;Hex Socket; M5X0.8PX10L No Model Compatibility List $1.66 / Each

H 704184 020449-00 H16 Washer;Flat;8.2x13.0x1.4t;;Zn-BL No Model Compatibility List $1.66 / Each

H 701541 004569-00 H17 Screw;Plain;Hex Socket;M5X0.8PX15L No Model Compatibility List $2.00 / Each

2
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

J 705126 037907-AA J21 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each

9,3,12,13,14
L 700005 000007-B L01 Transport Wheel;Nylon+30%FIBER;74;BL;CB32 Yes Model Compatibility List $9.10 / Each

8
L 701743 004767-00 L02 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
L 701905 004932-00 L03 Nut;Nylon;M8X1.25P(BED) No Model Compatibility List $1.66 / Each

2
L 701997 005035-00 L04 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

N 705214 039154-AA N01 Faceplate,Console(PAINT);EP68-US No Model Compatibility List $85.96 / Each

7,3,4,5,6
Reading Rack;PA-746(Black) 727837 0000091243 N04 Reading Rack;PA-746(Black) No Model Compatibility List $27.38 / Each

N 703838 018605-D N07 Overlay;Upper No Model Compatibility List $35.36 / Each

1
N 703839 018607-B N09 Overlay;Lower No Model Compatibility List $9.10 / Each

1
N 703840 018608-D N13 Overlay;Lower No Model Compatibility List $9.41 / Each

1
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

701275 004339-00 N25 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
701858 004880-00 N26 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
N 703855 018708-F Not Shown Hardware Pack No Model Compatibility List $42.69 / Each

4,5,6
P 700745 002123-DR P02 Console Cable;Upper;900L;3020-08N;RB80 No Model Compatibility List $91.23 / Each

7,4,5,6
P 700823 002428-ER P03 Console Cable;Lower;1250L;XAP-07V-1;CB61; No Model Compatibility List $54.73 / Each

7,4,5,6
700802 002372-FR P04 Pulse Sensor Wire;800L;ALEX 3020-12N;RB8 No Model Compatibility List $36.79 / Each

1,4
P 700766 002222-ER P05 TV Power Wire;1350L;SCD-026A;RB80; Yes Model Compatibility List $11.67 / Each

4,5,6
Connect Wire;Console;2.0AR;RB123 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $31.85 / Each

P 700918 002757-DR P06 TV Signal Wire;1350L;5CF;RB80; Yes Model Compatibility List $19.50 / Each

4,5,6
P 700898 002684-BR P07 Generator Wire;780L;3.96-5P;RB80; Yes Model Compatibility List $10.24 / Each

8,4,5,6
P 701068 003559-CR P08 Power Resistance;With Wire;400W 10 500m Yes Model Compatibility List $168.22 / Each

P 700569 001677-A P10 Cable Fix Button;KSS/UC-3 No Model Compatibility List $1.66 / Each

P 705752 056008-A P11 Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG No Model Compatibility List $3.35 / Each

4,5,6,12,13,14,11
Pulse Wire;AL Rail;2.0AR;RB123 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $29.09 / Each

P 700394 001221-00 P13 Clamp;Cable;KSS UC-1;PD02UC100 No Model Compatibility List $1.66 / Each

P 700864 002574-FR P16 Pulse Sensor Guide Rail Connecting Wire; 1850(TKP H6630P1-12+TKP H6630R1-12) Yes Model Compatibility List $23.76 / Each

9,4,5,6,12,13,14
P 700803 002373-ER P17 Pulse Sensor Wire;800L;ALEX 3020-12N;RB8 Yes Model Compatibility List $42.90 / Each

4,5,6,12,13,14
P 702823 011097-AR P18 Connector;TV;5C2V;CB61-P11A (CB61) RoHS No Model Compatibility List $8.81 / Each

4,5,6
P 703367 013782-AB P23 Lower Control Board;Generator;H002 Yes Model Compatibility List $638.79 / Each

1
P 701342 004388-00 P51 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

P 703846 018623-A P52 Screw;Round Cross Tapped;5x10L; 5x10L No Model Compatibility List $1.66 / Each

2
P 701273 004337-00 P54 Screw;Round;PH;M5X0.8PX50L No Model Compatibility List $1.66 / Each

2
P 701891 004924-00 P55 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

701920 004951-A P56 Nut;M5;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
706754 065248-A P58 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

701300 004364-00 P59 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

Q 705681 055136-ZL Q01 Left Front Side Cover Set;MX-R5x R2650HRT(RB79) No Model Compatibility List $171.05 / Each

7,9,12,13,14
711825 1000223180 Q02 Cover Set;R3x S/N before RB303110701610 No Model Compatibility List $295.39 / Each

9
Q 700545 001577-AA Q03 Boot;Console Mast Yes Model Compatibility List $12.27 / Each

7
Q 1033123 001577-AA Q03 Console Mast Boot, BL, RB80-Q03A (Used) Yes Model Compatibility List $6.99 / Each

7
Q 1033123 001577-AA Q03 Console Mast Boot, BL, RB80-Q03A (Used) Yes Model Compatibility List $6.99 / Each

7
Q 1033123 001577-AA Q03 Console Mast Boot, BL, RB80-Q03A (Used) Yes Model Compatibility List $6.99 / Each

7
Q 705143 038176-AA Q04 Left Rear Side Cover Set;CN/GY;;R;;CB32 VISION CARBON GRAY COLOR No Model Compatibility List $150.77 / Each

9
Q 705144 038177-AA Q05 Right Rear Side Cover Set;CN/GY;;R;;CB32 VISION CARBON GRAY COLOR No Model Compatibility List $150.77 / Each

9
Q 703549 015264-AA Q06 Stabilizer Cover;SL/GY;;;;CB61 No Model Compatibility List $110.11 / Each

9
Q 705240 039286-AA Q07 End Cap;Seat Guide Rail Yes Model Compatibility List $27.82 / Each

9,12,13,14
Q 700072 000252-CA Q08 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11
Q 700370 001143-B Q09 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $9.10 / Each

8,9
Q 700075 000279-B Q10 Fix Plate;E-PORT No Model Compatibility List $9.10 / Each

3
701585 004616-00 Q21 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $2.00 / Each

Q 986316 004616-00 Q21 Umbrella Cross Tapped Screw 4x12L (New) No Model Compatibility List $12.00 / Each
Out Of Stock
702484 007970-B Q24 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
Q 1036645 007970-B Q24 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

9,3
Q 702127 005154-A Q25 Washer;Flat;5.0X10.0X1.0T;Stainless No Model Compatibility List $1.79 / Each

729244 Part of R02 R01 Mandrel;Flywheel;;;;;;;CB61 SCM440 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
R 705224 039168-Z R02 Drive Axle Set No Model Compatibility List $408.38 / Each

8,10
R 701122 003911-E R03 Transmission Wheel;60;One-Way Bearing;HFL-2530 Yes Model Compatibility List $27.38 / Each

8
R 703851 018650-E R05 Fix Pass axle Cover A;66x48.5L SS41(Pai No Model Compatibility List $34.16 / Each

8,9
R 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $3.35 / Each

1
729072 part of 039168-Z R07 Drive Axle Sleeve (B) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,10
R 701201 004154-00 R08 Drive Belt;Poly-V;370-J6 Yes Model Compatibility List $39.99 / Each

15,10
R 704976 027963-A R09 Drive Belt;Poly-V;350-J8 Yes Model Compatibility List $63.83 / Each

10,15
R 705213 039153-A R10 Ring;;;;26x10L ;;;;CB61 No Model Compatibility List $8.42 / Each

1
701159 004077-A2 R19 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

R 701172 004092-00 R20 Bearing;One-Way;;HFL2530;INA Yes Model Compatibility List $84.11 / Each

8
R 701951 004987-00 R22 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.66 / Each

702076 005109-00 R25 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
701781 004796-00 R26 Bol;M8x1.25Px20L Yes Model Compatibility List $2.00 / Each

1
R 701886 004916-C R27 Nut;Hex;M50X1.0P;Zinc Plated No Model Compatibility List $1.79 / Each

2,3
R 702148 005182-00 R28 Washer;Teflon;25.3X40X1.0T No Model Compatibility List $3.64 / Each

2
R 701993 005032-00 R30 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
S 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

S 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
S 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

S 701907 004933-00 S06 Nut;Nylon;1/4"--20UNC;BED No Model Compatibility List $1.79 / Each

S 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
S 701870 004892-00 S08 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
701390 004447-AB S10 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

T 722130 1000387880 T01 Pedal Axle Set;;;include of crank;;H-3X/ No Model Compatibility List $419.77 / Each
Out Of Stock 		8,9
T 1033110 1000387880 T01 Original one piece Crank Pulley Set (Used) No Model Compatibility List $71.99 / Each
Out Of Stock 		8,9
T 702572 008702-J T03 Crank Bearing Fixing Base;Right; No Model Compatibility List $14.56 / Each

8,3
T 702573 008703-G T04 Crank Bearing Fixing Base;Left; No Model Compatibility List $14.56 / Each

8,3
T 702574 008704-D T05 Nut;Crank;Left;SS41;%32;;;;CB32 No Model Compatibility List $1.79 / Each

2,8
T 702467 007747-C T06 Fix Plate;Crank;;SPC;1.5t;Zn Plate;;CB32 No Model Compatibility List $1.79 / Each

8,3
T 701146 004050-A T09 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

T 701166 004082-A2 T11 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $21.89 / Each

8
T 702575 008706-C T14 Nut;Crank ;Right;SS41;%32;;;;CB32 No Model Compatibility List $3.64 / Each

2,8
T 702577 008721-J T15 Ring;Pedal Assembly;Front;SS41;31.8;;;;CB32 SS41(ZINC PLATING) No Model Compatibility List $8.42 / Each

8,9,3
T 702578 008722-G T16 Ring;Pedal Assembly;Rear;SS41;31.8 No Model Compatibility List $8.42 / Each

8,9,3
T 701843 004860-00 T17 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.79 / Each

2
T 702576 008708-D T18 Nut;Rim;;SS41;%32;;;;CB32 No Model Compatibility List $9.96 / Each

2
702241 005366-00 T106 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702193 005239-00 T107 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

701927 004964-00 T108 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

T 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.90 / Each

T 703449 014724-A T110 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
T 1004805 014724-A T110 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

8,9
T 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $168.97 / Each

8
U 705683 055140-Z U06 Tension Wheel Set No Model Compatibility List $172.69 / Each

8
U 701165 004081-A2 U07 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

U 702276 005439-00 U12 Spring;Tension Assembly;16x2x74L Yes Model Compatibility List $4.00 / Each

2,3
U 702517 008420-00 U14 Adjustment Plate;Tension;6Hole No Model Compatibility List $1.66 / Each

3
U 701449 004493-00 U21 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

702240 005365-00 U23 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

U 701268 004329-00 U25 Screw;Phillip;Round;M5x0.8Px10L; No Model Compatibility List $2.00 / Each

2
V 702346 006298-A V01 Decal;Guide Rail No Model Compatibility List $3.35 / Each

7,9,3
V 704977 027982-B V04 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
V 702416 006675-C V08 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
704978 028272-CR W25 Membrane Keypad;Left;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
705038 032524-CR W26 Membrane Keypad;Right;Plane 4Key;CB64 No Model Compatibility List $9.10 / Each

9,12,13,14
W 705070 034598-BR W27 Membrane Keypad;Down;Plane 4Key;CB64 No Model Compatibility List $17.42 / Each
Out Of Stock 		9,12,13,14
701626 004647-00 W32 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

W 705753 056009-A W37 Power Wire;Heart Rate Board;220L;(TKP 2510A-3P Yes Model Compatibility List $16.54 / Each

4,5,6,12,13,14
X 704041 020127-A X05 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
Z 701312 004370-00 Z13 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

Z 941989 004370-00 Z13 Screw (New) No Model Compatibility List $12.00 / Each

703999 020085-00 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

2
702105 005134-00 Z22 Washer;Flat;8.2x14.0x1.5T;BAN; Yes Model Compatibility List $2.00 / Each

701430 004479-00 Z31 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

Z 701671 004704-A Z41 Screw;Flat Hex Socket;M8x1.25Px15L;BED; No Model Compatibility List $1.66 / Each

2
Z 701713 004730-00 Z42 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $2.00 / Each

Z 702136 005165-00 Z43 Washer;Arc;8.2x18x1.5T No Model Compatibility List $2.00 / Each

701978 005015-00 Z44 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

Z 701853 004874-AB Z45 Screw;Flat Hex Socket;M8x1.25Px15L;BED No Model Compatibility List $1.79 / Each

2
Z 705128 037909-AA Z51 Leveler;Foot Pad;Adjustic;Center No Model Compatibility List $9.10 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
