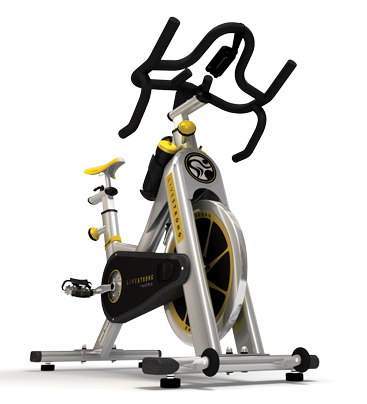

Matrix Commercial - S-Series-LS - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
0 701155 004073-A3 02 40 H L Ball Bearing;6001ZZ;12x28x8T No Model Compatibility List $9.57 / Each

8
0 701159 004077-A2 02 40 C 2 RS Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

N 701311 004369-AH Not Shown Screw;Phillip;BH;Stainess;M5x0.8Px15L; No Model Compatibility List $1.79 / Each

2
N 701366 004416-AB Not Shown Screw;FH;M5X0.8PX20L;;PH;;CHM;; No Model Compatibility List $1.79 / Each

N 701402 004456-00 Not Shown Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

N 701617 004636-AC Not Shown Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

N 702253 005382-00 Not Shown Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

N 704110 020256-AD NOT SHOWN Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

729264 ZMD4000003 02 01 20 LS Console kit (with bracket and hardware) No Model Compatibility List $0.00 / Each
Out Of Stock
7,2,3,4,5,6
729265 ZMD4001580 N/A Wireless Computer-ICG Bikes No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
729266 ZMD4001581 N/A Mount Kit + Transmitter-Spin Bike No Model Compatibility List $0.00 / Each
Out Of Stock
2,12,13,14
0 729407 ZMS3000260 02 20 04 Tomahawk-Rubber Stop Insert E-S Series No Model Compatibility List $33.77 / Each

1
0 729408 ZMS3000261 02 10 A Tomahawk-Insert Sleeve E-S Series No Model Compatibility List $65.60 / Each

3
0 729409 ZMS3000262 02 40 C MD20 08 Tomahawk-Spindle Assembly E-S Series No Model Compatibility List $145.86 / Each

3,12,13,14
0 729410 ZMS3000263 02 40 C S 08 Tomahawk-Crank Mounting Bolts No Model Compatibility List $13.52 / Each

2,8
Tomahawk-Left Crank for E Series 729411 ZMS3000265 02 40 CRMO L YE Tomahawk-Left Crank for E Series No Model Compatibility List $182.34 / Each

8
0 729413 ZMS3000267 02 40 CRMO L SX 08 Tomahawk-Left Crank for S Series No Model Compatibility List $182.34 / Each

8
0 729414 ZMS3000268 02 40 CRMO R SX 08 Tomahawk-Right Crank for S Series No Model Compatibility List $182.34 / Each

8
0 729415 ZMS3000269 02 40 H Tomahawk-Flywheel Axle E-S Series No Model Compatibility List $51.04 / Each

8
0 729416 ZMS3000274 02 40 BE Tomahawk-Contitech Belt 1397/550L E-S Se No Model Compatibility List $138.53 / Each

15
Tomahawk-Brake Adjustment Knob S-Series 729417 ZMS3000275 02 50 A SX Tomahawk-Brake Adjustment Knob S-Series No Model Compatibility List $51.04 / Each

8
0 729418 ZMS3000276 02 50 01 Tomahawk-Brake Handle Red Emergency S-Se No Model Compatibility List $54.76 / Each

8,11
0 729419 ZMS3000278 02 50 02 Tomahawk-Adjustment Ball S-Series No Model Compatibility List $21.89 / Each

1
0 729420 ZMS3000280 02 50 05 SX Tomahawk-Brake Adjustment Drum E-S Serie No Model Compatibility List $25.51 / Each

8
0 729421 ZMS3000281 02 50 06 SX Tomahawk-Retainer for Brake Pad-S Series No Model Compatibility List $47.42 / Each

8,12,13,14
Tomahawk-Retainer for Brake Pad-E Series 729422 ZMS3000282 02 50 06 Tomahawk-Retainer for Brake Pad-E Series No Model Compatibility List $47.42 / Each

8,12,13,14
Tomahawk-Lower Brake Assembly E-Series 729424 ZMS3000284 02 50 05 Tomahawk-Lower Brake Assembly E-Series No Model Compatibility List $58.37 / Each

8,3
Tomahawk-Brake Adjustment and Emergency 729425 ZMS3000285 02 50 A Tomahawk-Brake Adjustment and Emergency No Model Compatibility List $51.04 / Each

8
Tomahawk-Plastic Sweat Guard E-Series 729426 ZMS3000286 02 99 02 Tomahawk-Plastic Sweat Guard E-Series No Model Compatibility List $189.12 / Each

9,3
0 729428 ZMS3000292 02 42 01 SX 08 Tomahawk-Inner Chain Guard-S Series No Model Compatibility List $109.41 / Each

9,3
Tomahawk-Left Cover for Flywheel hub of 729430 ZMS3000294 02 42 03 E 10 Tomahawk-Left Cover for Flywheel hub of No Model Compatibility List $94.85 / Each

8,9
0 729431 ZMS3000295 02 42 04 Tomahawk-Plastic Pop Out Cover for Chain No Model Compatibility List $18.28 / Each

9,12,13,14
0 729432 ZMS3000298 02 10 B LS Tomahawk-Pop Pin Adjustment Knob for Ver No Model Compatibility List $45.60 / Each

12,13,14
Tomahawk-Insert Sleeve E-Series 729433 ZMS3000308 02 20 02 Tomahawk-Insert Sleeve E-Series No Model Compatibility List $36.48 / Each

3
Tomahawk-Rear Stabilizer E Series 729434 ZMS3000310 02 11 02 E 08 Tomahawk-Rear Stabilizer E Series No Model Compatibility List $218.82 / Each

1
0 729435 ZMS3000311 02 11 02 SX 08 Tomahawk-Rear Stabilizer S Series No Model Compatibility List $202.59 / Each

1
0 729436 ZMS3000314 02 11 06 SX 08 Tomahawk-Black Plastic End Cap-E Series No Model Compatibility List $36.48 / Each

9,4,5,6
0 729437 ZMS3000316 02 11 A Tomahawk-Transport Wheel E/S Series No Model Compatibility List $27.35 / Each

8
0 729438 ZMS3000317 02 11 05 B Tomahawk-Leveling Rubber Foot E/S Series No Model Compatibility List $51.04 / Each

9,3
0 729439 ZMS3000318 02 99 10 Tomahawk-Protection Plate for Front Stab No Model Compatibility List $109.41 / Each

3
0 729440 ZMS3000319 02 99 11 Tomahawk-Protection Plate for Rear Stabi No Model Compatibility List $109.41 / Each

3
0 729441 ZMS3000320 02 11 B Tomahawk-Stabilizer Mounting Kit E/S Ser No Model Compatibility List $43.81 / Each

2
0 729442 ZMS3000321 02 11 E Tomahawk-PVC Gasket No Model Compatibility List $9.10 / Each

1
0 729445 ZMS3000328 01 40 A 3 Tomahawk-Toe Strap No Model Compatibility List $18.23 / Each

1
0 729446 ZMS3000373 02 50 04 Tomahawk- Brake Pads, E & S Series No Model Compatibility List $60.22 / Each

8,12,13,14
Tomahawk-E Series Bike Saddle Support 729450 ZMS3000399 - Tomahawk-E Series Bike Saddle Support No Model Compatibility List $651.72 / Each

3
0 729451 ZMS3000401 02 21 05 AL Tomahawk-S-X Series Saddle Support No Model Compatibility List $200.75 / Each

3
0 729452 ZMS3000404 02 50 03 B Tomahawk-E-S-X Brake Adjustment Drum No Model Compatibility List $42.48 / Each

8
Tomahawk-E Series Handlebar Aluminum 729453 ZMS3000405 02 30 01 AL Tomahawk-E Series Handlebar Aluminum No Model Compatibility List $793.42 / Each

11
0 729454 ZMS3000410 02 21 A K Tomahawk-Saddle mounting Bracket for E-S No Model Compatibility List $41.96 / Each

2,3,4,5,6
TOMAHAWK TRANSMITTER 729457 ZMS4000004 02 01 23 TOMAHAWK TRANSMITTER No Model Compatibility List $226.69 / Each

1
0 729458 ZMS4000107 02 40 BPG Tomahawk-Pulley Rear No Model Compatibility List $387.89 / Each

8
0 729459 ZMS4000108 02 40 BPK Tomahawk-Pulley front incl. ring No Model Compatibility List $255.71 / Each

8
0 729460 ZMS4000109 02 40 90 Tomahawk-Pulley tighten bolts No Model Compatibility List $44.12 / Each

2,8
0 729461 ZMS4000110 02 40 02 Tomahawk-Chain/belt tensioning assembly No Model Compatibility List $44.12 / Each

15,3
0 729462 ZMS4000111 02 30 02 PK Tomahwak-Endcaps up and down for handleb No Model Compatibility List $14.59 / Each

9,4,5,6,11
0 729463 ZMS4000115 02 99 03 Tomahawk-Allen bolt M4X15 with washer fo No Model Compatibility List $8.42 / Each

2
Tomahawk-Front Stabilizer 729464 ZMS4000118 02 11 01 E Tomahawk-Front Stabilizer No Model Compatibility List $396.86 / Each

1
729478 ZMS4000140 02 40 B Belt drive system assembly kit: * belt * front & rear pulley * lock ring for front pulley No Model Compatibility List $0.00 / Each
Out Of Stock
8,15,3,10
Tomahawk-Retrofit Kit 729479 ZMS4000294 - Tomahawk-Retrofit Kit No Model Compatibility List $72.98 / Each

1
LIVESTRONG-E-SERIES SADDLE 729485 ZMS4000434 02 21 E LS LIVESTRONG-E-SERIES SADDLE No Model Compatibility List $220.45 / Each

1
0 729486 ZMS4000435 02 30 02 AL LIVESTRONG-S-SERIES LX7 RACING HANDLEBAR No Model Compatibility List $602.29 / Each

4,5,6,11
0 729487 ZMS4000437 02 99 02 10 HB E&S-Series Dual Water Bottle Holder & Bracket - Handlebar No Model Compatibility List $91.23 / Each

2,3,4,5,6,11
0 729488 ZMS4000440 02 50 A S LS LIVESTRONG-S-SER. ADJUSTMENT KNOB, BRAKE No Model Compatibility List $83.77 / Each

8
0 729490 ZMS4000443 02 42 03 S 10 LIVESTRONG-S-SER. LEFT COVER, FLYWHEEL No Model Compatibility List $155.14 / Each

8,9
729491 ZMS4000447 02 99 50 S LS 10 LIVESTRONG-S-SERIES DECAL SET No Model Compatibility List $244.89 / Each

7,3
Crank;Right;Yellow 729511 ZMS4000853 02 40 CRMO R YE Crank;Right;Yellow No Model Compatibility List $308.59 / Each

8
Yellow Ribbon;Handlebar 729512 ZMS4000856 02 30 20 YE Yellow Ribbon;Handlebar No Model Compatibility List $79.40 / Each

11
CHEST BELT FOR ALL COMPUTERS 729513 ZMS4000858 02 01 25 CHEST BELT FOR ALL COMPUTERS No Model Compatibility List $236.78 / Each

15
FRONT STABILIZER -BLACK 729514 ZMS4000860 02 11 01 BKM FRONT STABILIZER -BLACK No Model Compatibility List $448.99 / Each

4,5,6
REAR STABILIZER - BLACK 729515 ZMS4000861 02 11 02 BKM REAR STABILIZER - BLACK No Model Compatibility List $400.04 / Each

4,5,6
YELLOW BAND;S-SERIES;SADDLE TUBE 729516 ZMS4000863 02 99 60 S 28 YELLOW BAND;S-SERIES;SADDLE TUBE No Model Compatibility List $48.98 / Each

3
DECAL SET LS281C-SERIES 729517 ZMS4000864 02 99 50 S LS 28 DECAL SET LS281C-SERIES No Model Compatibility List $244.89 / Each

7,3
N 729531 ZMS4001213 Not Shown Screw;Flat;Handlebar;M8x10L;Stainless No Model Compatibility List $4.86 / Each

2,11
N 729537 ZMS4001255 Not Shown Battery, AA for console No Model Compatibility List $4.50 / Each

N 729538 ZMS4001256 Not Shown Battery, AAA for transmitter No Model Compatibility List $4.16 / Each

1
Handlebar for S-Series-Longer, updated 729543 ZMS4001521 02 30 02 AL Handlebar for S-Series-Longer, updated No Model Compatibility List $557.67 / Each

11
Decal for Flywheels;MX S series 2012 729548 ZMS4001672 Not Shown Decal for Flywheels;MX S series 2012 No Model Compatibility List $62.50 / Each

7,8,3
Decal Set; S series 2012 729550 ZMS4001674 02 99 50 S 08 Decal Set; S series 2012 No Model Compatibility List $116.58 / Each

7,3
Decal Set;S Series 729554 ZMS4001778 02 99 50 S 08 Decal Set;S Series No Model Compatibility List $25.32 / Each

7,3
Outer Chain Guard-S series 729556 ZMS4001780 02 42 02 SX 08 Outer Chain Guard-S series No Model Compatibility List $174.04 / Each

9,3
729559 ZMS4002125 02 50 03 LS10 S-SERIES UPPER BRAKE SYSTEM No Model Compatibility List $277.06 / Each

8
729594 ZMS4002740 Not Shown Cap screw;SH;M3x10; stainless steel No Model Compatibility List $1.33 / Each

2,9
0 729720 ZMS4003529 02 11 01 SX 08 FRONT STABILIZER WELDMENT No Model Compatibility List $158.83 / Each

3
N 729739 ZMS4004413 Not Shown IC5 Ant+ Console & Bike Transmitter Kit No Model Compatibility List $511.03 / Each

7
BRICK MAGNET 15 x 10 x 5MM IC5/7 CAM PUL 729752 ZMS4004666 Not Shown BRICK MAGNET 15 x 10 x 5MM IC5/7 CAM PUL No Model Compatibility List $16.41 / Each

8
729789 ZMS4005315 02 42 02 S LS 10 Outer chain guard for S-Series THK and M No Model Compatibility List $222.66 / Each

9,3
729793 ZMS4005406 0121 VL-3125 SW SPORT SADDLE BLACK & RED INCL. SADDLE CL No Model Compatibility List $127.74 / Each

4,5,6
N 729802 ZMS4005526 Not Shown M5-0.8 x 16mm DIN 7985 Pan Head Phillips No Model Compatibility List $2.18 / Each

1
N 729803 ZMS4005528 Not Shown M5-0.8 x 50mm DIN 7985 Phillips Pan Head No Model Compatibility List $3.64 / Each

1
0 729804 ZMS4005730 02 10 E LOCK HANDLE ASSEMBLY FOR IC3/V-SERIES No Model Compatibility List $51.09 / Each

3,11
0 729806 ZMS4005733 01 40 A2 COMBI PEDAL SET, SPD COMPATIBLE No Model Compatibility List $292.01 / Each

8,9
Open Key Wrench 13x15 (New) 972262 005382-00  Open Key Wrench 13x15 (New) Yes Model Compatibility List $17.99 / Each

View Drawing
