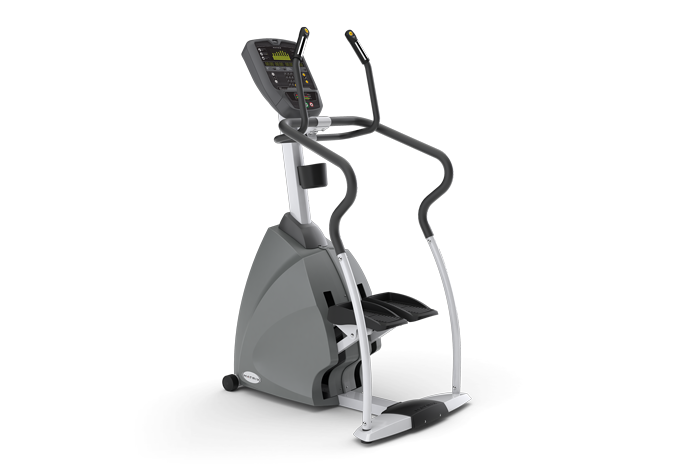

Matrix Commercial - S3x-05 - 2016

Repair Parts for Matrix Commercial S3x-05 CS26,CS11B,CS11I

Brand: Matrix Commercial

Category: Stepper

Type: Stepper

Model Name: S3x-05

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

Filter Board Set 1003980 069859 Filter Board Set Yes Model Compatibility List $27.99 / Each

1 711080 1000216367 1 Console Mast Set;-;S-3X/5X/7X-03-F;CS11B No Model Compatibility List $372.35 / Each

7
719064 1000355481 1 console mast set;;;American Beauty Red;C No Model Compatibility List $187.56 / Each

7
727458 089432 2 Handlebar Set;MX-S5X-F;US;CS11 No Model Compatibility List $517.04 / Each

727775 090902 3 Lower Pedal Arm Set;MX-S5X-F;US;CS11 No Model Compatibility List $435.42 / Each

727776 090904 4 Upper Pedal Arm Set;MX-S5X-F;US;CS11 No Model Compatibility List $333.74 / Each

727777 090906 5 Pedal Set;MX-S5X-F;US;CS11 No Model Compatibility List $595.01 / Each

728080 093057 6 Upper Handlebar Set;Right;tMX-S5X_6;US;CS08 No Model Compatibility List $150.46 / Each

Upper Handlebar Set;Left;MX-S5X_6;US;CS08 728081 093058 7 Upper Handlebar Set;Left;MX-S5X_6;US;CS08 No Model Compatibility List $150.46 / Each

728088 093119 7 Pulse Sensor Set No Model Compatibility List $127.74 / Each

8 711076 1000216358 8 Entertainment Port Set;;S-3X/5X/7X-03-F;US;CS1 No Model Compatibility List $180.28 / Each

1
1 711079 1000216363 10 Shield Set;Right;CS11B; No Model Compatibility List $400.56 / Each

3
1 706056 058735-A 11 Pulley Axle Set;RB79 Yes Model Compatibility List $120.56 / Each

8
Pedal Transmission Set;MX-S5X-F;US;CS11 727779 0000090915 12 Pedal Transmission Set;MX-S5X-F;US;CS11 Yes Model Compatibility List $1237.50 / Each

728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.66 / Each

728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729138 Part of Kit 2 AC3 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
A 706232 060362-A AC4 Idler Set No Model Compatibility List $22.83 / Each

8
729152 Part of Kit 3 AE1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
A 706493 062770-AA AE3 Painting;Pedal;MATRIX;silver gray; No Model Compatibility List $184.34 / Each

8,9
729172 Part of Kit 5 AE3 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729165 Part of Kit 4 AE4 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
Idler Set;CS08; 726615 0000083505 AE5 Idler Set;CS08; Yes Model Compatibility List $35.00 / Each

Handlebar Set 726646 083790 AG1 Handlebar Set No Model Compatibility List $171.73 / Each

A 706051 058716-AA AJ1 Stabilizer;Rear;-NGY;;F;;RB72 No Model Compatibility List $325.70 / Each

1
Transport Wheel Set;MX-E1x;EP95 728613 0000095636 AL3 Transport Wheel Set;MX-E1x;EP95 Yes Model Compatibility List $10.61 / Each

Filter Board 725319 069859 AP1 Filter Board Yes Model Compatibility List $55.95 / Each

726540 082661 B39 Screw;Wagon;M8x1.25Px20L;BLACK No Model Compatibility List $0.70 / Each

B 701945 004980-A B41 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) Yes Model Compatibility List $1.79 / Each

Bottle Holder Set;Console Mast;ABS/PA746;BL 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $15.52 / Each

Holder, Cup without Bracket (Used) 1035694 0000088923 C11 1 Holder, Cup without Bracket (Used) Yes Model Compatibility List $14.99 / Each

C 707032 068522-AA C14 FOAM GRIP;31.8x3tx430L;BL;CS08; No Model Compatibility List $20.05 / Each

11
727305 0000088465 C15 Pulse Sensor Wire;950L(TKP H66030R1-06x2 No Model Compatibility List $39.42 / Each

C 706094 059060-AA C22 Handlebar Connection Cover;CN/GY;;;;CS07 Yes Model Compatibility List $99.76 / Each

9,11
726224 0000080784 C25 Cover;Screw;PVC;BL;CB62; No Model Compatibility List $1.66 / Each

C 701661 004697-AD C33 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
C 701947 004983-A C42 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

E 706044 058692-C E13 Fix Axle;S45C;20x116L;CS08; Yes Model Compatibility List $11.60 / Each

8
E 706045 058693-CA E14 Fix Axle;;;SS41;;;;;TM27;TM27-B61B Yes Model Compatibility List $3.17 / Each

8
E 706046 058694-DA E15 Stopper Pad;PU;Black;CS08; No Model Compatibility List $18.62 / Each

4,5,6,12,13,14
E 706047 058695-B E16 Spring;Stretch;SWPA;3.2x41.0x210.0Lx54 Yes Model Compatibility List $101.53 / Each

2
E 702743 009475-B E19 Bushing;Cu MS;34;EP49 No Model Compatibility List $9.10 / Each

8
E 725256 103296 E20 Bushing No Model Compatibility List $9.57 / Each

8
722297 1000390817 E24 Pedal;;;PP-3015;BL/Black C;;MX-S5x-F; No Model Compatibility List $31.17 / Each

8,9,4,5,6
E 723551 1000408091 E24 Pedal Set;;Right/Left;;CS11-SBOM;; Yes Model Compatibility List $189.25 / Each

8,9
E 722298 1000390818 E30 Pedal Pad;;;NR+SBR1502;BL/Black C;;MX-S5 No Model Compatibility List $28.57 / Each

8,9,4,5,6,12,13,14
E 702250 005377-00 E33 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

E 701418 004468-00 E38 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.79 / Each

701390 004447-AB E40 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

E 719883 1000366596 E40 Screw;Socket Head;M5x0.8Px12L;;Hex Socke No Model Compatibility List $1.43 / Each

726296 081275 E41 Screw;Hex Socket;Round;M6x1.0Px55L(Tooth No Model Compatibility List $1.01 / Each

E 702042 005072-00 E42 Washer;Flat;6.5x13.0x1.5T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
E 703848 018627-A E43 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $2.00 / Each

2
722151 1000388144 E43 Spacer;;;Stainless;NKL;E-3x/5x/7x-03-F; No Model Compatibility List $0.00 / Each
Out Of Stock
728171 093381 E44 Washer;Flat;10.2x25.0x1.5t;;Zn-BL No Model Compatibility List $1.79 / Each

701987 005025-00 E45 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

E 706968 067662-A E46 Screw;Wagon;M10x1.5Px135L(Tooth15L);Adhe Yes Model Compatibility List $2.63 / Each

2
E 701863 004885-00 E47 Nut;Hex;M10x1.5P No Model Compatibility List $2.00 / Each

2
E 702082 005116-00 E48 Washer;Flat;25.5X38.0X2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
729191 Part of Kit 6 G01 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729194 Part of Kit 7 G02 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
G 706049 058710-AA G03 Lower Handlebar Set No Model Compatibility List $136.14 / Each

11
G 706050 058714-CA G21 FOAM GRIP;38.1x3tx1162L;BL;CS08; No Model Compatibility List $13.57 / Each

11
701626 004647-00 G22 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

J 705127 037908-AA J21 Leveler;Foot Pad;Adjustic No Model Compatibility List $9.10 / Each

9,3,12,13,14
J 706129 059332-00 JM01 Generator;242;600W 600rpm 2.5A;JM07 Yes Model Compatibility List $681.20 / Each

8
L 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $5.80 / Each

3,8
L 706053 058725-D L02 Transport Wheel Axle;;SS41;15.88x430L;Anti-Rust; Yes Model Compatibility List $19.97 / Each

8
L 702004 005042-00 L05 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

L 701740 004763-00 L06 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere Yes Model Compatibility List $2.00 / Each

2
702180 005222-00 L07 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

729141 Part of Kit 21 N202 Axle;Transmission;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
N 700925 002787-C Not Shown Power Cord;External(USA);3000,14AWG;110V(nema) No Model Compatibility List $72.98 / Each

4,5,6
728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
727270 088227 P01 Console Cable;1000L;22AWG;6.3KG;MX-S No Model Compatibility List $47.35 / Each

P 700831 002460-B P03 Keypad Ground Wire;250L;(FDFNYD2-250-1+5.0 Yes Model Compatibility List $8.42 / Each

P 706209 060244-C P04 TV Signal Wire;1850L;(5CF)x2;CS08; No Model Compatibility List $20.77 / Each

4,5,6
P 705750 056006-A P05 Grip Pulse Extension Wire;1000(5.0 OWzP) No Model Compatibility List $9.10 / Each

ECB Load Wire;200L;(3.96-2P}vVH+HL20P-02) 727809 0000091128 P07 ECB Load Wire;200L;(3.96-2P}vVH+HL20P-02) Yes Model Compatibility List $7.80 / Each

P 700895 002680-B P08 ECB EXT Wire;200L;(3.96-5P WHVH+HL20P-03 No Model Compatibility List $8.42 / Each

4,5,6
P 701033 003386-A P10 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
727269 088213 P12 AC Power Switch Set;950L(KST FLDNY-250x2 No Model Compatibility List $121.68 / Each

727434 089167 P13 Wire;Filter Power;500L(KST FLDNY2-250),J No Model Compatibility List $20.28 / Each

727523 089758 P13 Pushbutton Switch;R13-513B2B;H5x-F; No Model Compatibility List $20.36 / Each

706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

P 705777 056225-A P18 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

P 701031 003378-00 P25 Ferrite Core No Model Compatibility List $13.10 / Each

705776 056200-BA P31 Rubber Pad No Model Compatibility List $3.35 / Each

12,13,14
P 706177 059907-A P32 Bolt;Eye Hook;1/4"-20UNCx135 No Model Compatibility List $3.35 / Each

2
P 710878 1000214922 P33 Wire;Battery;900(KST,FDFNYD2-187)X2+VHR- No Model Compatibility List $39.65 / Each

7,4,5,6,12,13,14
P 710778 1000213551 P34 Net Signal Extended Wire;1850(3205615600 No Model Compatibility List $47.92 / Each

9,4,5,6
P 713881 1000309219 P35 Battery WP1.2-12;12V 1.2Ah; Yes Model Compatibility List $72.98 / Each

P 705765 056096-A P36 Fix Plate;Wheel;;SPHC;3.0t ;;;CB61 No Model Compatibility List $1.66 / Each

8,3
P 706478 062621-A P37 Nut;Wing;1/4"-20UNC;SS41;BZN;; No Model Compatibility List $1.66 / Each

701300 004364-00 P54 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

726204 080701 P54 Cable Clamp;KSS UC-04 No Model Compatibility List $41.37 / Each

702325 006078-00 P56 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

728583 095416 P58 Screw;BH;M4X0.7PX25L;;PH;Z.P.B;;; No Model Compatibility List $0.88 / Each

726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.79 / Each

Ferrite; Cord;FH0650B;CB32-P16A 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $3.35 / Each

729201 Part of Kit 9 Q01 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729120 Part of Kit 10 Q02 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
Q 706054 058731-BA Q03 Console Mast Boot;PVC;RB41 Yes Model Compatibility List $16.93 / Each

7
Q 706055 058733-CA Q04 Cover;Frame;RR;ABS/PA746;PANTONE 425C;RB Yes Model Compatibility List $52.62 / Each

9,3
Q 721752 1000385348 Q05 Cover;Frame;;PVC;BL/Black C;;CS11C; No Model Compatibility List $20.25 / Each

9,3,4,5,6
Q 702840 011855-A Q16 Connecting Plate;Side Cover No Model Compatibility List $1.61 / Each

9,3
Q 706979 067787-A Q17 Fixing Plate;Side Cover No Model Compatibility List $11.15 / Each

9,3
Q 703967 020016-AB Q21 Screw;Phillip;BH;Stainess;M5x0.8Px30L; No Model Compatibility List $1.66 / Each

2
701595 004620-AF Q22 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $2.00 / Each

702217 005330-00 Q25 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

Q 957398 005330-00 Q25 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

Q 701414 004464-00 Q27 Screw;Round;Hex;M6X10;Zn-BL No Model Compatibility List $1.79 / Each

701600 004624-00 Q28 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $2.00 / Each

729123 Part of Kit 11 R02 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
702240 005365-00 R03 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

R 701165 004081-A2 R04 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

R 706059 058738-A R11 Drive Belt;Poly-V;390-J12 Yes Model Compatibility List $59.46 / Each

15,10
R 701205 004161-00 R12 Drive Belt;Poly-V;380-J8 Yes Model Compatibility List $54.73 / Each

15,10
R 702470 007768-D R13 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

R 701417 004467-AB R14 Screw;Hex Socket;Round;M6x1.0Px50L;;Zn-B No Model Compatibility List $0.60 / Each

2
702178 005220-00 R15 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

R 701991 005029-00 R16 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 713082 1000232960 S02 Control Board;Generator;;H001;ErP-S100;; Yes Model Compatibility List $547.53 / Each

S 701975 005013-00 S03 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $2.00 / Each

2
S 702049 005077-00 S04 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.85 / Each

S 704095 020226-00 S05 Bolt;Eye Hook;1/4"-20UNCX60;Zn-BL No Model Compatibility List $3.35 / Each

2
S 701904 004931-00 S06 Nut;Locking;Nylon;1/4"--20UNC Yes Model Compatibility List $1.59 / Each

702046 005075-00 S07 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

701861 004883-00 S08 Nut;Hex;M6x1.0P No Model Compatibility List $2.00 / Each

S 701423 004472-00 S10 Screw;Hex Socket;Round;M6x1.0Px16L;Adher No Model Compatibility List $1.66 / Each

T 706061 058741-A T02 Bearing;Tapered Roller;BPFL-5;Huei Yuan Yes Model Compatibility List $36.01 / Each

8
T 712557 1000229491 T07 WASHER;FLT;TFN;Diam.25.8XDiam.38X1.5T;PT No Model Compatibility List $6.73 / Each

2
726212 080718 T07 Washer;Flat;Teflon;25.5x38x1.5t; No Model Compatibility List $12.27 / Each

T 701955 004991-00 T08 Key;Round;Dual-End;6X6X20L No Model Compatibility List $2.37 / Each

702241 005366-00 T09 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

701897 004926-00 T10 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

T 976932 004926-00 T10 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

T 702095 005127-00 T11 Washer;Flat;M25.5x38x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
727780 090916 T20 Timing Pully Set;;Left;;CS11; No Model Compatibility List $177.42 / Each

729124 Part of Kit 12 T20 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
723236 1000405685 T21 Timing Pully Set;;right;;CS11; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
V 704977 027982-B V04 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
V 702416 006675-C V13 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
V 702296 005499-00 V20 Insert Nail;1/8-X7.5L(4-1); No Model Compatibility List $1.66 / Each

1
Z 701449 004493-00 Z01 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

Z 701974 005012-00 Z02 Washer;Lock; M8.0X13X2T No Model Compatibility List $2.00 / Each

2
Z 706987 067950-AB Z03 Screw;Lock;Stainess;M6x1.0Px36L; No Model Compatibility List $0.34 / Each

2
Z 701741 004763-AD Z05 Screw;Hex Socket;BH;Stainess;M8x1.25Px16 No Model Compatibility List $1.66 / Each

2
Z 711554 1000221258 Z06 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.79 / Each

Z 704130 020298-00 Z07 Screw;Hex Socket;M8X40;Zn-BL No Model Compatibility List $1.92 / Each

2
Z 701310 004369-AF Z09 Screw;Phillip;BH;Stainess;M5x0.8Px15L; No Model Compatibility List $0.39 / Each

2
Z 701704 004725-AD Z10 Screw;Hex Socket;BH;Stainless;M8x1.25Px45L No Model Compatibility List $1.61 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
