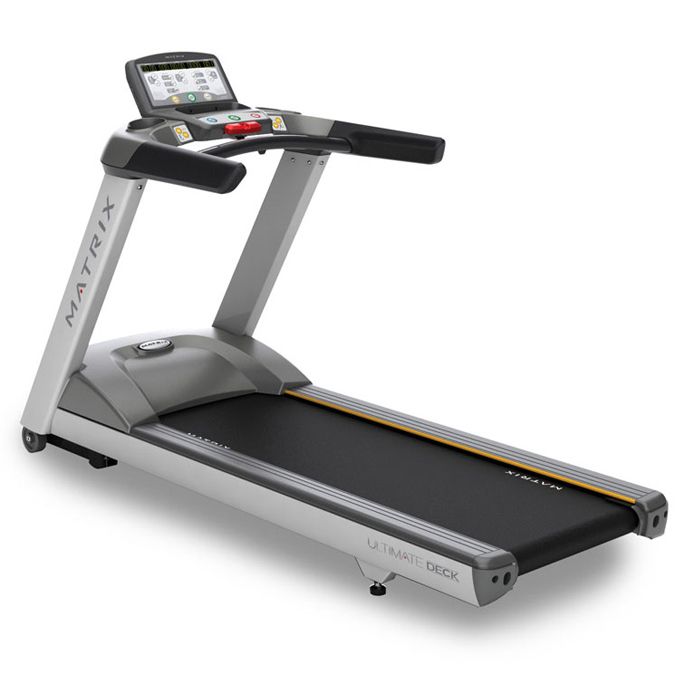

Matrix Commercial - T3x-01-G4-220v - 2009

Repair Parts for Matrix Commercial T3x-01-G4-220v FTM509,CTM509

Brand: Matrix Commercial

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T3x-01-G4-220v

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - - Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		1
700020 000035-D 58 Transport Wheel;Nylon;100;BL;TM65 Yes Model Compatibility List $9.10 / Each

1
4 700138 000500-00 40 Leveler;Frame Yes Model Compatibility List $12.99 / Each

1
1 700282 000859-00 121 Hole Plug;Nylon66;HP-8;Black No Model Compatibility List $1.66 / Each

1
700296 000885-C 88 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $16.74 / Each

1
700570 001679-00 141 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

1
7 700572 001682-00 74 Clip;Tie Strap Hold Down;HC-0L;P No Model Compatibility List $1.66 / Each

1
700747 002127-A 108 BS Wire;60L;12AWG;Black;TM86; No Model Compatibility List $1.79 / Each

1
701020 003346-00 110 Circuit Breaker;12A;125V/250V Yes Model Compatibility List $30.11 / Each

1
1 701027 003371-C 109 Power Socket;CE;100+250+80+Cord;TM65C Yes Model Compatibility List $36.48 / Each

1
8 701032 003383-A 82 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

1
8 701035 003393-A 81 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

1
1 701039 003404-B 142 Inductance;Choke;1.7mH/25A 70;70;TM65C-M51B; No Model Compatibility List $91.23 / Each

1
1 701063 003535-A 101 Cooling Fan;220V;TM65C No Model Compatibility List $69.16 / Each

1
4 701248 004284-AB 41 Running Deck;605X1390X25.4T;Timber No Model Compatibility List $365.01 / Each

1
1 701281 004350-00 103 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $2.00 / Each

1
1 701296 004361-AB 104 Screw;Phillip;BH;M4x0.7Px10L;BED;Gap; No Model Compatibility List $2.00 / Each

1
7 701332 004385-00 78 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

1
4 701430 004479-00 44 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

1
701433 004481-00 135 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

1
701451 004496-00 134 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

1
1 701476 004523-00 177 Screw;Hex Socket;Round;M8x1.25Px40L;Adhe No Model Compatibility List $2.00 / Each

1
5 701505 004539-AD 51 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

1
4 701531 004562-AB 43 Screw;Hex Socket;Sink;Stainess;M8x1.25Px35L No Model Compatibility List $1.79 / Each

1
701558 004589-00 90 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

1
7 701598 004622-00 79 Screw;Phillip;BH;Tapped;4x8L;Gap;;Zn-BL No Model Compatibility List $2.00 / Each

1
701731 004757-00 60 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

1
701866 004889-00 86 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

1
701900 004928-00 63 Nut;Nylon;M12x1.75P No Model Compatibility List $4.00 / Each

1
701908 004934-00 91 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

1
1 701976 005014-00 137 Washer;Spring;8.0x17.0x1.5T No Model Compatibility List $1.79 / Each

1
1 701985 005023-A 106 Washer;Spring;4.1x7.6x1.0T No Model Compatibility List $1.79 / Each

1
5 702004 005042-00 59 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

1
702007 005044-00 136 Washer;Flat8.3x16x1.3T;Black Zinc No Model Compatibility List $2.00 / Each

1
1 702051 005079-00 129 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

1
1 702063 005091-00 143 Washer;Flat;4.2X10.0X1.2T;BAN No Model Compatibility List $2.00 / Each

1
5 702119 005145-AC 52 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

1
702153 005189-00 94 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

1
9 702154 005190-B 95 Washer;Teflon;10.5x25x1.5T No Model Compatibility List $4.00 / Each

1
702178 005220-00 61 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

1
4 702192 005238-00 49 Washer;Lock;8.2x16x1.25T No Model Compatibility List $1.66 / Each

1
9 702564 008652-A 93 Pin;Hairpin Cotter;2x33L;ZNC No Model Compatibility List $1.79 / Each

1
8 702589 008864-A 80 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

1
9 703360 013725-C2 96 Motor Control Board;ASR-ACD4X-2L;V1.30;220V No Model Compatibility List $1.30 / Each

1
1 704004 020096-00 126 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

1
1 704154 020351-A 128 Screw;Phillip;Sink;Tapped;3x12L; No Model Compatibility List $2.00 / Each

1
5 705463 049254-AC 57 Screw;Hex Socket;Round;M12x1.75Px80L No Model Compatibility List $1.79 / Each

1
1 706160 059633-A 127 Screw;Hex Socket;Round;M5x0.8Px15L; No Model Compatibility List $1.79 / Each

1
5 706312 061162-AC 50 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

1
5 706492 062769-00 54 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.79 / Each

1

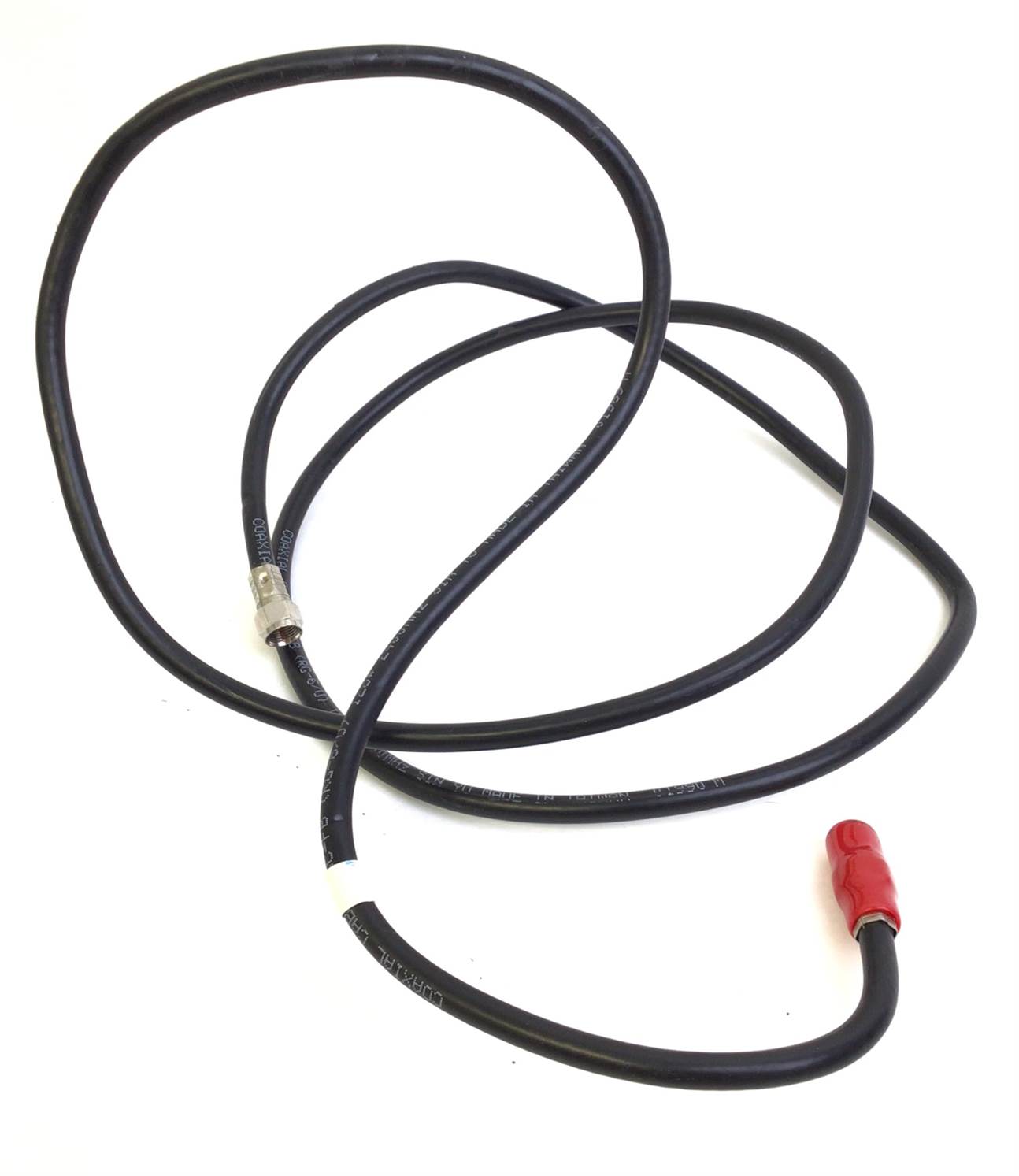

706754 065248-A 120 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

1
6 706811 065788-A 62 Washer;Flat;12.2X23.0X2.5T;;CHM; No Model Compatibility List $1.79 / Each

1
5 709868 1000204098 56 Spring No Model Compatibility List $46.20 / Each

1
9 710327 1000209491 97 CONTROL BOARD SET;MCB DAUGHTER BOARD SET Yes Model Compatibility List $503.49 / Each

1
9 710578 1000211092 98 FILTER;20A;125/250V;ROHS;-; Yes Model Compatibility List $167.23 / Each

1
1 714757 1000317845 107 Power Switch;ON-OFF;W/ Light;125V/250V;2 Yes Model Compatibility List $27.35 / Each

1
1 716932 1000340397 132 Belt;POLY-V;;250-J12;Halftone;GATES Yes Model Compatibility List $100.36 / Each

1
1 717347 1000344224 130 transmission set;;front;116.8;JR01-AR63 Yes Model Compatibility List $365.01 / Each

1
1 717355 1000344328 131 transmission set;;back;;JR02;; No Model Compatibility List $365.01 / Each

1
3 718635 1000352475 30 Switch Clip Set;Safety;;Red; No Model Compatibility List $36.48 / Each

1
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.79 / Each

1
726617 083525 N84 Screw;Phillip;BH;M5x0.8Px15L;Cr;Cut No Model Compatibility List $1.66 / Each

1
726735 084527 B24 Cover;Elevation Rack Pivot Joint;SPHC;1. No Model Compatibility List $9.10 / Each

1
Wire;Hand Pulse;250(2510A-03+XAP-03);TM5 726882 0000085776 W44 Wire;Hand Pulse;250(2510A-03+XAP-03);TM5 Yes Model Compatibility List $14.99 / Each

1
726897 085917 114 MCB Board Signal Wire;400(2.54+10PIN(245 No Model Compatibility List $31.75 / Each

1
726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $42.28 / Each

1
726989 086524 M21 Guard;Fan;PG-80;BLACK; No Model Compatibility List $8.42 / Each

1
726990 086525 105 Screw;Phillip;BH;M4x0.7Px50L;BED; No Model Compatibility List $54.26 / Each

1
Foam;38X5.0tX170;GM206 726999 086599 E05 Foam;38X5.0tX170;GM206 No Model Compatibility List $5.17 / Each

1
Power Wire; EMI Filter to Switch;200(RVS 727010 0000086674 P05 Power Wire; EMI Filter to Switch;200(RVS Yes Model Compatibility List $15.78 / Each

1
727028 0000086749 B05 Fix Plate;End Cap;B;SPHC;BED;5.0t;T1x; No Model Compatibility List $132.42 / Each

1
Swivel Arm Axle;20x138.4L;PL03 727031 086775 D12 Swivel Arm Axle;20x138.4L;PL03 No Model Compatibility List $22.72 / Each

1
727037 086814 - Carton;Frame;Include Printing;1US;T1x-F; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Translator Board;Console;H002;T1x; 727053 0000086912 N54 Translator Board;Console;H002;T1x; Yes Model Compatibility List $27.35 / Each

1
727056 086947 B22 Fix Plate;Power Switch;SPHC;1.6t;BED;T1x No Model Compatibility List $10.09 / Each

1
727059 086961 N02 Console Plastic;Upper;ABS/PA-746;T1x; No Model Compatibility List $92.43 / Each

1
727062 086973 60 Spring;Stretch;SWP;3.0x25.0x76.0Lx13N; No Model Compatibility List $11.05 / Each

1
727096 087189 N57 TV Signal Wire;1750(FM-0086-NBG7)x2;T1x; No Model Compatibility List $24.49 / Each

1
727099 0000087197 1 Idler Set;T1x-F; Yes Model Compatibility List $164.24 / Each

1
727101 087202 AG6 Right Arm Rest Welding Set;TM507-1US No Model Compatibility List $646.65 / Each

1
727103 087206 AG3 Left Arm Rest Welding Set;TM507-1US No Model Compatibility List $646.65 / Each

1
Connector Wire;PCB300mm(5P-4mmX2) 727122 0000087241 N75 Connector Wire;PCB300mm(5P-4mmX2) No Model Compatibility List $3.82 / Each

1
727126 087255 116 Fan EXT Wire;500(H6657R1-1x3+H7725R-02); No Model Compatibility List $8.42 / Each

1
727127 087367 Q01 Motor Cover;Upper No Model Compatibility List $127.74 / Each

1
Rear End Cap;Left;ABS;PA-765A;80435;T1x; 727128 0000087369 Q03 Rear End Cap;Left;ABS;PA-765A;80435;T1x; Yes Model Compatibility List $11.28 / Each

1
Rear End Cap;Right;ABS;PA-765A;80435;T1x; 727129 0000087370 Q04 Rear End Cap;Right;ABS;PA-765A;80435;T1x; Yes Model Compatibility List $11.28 / Each

1
727271 088231 100 Adaptor;97PS-024;TM501; No Model Compatibility List $27.04 / Each

1
727347 0000088727 14 Handlebar Set;T3x-F; Yes Model Compatibility List $273.75 / Each

1
727357 088774 99 Plate;SPHC;1.6t;BED;TM501; No Model Compatibility List $12.27 / Each

1
727382 088932 B23 Ornament Plate;Frame;SPHC;1.0t;BED;T1x; No Model Compatibility List $8.42 / Each

1
Wire;Keypad;650(3M1DC 7920-B500x2);T1x; 727387 0000088952 N69 Wire;Keypad;650(3M1DC 7920-B500x2);T1x; Yes Model Compatibility List $36.48 / Each

1
727388 088954 N71 Sensor Wire;Girp Pulse;900+150(2510-06+H No Model Compatibility List $20.41 / Each

1
Phone Board Wire;450L;T1xe; 727392 0000088958 N33 Phone Board Wire;450L;T1xe; Yes Model Compatibility List $9.99 / Each

1
727395 0000088967 B19 Mounting Bracket;Motor No Model Compatibility List $1.66 / Each

1
727408 088997 JM13 Elevation Motor;1300LB/220V;127mm;TM501; No Model Compatibility List $456.27 / Each

1
Rear Roller Bracket;Left.B;BL;TM509; 727412 0000089043 B30 Rear Roller Bracket;Left.B;BL;TM509; Yes Model Compatibility List $20.07 / Each

1
Rear Roller Bracket;Right.B;BL;TM509; 727413 0000089044 B31 Rear Roller Bracket;Right.B;BL;TM509; Yes Model Compatibility List $20.07 / Each

1
Wire;Signal Extended;C-SAFE;180(RJ-45-08 727414 0000089046 117 Wire;Signal Extended;C-SAFE;180(RJ-45-08 Yes Model Compatibility List $25.07 / Each

1
Signal Wire;C-SAFE;1900(TKP,H6630R1-08+6 727416 0000089049 N58 Signal Wire;C-SAFE;1900(TKP,H6630R1-08+6 Yes Model Compatibility List $11.99 / Each

1
Wire;Safety Switch;500(250X2+6630R1);T1x; 727417 0000089050 T03 Wire;Safety Switch;500(250X2+6630R1);T1x; Yes Model Compatibility List $11.99 / Each

1
727420 089082 167 Screw;Flange;Tapped;3x6L; No Model Compatibility List $1.66 / Each

1
727422 0000089110 73 Heart Rate Board;Receiver Yes Model Compatibility List $349.80 / Each

1
727459 089435 37 Decorative Side Rail;Left;BP-920S;TM509; No Model Compatibility List $315.54 / Each

1
727460 089436 38 Decorative Side Rail;Right;BP-920S;TM509; No Model Compatibility List $315.54 / Each

1
727744 090726 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
727745 090727 113 Wire;MCB Board to Daughter Board;150(3M No Model Compatibility List $31.36 / Each

1
727804 091089 12 Console Mast Set;Left;T1x-F; No Model Compatibility List $616.49 / Each

1
727851 091324 118 Power Wire;MCB;T3x; No Model Compatibility List $33.93 / Each

1
727878 091827 N83 Filter Ground Wire;300L;KST FDFNYD2-250 No Model Compatibility List $3.35 / Each

1
727955 092184 119 Wire;Adaptor;700L(WST P6-i39606+JST,XAP- No Model Compatibility List $1.79 / Each

1
Console Cable; Wire;Digital Comm;2000(MOLEX,50-70-9408x 727972 092293 N59 Console Cable; Wire;Digital Comm;2000(MOLEX,50-70-9408x No Model Compatibility List $27.35 / Each

1
728061 093024 7 Velcro Set;Motor Cover;T1x-F; No Model Compatibility List $14.25 / Each

1
728062 093025 16 Overlay Set;Incline;Left;English;T1x-F; No Model Compatibility List $54.73 / Each
Out Of Stock 		1
728063 093026 17 Overlay Set;Speed;Right;English;T1x-F; No Model Compatibility List $54.73 / Each
Out Of Stock 		1
Switch Set;Emergency Stop;T1x-F; 728064 0000093027 18 Switch Set;Emergency Stop;T1x-F; Yes Model Compatibility List $114.61 / Each

1
728066 093029 19 Sensor Wire;Heart Rate;T1x-F; No Model Compatibility List $1.66 / Each

1
728067 093031 2 Elastomer Set;Running Deck;Front;T3x-F; No Model Compatibility List $27.35 / Each

1
728068 093032 4 Elastomer Set;Running Deck;Back;T3x-F; No Model Compatibility List $27.35 / Each

1
728069 0000093033 5 Side Rail Fixing Bracket Set;T3x-F; Yes Model Compatibility List $15.44 / Each

1
728070 093034 6 Fan Guard Set No Model Compatibility List $1.66 / Each

1
728071 093035 8 Motor Set;TM509;SBOM; No Model Compatibility List $1182.97 / Each

1
728072 093036 9 Motor Screw Set No Model Compatibility List $12.27 / Each

1
728073 093037 11 Motor Screw and Washer Fixing Set;T3x-F; No Model Compatibility List $15.78 / Each

1
728074 093038 15 Pulse Sensor Set No Model Compatibility List $72.98 / Each

1
728075 093046 20 Side Rail Set;Left;T1x-F; No Model Compatibility List $155.84 / Each

1
728076 093047 21 Side Rail Set;Right;T1x-F; No Model Compatibility List $155.84 / Each

1
728086 093117 - Semi-Assy;TM507 Hardware;2KM;Frame;T1x; No Model Compatibility List $8.42 / Each

1
728138 093248 44 Screw;TRH;M5x0.8Px30L;MT;PS;CST;BOX;F-T No Model Compatibility List $1.66 / Each

1
728145 093320 16 Incline Overlay Set;Left;Frank;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728146 093321 16 Incline Overlay Set;Left;Germany;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728147 093322 16 Incline Overlay Set;Left;Italy;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728148 093323 16 Incline Overlay Set;Left;Spain;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728149 093324 16 Incline Overlay Set;Left;Holland;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728150 093325 17 Speed Overlay Set;Right;Frank;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728151 093326 17 Speed Overlay Set;Right;Germany;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
728152 093327 17 Speed Overlay Set;Right;Italy;TM507;SBOM; No Model Compatibility List $33.77 / Each

1
Fixing Axle;Pedal;MS10 728153 093328 B48 Fixing Axle;Pedal;MS10 No Model Compatibility List $6.29 / Each

1
Air Shock;Market;180Lx10KG;MS10 728154 093329 B49 Air Shock;Market;180Lx10KG;MS10 No Model Compatibility List $24.65 / Each

1
728276 093962 M22 Pin;Elevation;Clevis;SCM440x15x65L;Runner Gold No Model Compatibility List $9.10 / Each

1
Running Belt;Print;TM68B 508x3275x2.5t 728388 094490 AR5 Running Belt;Print;TM68B 508x3275x2.5t Yes Model Compatibility List $638.79 / Each

1
728622 0000095662 3 Elastomer Set;Running Deck;mid;Nai Ri;T1 Yes Model Compatibility List $9.10 / Each

1
1 1007186 1000317845 107 1 Power Switch On Off Yes Model Compatibility List $28.99 / Each

1
H/P Sensor Wire, Left, 600L, H6630R1-02+70x (Used) 1031590 0000092923 N59 1 H/P Sensor Wire, Left, 600L, H6630R1-02+70x (Used) No Model Compatibility List $4.49 / Each

1
Coax Long Red Cap (Used) 1031591 T3X-CLRC 0 1 Coax Long Red Cap (Used) No Model Compatibility List $6.99 / Each

1
PVS Entertainment System Remote Controller TV Volume Channel (Used) 1031570 T3X-PVS 0 1 PVS Entertainment System Remote Controller TV Volume Channel (Used) Yes Model Compatibility List $29.99 / Each

1
1 matr250j12 1000340397 132 1 Drive Belt Yes Model Compatibility List $34.99 / Each

1
1 1032499 002127-A 108 1 BS WIRE;60L;12AWG;BLACK;TM86; (Used) No Model Compatibility List $2.99 / Each

1
9 1000019 1000211092 98 Power Entry Plate Switch Breaker Inlet Yes Model Compatibility List $34.99 / Each
1
1 1002652 003346-00 110 Power 12a Circuit Breaker Yes Model Compatibility List $8.99 / Each

1
Rear End Cap Fix Plate (Used) 1035594 0000086749 B05 1 Rear End Cap Fix Plate (Used) No Model Compatibility List $19.99 / Each

1
Spring, Deck 0000095662 0000095662 3 1 Spring, Deck Yes Model Compatibility List $8.99 / Each

1
Rear Roller Tensioner Bolt 1004610 004496-00  Rear Roller Tensioner Bolt Yes Model Compatibility List $5.99 / Each

1
1 1009798 003346-00 110 Power Circuit Breaker 12AMP (New) Yes Model Compatibility List $32.99 / Each

1
Nut Locking Nylon 3/8'-16UNC (New) 912107 1000465333 Nut Locking Nylon 3/8'-16UNC (New) No Model Compatibility List $11.99 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
