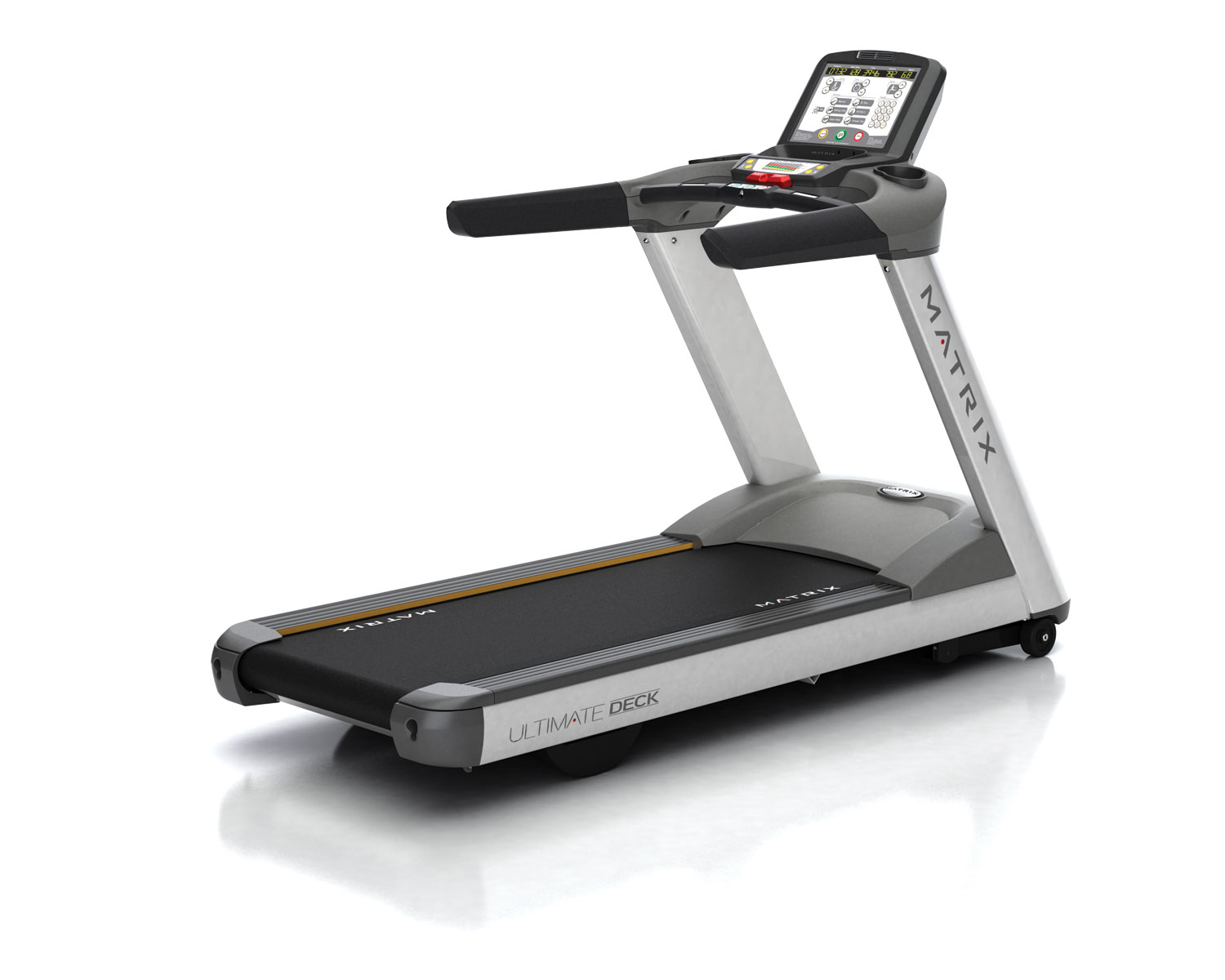

Matrix Commercial - T5x-04-G4 - 2009-2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
P 701032 003383-A P33 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

W 701033 003386-A W35 Ferrite Core;T31x16x19-C No Model Compatibility List $13.26 / Each

1
P 701035 003393-A P34 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

Z 701332 004385-00 Z18 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

Z 701505 004539-AD Z17 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

Z 701506 004541-AC Z11 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

T 701580 004614-00 T56 Screw;BH;3X10L;SM;PH;;BAN;;POT No Model Compatibility List $1.66 / Each

701842 004859-AC Z15 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $2.00 / Each

N 701947 004983-A N90 Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P) No Model Compatibility List $1.79 / Each

W 701986 005024-A W62 Washer;Flat;5.2X16.0X1.0T;;BZN; No Model Compatibility List $1.66 / Each

702066 005094-00 W60 Washer;Flat;3.2x8.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

W 702131 005157-A W57 Washer;Flat;4.3x12.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

W 702589 008864-A W79 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

W 702590 008865-B W78 Screw;Special;Round;2.9x1.06Px12L(Hi-Lo No Model Compatibility List $1.79 / Each

W 702591 008866-A W56 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

Z 703991 020072-00 Z13 Screw;SH;M8X1.25PX60L;;HS;;BAN;; Yes Model Compatibility List $9.99 / Each

704073 020185-00 N49 Screw;Phillip;BH;Tapped;4x10L No Model Compatibility List $1.59 / Each

Z 705105 035882-AB Z12 Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P- No Model Compatibility List $9.10 / Each

W 706354 061339-B W09 Fan;DC12V/0.3A PMB1297PYB3-AY;EP70 Yes Model Compatibility List $117.29 / Each

Z 706492 062769-00 Z16 Screw;Hex Socket;Round;M8x1.25Px15L;BED; No Model Compatibility List $1.79 / Each

P 709540 1000201167 P29 Console Cable Communication Wire;2000(MOLEX,50-70-9408x Yes Model Compatibility List $91.23 / Each

W 710100 1000206777 W16 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $40.51 / Each

W 710249 1000207858 W01 Console Board;H001S001;Coating;T5x-05; No Model Compatibility List $1.30 / Each

7
A 710254 1000208029 AN8 Overlay Set;T5x-05; No Model Compatibility List $273.75 / Each
Out Of Stock
1
A 710255 1000208035 AN20 Overlay Set;TV;25key;T5x-05; No Model Compatibility List $171.78 / Each

9,4,5,6
N 710280 1000208252 N41 Control Board;C-SAFE;H001;COATING;TM501D Yes Model Compatibility List $49.09 / Each

7
710281 1000208262 Not Shown Carton;Console Set;Include Printing;1US; No Model Compatibility List $117.21 / Each

7
A 710464 1000210395 AN20 Overlay Set;Quick Start;T5x-05; No Model Compatibility List $182.49 / Each
Out Of Stock
1
N 710469 1000210479 N02 Plastic Cover;RE;ABS/PA-746;MX-SI;CONSOL No Model Compatibility List $29.28 / Each

9
N 710483 1000210553 N16 USB;EP90B No Model Compatibility List $14.40 / Each

1
N 710607 1000211294 N98 Screw;FH;M3X0.5PX30L;-;PH;BZN; No Model Compatibility List $1.66 / Each

2
N 710678 1000212322 N25 Shim;Rubber;D;NBR;BLACK;TM507C; No Model Compatibility List $1.66 / Each

4,5,6
N 710807 1000213930 N39 Console Tray No Model Compatibility List $23.63 / Each

7
4 710868 1000214665 4 HANDLEBAR SET;-;T5X-02;-; No Model Compatibility List $277.13 / Each

11
W 711129 1000216927 W12 WIFI Antenna;250(WPB105 MINI 1.13 2.4GHz No Model Compatibility List $18.67 / Each

1
A 711212 1000217795 AN7 Extrawork;Cover;Overlay;Printing;T5x-05; No Model Compatibility List $152.78 / Each
Out Of Stock
9
W 712300 1000228299 W10 MO;WIFI WIRE;EP90B/EP93C/CS14B;- No Model Compatibility List $346.76 / Each

4,5,6
N 715895 1000329072 Not Shown IPOD Wire Cover;;;;;;;I-POD wire used No Model Compatibility List $1.79 / Each

9,4,5,6
1 718634 1000352464 1 Safety Key Set;;;Red Switch Clip;T5X-02- No Model Compatibility List $109.49 / Each

A 718635 1000352475 AN11 Switch Clip Set;Safety;;Red; No Model Compatibility List $36.48 / Each

W 718758 1000353343 W28 Ipod Extend Wire;;;;;;;;300(MFI512S0017+ No Model Compatibility List $91.23 / Each

9,4,5,6
G 718941 1000354653 G22 Connect;;;;;;;Phone Board;1000(TKP,H20J2 No Model Compatibility List $23.63 / Each

N 718977 1000354885 N92 Connect Board;Console;;U138A2;H001;;;; No Model Compatibility List $35.46 / Each

6 721841 1000385828 6 Overlay Set;Start Quick;;English;;TM520; No Model Compatibility List $135.04 / Each

723182 1000404541 G21 Earphone board set;;;;Earphone board+Wir No Model Compatibility List $152.07 / Each

1
726594 0000083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.90 / Each

Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

726753 084596 N03 Cover;Console;Bottom;ABS/PA-746;MX No Model Compatibility List $73.81 / Each

726754 084597 N04 Cover;Upper Console Plastic;Left;ABS/PA746;MX-S No Model Compatibility List $39.13 / Each

726755 084598 N05 Cover;Upper Console Plastic;Right;ABS/PA-746;MX-S No Model Compatibility List $42.28 / Each

Arm Rest;Left;PU;MT-11345;426C;T5x-02; 726756 0000084599 N06 Arm Rest;Left;PU;MT-11345;426C;T5x-02; Yes Model Compatibility List $86.16 / Each

Arm Rest;Right;PU;MT-11345;426C;T5x-02; 726757 0000084600 N07 Arm Rest;Right;PU;MT-11345;426C;T5x-02; Yes Model Compatibility List $86.16 / Each

726759 084630 T02 Safety Switch;R13-69;TM501; No Model Compatibility List $20.05 / Each

726760 084631 T03 Wire;E-Stop Switch;550(250X2+6630R1);TM5 No Model Compatibility List $10.30 / Each

726767 084680 N08 Cup Holder;Left;TPR+30%PP;80435;TM501; No Model Compatibility List $12.77 / Each

Cup Holder;Right;TPR+30%PP;80435;TM501; 726768 0000084681 N09 Cup Holder;Right;TPR+30%PP;80435;TM501; Yes Model Compatibility List $23.00 / Each

726769 084682 N11 Cover;Console Mast;Left;ABS/PA-746;80435;TM No Model Compatibility List $8.42 / Each

726770 084683 N12 Cover;Console Mast;Right;ABS/PA-746;80435;TM No Model Compatibility List $8.42 / Each

Link Arm;Cover;outer left side;DM328;Painting;EP148B 726774 084692 G14 Link Arm;Cover;outer left side;DM328;Painting;EP148B No Model Compatibility List $10.43 / Each

726776 084697 AN3 Bracket;Console Support MTG;Right;BL;TM5 No Model Compatibility List $97.34 / Each

726804 084935 N20 Bracket;Console Mast Mtg;Left;SPHC;4.0T;BED No Model Compatibility List $47.24 / Each

726805 084936 N21 Bracket;Console Mast Mtg;Right;SPHC;4.0t;BED No Model Compatibility List $47.24 / Each

Cover;Sensor;L;ABS/PA-746;426C;TM501; 726817 0000085274 N25 Cover;Sensor;L;ABS/PA-746;426C;TM501; Yes Model Compatibility List $13.47 / Each

726818 085275 N26 Cover;Sensor;R;ABS/PA-746;426C;TM501; No Model Compatibility List $18.67 / Each

Wire;Hand Pulse;250(2510A-03+XAP-03);TM5 726882 0000085776 W44 Wire;Hand Pulse;250(2510A-03+XAP-03);TM5 Yes Model Compatibility List $14.99 / Each

Wire;Hand Pulse Sensor;180(2510-06+H6630 726883 0000085777 N98 Wire;Hand Pulse Sensor;180(2510-06+H6630 Yes Model Compatibility List $19.99 / Each

Wire;UCB Little Board;550(3M1DC 7920-B50 726884 0000085778 N96 Wire;UCB Little Board;550(3M1DC 7920-B50 Yes Model Compatibility List $67.68 / Each

726900 085927 AN1 Console Base Frame Set;BL;TM501; No Model Compatibility List $1059.14 / Each

726916 085980 N30 Fix Plate;Emergency;SPHC;1.6t;BED;TM501; No Model Compatibility List $13.99 / Each

Cover;Console;Right;ABS/PA-746;BL;TM501; 726928 0000086064 N33 Cover;Console;Right;ABS/PA-746;BL;TM501; No Model Compatibility List $3.35 / Each

726929 0000086065 N34 Cover;Console;Left;ABS/PA-746;BL;TM501; Yes Model Compatibility List $3.35 / Each

Cover;Sensor;Upper;ABS/PA-746;MT-11010; 726930 0000086068 N24 Cover;Sensor;Upper;ABS/PA-746;MT-11010; Yes Model Compatibility List $31.33 / Each

726931 086072 N44 Cover;Safety Key;Down;ABS/PA746;1797C;TM501 No Model Compatibility List $9.65 / Each

726940 086137 N38 Bracket;Console Tray Support MTG;T5x-02; No Model Compatibility List $36.01 / Each

Signal Wire;C-SAFE;1750(H6630R1-08+XAP-0 726946 0000086159 P12 Signal Wire;C-SAFE;1750(H6630R1-08+XAP-0 Yes Model Compatibility List $25.45 / Each

726969 086277 G50 Screw;TH;M8X1.25PX20L;;HS;MT;BAN;;BP No Model Compatibility List $3.64 / Each

726996 086571 Z14 Washer;FLT;8.2X16.0X2.0T;SPHC ;CHM; No Model Compatibility List $1.79 / Each

Signal Wire;TV;U;2100(FM-0086-NBG7) 727012 0000086676 P09 Signal Wire;TV;U;2100(FM-0086-NBG7) Yes Model Compatibility List $25.40 / Each

Speaker Set;AK-402808BC-3T+280+XAP-02;TM 727017 0000086684 W13 Speaker Set;AK-402808BC-3T+280+XAP-02;TM No Model Compatibility List $17.65 / Each

Cover;Console Display;TV Rack;Printing;T 727025 0000086724 N35 Cover;Console Display;TV Rack;Printing;T No Model Compatibility List $47.63 / Each

727055 086932 N18 cover;IPOD Fixing;ABS/PA746;MT-11010;804 No Model Compatibility List $9.10 / Each

Vent;Fan;ABS/PA-746;Pantone:877C;TM501; 727076 0000087056 N13 Vent;Fan;ABS/PA-746;Pantone:877C;TM501; No Model Compatibility List $45.24 / Each

727220 087858 G25 Screw;Round;M3X0.5PX12L;;PH;SSTSUS304;BAN; No Model Compatibility List $3.64 / Each

Cover;Console Mast;Right;Outside 727311 088493 Q11 Cover;Console Mast;Right;Outside No Model Compatibility List $132.00 / Each

Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T 727351 0000088743 N81 Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T No Model Compatibility List $1.79 / Each

727372 088905 Z19 Bushing;Threaded Flange;M8x10x16x8Lx2T No Model Compatibility List $3.64 / Each

727404 088986 5 HR Grip Cover Set;TM501;SBOM; No Model Compatibility List $72.98 / Each

727423 089111 P47 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.10 / Each

727424 089112 W28 Spacer;Support;MEA-05;PINGOOD; No Model Compatibility List $1.66 / Each

727425 089113 W29 Fix Plate;SPHC;1.6t;BED;T5x-02; No Model Compatibility List $8.42 / Each

727465 089481 N45 Wire;Console Set;50(99471+KST MDFNYD2-25 No Model Compatibility List $8.42 / Each

727466 089482 N46 Wire;Console Set;80(99471+KST FDFNYD2-25 No Model Compatibility List $8.42 / Each

727467 089484 N48 Wire;Console Set;130(99471BS-2+J1431BS-2 No Model Compatibility List $3.35 / Each

727472 0000089500 N92 UCB Interface Board Set;TM501;T5x-02; No Model Compatibility List $72.98 / Each

727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
727714 090551 P56 Ferrite Choke;FH0850B;T7xe; No Model Compatibility List $8.42 / Each

Wire;Ipod;500(JST XADR-16+PAP-06/-10) 727973 0000092303 W27 Wire;Ipod;500(JST XADR-16+PAP-06/-10) No Model Compatibility List $64.74 / Each

728025 092694 W61 Screw;Phillip;Round;M5x0.8Px12L; No Model Compatibility List $3.35 / Each

Fixing Plate;Fan;0.8t;T5x-02; 728026 0000092696 N202 Fixing Plate;Fan;0.8t;T5x-02; No Model Compatibility List $9.10 / Each

728055 092900 G53 Screw;BH;M3x0.5Px6L;MT;PH;CST;BZN;BP No Model Compatibility List $1.33 / Each

728136 093244 N37 Screw;Phillip;BH;Tapped;4x8L;Zn-BL; No Model Compatibility List $2.00 / Each

Control Board;USB;H001;U105A5;EP603; 728542 0000095231 W04 Control Board;USB;H001;U105A5;EP603; No Model Compatibility List $28.29 / Each

Tape;Foam;One-Sided;50x15x1.5T; 728600 0000095575 N203 Tape;Foam;One-Sided;50x15x1.5T; No Model Compatibility List $1.66 / Each

728617 095642 G52 Screw;BH;M5X0.8PX16L;;PH;;BED;;BP No Model Compatibility List $1.66 / Each

729118 Part of Kit 1 AN9 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 G24 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729191 Part of Kit 6 AG3 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
N 729539 ZMS4001266 Not Shown Connection Cable for 900MZ Wireless Modu No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
N 729540 ZMS4001285 Not Shown Velcro pads (1 pair) for 900MHZ Receiver No Model Compatibility List $10.11 / Each

12,13,14
Control Board Set Delta APMT-1500AP-1 1020583 1000435058 Control Board Set Delta APMT-1500AP-1 No Model Compatibility List $1038.70 / Each

Cover Sensor Right (Used) 1023569 0000085275 0 1 Cover Sensor Right (Used) No Model Compatibility List $17.41 / Each

1
Overlay Keypad (Used) 1023570 0000088987 0 1 Overlay Keypad (Used) No Model Compatibility List $167.70 / Each

1
AFG Horizon Vision Fitness Treadmill Black Deck Shock Elastomer Spring 000763-E (Used) 1007193 3.1AT-BDSES 0 14 AFG Horizon Vision Fitness Treadmill Black Deck Shock Elastomer Spring 000763-E (Used) No Model Compatibility List $22.09 / Each

1
Quick Speed Incline Key Set (Used) 1000269 0000089687 0 1 Quick Speed Incline Key Set (Used) No Model Compatibility List $56.99 / Each
Out Of Stock
1
Motor Control Board (Used) 1000534-R 0000094477 0 1 Motor Control Board (Used) No Model Compatibility List $385.99 / Each

7,48
AC Drive Motor Set (Used) 1000537 0000088970 0 1 AC Drive Motor Set (Used) No Model Compatibility List $399.00 / Each

28
Incline Elevation Motor (Used) 1000539 0000086720 0 1 Incline Elevation Motor (Used) No Model Compatibility List $157.99 / Each

28
Rear Back Idler Take UP Roller (Used) 1000543 014680-E 0 1 Rear Back Idler Take UP Roller (Used) No Model Compatibility List $160.99 / Each

HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $19.99 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $10.00 / Each

UCB Little Board Wire 550(3M1DC 7920-B50 (Used) 1029493 0000085778 N95 1 UCB Little Board Wire 550(3M1DC 7920-B50 (Used) Yes Model Compatibility List $15.00 / Each

6 1029489 1000385828 6 1 Pulse Bar Handlebar Front Hand Rest With Center Go Pod (Used) No Model Compatibility List $119.00 / Each

Safety Key (Used) 1032429 0000088982 1 1 Safety Key (Used) No Model Compatibility List $29.99 / Each
Out Of Stock
Bracket;Console Support MTG;Left;BL;TM50 1032446 0000084692 0 1 Bracket;Console Support MTG;Left;BL;TM50 Yes Model Compatibility List $49.99 / Each

Bracket;Console Support MTG;Right;BL;TM5 1032460 0000084697 0 1 Bracket;Console Support MTG;Right;BL;TM5 Yes Model Compatibility List $49.99 / Each

BS WIRE;60L;12AWG;BLACK;TM86; (Used) 1032499 002127-A 0 1 BS WIRE;60L;12AWG;BLACK;TM86; (Used) No Model Compatibility List $2.99 / Each

Wire harness, Black (Used) 1032486 002129-B 0 1 Wire harness, Black (Used) No Model Compatibility List $3.00 / Each

Z 1032473 020072-00 Z13 1 Screw (Used) Yes Model Compatibility List $4.00 / Each

End Cap Rear Roller Left (Used) 1032488 0000086077 0 1 End Cap Rear Roller Left (Used) Yes Model Compatibility List $20.00 / Each

End Cap Rear Roller Right (Used) 1032448 0000086078 0 1 End Cap Rear Roller Right (Used) Yes Model Compatibility List $20.00 / Each

Wire;Signal Extended;C-SAFE;200(RJ-45-08 (Used) 1032485 0000086677 0 1 Wire;Signal Extended;C-SAFE;200(RJ-45-08 (Used) No Model Compatibility List $10.00 / Each

Tension Idler Wheel for 0000088969 Assembly (Used) 1032562 T7XE-TIW 0 1 Tension Idler Wheel for 0000088969 Assembly (Used) No Model Compatibility List $15.00 / Each
Out Of Stock
Frame Rear Foot Pad Stabilizer 1004185 000511-B Frame Rear Foot Pad Stabilizer Yes Model Compatibility List $21.99 / Each

Front Drive Roller 1000544 0000091544 Front Drive Roller Yes Model Compatibility List $129.00 / Each

Power Switch Entry Module Breaker 1000072 0000084525 Power Switch Entry Module Breaker Yes Model Compatibility List $49.99 / Each
Out Of Stock
Quick Start Overlay Buttons Board 1000545 0000088987 Quick Start Overlay Buttons Board Yes Model Compatibility List $39.99 / Each

Poly V Drive Belt 1000551 004193-D Poly V Drive Belt No Model Compatibility List $64.99 / Each

Cup Holder Left Right 1000546 0000084680 Cup Holder Left Right Yes Model Compatibility List $29.99 / Each
Heart Rate Receiver Board 1000547 0000089110 Heart Rate Receiver Board Yes Model Compatibility List $179.00 / Each

Power Cord 1001057 1000229192 Power Cord Yes Model Compatibility List $99.99 / Each

Power Cord 1001058 1000229192 Power Cord Yes Model Compatibility List $39.99 / Each

Motor Cover Shroud Enclosure 1003166 88973 Motor Cover Shroud Enclosure Yes Model Compatibility List $99.00 / Each
Out Of Stock
Heart Rate HR Receiver Board 1001738 0000083655 Heart Rate HR Receiver Board Yes Model Compatibility List $88.99 / Each

Frame Foot Pad 1001740 000511-B Frame Foot Pad Yes Model Compatibility List $19.99 / Each

Wire USB;200(XAP-06-1X2) 1036669 0000084636 Wire USB;200(XAP-06-1X2) Yes Model Compatibility List $5.00 / Each

1029494 1000354885 N92 1 Console Board Connector (Used) No Model Compatibility List $13.00 / Each

Treadmill walking belt. 1037135 0000094489 Treadmill walking belt. Yes Model Compatibility List $223.50 / Each

EMI Line Filter w/ Power & GND Wire 1005408 003530-A or 002386-B or 067538-A EMI Line Filter w/ Power & GND Wire Yes Model Compatibility List $49.99 / Each

730765 0000091816 5 Heart Rate Grip Cover Set No Model Compatibility List $49.38 / Each

730775 0000084598 N05 Cover;Upper Console Plastic;Right;ABS/PA-746;MX-S Yes Model Compatibility List $18.18 / Each

730983 0000094431 M11 Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000 No Model Compatibility List $23.38 / Each

730984 0000095368 M14 Screw;SH;M10X1.5PX25L;;HS;;BZN;; Yes Model Compatibility List $0.78 / Each

731084 0000085924 B54 Screw;SH;M6X1.0PX140L;;HS;;BZN;; Yes Model Compatibility List $4.06 / Each

731098 0000088505 U50 Bearing;Ball;6203LUZ;17X40X12T;;TPI;;; No Model Compatibility List $6.48 / Each

Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing
