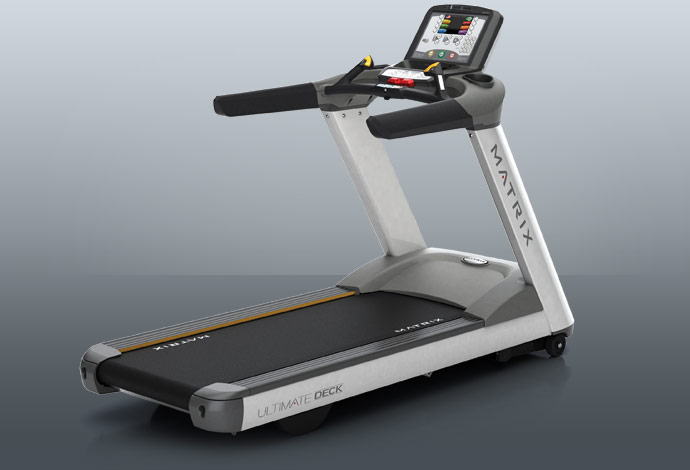

Matrix Commercial - T7x - 2012

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700020 000035-D H54 Transport Wheel;Nylon;100;BL;TM65 Yes Model Compatibility List $9.10 / Each

700296 000885-C M38 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $16.74 / Each

M 700417 001295-B M09 Insulating Sleeve;Screw;ABS 10.2X14/24X7L No Model Compatibility List $1.79 / Each

M 700572 001682-00 M57 Clip;Tie Strap Hold Down;HC-0L;P No Model Compatibility List $1.66 / Each

700747 002127-A P02 BS Wire;60L;12AWG;Black;TM86; No Model Compatibility List $1.79 / Each

700814 002391-A P15 Ground Wire;EMI Filter; W/FERRITE 160L Yes Model Compatibility List $3.64 / Each

701286 004355-00 B56 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

M 701295 004361-00 M51 Screw;Phillip;BH;M4x0.7Px10L;Ni;Gap; No Model Compatibility List $9.10 / Each

701331 004384-00 M54 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

B 701332 004385-00 B60 Screw;BH;M5X0.8PX12L;;PH;;BAN;; Yes Model Compatibility List $1.79 / Each

Z 701391 004447-AC Z18 SCREW;SH;M5X0.8PX12L;CT;HS;;BAN;; No Model Compatibility List $1.66 / Each

Q 701402 004456-00 Q26 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

701433 004481-00 Q23 Screw;Hex Socket;Round;M8x1.25Px45L No Model Compatibility List $2.00 / Each

R 701450 004495-00 R07 Screw;Round;Hex Socket;M10X1.5PX100L No Model Compatibility List $3.64 / Each

R 701483 004529-00 R08 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $1.79 / Each

B 701531 004562-AB B59 Screw;Hex Socket;Sink;Stainess;M8x1.25Px35L No Model Compatibility List $1.79 / Each

701558 004589-00 M06 Screw;Hex;W3/8x47L/Tooth14L Yes Model Compatibility List $2.18 / Each

701731 004757-00 H56 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

701866 004889-00 M55 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701908 004934-00 M58 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

B 701944 004979-00 B49 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

B 701965 005005-AC B103 Washer;Split;8.2X15.4X2.0T;;BZN; No Model Compatibility List $1.79 / Each

701967 005006-00 R09 Washer;Spring;SW10 10.2x18.4x2.5t No Model Compatibility List $2.00 / Each

701987 005025-00 U52 Washer;Flat;25.5x38.0x1.5t;Black Zinc No Model Compatibility List $2.00 / Each

H 702004 005042-00 H55 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

702030 005062-00 R10 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

U 702177 005219-00 U53 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

702178 005220-00 H57 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702238 005363-00 U55 C-Clip;External;S-17 No Model Compatibility List $1.79 / Each

702241 005366-00 U54 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

702325 006078-00 V11 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

M 702564 008652-A M23 Pin;Hairpin Cotter;2x33L;ZNC No Model Compatibility List $1.79 / Each

H 702741 009469-C H60 Bushing;Pedal Arm;A;CS05 No Model Compatibility List $3.64 / Each

A 703440 014680-E AR2 Rear Roller Set;3.5 Inch No Model Compatibility List $365.01 / Each

Z 704001 020090-00 Z10 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

Q 704004 020096-00 Q21 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

H 704165 020378-00 H59 Nut;Hex;M16x2.0Px7.8t; No Model Compatibility List $1.79 / Each

M 704203 020478-00 M17 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

P 705777 056225-A P50 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

706754 065248-A P27 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

M 709545 1000201218 M20 MCB Cover;ABS/PA765/MX-silver gray; No Model Compatibility List $19.86 / Each

709546 1000201219 P16 Wire;Control Board;600+600+300(KST,RVS3 Yes Model Compatibility List $47.87 / Each

M 709794 1000203251 M60 Plastic Base;WH;CHF-11E; No Model Compatibility List $1.01 / Each

2 709864 1000204065 2 Motor Set;TM501C; Yes Model Compatibility List $799.00 / Each

J 710081 1000206713 JM96 Tape;Single Sided;75x25x1.5t;T5x-03; No Model Compatibility List $0.21 / Each

B 710309 1000208940 B36 Extrawork;Elastomer;Running Deck;Nai Ri Yes Model Compatibility List $27.35 / Each

P 710318 1000209313 P08 Circuit Breaker;20A;125V/250V;RFLB-2 Yes Model Compatibility List $25.00 / Each

M 710578 1000211092 M50 FILTER;20A;125/250V;ROHS;-; Yes Model Compatibility List $167.23 / Each

M 710721 1000212621 M53 Screw;BH;M4X0.7PX40L;-;PH;-;BZN; No Model Compatibility List $1.66 / Each

P 710726 1000212816 P28 EXT Wire;Net Signal; 180(3205615600 8P+T Yes Model Compatibility List $36.48 / Each

B 710873 1000214787 B34 Bracket;Power Cord Retaining;SMALL;SPCC;1.6t;B No Model Compatibility List $4.78 / Each

V 711096 1000216443 V16 warning LABEL;BRACKET;POWER CORD; No Model Compatibility List $1.66 / Each

M 712182 1000227226 M35 Washer;Flat;?X10.5x?X25.0x1.0T;Nylon+S2M No Model Compatibility List $1.79 / Each

P 712272 1000228045 P22 WIRE;TV POWER;180(SCD-554DCS103BB1G+TKP Yes Model Compatibility List $16.87 / Each

B 712448 1000228968 B22 Plastic Plate;SPHC;1.6t;BED;PCTV;T-5x-04 No Model Compatibility List $8.42 / Each

P 712497 1000229192 P33 POWER CORD SET;10-ft;NEMA;(90 Unit, 90 Outlet) Yes Model Compatibility List $76.65 / Each

2 712800 1000230705 21 Power Switch Set;1US;For PCTV;T-5x-04-F; No Model Compatibility List $84.47 / Each

Q 712924 1000231496 Q27 WASHER;FLT;Diam.5.0XDiam.12.0X1.0T;;BAN; No Model Compatibility List $1.66 / Each

P 714757 1000317845 P01 Power Switch;ON-OFF;W/ Light;125V/250V;2 Yes Model Compatibility List $27.35 / Each

716599 1000337680 U05 Bearing;Dry;;Diam.X35.4x11.0L;Jiou Jyu; No Model Compatibility List $3.35 / Each

1 716631 1000337919 11 Console Mast Set;;L;painting;;MATRIX Pur No Model Compatibility List $414.02 / Each

7
716632 1000337930 12 Console Mast Set;;R;painting;;MATRIX Pur No Model Compatibility List $414.02 / Each

7
R 716933 1000340398 R04 Belt;POLY-V;;310-J12;Halftone;GATES Yes Model Compatibility List $91.23 / Each

1,23
717685 1000346763 Not Shown Decal;Console Mast;;Gray;;;;TM501-US No Model Compatibility List $6.73 / Each

724289 1000417248 B35 Finished treadmill deck;Timber;616x1340x No Model Compatibility List $302.48 / Each

726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.79 / Each

726550 082736 Z82 Washer;Flat;8.2X16.0X2.0T;;BZN; No Model Compatibility List $1.66 / Each

726734 084526 B45 Bracket;Side Rail;SPHC;2.0t;TM501; No Model Compatibility List $2.86 / Each

726735 084527 B24 Cover;Elevation Rack Pivot Joint;SPHC;1. No Model Compatibility List $9.10 / Each

726736 084529 11 Semi-Assy;TM501 Console Mast Set;L; No Model Compatibility List $337.97 / Each

726739 084534 C03 Mounting Plate;Console Mast Front;A;SPHC No Model Compatibility List $11.57 / Each

726740 084537 C04 Mounting Plate;Console Mast Rear;B;SPHC; No Model Compatibility List $8.42 / Each

End-Cover;Console Mast;Left;ABS/PA746/80 726741 084538 Q06 End-Cover;Console Mast;Left;ABS/PA746/80 Yes Model Compatibility List $13.13 / Each

726742 084539 12 Semi-Assy;TM501 Console Mast Set;R;1US; No Model Compatibility List $337.97 / Each

726748 084584 B51 Screw;BH;M8X1.25PX20L;;HS;;BAN;; No Model Compatibility List $1.79 / Each

726750 084587 Q07 End-Cover;Console Mast;Right;ABS/PA746;8 No Model Compatibility List $13.13 / Each

Idler;SS41;53.5x40L;T5x-02; 726751 084591 U04 Idler;SS41;53.5x40L;T5x-02; Yes Model Compatibility List $17.97 / Each

Side Rail;PVC;425C;T5x-02; 726773 084691 Q05 Side Rail;PVC;425C;T5x-02; Yes Model Compatibility List $94.90 / Each

Screw;SH;M8X1.25PX20L;;HS;;BAN;; 726826 085362 E44 Screw;SH;M8X1.25PX20L;;HS;;BAN;; Yes Model Compatibility List $6.99 / Each

726899 085924 B54 Screw;SH;M6X1.0PX140L;;HS;;BZN;; No Model Compatibility List $5.28 / Each

Motor Cover;Front 726932 0000086075 AQ2 Motor Cover;Front Yes Model Compatibility List $159.46 / Each

726933 086077 Q03 End Cap;Rear Roller;Left;T75B1-SV040;T5x No Model Compatibility List $166.01 / Each

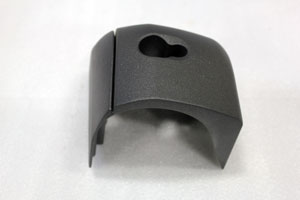

726934 086078 Q04 End Cap;Rear Roller;Right;T75B1-SV040;T5 No Model Compatibility List $166.01 / Each

726956 086226 V09 Nameplate;Motor Cover;LOGO;T5X-02; No Model Compatibility List $42.28 / Each

726957 0000086229 U49 Spring;Extension;3.0x25.0x127.1Lx30N; Yes Model Compatibility List $29.17 / Each

726975 086331 Z15 Washer;Wavy;17.2X22.5X0.3T No Model Compatibility List $1.59 / Each

726989 086524 M21 Guard;Fan;PG-80;BLACK; No Model Compatibility List $8.42 / Each

726996 086571 Z14 Washer;FLT;8.2X16.0X2.0T;SPHC ;CHM; No Model Compatibility List $1.79 / Each

Foam;38X5.0tX170;GM206 726999 086599 E05 Foam;38X5.0tX170;GM206 No Model Compatibility List $5.17 / Each

Power Wire; EMI Filter to Switch;200(RVS 727010 0000086674 P05 Power Wire; EMI Filter to Switch;200(RVS Yes Model Compatibility List $15.78 / Each

Elevation Motor;1300LB/115V;127mm;TM501; 727023 086720 JM13 Elevation Motor;1300LB/115V;127mm;TM501; No Model Compatibility List $456.27 / Each

727047 086897 B100 Fix Plate;Foot Pad;B;SPHC;2.0t;TM501; No Model Compatibility List $16.87 / Each

727318 088505 U50 Bearing;Ball;6203LUZ;17X40X12T;;TPI;;; No Model Compatibility List $13.49 / Each

727353 0000088746 P17 Power Socket;80+130(SS-3B+FDFNYD5-250-1) Yes Model Compatibility List $15.00 / Each

727354 088747 P18 Ground Wire;Power Socket;200+50(KST FDFN No Model Compatibility List $26.16 / Each

727396 088969 1 Tension Wheel Set;TM501;T5x-02; No Model Compatibility List $278.15 / Each

727399 0000088973 4 Motor Cover Set;Upper No Model Compatibility List $239.07 / Each

727400 088975 B25 Rear Shim Foot Plate Set;TM501;SBOM; No Model Compatibility List $23.22 / Each

727406 088993 16 Rear Adjustable Leveler Foot Set;Right;TM501; No Model Compatibility List $96.69 / Each

727407 088994 B101 Foot pad;5/8 Inch-11UNC;BED;TM501; No Model Compatibility List $38.84 / Each

727423 089111 P47 Tape;Dual Sided;20x30x3t;TM501; No Model Compatibility List $0.10 / Each

727433 089165 B37 Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl No Model Compatibility List $3.64 / Each

Elastomer Set;Running Deck;Front;T5x-02; 727470 0000089487 2 Elastomer Set;Running Deck;Front;T5x-02; Yes Model Compatibility List $32.55 / Each

727471 0000089488 3 Elastomer Set;Running Deck;Middle;T5x-02 Yes Model Compatibility List $29.95 / Each

727527 089799 B52 Washer;6.2x40.0x4.0t; No Model Compatibility List $1.01 / Each

727528 089800 B60 Washer;DSP;6.4X14.0X1.2T;SPHC ;; No Model Compatibility List $1.09 / Each

727546 089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $8.42 / Each

728055 092900 G53 Screw;BH;M3x0.5Px6L;MT;PH;CST;BZN;BP No Model Compatibility List $1.33 / Each

728176 093397 AH2 Painting;Elevator Rack Set;BL;TM501; No Model Compatibility List $317.69 / Each

728249 093781 H61 Washer;SPL;17.3x26.3x3.0t;BZN;;; No Model Compatibility List $1.66 / Each

728276 093962 M22 Pin;Elevation;Clevis;SCM440x15x65L;Runner Gold No Model Compatibility List $9.10 / Each

728372 094428 P28 Power Cord Set;10-;NEMA (90 unit, 180 outlet) No Model Compatibility List $91.23 / Each

728373 0000094429 - Power Cord Set;15-ft;NEMA (90 unit, 180 outlet) No Model Compatibility List $164.24 / Each

728374 094431 P56 Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000 No Model Compatibility List $91.23 / Each

728384 094477 M03 Motor Control Board;1.5KW/90~264V;Delta No Model Compatibility List $1.30 / Each

728387 094489 R05 Running Belt;Wax;554X3330X2.5T;TM65 No Model Compatibility List $686.11 / Each

728415 094653 H50 Screw;Extrawork;SH;M16;Polish No Model Compatibility List $9.10 / Each

728573 095368 M14 Screw;SH;M10X1.5PX25L;;HS;;BZN;; No Model Compatibility List $1.01 / Each

728589 095437 B55 Nut;Nlk;M8X1.25Px6t;;BZN;; No Model Compatibility List $1.79 / Each

728623 095663 AB29 Elastomer Set;Semi-Assy;Nai-Li;T5x-02 No Model Compatibility List $0.00 / Each
Out Of Stock
728629 095703 JAM04 Screw;RND;M3.5X6L;TC;PH;;WZN;ROHS; No Model Compatibility List $1.66 / Each

728980 Not a Service Part 1 Frame Set;Semi-Assy;back;;;S-EP558E-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
729118 Part of Kit 1 AU2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729138 Part of Kit 2 V21 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729165 Part of Kit 4 5 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
N 729787 ZMS4004993 Not Shown Matrix treadmill end cap touchup paint No Model Compatibility List $91.23 / Each

Control Board Set Delta APMT-1500AP-1 1020583 1000435058 Control Board Set Delta APMT-1500AP-1 No Model Compatibility List $1038.70 / Each

Overlay Keypad (Used) 1023570 0000088987 0 1 Overlay Keypad (Used) No Model Compatibility List $167.70 / Each

1
Handlebar Set (Used) 1023739 1000228703 AG2 1 Handlebar Set (Used) No Model Compatibility List $603.29 / Each
Out Of Stock
1
Quick Speed Incline Key Set (Used) 1000269 0000089687 0 1 Quick Speed Incline Key Set (Used) No Model Compatibility List $56.99 / Each
Out Of Stock
1
Motor Control Board (Used) 1000534-R 0000094477 0 1 Motor Control Board (Used) No Model Compatibility List $385.99 / Each

7,48
AC Drive Motor Set (Used) 1000537 0000088970 0 1 AC Drive Motor Set (Used) No Model Compatibility List $399.00 / Each

28
Power Cord (Used) 1000538 002130-00 0 1 Power Cord (Used) Yes Model Compatibility List $22.99 / Each

4,19,42
Incline Elevation Motor (Used) 1000539 0000086720 0 1 Incline Elevation Motor (Used) No Model Compatibility List $157.99 / Each

28
A 1000543 014680-E AR2 1 Rear Back Idler Take UP Roller (Used) No Model Compatibility List $160.99 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $19.99 / Each

TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) 1029470 0000085207 P06 1 TV Power Extended Wire 1850(VHR-2NX2) TM50 (Used) Yes Model Compatibility List $10.00 / Each

UCB Little Board Wire 550(3M1DC 7920-B50 (Used) 1029493 0000085778 N95 1 UCB Little Board Wire 550(3M1DC 7920-B50 (Used) Yes Model Compatibility List $15.00 / Each

P 1007186 1000317845 P01 1 Power Switch On Off Yes Model Compatibility List $28.99 / Each

Power Cord 110VAC 1008492 0000094429 0 1 Power Cord 110VAC No Model Compatibility List $149.00 / Each

Safety Key (Used) 1032429 0000088982 1 1 Safety Key (Used) No Model Compatibility List $29.99 / Each
Out Of Stock
Bracket;Console Support MTG;Left;BL;TM50 1032446 0000084692 0 1 Bracket;Console Support MTG;Left;BL;TM50 Yes Model Compatibility List $49.99 / Each

Bracket;Console Support MTG;Right;BL;TM5 1032460 0000084697 0 1 Bracket;Console Support MTG;Right;BL;TM5 Yes Model Compatibility List $49.99 / Each

P 1032499 002127-A P02 1 BS WIRE;60L;12AWG;BLACK;TM86; (Used) No Model Compatibility List $2.99 / Each

P 1032472 1000201219 P16 1 WIRE;CTRL BOARD PWR;600 600 300(KST,RVS3 (Used) Yes Model Compatibility List $10.00 / Each

Q 1004185 000511-B Q11 Frame Rear Foot Pad Stabilizer Yes Model Compatibility List $21.99 / Each

M 1000019 1000211092 M50 Power Entry Plate Switch Breaker Inlet Yes Model Compatibility List $34.99 / Each
Front Drive Roller 1000544 0000091544 Front Drive Roller Yes Model Compatibility List $129.00 / Each

Power Switch Entry Module Breaker 1000072 0000084525 Power Switch Entry Module Breaker Yes Model Compatibility List $49.99 / Each
Out Of Stock
P 1001057 1000229192 P33 Power Cord Yes Model Compatibility List $99.99 / Each

P 1001058 1000229192 P33 Power Cord Yes Model Compatibility List $39.99 / Each

Q 1001740 000511-B Q11 Frame Foot Pad Yes Model Compatibility List $19.99 / Each

Treadmill walking belt. 1037135 0000094489 Treadmill walking belt. Yes Model Compatibility List $223.50 / Each

M 701972 005010-00 M69 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

C 701260 004321-00 C50 Round Head Screw M4x0.7Px10L (New) No Model Compatibility List $12.99 / Each

EMI Line Filter w/ Power & GND Wire 1005408 003530-A or 002386-B or 067538-A EMI Line Filter w/ Power & GND Wire Yes Model Compatibility List $49.99 / Each

B 723817 1000412624 B38 Deck Cushion 30X37 (New) Yes Model Compatibility List $24.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

Rower Self Tapping Screw (New) 957090 004621-00 Rower Self Tapping Screw (New) No Model Compatibility List $11.99 / Each

2
View Drawing
