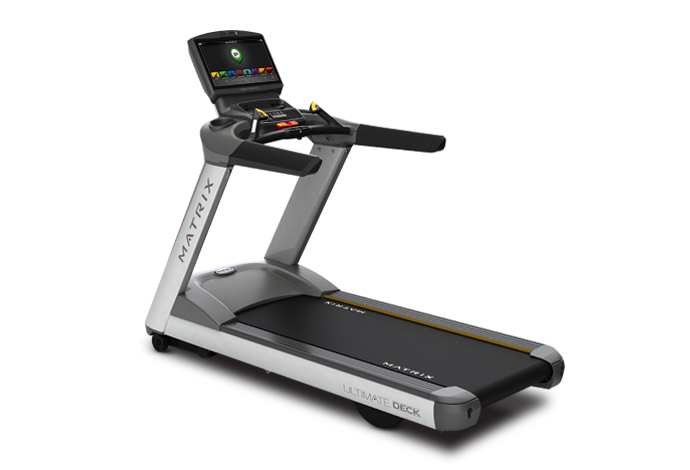

Matrix Commercial - T7xi - 2013

Repair Parts for Matrix Commercial T7xi CTM521,FTM501E,FTM501H

Brand: Matrix Commercial

Category: Non Folding

Type: Non Folding Treadmills

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

CTM521,FTM501E,FTM501H

Model Name: T7xi

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700020	000035-D	H54		Transport Wheel;Nylon;100;BL;TM65	Yes	Model Compatibility List	$9.10 / Each
700296	000885-C	M38		Rubber Pad;Motor;Anti-Shake	Yes	Model Compatibility List	$16.74 / Each
700417	001295-B	M09		Insulating Sleeve;Screw;ABS 10.2X14/24X7L	No	Model Compatibility List	$1.79 / Each
700572	001682-00	M57		Clip;Tie Strap Hold Down;HC-0L;P	No	Model Compatibility List	$1.66 / Each
700747	002127-A	P02		BS Wire;60L;12AWG;Black;TM86;	No	Model Compatibility List	$1.79 / Each
700814	002391-A	P15		Ground Wire;EMI Filter; W/FERRITE 160L	Yes	Model Compatibility List	$3.64 / Each
701032	003383-A	P20		Ferrite Choke;FH0900B-2;Lian Ci;TM38	No	Model Compatibility List	$9.10 / Each
701035	003393-A	P21		Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8	No	Model Compatibility List	$3.64 / Each
701286	004355-00	B56		Screw;Oval;PH; M4X0.7PX10L	No	Model Compatibility List	$2.00 / Each
701295	004361-00	M51		Screw;Phillip;BH;M4x0.7Px10L;Ni;Gap;	No	Model Compatibility List	$9.10 / Each
701331	004384-00	M54		Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap;	No	Model Compatibility List	$2.00 / Each
701332	004385-00	B60		Screw;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.79 / Each
701391	004447-AC	Z18		SCREW;SH;M5X0.8PX12L;CT;HS;;BAN;;	No	Model Compatibility List	$1.66 / Each
701402	004456-00	Q26		Screw;Round;Hex Socket;M5x0.8Px16L	No	Model Compatibility List	$1.79 / Each
701433	004481-00	Q23		Screw;Hex Socket;Round;M8x1.25Px45L	No	Model Compatibility List	$2.00 / Each
701450	004495-00	R07		Screw;Round;Hex Socket;M10X1.5PX100L	No	Model Compatibility List	$3.64 / Each
701483	004529-00	R08		Screw;Hex Socket;Round;M10x1.5Px40L	No	Model Compatibility List	$1.79 / Each
701505	004539-AD	Z11		Screw;Round;Hex Socket;M8X1.25PX25L;Chromed	No	Model Compatibility List	$2.00 / Each
701506	004541-AC	E13		Screw;Hex Socket;Round;M8x1.25Px45L;Chromed	No	Model Compatibility List	$3.64 / Each
701531	004562-AB	B59		Screw;Hex Socket;Sink;Stainess;M8x1.25Px35L	No	Model Compatibility List	$1.79 / Each
701558	004589-00	M06		Screw;Hex;W3/8x47L/Tooth14L	Yes	Model Compatibility List	$2.18 / Each
701580	004614-00	P17		Screw;BH;3X10L;SM;PH;;BAN;;POT	No	Model Compatibility List	$1.66 / Each
701612	004631-00	Q08		Screw;Phillip;BH;Tapped;4x25L	No	Model Compatibility List	$2.00 / Each
701731	004757-00	H56		Screw;Oval;Hex Socket;M8x1.25Px12L	No	Model Compatibility List	$2.00 / Each
701842	004859-AC	B08		Screw;BH;M8X1.25PX20L;;HS;;CHM;;	No	Model Compatibility List	$2.00 / Each
701866	004889-00	M55		Nut;Hex;M5x0.8P;Nickel	No	Model Compatibility List	$2.00 / Each
701908	004934-00	M58		Nut;Nylon;3/8	No	Model Compatibility List	$1.59 / Each
701944	004979-00	B49		Insert Nut;Hex;NHS-8125-3.0(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701947	004983-A	C07		Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701965	005005-AC	B103		Washer;Split;8.2X15.4X2.0T;;BZN;	No	Model Compatibility List	$1.79 / Each
701967	005006-00	R09		Washer;Spring;SW10 10.2x18.4x2.5t	No	Model Compatibility List	$2.00 / Each
701986	005024-A	P37		Washer;Flat;5.2X16.0X1.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
701987	005025-00	U52		Washer;Flat;25.5x38.0x1.5t;Black Zinc	No	Model Compatibility List	$2.00 / Each
702004	005042-00	H55		Washer;Flat;8.2X30.0X2.0T;Black Zinc	Yes	Model Compatibility List	$2.00 / Each
702030	005062-00	R10		Washer;Flat;10.2x19x2.0T;Chromed	No	Model Compatibility List	$1.59 / Each
702131	005157-A	N153		Washer;Flat;4.3x12.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702177	005219-00	U53		Washer;Wavy;26.0x35.0x0.3T	No	Model Compatibility List	$1.79 / Each
702178	005220-00	H57		Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702238	005363-00	U55		C-Clip;External;S-17	No	Model Compatibility List	$1.79 / Each
702241	005366-00	U54		C-Clip;External;S-25	No	Model Compatibility List	$1.59 / Each
702325	006078-00	V11		Decal;Grounding;TM08	No	Model Compatibility List	$1.90 / Each
702564	008652-A	M23		Pin;Hairpin Cotter;2x33L;ZNC	No	Model Compatibility List	$1.79 / Each
702589	008864-A	N50		Screw;Special;Round;2.9x1.06Px7L(Hi-Lo)	No	Model Compatibility List	$1.79 / Each
702741	009469-C	H60		Bushing;Pedal Arm;A;CS05	No	Model Compatibility List	$3.64 / Each
703440	014680-E	AR2		Rear Roller Set;3.5 Inch	No	Model Compatibility List	$365.01 / Each
703962	020005-00	P02		Screw;Phillip;Round;M3x6L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
703991	020072-00	Z13		Screw;SH;M8X1.25PX60L;;HS;;BAN;;	Yes	Model Compatibility List	$9.99 / Each
704001	020090-00	Z10		Screw;Hex Socket;Round;M10x1.25Px20L;Chromed	No	Model Compatibility List	$4.00 / Each
704004	020096-00	Q21		Screw;Hex Socket;Round;M8x1.25Px15L;Chromed	Yes	Model Compatibility List	$9.99 / Each
704070	020183-00	W60		SCREW;BH;?X4X38L;TC;PH;;;;POT	No	Model Compatibility List	$1.66 / Each
704165	020378-00	H59		Nut;Hex;M16x2.0Px7.8t;	No	Model Compatibility List	$1.79 / Each
704203	020478-00	M17		Washer;Flat;10.2x20.0x2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
705105	035882-AB	C21		Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P-	No	Model Compatibility List	$9.10 / Each
705777	056225-A	P50		Ferrite;PART OF #79 CABLE;NOT ORDERABLE;	No	Model Compatibility List	$8.42 / Each
706354	061339-B	W56		Fan;DC12V/0.3A PMB1297PYB3-AY;EP70	Yes	Model Compatibility List	$117.29 / Each
706492	062769-00	M12		Screw;Hex Socket;Round;M8x1.25Px15L;BED;	No	Model Compatibility List	$1.79 / Each
706754	065248-A	P27		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
709540	1000201167	P01		Console Cable Communication Wire;2000(MOLEX,50-70-9408x	Yes	Model Compatibility List	$91.23 / Each
709545	1000201218	M20		MCB Cover;ABS/PA765/MX-silver gray;	No	Model Compatibility List	$19.86 / Each
709546	1000201219	P16		Wire;Control Board;600+600+300(KST,RVS3	Yes	Model Compatibility List	$47.87 / Each
709794	1000203251	M60		Plastic Base;WH;CHF-11E;	No	Model Compatibility List	$1.01 / Each
709864	1000204065	2		Motor Set;TM501C;	Yes	Model Compatibility List	$799.00 / Each
710081	1000206713	JM96		Tape;Single Sided;75x25x1.5t;T5x-03;	No	Model Compatibility List	$0.21 / Each
710216	1000207642	4		Handlebar Set;TM502;T7x-01;	No	Model Compatibility List	$446.13 / Each	11
710309	1000208940	B36		Extrawork;Elastomer;Running Deck;Nai Ri	Yes	Model Compatibility List	$27.35 / Each
710318	1000209313	P08		Circuit Breaker;20A;125V/250V;RFLB-2	Yes	Model Compatibility List	$25.00 / Each
710578	1000211092	M50		FILTER;20A;125/250V;ROHS;-;	Yes	Model Compatibility List	$167.23 / Each
710721	1000212621	M53		Screw;BH;M4X0.7PX40L;-;PH;-;BZN;	No	Model Compatibility List	$1.66 / Each
710726	1000212816	P28		EXT Wire;Net Signal; 180(3205615600 8P+T	Yes	Model Compatibility List	$36.48 / Each
710779	1000213552	P30		NET CONNECT WIRE;1800(TKP,H6630P1-08+TKP	No	Model Compatibility List	$16.87 / Each
710794	1000213669	W02		UCB;DISPLAYLCM;H001S015;TM521;Coating;	No	Model Compatibility List	$365.01 / Each	1
710873	1000214787	B34		Bracket;Power Cord Retaining;SMALL;SPCC;1.6t;B	No	Model Compatibility List	$4.78 / Each
711096	1000216443	V16		warning LABEL;BRACKET;POWER CORD;	No	Model Compatibility List	$1.66 / Each
712069	1000226489	N02		Console Uipper Cover;Fan;-;BL/Black C;TM	No	Model Compatibility List	$13.49 / Each
712072	1000226494	W04		Control Board;USB;Extra-work;H001;;;TM52	No	Model Compatibility List	$23.63 / Each
712075	1000226519	N01		Console Cover;back;ABS PA746;SL/GY;TM521	No	Model Compatibility List	$50.67 / Each
712077	1000226521	N39		Anti-Slippery Pad;TPR+ABS;BL/Black C;MT-	No	Model Compatibility List	$9.10 / Each
712079	1000226524	N27		Torsional Spring;-;USB;SUS304;TM521	No	Model Compatibility List	$3.35 / Each
712081	1000226526	AN2		Painting;Overlay Reinforce Set;Black;TM5	No	Model Compatibility List	$153.76 / Each
712091	1000226590	AN8		Documentation;Overlay;TV;English;PET/A18	No	Model Compatibility List	$36.48 / Each	4,5,6
712092	1000226591	W05		Key;TV;20key;Picard;	No	Model Compatibility List	$127.74 / Each	9,4,5,6
712182	1000227226	M35		Washer;Flat;?X10.5x?X25.0x1.0T;Nylon+S2M	No	Model Compatibility List	$1.79 / Each
712272	1000228045	P22		WIRE;TV POWER;180(SCD-554DCS103BB1G+TKP	Yes	Model Compatibility List	$16.87 / Each
712376	1000228647	W92		Control Board;INVERTER;;TDK TBD584NR-1;;	No	Model Compatibility List	$337.97 / Each	7
712385	1000228660	W101		LVDS Wire;;;;;;;15.6 inch;EP614	No	Model Compatibility List	$92.92 / Each	4,5,6
712386	1000228662	W97		WIFI Aerial;;Left;;;;;IVX0035-A225BX;EP6	No	Model Compatibility List	$33.77 / Each	1
712387	1000228663	W98		WIFI Aerial;;Right;;;;;IVX0035-A405WX;EP	No	Model Compatibility List	$33.77 / Each	1
712391	1000228688	N82		SCREW;BH;M5X0.8PX12L;PH;BAN;	No	Model Compatibility List	$1.66 / Each
712397	1000228703	4		Handlebar Set;English;T-7xe-04-C;	No	Model Compatibility List	$730.05 / Each	1
712422	1000228788	W25		LCM Wire;370mm;(HRS DF13-30DS-1.25CX2)	No	Model Compatibility List	$21.94 / Each	7,4,5,6,12,13,14
712423	1000228789	N95		Wire;Earphone;;200+400(TKP,H6630R1-20+TK	No	Model Compatibility List	$25.32 / Each	4,5,6
712424	1000228802	W32		TFT LCD Set;18.5 Inch;AUO G185XW01;TM521	No	Model Compatibility List	$1.30 / Each	1
712425	1000228809	W104		Fan;;12VDC;0.2A;AFB0512HHB	No	Model Compatibility List	$92.92 / Each	8,4,5,6
712426	1000228810	W99		Isloation Plate;Inverter;;SECC;0.5T;;EP6	No	Model Compatibility List	$59.12 / Each	3
712427	1000228811	W79		Tuner Signal Wire;200;(TKP,H20J2-6+Mini	No	Model Compatibility List	$18.56 / Each	4,5,6
712428	1000228812	W47		TUNER CONTROL WIRE;250;(JST,XAP-06V-1+US	No	Model Compatibility List	$15.18 / Each	7,4,5,6
712429	1000228813	W45		Wire;Inverter;100(JST PAP-02V-S+ACES,872	No	Model Compatibility List	$10.11 / Each	4,5,6
712430	1000228814	W27		HEART RATE RECEIVER BOARD;SALUTRON 8600	No	Model Compatibility List	$182.49 / Each
712432	1000228816	W67		Mylar slice;PET;60x20mm;	No	Model Compatibility List	$1.66 / Each	1
712433	1000228817	W68		Wire;Ipod;500(JAM RJW20-18MP+TKP,H20J2-1	No	Model Compatibility List	$33.77 / Each	4,5,6
712434	1000228821	W116		Decal;;WES 7 32Bits;;;;;TM521/EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
712435	1000228822	N152		Spec Label;TUV;T-7xi-C;;;;;TM521	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
712436	1000228824	Not Shown		Documentation;Manunl;English;T-7xi-C;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
712448	1000228968	B22		Plastic Plate;SPHC;1.6t;BED;PCTV;T-5x-04	No	Model Compatibility List	$8.42 / Each
712497	1000229192	P33		POWER CORD SET;10-ft;NEMA;(90 Unit, 90 Outlet)	Yes	Model Compatibility List	$76.65 / Each
712521	1000229328	W74		Ethernet wire;200(AMP 569532+TKP H6630P1	No	Model Compatibility List	$15.18 / Each	4,5,6
712522	1000229329	W75		connect wire;quick key;250(TKP H6630P1-1	No	Model Compatibility List	$13.49 / Each
712523	1000229330	W23		WIRE;CONNECT;USB;400(JST XAP-06V-1X2);T-	No	Model Compatibility List	$10.11 / Each
712524	1000229331	W58		ground wire;MU;100+200+250(KST STRV2-5+G	No	Model Compatibility List	$8.42 / Each
712525	1000229332	W96		MI ground wire;100+200mm;(KST STRV2-5+GE	No	Model Compatibility List	$8.42 / Each	4,5,6
712526	1000229333	N45		ground wire;console bracket;100(KST STRV	No	Model Compatibility List	$6.76 / Each
712529	1000229359	W89		Ground wire;LCM;350(KST STRV2-5x2);T-7xi	No	Model Compatibility List	$8.42 / Each
712800	1000230705	21		Power Switch Set;1US;For PCTV;T-5x-04-F;	No	Model Compatibility List	$84.47 / Each
712865	1000231077	N37		Fixing Plate;Console;L;SPHC;1.5t;WZN;TM5	No	Model Compatibility List	$3.35 / Each
712866	1000231078	N85		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712875	1000231167	N85		SHIM;Z TYPE;SUS430;3.0t;T-5x-06-C;	No	Model Compatibility List	$0.00 / Each Out Of Stock
712879	1000231177	N63		FIXING PLATE;18.5 INCH;TM521;	No	Model Compatibility List	$642.17 / Each	3
712880	1000231181	W94		CABLE TIE;RELEASIBLE;HV-125SBK;-;-;BLACK	No	Model Compatibility List	$1.66 / Each
712881	1000231182	W107		Nut;Hex;3/8 Inch-32UNEF-2B,2.4T;;;	No	Model Compatibility List	$1.66 / Each	2
712924	1000231496	Q27		WASHER;FLT;Diam.5.0XDiam.12.0X1.0T;;BAN;	No	Model Compatibility List	$1.66 / Each
713326	1000301569	W35		Controller;Touch Sensor;;MT9C18508EU01;;	No	Model Compatibility List	$506.97 / Each	7,8
713327	1000301585	N86		Cable clamp;-;PL-1;pingood;-;-	No	Model Compatibility List	$1.66 / Each
713328	1000301587	W87		SDRAM;;SO-DIMM DDR2 2G;Adventech; D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$414.02 / Each	1
713329	1000301589	W62		Terminal;-;187;PC1V187;	No	Model Compatibility List	$1.66 / Each
713419	1000302343	W63		Connect;;;;;150(TKP,H20J2-15+JST,XAP-08V	No	Model Compatibility List	$11.80 / Each
713423	1000302406	V11		Documentation;-;Console;-;assembly label	No	Model Compatibility List	$8.42 / Each	7,3
713424	1000302407	V16		Documentation;-;Console;-;assembly label	No	Model Compatibility List	$8.42 / Each
713672	1000306357	W100		Fixed chipset;;;CF;EP614;;	No	Model Compatibility List	$42.22 / Each	1
713911	1000309517	W98		Ferrite Choke;;;Lian Cih;A8I 280130160;;	No	Model Compatibility List	$1.79 / Each	1
714757	1000317845	P01		Power Switch;ON-OFF;W/ Light;125V/250V;2	Yes	Model Compatibility List	$27.35 / Each
714860	1000318741	Not Shown		Manual;Assembly;;English;;TM501G;	No	Model Compatibility List	$16.87 / Each	3
715550	1000326063	W90		VA Module;;;;MX_PK008;;TM521;USB2.0;	No	Model Compatibility List	$912.57 / Each	1
716106	1000332745	W111		Heat Sink;;;117.5x113.5x21;AL;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716107	1000332747	W112		Heat sink;;25x25x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716108	1000332748	W113		Heat sink;;10x10x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716109	1000332749	W114		Heat sink;;8x8x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716110	1000332750	W115		Touch Switch;;;;;;;ADV1700020585-01;TM52	No	Model Compatibility List	$27.01 / Each	4,5,6
716111	1000332751	2		Heat Sink;;;HEAT SINK SET;TM521;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716599	1000337680	U05		Bearing;Dry;;Diam.X35.4x11.0L;Jiou Jyu;	No	Model Compatibility List	$3.35 / Each
716631	1000337919	11		Console Mast Set;;L;painting;;MATRIX Pur	No	Model Compatibility List	$414.02 / Each	7
716632	1000337930	12		Console Mast Set;;R;painting;;MATRIX Pur	No	Model Compatibility List	$414.02 / Each	7
716641	1000338307	W88		WiFi;EWM-W135H01E;Adventech;;	No	Model Compatibility List	$163.90 / Each	1
716933	1000340398	R04		Belt;POLY-V;;310-J12;Halftone;GATES	Yes	Model Compatibility List	$91.23 / Each	1,23
717442	1000345203	AN9		Safety Key Cover-Extrawork;upper coverr;	No	Model Compatibility List	$33.77 / Each
717685	1000346763	Not Shown		Decal;Console Mast;;Gray;;;;TM501-US	No	Model Compatibility List	$6.73 / Each
717796	1000347710	W79		Tuner Signal Wire;;;;;;;200(TKP,H20J2-6+	No	Model Compatibility List	$31.02 / Each	4,5,6
718634	1000352464	1		Safety Key Set;;;Red Switch Clip;T5X-02-	No	Model Compatibility List	$109.49 / Each
718635	1000352475	AN11		Switch Clip Set;Safety;;Red;	No	Model Compatibility List	$36.48 / Each
718757	1000353342	W28		Ipod Extend Wire;;;;;;300(MF1512S0017+JA	No	Model Compatibility List	$72.98 / Each	9,4,5,6
718941	1000354653	G35		Connect;;;;;;;Phone Board;1000(TKP,H20J2	No	Model Compatibility List	$23.63 / Each
718977	1000354885	N92		Connect Board;Console;;U138A2;H001;;;;	No	Model Compatibility List	$35.46 / Each
719170	1000356656	W108		Fixing Plate;TV Tuner;;Zinc Plate;;;TM52	No	Model Compatibility List	$3.35 / Each
719420	1000361162	Not Shown		RFID SET;;;;;TM521D;;	No	Model Compatibility List	$1.30 / Each	1
719421	1000361164	Not Shown		RFID SET;Semi-Assy;;;;EP614D;;	No	Model Compatibility List	$1.30 / Each	1
721130	1000380801	W110		Memory Card;;TS8GCF220I;8GB;Transcend;;	No	Model Compatibility List	$1137.08 / Each	9
721841	1000385828	6		Overlay Set;Start Quick;;English;;TM520;	No	Model Compatibility List	$135.04 / Each
722510	1000393224	W106		TV Stick Set;;;US / KITS - SBOM;EP620;;	No	Model Compatibility List	$392.05 / Each
723182	1000404541	G21		Earphone board set;;;;Earphone board+Wir	No	Model Compatibility List	$152.07 / Each	1
723628	1000410717	7		PCB;;;Second hand;;;T7xi(TM521);	No	Model Compatibility List	$3.90 / Each	1
724289	1000417248	B35		Finished treadmill deck;Timber;616x1340x	No	Model Compatibility List	$302.48 / Each
724710	1000424105	G34		Quickly Key Wire;;;;;;;850(JST,XAP-04+TK	No	Model Compatibility List	$6.73 / Each
724711	1000424106	G33		Elevtor Fast Key Wire;;;;;;;850(H6630R1-	No	Model Compatibility List	$6.73 / Each
724712	1000424108	G33		Quick Key Set;;;;Speed and Incline with	No	Model Compatibility List	$28.70 / Each	9,10
726549	082734	P59		Washer;Senated;M5.3X10X0.6;Zinc Plate	No	Model Compatibility List	$1.79 / Each
726550	082736	Z82		Washer;Flat;8.2X16.0X2.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
726734	084526	B45		Bracket;Side Rail;SPHC;2.0t;TM501;	No	Model Compatibility List	$2.86 / Each
726735	084527	B24		Cover;Elevation Rack Pivot Joint;SPHC;1.	No	Model Compatibility List	$9.10 / Each
726736	084529	11		Semi-Assy;TM501 Console Mast Set;L;	No	Model Compatibility List	$337.97 / Each
726739	084534	C03		Mounting Plate;Console Mast Front;A;SPHC	No	Model Compatibility List	$11.57 / Each
726740	084537	C04		Mounting Plate;Console Mast Rear;B;SPHC;	No	Model Compatibility List	$8.42 / Each
726741	084538	Q06		End-Cover;Console Mast;Left;ABS/PA746/80	Yes	Model Compatibility List	$13.13 / Each
726742	084539	12		Semi-Assy;TM501 Console Mast Set;R;1US;	No	Model Compatibility List	$337.97 / Each
726747	084583	Not Shown		Hardware Pack	No	Model Compatibility List	$60.32 / Each
726748	084584	B51		Screw;BH;M8X1.25PX20L;;HS;;BAN;;	No	Model Compatibility List	$1.79 / Each
726750	084587	Q07		End-Cover;Console Mast;Right;ABS/PA746;8	No	Model Compatibility List	$13.13 / Each
726751	084591	U04		Idler;SS41;53.5x40L;T5x-02;	Yes	Model Compatibility List	$17.97 / Each
726753	084596	N03		Cover;Console;Bottom;ABS/PA-746;MX	No	Model Compatibility List	$73.81 / Each
726754	084597	N04		Cover;Upper Console Plastic;Left;ABS/PA746;MX-S	No	Model Compatibility List	$39.13 / Each
726755	084598	N05		Cover;Upper Console Plastic;Right;ABS/PA-746;MX-S	No	Model Compatibility List	$42.28 / Each
726756	0000084599	N06		Arm Rest;Left;PU;MT-11345;426C;T5x-02;	Yes	Model Compatibility List	$86.16 / Each
726757	0000084600	N07		Arm Rest;Right;PU;MT-11345;426C;T5x-02;	Yes	Model Compatibility List	$86.16 / Each
726759	084630	T02		Safety Switch;R13-69;TM501;	No	Model Compatibility List	$20.05 / Each
726760	084631	T03		Wire;E-Stop Switch;550(250X2+6630R1);TM5	No	Model Compatibility List	$10.30 / Each
726767	084680	N08		Cup Holder;Left;TPR+30%PP;80435;TM501;	No	Model Compatibility List	$12.77 / Each
726768	0000084681	N09		Cup Holder;Right;TPR+30%PP;80435;TM501;	Yes	Model Compatibility List	$23.00 / Each
726769	084682	N11		Cover;Console Mast;Left;ABS/PA-746;80435;TM	No	Model Compatibility List	$8.42 / Each
726770	084683	N12		Cover;Console Mast;Right;ABS/PA-746;80435;TM	No	Model Compatibility List	$8.42 / Each
726773	084691	Q05		Side Rail;PVC;425C;T5x-02;	Yes	Model Compatibility List	$94.90 / Each
726804	084935	N20		Bracket;Console Mast Mtg;Left;SPHC;4.0T;BED	No	Model Compatibility List	$47.24 / Each
726805	084936	N21		Bracket;Console Mast Mtg;Right;SPHC;4.0t;BED	No	Model Compatibility List	$47.24 / Each
726826	085362	E44		Screw;SH;M8X1.25PX20L;;HS;;BAN;;	Yes	Model Compatibility List	$6.99 / Each
726882	0000085776	W44		Wire;Hand Pulse;250(2510A-03+XAP-03);TM5	Yes	Model Compatibility List	$14.99 / Each
726883	0000085777	N98		Wire;Hand Pulse Sensor;180(2510-06+H6630	Yes	Model Compatibility List	$19.99 / Each
726888	085797	Q66		Screw;BH;M5X0.8PX20L;;PH;;BAN;;	No	Model Compatibility List	$1.66 / Each
726899	085924	B54		Screw;SH;M6X1.0PX140L;;HS;;BZN;;	No	Model Compatibility List	$5.28 / Each
726900	085927	AN1		Console Base Frame Set;BL;TM501;	No	Model Compatibility List	$1059.14 / Each
726916	085980	N30		Fix Plate;Emergency;SPHC;1.6t;BED;TM501;	No	Model Compatibility List	$13.99 / Each
726928	0000086064	N33		Cover;Console;Right;ABS/PA-746;BL;TM501;	No	Model Compatibility List	$3.35 / Each
726929	0000086065	N34		Cover;Console;Left;ABS/PA-746;BL;TM501;	Yes	Model Compatibility List	$3.35 / Each
726930	0000086068	N24		Cover;Sensor;Upper;ABS/PA-746;MT-11010;	Yes	Model Compatibility List	$31.33 / Each
726931	086072	N44		Cover;Safety Key;Down;ABS/PA746;1797C;TM501	No	Model Compatibility List	$9.65 / Each
726932	0000086075	AQ2		Motor Cover;Front	Yes	Model Compatibility List	$159.46 / Each
726933	086077	Q03		End Cap;Rear Roller;Left;T75B1-SV040;T5x	No	Model Compatibility List	$166.01 / Each
726934	086078	Q04		End Cap;Rear Roller;Right;T75B1-SV040;T5	No	Model Compatibility List	$166.01 / Each
726935	086092	G16		Cover;Sensor;L;ABS/PA746;MT-11010;426C;T	No	Model Compatibility List	$126.75 / Each
726956	086226	V09		Nameplate;Motor Cover;LOGO;T5X-02;	No	Model Compatibility List	$42.28 / Each
726957	0000086229	U49		Spring;Extension;3.0x25.0x127.1Lx30N;	Yes	Model Compatibility List	$29.17 / Each
726968	086271	G17		Cover;Sensor;R;ABS/PA746;MT-11010;426C;T	No	Model Compatibility List	$12.69 / Each
726969	086277	G50		Screw;TH;M8X1.25PX20L;;HS;MT;BAN;;BP	No	Model Compatibility List	$3.64 / Each
726975	086331	Z15		Washer;Wavy;17.2X22.5X0.3T	No	Model Compatibility List	$1.59 / Each
726989	086524	M21		Guard;Fan;PG-80;BLACK;	No	Model Compatibility List	$8.42 / Each
726996	086571	Z14		Washer;FLT;8.2X16.0X2.0T;SPHC ;CHM;	No	Model Compatibility List	$1.79 / Each
726999	086599	E05		Foam;38X5.0tX170;GM206	No	Model Compatibility List	$5.17 / Each
727008	0000086672	G36		Heart Rate Sensor Wire;Left;700(H6630R1-02+11	Yes	Model Compatibility List	$8.11 / Each
727009	0000086673	G37		Heart Rate Sensor Wire;Right;700(H6630R1-02+11	Yes	Model Compatibility List	$8.11 / Each
727010	0000086674	P05		Power Wire; EMI Filter to Switch;200(RVS	Yes	Model Compatibility List	$15.78 / Each
727012	0000086676	P09		Signal Wire;TV;U;2100(FM-0086-NBG7)	Yes	Model Compatibility List	$25.40 / Each
727017	0000086684	W13		Speaker Set;AK-402808BC-3T+280+XAP-02;TM	No	Model Compatibility List	$17.65 / Each
727023	086720	JM13		Elevation Motor;1300LB/115V;127mm;TM501;	No	Model Compatibility List	$456.27 / Each
727025	0000086724	N35		Cover;Console Display;TV Rack;Printing;T	No	Model Compatibility List	$47.63 / Each
727047	086897	B100		Fix Plate;Foot Pad;B;SPHC;2.0t;TM501;	No	Model Compatibility List	$16.87 / Each
727055	086932	N18		cover;IPOD Fixing;ABS/PA746;MT-11010;804	No	Model Compatibility List	$9.10 / Each
727076	0000087056	N13		Vent;Fan;ABS/PA-746;Pantone:877C;TM501;	No	Model Compatibility List	$45.24 / Each
727220	087858	G25		Screw;Round;M3X0.5PX12L;;PH;SSTSUS304;BAN;	No	Model Compatibility List	$3.64 / Each
727311	088493	Q11		Cover;Console Mast;Right;Outside	No	Model Compatibility List	$132.00 / Each
727318	088505	U50		Bearing;Ball;6203LUZ;17X40X12T;;TPI;;;	No	Model Compatibility List	$13.49 / Each
727351	0000088743	N81		Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T	No	Model Compatibility List	$1.79 / Each
727353	0000088746	P17		Power Socket;80+130(SS-3B+FDFNYD5-250-1)	Yes	Model Compatibility List	$15.00 / Each
727354	088747	P18		Ground Wire;Power Socket;200+50(KST FDFN	No	Model Compatibility List	$26.16 / Each
727372	088905	Z19		Bushing;Threaded Flange;M8x10x16x8Lx2T	No	Model Compatibility List	$3.64 / Each
727396	088969	1		Tension Wheel Set;TM501;T5x-02;	No	Model Compatibility List	$278.15 / Each
727399	0000088973	4		Motor Cover Set;Upper	No	Model Compatibility List	$239.07 / Each
727400	088975	B25		Rear Shim Foot Plate Set;TM501;SBOM;	No	Model Compatibility List	$23.22 / Each
727406	088993	16		Rear Adjustable Leveler Foot Set;Right;TM501;	No	Model Compatibility List	$96.69 / Each
727407	088994	B101		Foot pad;5/8 Inch-11UNC;BED;TM501;	No	Model Compatibility List	$38.84 / Each
727423	089111	P47		Tape;Dual Sided;20x30x3t;TM501;	No	Model Compatibility List	$0.10 / Each
727424	089112	W28		Spacer;Support;MEA-05;PINGOOD;	No	Model Compatibility List	$1.66 / Each
727425	089113	W29		Fix Plate;SPHC;1.6t;BED;T5x-02;	No	Model Compatibility List	$8.42 / Each
727433	089165	B37		Clip Nut;Attached Plate;Elastomer;SPCC;1.6t;Zn Pl	No	Model Compatibility List	$3.64 / Each
727439	089223	G22		Ring;SS41;4.5x3.2x3.05;Cr Plate;TM502;	No	Model Compatibility List	$1.66 / Each
727466	089482	N46		Wire;Console Set;80(99471+KST FDFNYD2-25	No	Model Compatibility List	$8.42 / Each
727470	0000089487	2		Elastomer Set;Running Deck;Front;T5x-02;	Yes	Model Compatibility List	$32.55 / Each
727471	0000089488	3		Elastomer Set;Running Deck;Middle;T5x-02	Yes	Model Compatibility List	$29.95 / Each
727472	0000089500	N92		UCB Interface Board Set;TM501;T5x-02;	No	Model Compatibility List	$72.98 / Each
727512	089687	10		Quick Key Set;TM502;T7x-01;	No	Model Compatibility List	$127.74 / Each
727527	089799	B52		Washer;6.2x40.0x4.0t;	No	Model Compatibility List	$1.01 / Each
727528	089800	B60		Washer;DSP;6.4X14.0X1.2T;SPHC ;;	No	Model Compatibility List	$1.09 / Each
727534	089835	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727546	089860	P27		Cap;C-SAFE;NYION 6/6;BL;T1x;	No	Model Compatibility List	$8.42 / Each
727877	091816	5		Heart Rate Grip Cover Set	No	Model Compatibility List	$72.98 / Each
728050	092889	N49		Screw;Button Head;M4x0.7Px6L;Sheet Met	No	Model Compatibility List	$1.66 / Each
728055	092900	G53		Screw;BH;M3x0.5Px6L;MT;PH;CST;BZN;BP	No	Model Compatibility List	$1.33 / Each
728136	093244	N37		Screw;Phillip;BH;Tapped;4x8L;Zn-BL;	No	Model Compatibility List	$2.00 / Each
728176	093397	AH2		Painting;Elevator Rack Set;BL;TM501;	No	Model Compatibility List	$317.69 / Each
728249	093781	H61		Washer;SPL;17.3x26.3x3.0t;BZN;;;	No	Model Compatibility List	$1.66 / Each
728276	093962	M22		Pin;Elevation;Clevis;SCM440x15x65L;Runner Gold	No	Model Compatibility List	$9.10 / Each
728372	094428	P28		Power Cord Set;10-;NEMA (90 unit, 180 outlet)	No	Model Compatibility List	$91.23 / Each
728373	0000094429	-		Power Cord Set;15-ft;NEMA (90 unit, 180 outlet)	No	Model Compatibility List	$164.24 / Each
728374	094431	P56		Fan;Cooling;FD128025LB;DC 12V/0.1A;T7000	No	Model Compatibility List	$91.23 / Each
728376	094434	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728384	094477	M03		Motor Control Board;1.5KW/90~264V;Delta	No	Model Compatibility List	$1.30 / Each
728387	094489	R05		Running Belt;Wax;554X3330X2.5T;TM65	No	Model Compatibility List	$686.11 / Each
728415	094653	H50		Screw;Extrawork;SH;M16;Polish	No	Model Compatibility List	$9.10 / Each
728573	095368	M14		Screw;SH;M10X1.5PX25L;;HS;;BZN;;	No	Model Compatibility List	$1.01 / Each
728589	095437	B55		Nut;Nlk;M8X1.25Px6t;;BZN;;	No	Model Compatibility List	$1.79 / Each
728616	095641	N157		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
728617	095642	G52		Screw;BH;M5X0.8PX16L;;PH;;BED;;BP	No	Model Compatibility List	$1.66 / Each
728618	095644	AG6		Quick Key;R;ABS/PA746;MT-11020;137C;T7x-	No	Model Compatibility List	$16.87 / Each
728619	095645	AG7		Quick Key;L;ABS/PA746;MT-11020;137C;T7x-	No	Model Compatibility List	$16.87 / Each
728623	095663	AB29		Elastomer Set;Semi-Assy;Nai-Li;T5x-02	No	Model Compatibility List	$0.00 / Each Out Of Stock
728629	095703	JAM04		Screw;RND;M3.5X6L;TC;PH;;WZN;ROHS;	No	Model Compatibility List	$1.66 / Each
728980	Not a Service Part	1		Frame Set;Semi-Assy;back;;;S-EP558E-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729099	Part of Console Set	W94		Overlay;Touch panel;;;15.6#T:9PCT TF1-TP	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729118	Part of Kit 1	AU2		Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	V21		Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	5		Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729227	Part of Kit AG11	AG2		Extrawork;Grip Set;MT-11345;426C;TM502;	No	Model Compatibility List	$0.00 / Each Out Of Stock	11
729777	ZMS4004742	Not Shown		Silicon Plug, 0.25"0.125"0.75" Black	No	Model Compatibility List	$2.29 / Each	4,5,6
729787	ZMS4004993	Not Shown		Matrix treadmill end cap touchup paint	No	Model Compatibility List	$91.23 / Each
1020583	1000435058			Control Board Set Delta APMT-1500AP-1	No	Model Compatibility List	$1038.70 / Each
1000269	0000089687	0	1	Quick Speed Incline Key Set (Used)	No	Model Compatibility List	$56.99 / Each Out Of Stock	1
1000534-R	0000094477	0	1	Motor Control Board (Used)	No	Model Compatibility List	$385.99 / Each	7,48
1000537	0000088970	0	1	AC Drive Motor Set (Used)	No	Model Compatibility List	$399.00 / Each	28
1000538	002130-00	0	1	Power Cord (Used)	Yes	Model Compatibility List	$22.99 / Each	4,19,42
1000539	0000086720	0	1	Incline Elevation Motor (Used)	No	Model Compatibility List	$157.99 / Each	28
1000543	014680-E	AR2	1	Rear Back Idler Take UP Roller (Used)	No	Model Compatibility List	$160.99 / Each
1007186	1000317845	P01	1	Power Switch On Off	Yes	Model Compatibility List	$28.99 / Each
1008492	0000094429	0	1	Power Cord 110VAC	No	Model Compatibility List	$149.00 / Each
1032499	002127-A	P02	1	BS WIRE;60L;12AWG;BLACK;TM86; (Used)	No	Model Compatibility List	$2.99 / Each
1032472	1000201219	P16	1	WIRE;CTRL BOARD PWR;600 600 300(KST,RVS3 (Used)	Yes	Model Compatibility List	$10.00 / Each
1004185	000511-B	Q11		Frame Rear Foot Pad Stabilizer	Yes	Model Compatibility List	$21.99 / Each
1000019	1000211092	M50		Power Entry Plate Switch Breaker Inlet	Yes	Model Compatibility List	$34.99 / Each
1000544	0000091544			Front Drive Roller	Yes	Model Compatibility List	$129.00 / Each
1000072	0000084525			Power Switch Entry Module Breaker	Yes	Model Compatibility List	$49.99 / Each Out Of Stock
1000547	0000089110			Heart Rate Receiver Board	Yes	Model Compatibility List	$179.00 / Each
1001057	1000229192	P33		Power Cord	Yes	Model Compatibility List	$99.99 / Each
1001058	1000229192	P33		Power Cord	Yes	Model Compatibility List	$39.99 / Each
1001740	000511-B	Q11		Frame Foot Pad	Yes	Model Compatibility List	$19.99 / Each
701972	005010-00	M69		Spring Lock Washer 10.75x17.2x2.16T (New)	No	Model Compatibility List	$12.99 / Each
701260	004321-00	C50		Round Head Screw M4x0.7Px10L (New)	No	Model Compatibility List	$12.99 / Each
723817	1000412624	B38		Deck Cushion 30X37 (New)	Yes	Model Compatibility List	$24.99 / Each
912107	1000465333			Nut Locking Nylon 3/8	No	Model Compatibility List	$11.99 / Each

View Drawing

Chat with us

Matrix Commercial - T7xi - 2013

Exploded Diagrams

general Info

Customer Service

About us

Address
