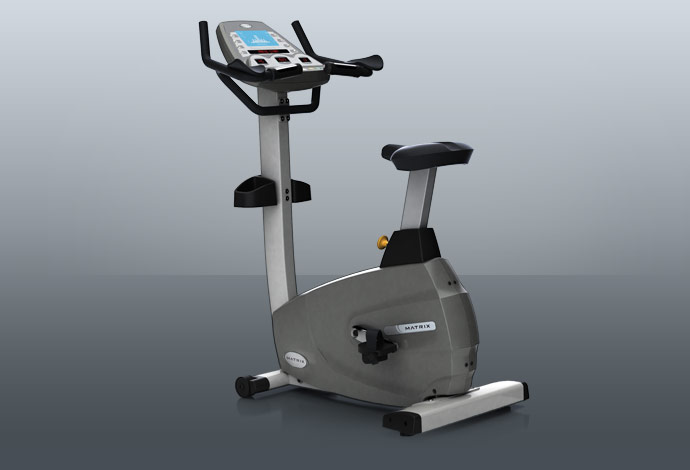

Matrix Commercial - U1x - N/A

Repair Parts for Matrix Commercial U1x U1x

Brand: Matrix Commercial

Category: Upright

Type: Stationary Bikes

Model Name: U1x

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Foam Tape;Double Sided;25x16x1t 700214 000693-A 190 Foam Tape;Double Sided;25x16x1t No Model Compatibility List $1.66 / Each

1
Screw;Phillip;Round;3x8L;Gap;;Zn-BL 704084 020205-00 P57 Screw;Phillip;Round;3x8L;Gap;;Zn-BL No Model Compatibility List $1.66 / Each

Screw;Phillip;Round;3x5L;Gap;;Zn-BL 705471 049265-A 178 Screw;Phillip;Round;3x5L;Gap;;Zn-BL No Model Compatibility List $1.66 / Each

2
Screw;Round Cross Tapped;M3X30L 706799 065640-A 183 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

726184 080675 180 Membrane Keypad;Left;plane 4Keys;RB85 No Model Compatibility List $18.95 / Each

726185 080676 181 Membrane Keypad;Right;plane 4Keys;RB85 No Model Compatibility List $18.95 / Each

726186 080677 182 Membrane Keypad;Down;plane 7Keys;RB85 No Model Compatibility List $34.50 / Each

726222 080773 185 Data Load Wire;200L;(JST/XAP-14)x2;RB85; No Model Compatibility List $21.61 / Each

726230 080834 186 Display Board Wire;100L;JST XHP-5+JST XA No Model Compatibility List $8.42 / Each

726231 080835 187 Cardio Wire;250L;RJ-45HSG 8P+JST XAP-5;R No Model Compatibility List $16.33 / Each

726232 080836 188 C-Safe Wire;250L;RJ-45HSG 8P+JST XAP-8;R No Model Compatibility List $17.76 / Each

726422 081745 Q53 Screw;Umbrella Cross;M5x0.8Px8L;Stainless No Model Compatibility List $1.66 / Each

726432 081786 189 Receiver Set;Pulse;CB66-W14B; No Model Compatibility List $8.42 / Each

726433 081788 184 Plastic;3x20L No Model Compatibility List $1.66 / Each

726949 086174 192 LCM Module Wire Set;WIRE+CORD;CB66 No Model Compatibility List $18.04 / Each

727585 090140 174 Overlay;Manipulate;Up;ENG;U1x-01 No Model Compatibility List $48.52 / Each

727586 090141 175 Overlay;Manipulate;Middle;ENG;U1x-01 No Model Compatibility List $34.27 / Each

727587 090142 176 Overlay;Manipulate;Down;ENG;U1x-01 No Model Compatibility List $21.03 / Each

Console Set;ES;H006S001;MX-U1x 727641 0000090282 151 Console Set;ES;H006S001;MX-U1x No Model Compatibility List $1.30 / Each

727643 090284 171 Cover;Console Faceplate;ABS;MX CL/GY;U1x-01; No Model Compatibility List $35.93 / Each

727644 090285 172 Cover;Console Back;ABS;MX CL/GY;U1x-01; No Model Compatibility List $35.39 / Each

Battery Cover;ABS;Gray(80435);U1x-01; 727645 090286 173 Battery Cover;ABS;Gray(80435);U1x-01; No Model Compatibility List $3.35 / Each

727892 091950 152 Program upload board Set;MX-U/R/E1x No Model Compatibility List $37.41 / Each

727893 091953 155 Display Baord Set;MX-U/R/E1x No Model Compatibility List $77.97 / Each

727894 091954 156 Hand Pluse Board Set;MX-U/R/E1x No Model Compatibility List $93.08 / Each

Pulley Drive Belt 8 Rib High Strength 1000633 004162-00 Pulley Drive Belt 8 Rib High Strength Yes Model Compatibility List $44.99 / Each

15,10
View Drawing
