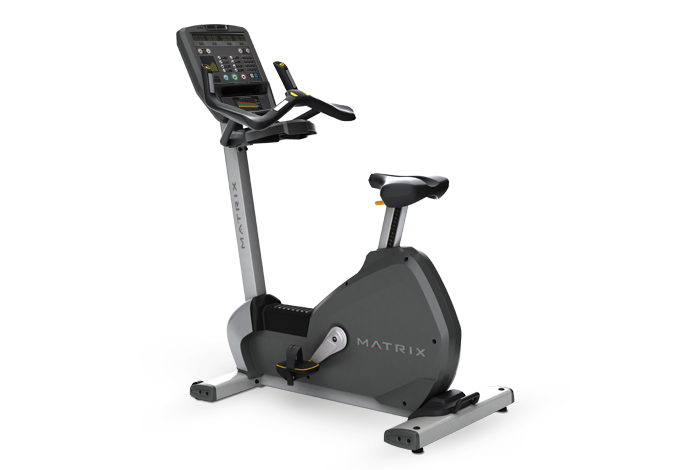

Matrix Commercial - U5x-05 - 2014-2020

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700111 0004356-AB Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
N 700924 002782-C Not Shown Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

W 701032 003383-A W65 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

701286 004355-00 Not Shown Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

N 701426 004475-00 Not Shown SCREW;SH;M8X1.25PX15L;;HS;;BZN;; No Model Compatibility List $0.52 / Each

B 701944 004979-00 B11 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

N 702131 005157-A N153 Washer;Flat;4.3x12.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

N 702589 008864-A N151 Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.79 / Each

N 702591 008866-A N152 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.66 / Each

N 704993 028601-BR Not Shown TV Signal Wire 800 (5CFx2 EP68-P21B-2940 U5X Yes Model Compatibility List $19.40 / Each

4,5,6
W 705777 056225-A W69 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

W 706354 061339-B W56 Fan;DC12V/0.3A PMB1297PYB3-AY;EP70 Yes Model Compatibility List $117.29 / Each

706754 065248-A Not Shown TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

P 710100 1000206777 P32 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $40.51 / Each

W 710102 1000206779 W66 Console Cable;250(MOLEX,50-57-9408+MOLEX, No Model Compatibility List $56.58 / Each

N 710103 1000206783 Not Shown E-ORT CONNECT WIRE;400(AMP569532x2); No Model Compatibility List $47.87 / Each

4,5,6
W 710108 1000206790 W45 Hand Pulse Sensor Wire;350L(2510A-06,TKP No Model Compatibility List $26.68 / Each

4,5,6,12,13,14
A 710289 1000208535 AN51 Heart Rate Board Set;SALUTRON 8600;EP93C; No Model Compatibility List $300.61 / Each

W 710291 1000208539 W58 Wire;QUICK CONNECT;200(HRS HIF3BA-20D-2. No Model Compatibility List $65.10 / Each

7,4,5,6,12,13,14
P 710454 1000210330 P03 Wire;Connect;USB;250(JST,XAP-06V-1)x2; No Model Compatibility List $19.16 / Each

N 710483 1000210553 N16 USB;EP90B No Model Compatibility List $14.40 / Each

1
Z 710585 1000211111 Z41 Screw;SH;M5X0.8PX12L;-;HS;SSTSUS304;BED; No Model Compatibility List $1.66 / Each

N 710607 1000211294 N98 Screw;FH;M3X0.5PX30L;-;PH;BZN; No Model Compatibility List $1.66 / Each

2
W 710620 1000211323 W70 Wire;GND;-;-;-;EP93C; No Model Compatibility List $8.42 / Each

4,5,6
N 710678 1000212322 N25 Shim;Rubber;D;NBR;BLACK;TM507C; No Model Compatibility List $1.66 / Each

4,5,6
N 711129 1000216927 Not Shown WIFI Antenna;250(WPB105 MINI 1.13 2.4GHz No Model Compatibility List $18.67 / Each

1
W 712096 1000226646 W51 CONTROL BOARD;CONSOLE;H001S001;EP612; No Model Compatibility List $1103.54 / Each

7
A 712097 1000226648 AB1 CONSOLE Reinforce Tube;PAINTING;BLACK;EP No Model Compatibility List $164.24 / Each

7,3,4,5,6
A 712098 1000226659 AN4 Extrawork;COVER;OVERLAY;PR;EP612; No Model Compatibility List $101.37 / Each

9
N 712099 1000226662 N61 OVERLAY;PROGRAM;ENG;EP612; No Model Compatibility List $118.27 / Each

1
W 712100 1000226663 W63 KEYPAD;PROGRAM;EP612; No Model Compatibility List $168.97 / Each

9,12,13,14
N 712101 1000226665 N62 OVERLAY;HEART RATE ZONE;ENG;EP612; No Model Compatibility List $50.67 / Each

12,13,14
N 712102 1000226667 N55 COVER;CONSOLE;U;ABS/PA746;DG/80435;EP612 No Model Compatibility List $67.57 / Each

7,9
N 712107 1000226718 N54 COVER;CONSOLE;RE;ABS/PA746;DG/80435;EP61 No Model Compatibility List $33.77 / Each

7,9
N 712300 1000228299 Not Shown MO;WIFI WIRE;EP90B/EP93C/CS14B;- No Model Compatibility List $346.76 / Each

4,5,6
N 712391 1000228688 N82 SCREW;BH;M5X0.8PX12L;PH;BAN; No Model Compatibility List $1.66 / Each

712398 1000228705 W52 CONTROL BOARD;C-SAFE;U11AA2;H001;COATING No Model Compatibility List $33.77 / Each

7
W 712551 1000229467 W53 CONSOLE CONTROL BOARD;H001;COATING;EP611 No Model Compatibility List $32.84 / Each

7
N 712659 1000230081 Not Shown Network signal extend wire;600;(TKP H663 Yes Model Compatibility List $38.97 / Each

9,4,5,6
N 712660 1000230083 Not Shown OVERLAY SET;TV;EP612;-; No Model Compatibility List $182.49 / Each

4,5,6
N 712661 1000230086 Not Shown TV PWR EXT;600;(TKP H6630R1-04(PITCH 3.0 No Model Compatibility List $38.97 / Each

4,5,6
N 712866 1000231078 N85 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.66 / Each

W 712867 1000231080 W27 Wire;Ipod;550(JST XADR-16+PAP-06/-10);T7 No Model Compatibility List $32.84 / Each

4,5,6
N 712869 1000231121 N86 SCREW;BH;(##10.5);M5X0.8PX15L;-;PH;-;BAN No Model Compatibility List $1.66 / Each

2
N 712940 1000231589 Not Shown SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN; No Model Compatibility List $1.66 / Each

2
W 713008 1000232274 W47 GND;-;-;Yellow/Green1;I-POD;18AWG;200mm; No Model Compatibility List $8.42 / Each

1
N 716488 1000336897 N62 Overlay;ENTAERTAINMENT;;English;;EP612B No Model Compatibility List $101.37 / Each

1
N 716489 1000336898 N62 Overlay Set;TV;;English;EP612B;; No Model Compatibility List $127.74 / Each

4,5,6
N 717145 1000341910 N61 Overlay;Program;;English;;EP612B No Model Compatibility List $135.17 / Each

1
W 718757 1000353342 W28 Ipod Extend Wire;;;;;;300(MF1512S0017+JA No Model Compatibility List $72.98 / Each

9,4,5,6
N 719182 1000356740 Not Shown Quickly Key Wire;;;;;;;200+250(TKP,H254M No Model Compatibility List $18.56 / Each

9,4,5,6
726594 0000083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.90 / Each

Cover;Console;Right;ABS/PA-746;BL;TM501; 726928 0000086064 N33 Cover;Console;Right;ABS/PA-746;BL;TM501; No Model Compatibility List $3.35 / Each

726929 0000086065 N34 Cover;Console;Left;ABS/PA-746;BL;TM501; Yes Model Compatibility List $3.35 / Each

Speaker Set;AK-402808BC-3T+280+XAP-02;TM 727017 0000086684 W13 Speaker Set;AK-402808BC-3T+280+XAP-02;TM No Model Compatibility List $17.65 / Each

Cover;Console Display;TV Rack;Printing;T 727025 0000086724 N35 Cover;Console Display;TV Rack;Printing;T No Model Compatibility List $47.63 / Each

Vent;Fan;ABS/PA-746;Pantone:877C;TM501; 727076 0000087056 N13 Vent;Fan;ABS/PA-746;Pantone:877C;TM501; No Model Compatibility List $45.24 / Each

Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T 727351 0000088743 N81 Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T No Model Compatibility List $1.79 / Each

Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F 727358 0000088790 N52 Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F No Model Compatibility List $9.10 / Each

TV Earphone Wire Cover;ABS/PA746;80435 727359 0000088791 N53 TV Earphone Wire Cover;ABS/PA746;80435 No Model Compatibility List $3.64 / Each

Cover;IPOD Fixing;ABS/PA746;Deep Grey 80 727442 0000089261 N18 Cover;IPOD Fixing;ABS/PA746;Deep Grey 80 No Model Compatibility List $3.64 / Each

727474 089506 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
Heart Rate Power Wire;250L(2510A-03+XAP- 727961 0000092217 W75 Heart Rate Power Wire;250L(2510A-03+XAP- No Model Compatibility List $9.13 / Each

Fixing Plate;Fan;0.8t;T5x-02; 728026 0000092696 N202 Fixing Plate;Fan;0.8t;T5x-02; No Model Compatibility List $9.10 / Each

728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board;USB;H001;U105A5;EP603; 728542 0000095231 W04 Control Board;USB;H001;U105A5;EP603; No Model Compatibility List $28.29 / Each

Tape;Foam;One-Sided;50x15x1.5T; 728600 0000095575 N203 Tape;Foam;One-Sided;50x15x1.5T; No Model Compatibility List $1.66 / Each

Display Console - Used Only 1006461 1000226658 Display Console - Used Only No Model Compatibility List $585.00 / Each
Out Of Stock
7
Screw Round Hex Socket M8-1.25-20MM (Used) 1020692 1000211360 0 1 Screw Round Hex Socket M8-1.25-20MM (Used) No Model Compatibility List $3.25 / Each

Pulley Fly Wheel Transmission Set Tools H-3X 5X 7X-05-F (Used) 1020734 1000339504 0 1 Pulley Fly Wheel Transmission Set Tools H-3X 5X 7X-05-F (Used) No Model Compatibility List $90.99 / Each

8
cover-Extrawork frame left Print CB92 (Used) 1024709 1000301925 0 1 cover-Extrawork frame left Print CB92 (Used) No Model Compatibility List $69.34 / Each

cover-Extrawork frame right Print CB92 (Used) 1024682 1000301926 0 1 cover-Extrawork frame right Print CB92 (Used) No Model Compatibility List $69.34 / Each

SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 020069-00 020069-00 0 1 SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 Yes Model Compatibility List $6.99 / Each

Holder, Cup without Bracket (Used) 1035694 0000088923 C11 1 Holder, Cup without Bracket (Used) Yes Model Compatibility List $14.99 / Each

View Drawing
