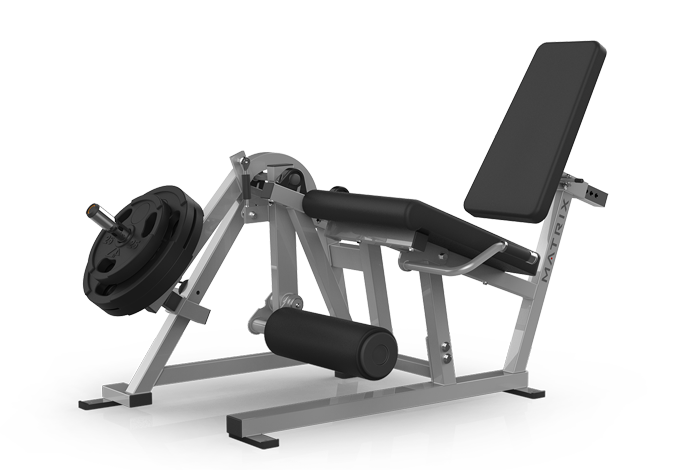

Matrix Commercial - VY-401-02 - 2013

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
R 713500 1000304394 Roller Pad 5 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

713801 1000308375 B7 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 B9 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

Z 713805 1000308416 Z36 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B10 2" x 2" END CAP No Model Compatibility List $5.46 / Each

B 713807 1000308418 B12 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

713809 1000308420 B14 2" x 2" RUBBER BUMPER No Model Compatibility List $18.56 / Each

1
B 713811 1000308424 B47 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

Z 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

713816 1000308434 Z41 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z30 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

713820 1000308438 Z26 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

Z 713826 1000308444 Z31 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713827 1000308445 Z28 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

713830 1000308448 Z24 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

B 713834 1000308452 B21 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713835 1000308453 Z38 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B16 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

713839 1000308467 B17 End cap - weight horn No Model Compatibility List $5.90 / Each

713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

V 713842 1000308473 V57 Lable, hand pinch No Model Compatibility List $3.02 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

B 713938 1000309842 B13 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713941 1000309848 Z29 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
713943 1000309851 Z27 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

713948 1000309856 B37 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z39 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z40 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

713951 1000309860 J43 BACK PAD No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
713952 1000309862 J44 SEAT PAD No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
R 713967 1000309953 Roller Pad 7 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

B 713986 1000310083 B20 2" ROUND END CAP No Model Compatibility List $5.04 / Each

Z 714008 1000310115 Z59 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

714029 1000310305 Z33 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
Z 714127 1000312161 Z35 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

Z 714235 1000312700 Z56 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

714302 1000313470 V53 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714459 1000315094 V54 Label;21lb Starting Resistance;Rev B No Model Compatibility List $5.04 / Each

10
714538 1000315894 V52 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock
K 714766 1000318109 Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714828 1000318495 Roller Pad 4 STOPPER RING;CAP No Model Compatibility List $16.87 / Each

9
714829 1000318497 Roller Pad 8 WASHER FENDER M8 No Model Compatibility List $3.02 / Each

2,9

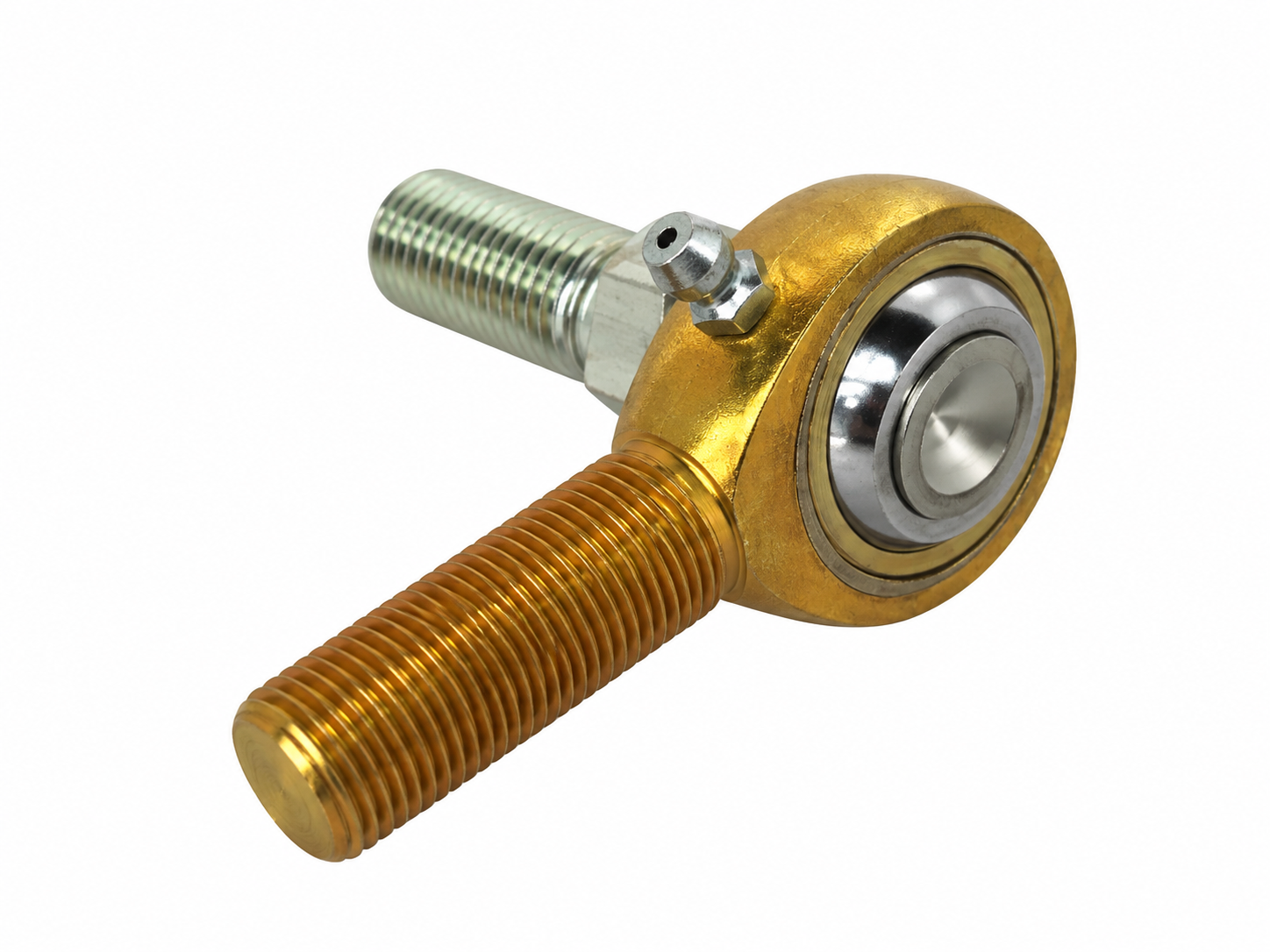

715988 1000330417 B8 Ball Joint No Model Compatibility List $0.00 / Each
Out Of Stock
1
717377 1000344562 V52 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

719754 1000365176 Roller Pad 6 SCREW,SET M6 X1X10 No Model Compatibility List $0.00 / Each
Out Of Stock
2
720070 1000368439 V49 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
3
720071 1000368441 V49 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock
720579 1000373734 AB1 Main Frame - Storage Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720580 1000373735 AB1 Main Frame - Storage Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720581 1000373736 AB1 Main Frame - Storage Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720582 1000373749 AB2 Main Frame - Seat Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
720583 1000373750 AB2 Main Frame - Seat Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
720584 1000373751 AB2 Main Frame - Seat Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
720585 1000373764 AB4 Handle;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
11
720586 1000373765 AB4 Handle;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,11
720587 1000373766 AB4 Handle;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,11
720588 1000373778 AB11 CHROMED SEAT POST; No Model Compatibility List $0.00 / Each
Out Of Stock
7,12,13,14
720589 1000373780 AB5 Arm Sub Assembly;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720590 1000373781 AB5 Arm Sub Assembly;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720591 1000373782 AB5 Arm Sub Assembly;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720592 1000373795 AB6 6001 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
8
720593 1000373796 AB6 6001 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
8,4,5,6
720594 1000373797 AB6 6001 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
8,4,5,6
720595 1000373809 B15 1"OD x 1/2"ID PIPE - 4 1/2";Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
1
720596 1000373810 B15 Pipe;1" OD x 1/2" ID x 4 1/2";Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720597 1000373811 B15 Pipe;1" OD x 1/2" ID x 4 1/2";Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
720598 1000373823 AB3 Weight Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
720599 1000373824 AB3 Weight Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
720600 1000373825 AB3 Weight Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
721552 1000384006 V51 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
723604 1000410336 B58 ABS Roller Arm Stop; No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
723612 1000410429 Z57 NUT;HEX;JAM;.625-18;ZN No Model Compatibility List $0.00 / Each
Out Of Stock
2
723613 1000410430 Z55 NUT;NLK;.625-18NF;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
2
729062 Order Roller Pad Set Roller Pad 1 Order Roller Pad Set No Model Compatibility List $0.00 / Each
Out Of Stock
8,12,13,14
729261 See Pad Matrix Roller Pad Set Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
