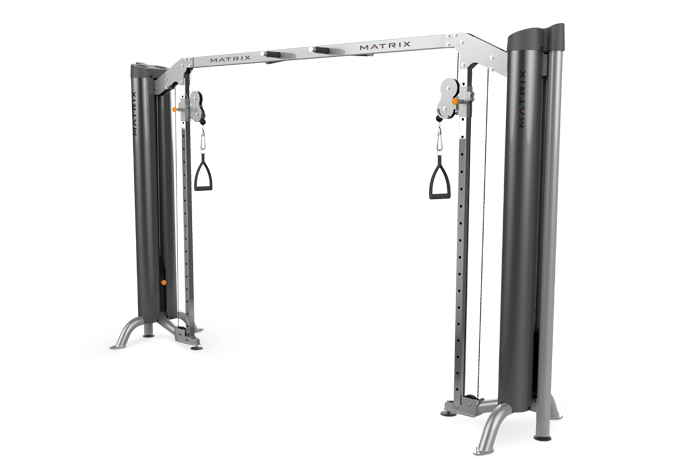

Matrix Commercial - VY-6024-02 - 2013

Repair Parts for Matrix Commercial VY-6024-02 VYGM319

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: VY-6024-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 713811 1000308424 DP 9 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

P 713814 1000308428 Pulley 3 3/8" NUT No Model Compatibility List $1.43 / Each

713820 1000308438 Z12 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

713821 1000308439 Z14 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z10 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

D 713842 1000308473 DP 12 Lable, hand pinch No Model Compatibility List $3.02 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

P 713939 1000309846 Pulley 7 1/2" JAM NUT No Model Compatibility List $1.43 / Each

P 713940 1000309847 Pulley 8 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

713943 1000309851 Pulley 4 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

713953 1000309871 Z11 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

713997 1000310096 DP 14 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

D 714016 1000310219 DP 15 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

714017 1000310270 B17 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B21 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

Z 714033 1000310313 Z19 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

Z 714034 1000310314 Z20 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

714037 1000310330 B33 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

B 714040 1000310339 B42 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each
Out Of Stock
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

714044 1000310346 V29 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
P 714105 1000312091 Pulley 5 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

714109 1000312099 DP 4 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

714126 1000312159 Pulley 9 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

D 714127 1000312161 DP 6 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

D 714175 1000312296 DP 10 Flange Bushing - 3/4"OD x 1/2"ID No Model Compatibility List $10.92 / Each

8
714193 1000312342 V28 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

714246 1000312876 Z13 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

714247 1000312877 B15 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714248 1000312879 B30 5/8" GUIDE ROD - 78.5" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

714250 1000312881 Weight Stack 7 WELDMENT 12X CENTER STICK WITH COLLAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714253 1000312893 B39 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

714263 1000312973 B22 Rope - 312" No Model Compatibility List $6.37 / Each

1
B 714266 1000312976 B26 HANDLE W-STRAP D-RING (SHORT) No Model Compatibility List $25.98 / Each

714465 1000315136 V43 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

714538 1000315894 V32 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

1 714766 1000318109 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714905 1000319589 Weight Stack Set WEIGHT STACK 12+1 6024 single pulley perpendicular No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3,4,5,6
714915 1000319630 V28 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
715774 1000328096 DP Set Right DOUBLE PULLEY 6024 RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		8
715775 1000328097 DP Set Left DOUBLE PULLEY 6024 LEFT No Model Compatibility List $0.00 / Each
Out Of Stock 		8
716313 1000335318 DP 13 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock
717156 1000342316 B40 Rubber Stopper;Cable Ball;Drilled 3/8" f No Model Compatibility List $23.71 / Each

4,5,6
717462 1000345333 V37 Decal;Hi-low ROM No Model Compatibility List $0.00 / Each
Out Of Stock
717464 1000345335 V38 Decal, Rom Low Rom 19 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717500 1000345600 B18 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

717650 1000346601 B34 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

717779 1000347532 Pulley 6 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

717786 1000347582 DP 2 Book Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717787 1000347583 DP 2 Book Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717788 1000347584 DP 2 Book Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718303 1000350407 Pulley 1 Weldment;Pulley Top;4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
719640 1000363368 B5 2" x 2" TUBE - 83" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719682 1000363760 V6 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
719683 1000363766 V6 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

719753 1000365174 B41 D Ring;Purchased; No Model Compatibility List $13.49 / Each

1
720691 1000374657 B9 3/4"OD x 7/16"ID PIPE - 1";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
721920 1000386596 Pulley Set WEIGHT STACK PULLEY ASSEMBLY No Model Compatibility List $217.98 / Each

723853 1000412711 DP 16 Decal;Warning Pull Pin No Model Compatibility List $0.00 / Each
Out Of Stock
724660 1000422507 AB1 WELDMENT 6024;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
724661 1000422508 AB1 WELDMENT 6024;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724662 1000422509 AB1 WELDMENT 6024;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724663 1000422522 AB2 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
724664 1000422523 AB2 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724665 1000422524 AB2 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724666 1000422525 DP Right 1 Slide Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724667 1000422537 AB3 Weldment, Crossover;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
724668 1000422538 AB3 Weldment, Crossover;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724669 1000422539 AB3 Weldment, Crossover;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
724670 1000422552 DP Right 1 Slide Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724671 1000422553 DP Right 1 Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724672 1000422567 DP Left 1 Slide Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724673 1000422568 DP Left 1 Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724674 1000422569 DP Left 1 Slide Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724675 1000422581 B7 6000 GUARD - 79 5/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
724676 1000422582 B4 1/4" PLASMA;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
724677 1000422583 B4 1/4" PLASMA;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724678 1000422584 B4 1/4" PLASMA;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
