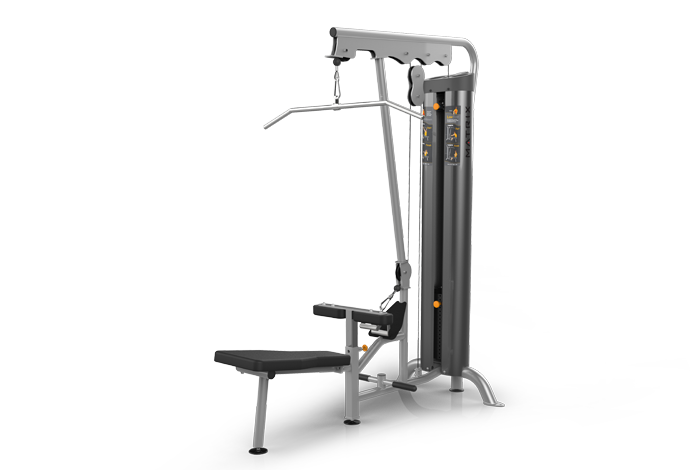

Matrix Commercial - VY-6046-02 - 2013

Repair Parts for Matrix Commercial VY-6046-02 VYGM328

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6046-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713811 1000308424 B3 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

Z 713814 1000308428 Z25 3/8" NUT No Model Compatibility List $1.43 / Each

Z 713818 1000308436 Z11 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

713827 1000308445 Z15 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

713830 1000308448 Z50 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

V 713842 1000308473 V45 Lable, hand pinch No Model Compatibility List $3.02 / Each

713943 1000309851 Z13 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

Z 713950 1000309858 Z26 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
B 713986 1000310083 B23 2" ROUND END CAP No Model Compatibility List $5.04 / Each

713997 1000310096 Z35 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

Z 714016 1000310219 Z36 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

714017 1000310270 B17 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B18 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

Z 714034 1000310314 Z28 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

714037 1000310330 B39 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

B 714040 1000310339 B33 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each
Out Of Stock
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

714079 1000311963 Z14 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

714193 1000312342 V43 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock
Z 714236 1000312711 Z54 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

714253 1000312893 B20 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

B 714334 1000313766 B24 HARD CHROME 48" LAT BAR No Model Compatibility List $339.66 / Each

714341 1000313851 B21 HANDLE DOUBLE TRIANGLE ROW No Model Compatibility List $0.00 / Each
Out Of Stock
714465 1000315136 V49 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

714468 1000315147 B31 5/8" GUIDE ROD - 70 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714478 1000315296 Z52 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $3.35 / Each

714531 1000315678 B38 CABLE 6046M No Model Compatibility List $195.29 / Each

4,5,6
714532 1000315679 B37 ASSEMBLY; CABLE - USER FRAME No Model Compatibility List $184.31 / Each

3,4,5,6
714533 1000315700 V47 6046 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714534 1000315701 V48 6046 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V44 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714915 1000319630 V43 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
715636 1000327385 AB1 WELDMENT 6046 MAIN;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715637 1000327386 AB1 WELDMENT 6046 MAIN;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715638 1000327387 AB1 WELDMENT 6046 MAIN;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715639 1000327418 V47 6046 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715640 1000327425 V48 6046 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716043 1000331358 B9 1.25 Grip;6" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
716313 1000335318 B29 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock
717377 1000344562 V44 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717443 1000345209 Z45 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B22 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

717650 1000346601 B32 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

717779 1000347532 B19 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

717825 1000347900 AB6 339-701 w/ ROM Decal No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
718282 1000350082 B51 3M safety walk; 4" x 18" No Model Compatibility List $0.00 / Each
Out Of Stock
718283 1000350084 B53 SAFETY TAPE 1" X 3" No Model Compatibility List $0.00 / Each
Out Of Stock 		9
718653 1000352586 B55 1/8" ABS Foot Plate; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
719247 1000358346 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719300 1000359440 B5 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock
719682 1000363760 V42 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
719683 1000363766 V42 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

719803 1000365773 B4 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V41 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
722080 1000387561 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722081 1000387563 B7 6000 GUARD - 71 5/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722382 1000391644 AB2 SEAT SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722383 1000391645 AB2 SEAT SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722384 1000391646 AB2 SEAT SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722385 1000391659 B8 1/4" Plasma;Iced Silver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722386 1000391660 B8 1/4" Plasma;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722387 1000391661 B8 1/4" Plasma;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722427 1000391928 B50 6021 & 6046 Top Plastic w/cable hole No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
729261 See Pad Matrix J40 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
