Replacement Parts for Matrix Commercial VY-D59-02 Freeweight

Matrix Commercial - VY-D59-02 - 2013

Repair Parts for Matrix Commercial VY-D59-02 VYFW237

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYFW237

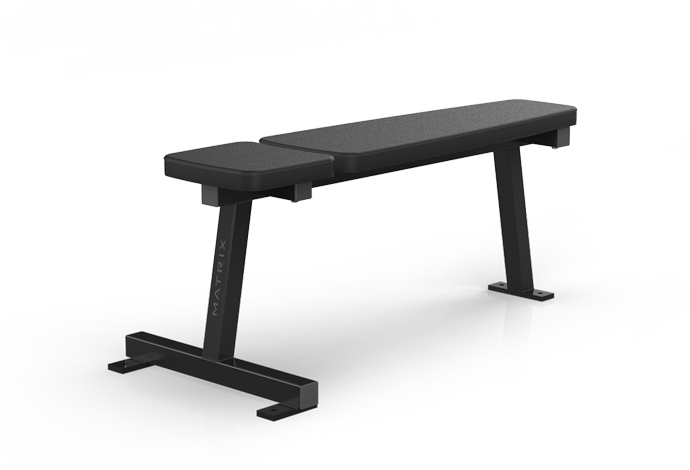

Model Name: VY-D59-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16526.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B7	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713818	1000308436	Z2	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713833	1000308451	B12	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713834	1000308452	B11	7" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713938	1000309842	B6	1 1/2" X 2" END CAP	No	Model Compatibility List	$5.04 / Each	9
714098	1000312072	Z3	HHB 5/16-16 x 2 3/4"	No	Model Compatibility List	$2.18 / Each	1
714443	1000314756	J4	Pad, Var Back Assembly	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
714444	1000314758	J5	"D" SERIES HEAD PAD	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
714589	1000316282	V9	DECAL,MATRIX LOGO 6.5 X .56(166MM)	No	Model Compatibility List	$0.00 / Each Out Of Stock
715250	1000321537	AB1	Main Frame;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
715251	1000321538	AB1	Main Frame;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
715252	1000321539	AB1	Main Frame;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720070	1000368439	V8	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720071	1000368441	V8	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721552	1000384006	V10	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
