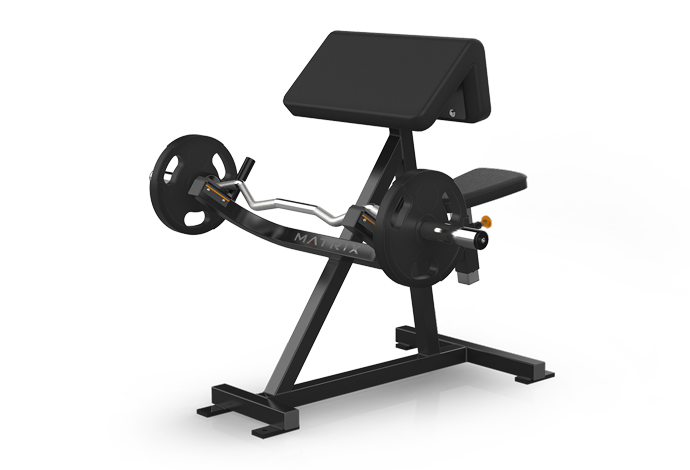

Matrix Commercial - VY-D62-02 - 2013

Repair Parts for Matrix Commercial VY-D62-02 VYFW239

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYFW239

Model Name: VY-D62-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16528.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B5	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B2	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713818	1000308436	Z3	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713830	1000308448	Z4	5/16" X 1 1/2" BOLT	No	Model Compatibility List	$1.43 / Each
713833	1000308451	B15	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
714087	1000312038	B6	1 1/4" OD x 1" ID Plastic Tube - 5 1/4"	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
714236	1000312711	Z16	1/4" x 1/2" BUTTON HEAD	No	Model Compatibility List	$1.46 / Each
714302	1000313470	V8	Decal, ROM	No	Model Compatibility List	$5.04 / Each	7,3
714440	1000314746	J12	PAD BENT	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
714538	1000315894	V10	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
715278	1000323057	J14	D-Series Seat Pad	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
717377	1000344562	V10	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
719079	1000355656	AB13	ADJUSTMENT POST - CHROMED;	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,12,13,14
720070	1000368439	V11	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720071	1000368441	V11	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721552	1000384006	V9	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721553	1000384056	B7	1 1/2" x 1 1/2" Nylon Angle - 4"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721894	1000386164	AB1	Main Frame;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721895	1000386165	AB1	Main Frame;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721896	1000386166	AB1	Main Frame;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6

View Drawing
