Matrix Commercial - VY-D690-05 - 2015

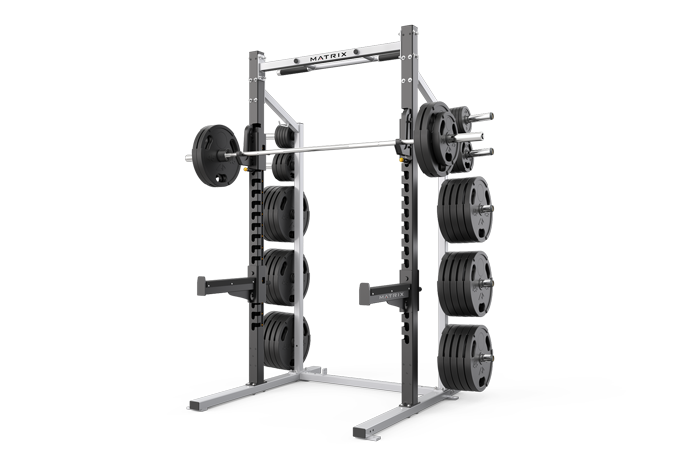

Repair Parts for Matrix Commercial VY-D690-05 VY-D690-05,Half Rack Varsity Series

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: VY-D690-05

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
2 713806 1000308417 B41 2" x 2" END CAP No Model Compatibility List $5.46 / Each

3/8 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

713820 1000308438 Z12 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 713826 1000308444 Z9 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 B3 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

713839 1000308467 B12 End cap - weight horn No Model Compatibility List $5.90 / Each

Screw Set;M6x1.0Px5L;BP;POT 713935 1000309773 Z16 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2 713937 1000309841 B42 2" X 3" END CAP No Model Compatibility List $7.28 / Each

3/4 713950 1000309858 Z52 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

FHSCS 1/4 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1/4 714033 1000310313 J-Hook Left 3 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

3/8 714101 1000312084 Spot Stand Z7 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714102 1000312086 Z11 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
714103 1000312087 Z10 SCREW;HH;.375-16 x 4.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2

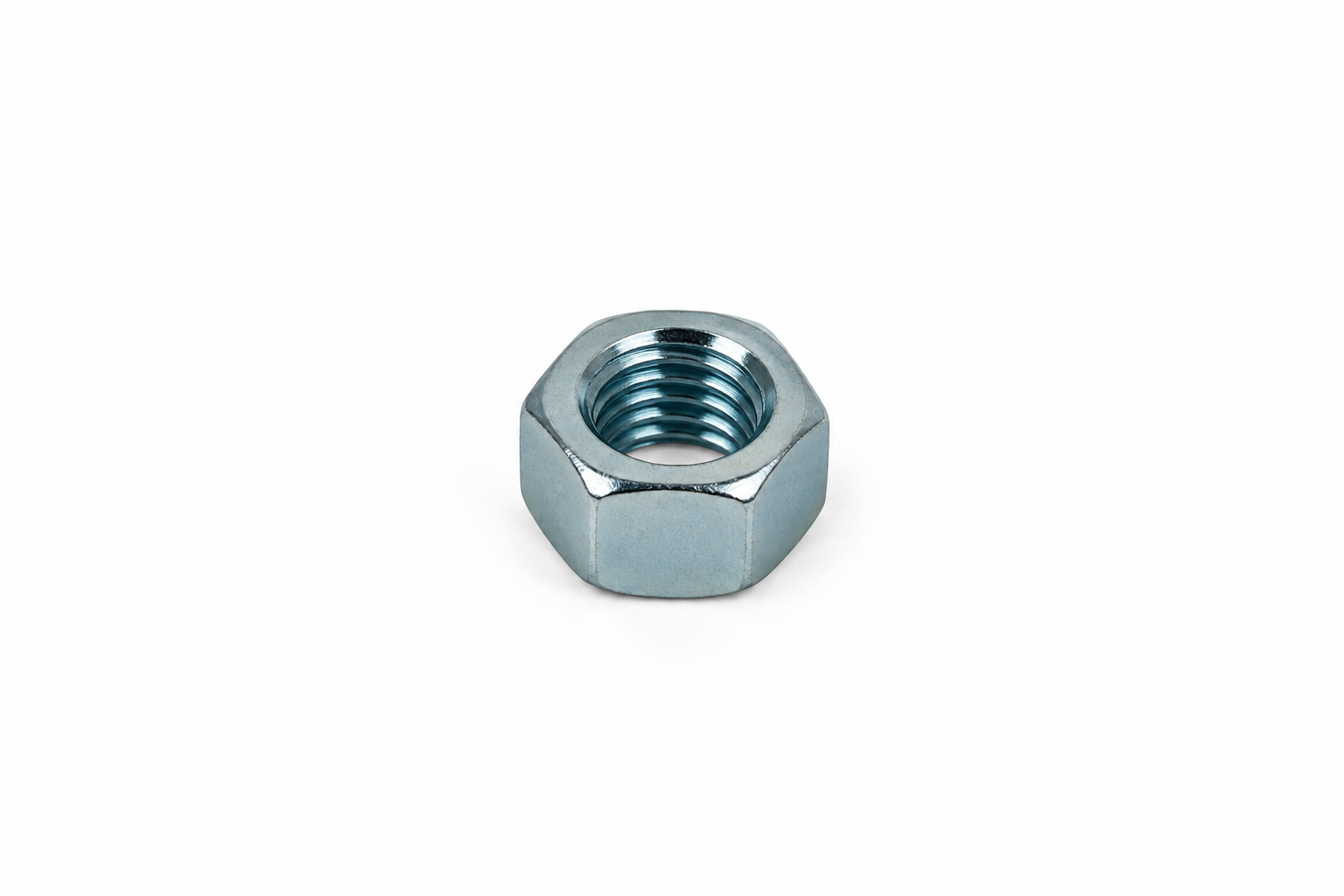

714124 1000312155 9 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
1 1/2 714152 1000312231 B24 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
1/4 714236 1000312711 Z37 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1/4 714279 1000313142 J-Hook Left 8 1/4" ABS No Model Compatibility List $16.87 / Each

714283 1000313151 J-Hook Left 7 1/4" ABS No Model Compatibility List $21.94 / Each

714284 1000313155 J-Hook Left 4 1/4"-20 UNC X 20 No Model Compatibility List $2.18 / Each

1
714285 1000313156 J-Hook Left 5 NUT;NLK;.250-20;BLACK;TALL; No Model Compatibility List $2.18 / Each

714286 1000313161 J-Hook Left 10 LABEL, J-HOOK SELECTOR No Model Compatibility List $3.25 / Each

714328 1000313705 Safety Bar Right 1 WELDMENT, RH SAFETY No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714329 1000313706 Safe Bar Left 1 WELDMENT, LH SAFETY No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714647 1000316724 B6 ROUND KNOB-SPRING PIN ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,12,13,14
714648 1000316726 J Hook R Set SUB-ASSEMBLY; RIGHT J-HOOK 3x 3 No Model Compatibility List $591.47 / Each

3
714649 1000316731 Safety Bar 5 2" Tubing Extrusion No Model Compatibility List $0.00 / Each
Out Of Stock
HAND GRIP 1.25 DIA 0-12 714766 1000318109 2 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

717323 1000344063 B40 End Cap;Plastic;3" x 3"; No Model Compatibility List $6.73 / Each

717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V47 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717444 1000345210 3 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717914 1000348617 V31 Decal, D47 lower No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717915 1000348618 V30 Decal, Varsity PR No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717931 1000348681 B14 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock
718749 1000353136 K3 - Kit 2 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
718939 1000354629 B3 5/16" HOLE PLUG; NYLON No Model Compatibility List $0.00 / Each
Out Of Stock
719680 1000363753 V15 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V15 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
719701 1000363994 V31 Decal;Warning;Sled;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719702 1000363997 V31 Decal;Warning;Sled;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719769 1000365315 Weight Horn B9 JA/JD Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719776 1000365386 W Horn R AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719777 1000365387 W Horn L AB1 Weldment, Pro Weight Storage-RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719957 1000367387 J Hook L AB1 WELDMENT, JHOOK LH 4x3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719958 1000367388 J Hook R AB1 WELDMENT, JHOOK RH 4x3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720799 1000376087 Safe Bar Left Safety Bar Set;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
720800 1000376088 Safe Bar Right Safety Bar Set;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
721090 1000380539 W Horn R Set Magnum Weight Horn Rack;Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721091 1000380540 W Horn R Set Magnum Weight Horn Rack;Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721092 1000380541 W Horn R Set Magnum Weight Horn Rack;Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721093 1000380554 W Horn L Set Magnum Weight Horn Rack;Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721094 1000380555 W Horn L Set Magnum Weight Horn Rack;Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721095 1000380556 W Horn L Set Magnum Weight Horn Rack;Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721127 1000380785 AB1 Weldment;Rear Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721128 1000380786 AB1 weldment;Rear Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721129 1000380787 AB1 Weldment;Rear Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721154 1000381074 AB4 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721155 1000381076 AB5 Weldment; Upright;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721156 1000381078 AB2 Weldment;RH Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721157 1000381079 AB2 Weldment;RH Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721158 1000381080 AB2 Weldment;RH Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721159 1000381093 AB1 Weldment;LH Base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721160 1000381094 AB1 Weldment;LH Base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721161 1000381095 AB1 Weldment;LH Base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
721831 1000385739 Not Shown Hardware Kit;Complete;D690-05; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722596 1000395247 J Hook B2 HDPE Insert;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722688 1000397694 J Hook Set L J Hook Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722714 1000397975 J Hook Set R J Hook Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
