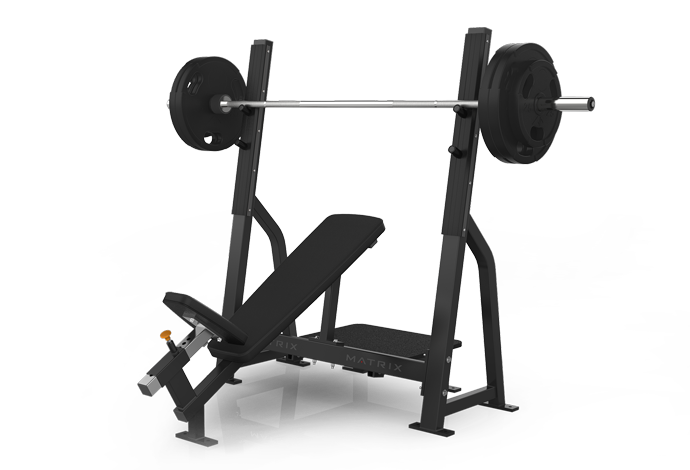

Matrix Commercial - VY-D79-02 - 2013

Repair Parts for Matrix Commercial VY-D79-02 VYFW249

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYFW249

Model Name: VY-D79-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16537.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B8	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B5	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713814	1000308428	Z16	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713818	1000308436	Z10	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713826	1000308444	Z11	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713833	1000308451	B26	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713834	1000308452	B25	7" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713937	1000309841	B7	2" X 3" END CAP	No	Model Compatibility List	$7.28 / Each
714021	1000310285	Z14	SCREW;HH;.375-16 x 2.75;ZN;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714093	1000312062	Z12	5/16" x 3/4" BOLT	No	Model Compatibility List	$1.33 / Each
714098	1000312072	Z15	HHB 5/16-16 x 2 3/4"	No	Model Compatibility List	$2.18 / Each	1
714102	1000312086	Z13	SCREW;HH;.375-16 x 4.25;ZN;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714236	1000312711	B9	1/4" x 1/2" BUTTON HEAD	No	Model Compatibility List	$1.46 / Each
714302	1000313470	V24	Decal, ROM	No	Model Compatibility List	$5.04 / Each	7,3
714435	1000314738	B20	Extrusion, UHMW 19.75	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714446	1000314769	B6	1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
714447	1000314771	J17	D-Series Seat Pad	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
714538	1000315894	V23	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
715291	1000323378	AB19	Chrome Seat Tube;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,12,13,14
715292	1000323379	AB19	Chrome Seat Tube;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,4,5,6,12,13,14
715293	1000323380	AB19	Chrome Seat Tube;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,4,5,6,12,13,14
715294	1000323388	J18	PAD BACK	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
717377	1000344562	V23	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
719680	1000363753	V22	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V22	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
721552	1000384006	V21	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721790	1000385605	AB1	Frame Tube;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721791	1000385606	AB1	Frame Tube;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721792	1000385607	AB1	Frame Tube;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721793	1000385620	AB4	Frame Side;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721794	1000385621	AB4	Frame Side;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721795	1000385622	AB4	Frame Side;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721796	1000385635	AB2	Seat Frame;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
721797	1000385636	AB2	Seat Frame;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
721798	1000385637	AB2	Seat Frame;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
721799	1000385651	AB3	Spotter Stand;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
