Matrix Commercial - VY-D826-02 - 2013

Repair Parts for Matrix Commercial VY-D826-02 VYTS21

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYTS21

Model Name: VY-D826-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

17171.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B23	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713814	1000308428	Z18	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713818	1000308436	Z12	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713826	1000308444	Z14	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713828	1000308446	Z15	WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06	No	Model Compatibility List	$1.43 / Each
713834	1000308452	B36	7" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713840	1000308469	K2	CAP, END TUBE, 25.4MM ID	No	Model Compatibility List	$11.80 / Each
713841	1000308472	V31	Lable, Olympic Bench	No	Model Compatibility List	$6.73 / Each	1
713842	1000308473	V35	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
713935	1000309773	Z1	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each
713943	1000309851	Z21	SCREW;HH;.375-16 x 2.25;ZN;	No	Model Compatibility List	$2.18 / Each
713975	1000310008	Not Shown	ROUND LEVELER BOOT	No	Model Compatibility List	$5.04 / Each	3
713996	1000310095	B10	1/2" OD x 1/4" ID Plastic Spacer - 1"	No	Model Compatibility List	$1.33 / Each
713997	1000310096	Z39	1/4" SPLIT LOCK WASHER	No	Model Compatibility List	$1.33 / Each
713998	1000310097	Z22	SCREW;HH;.250-20 x 2.00;ZN;	No	Model Compatibility List	$1.33 / Each
714014	1000310211	Z16	1/4" HEX HEAD NUT	No	Model Compatibility List	$1.33 / Each	2
714016	1000310219	Z38	SCREW;HH;.250-20 x 0.75;ZN;	No	Model Compatibility List	$1.33 / Each
714038	1000310334	Weight Stack 1	6000 TOP PLATE	No	Model Compatibility List	$78.47 / Each
714040	1000310339	B22	ROUND WEIGHT STACK BUMPER	No	Model Compatibility List	$5.90 / Each Out Of Stock
714041	1000310343	Weight Stack 2	Orange SELECTOR PIN w/ 6 1/2" CORD	No	Model Compatibility List	$25.53 / Each
714098	1000312072	Z19	HHB 5/16-16 x 2 3/4"	No	Model Compatibility List	$2.18 / Each	1
714107	1000312095	Z20	SCREW;HH;.500-13 x 3.25;ZN;	No	Model Compatibility List	$5.04 / Each
714118	1000312127	Weight Stack 4	BHS 5/16" - 1"	No	Model Compatibility List	$5.46 / Each
714127	1000312161	Z17	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714193	1000312342	V34	DECAL,WARNING: BOLT DOWN;English	No	Model Compatibility List	$0.00 / Each Out Of Stock
714235	1000312700	Z13	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
714240	1000312817	Weight Stack 3	5/16" SPLIT LOCK WASHER	No	Model Compatibility List	$1.33 / Each
714249	1000312880	Weight Stack 8	CAST IRON	No	Model Compatibility List	$104.75 / Each
714253	1000312893	B11	3/8" SAFETY CLIP	No	Model Compatibility List	$16.82 / Each
714333	1000313747	B21	5/8" CRR - 81 1/2"	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714340	1000313837	B3	CABLE D826	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6

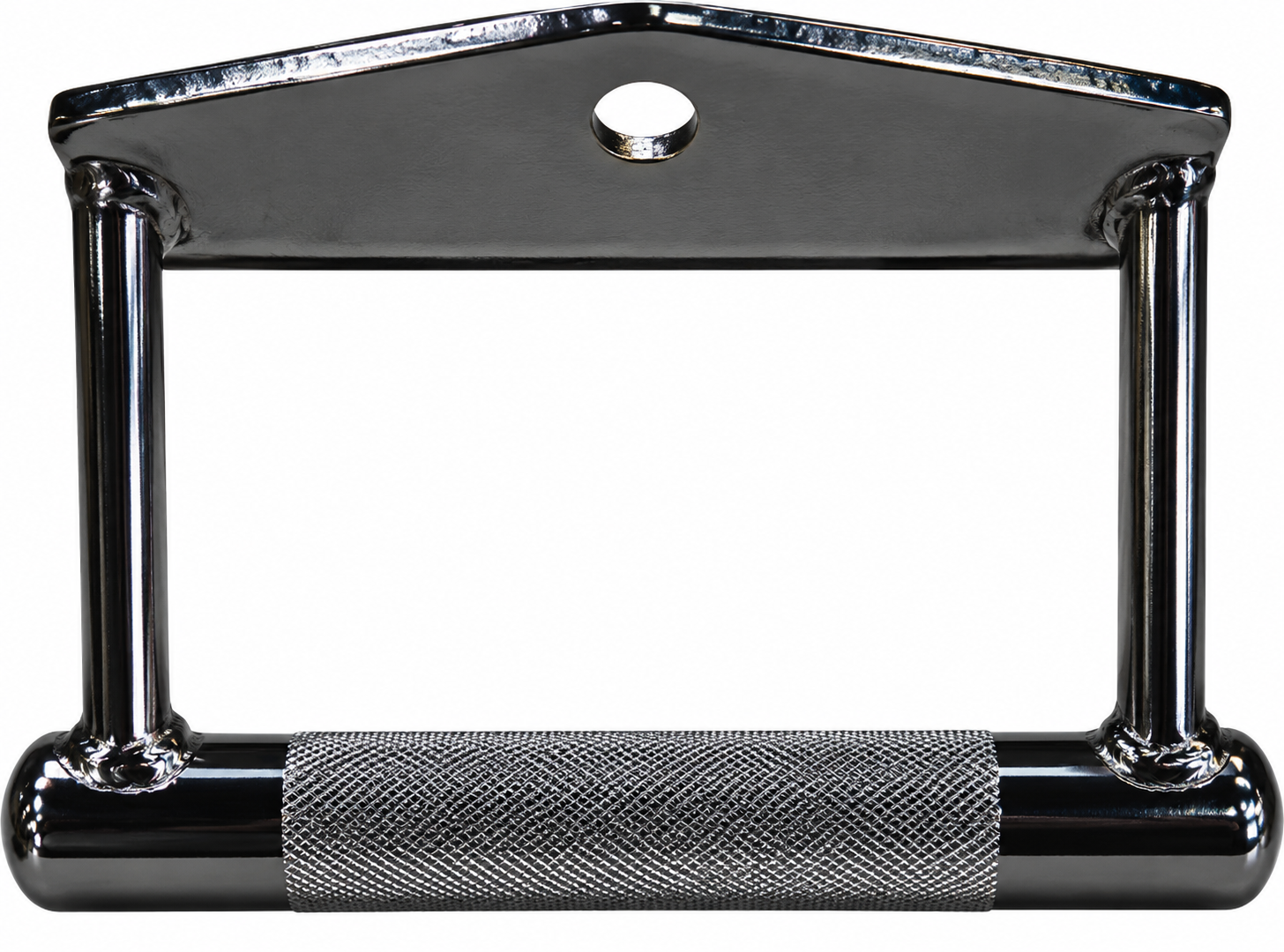

714341	1000313851	B9	HANDLE DOUBLE TRIANGLE ROW	No	Model Compatibility List	$0.00 / Each Out Of Stock
714342	1000313852	Z25	Screw;Flat;5/16-18 x 1/2"	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
714465	1000315136	V19	6000 STACK DECALS, MEDIUM	No	Model Compatibility List	$30.39 / Each
714484	1000315356	V18	6000 STACK DECALS, HEAVY	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,4,5,6
714538	1000315894	V33	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714592	1000316304	V31	DECAL OLY BENCH;French	No	Model Compatibility List	$8.42 / Each	7,3
714672	1000316932	K3	1" Grip;Order by 1" increments	No	Model Compatibility List	$0.00 / Each Out Of Stock
714764	1000318101	Kit 1	HAND GRIP 1.0" 0-12"LONG	No	Model Compatibility List	$45.60 / Each
714915	1000319630	V34	DECAL,WARNING: BOLT DOWN;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,2,3
716313	1000335318	B37	CLAMP - COVER	No	Model Compatibility List	$0.00 / Each Out Of Stock
716555	1000337411	AB1	Weldment ,Frame,D826;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
716556	1000337412	AB1	Weldment ,Frame,D826;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
716557	1000337413	AB1	Weldment ,Frame,D826;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717500	1000345600	B2	5/8# Single Split Collar	No	Model Compatibility List	$10.92 / Each
717779	1000347532	B6	4.5" Pulley for Rope / Cable	No	Model Compatibility List	$18.56 / Each
719872	1000366539	Weight Stack 7	Weldment;Center Stick;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719879	1000366572	Weight Stack Set	WEIGHT STACK 190# 20+1 CRIMP CABLE	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720237	1000369933	K1	Tube Collar;25.4MM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721552	1000384006	V32	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
724682	1000423389	B5	Diamond Plate;D826;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
729261	See Pad Matrix	J7	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729262	VY-D826-02	B4	VY-D826-02 \| Low Row \| VYTS20 \| 2013	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
