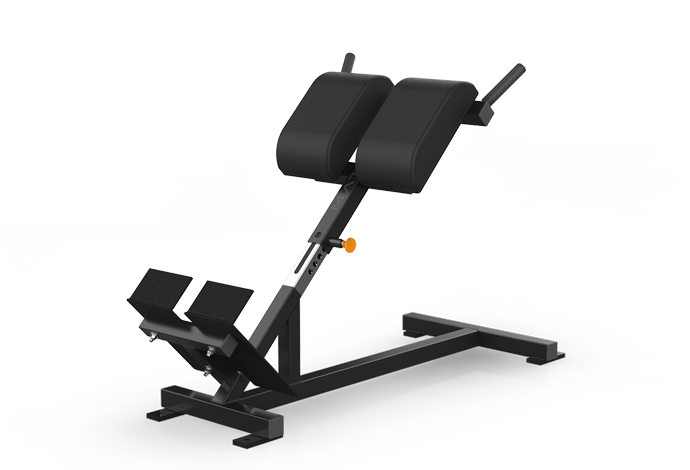

Matrix Commercial - VY-D93-02 - 2013

Repair Parts for Matrix Commercial VY-D93-02 VYFW254

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYFW254

Model Name: VY-D93-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16542.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B11	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713811	1000308424	B17	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
713814	1000308428	Z9	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713818	1000308436	Z8	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713826	1000308444	Z7	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713827	1000308445	Z10	5/16" - 3" BOLT	No	Model Compatibility List	$2.18 / Each
713833	1000308451	B07	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
714229	1000312475	J4	A93 PAD	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
714252	1000312890	B5	1" Grip;8" Long;Closed End	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,11
714302	1000313470	V16	Decal, ROM	No	Model Compatibility List	$5.04 / Each	7,3
714538	1000315894	V15	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
717377	1000344562	V15	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
717422	1000344984	B12	End Cap;1 3/4 x 1 3/4	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
717530	1000345923	AB1	Base Frame;D93;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717531	1000345924	AB1	Base Frame;D93;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717532	1000345925	AB1	Base Frame;D93;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720070	1000368439	V13	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720071	1000368441	V13	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720298	1000371230	Z6	Screw;HH;.375-16 x 3;ZN	No	Model Compatibility List	$0.00 / Each Out Of Stock
721552	1000384006	V14	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721875	1000385998	AB3	Foot Plate;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3,4,5,6
721876	1000386000	AB2	PAD SLIDE ASSEMBLY;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
721877	1000386001	AB2	PAD SLIDE ASSEMBLY;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
721878	1000386002	AB2	PAD SLIDE ASSEMBLY;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14

View Drawing
