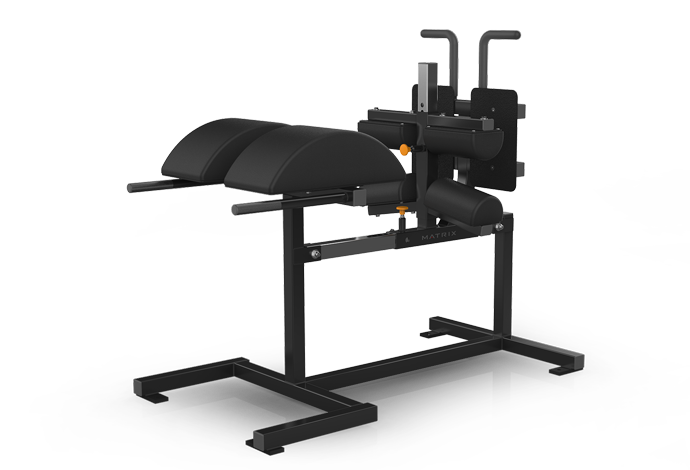

Matrix Commercial - VY-D96-02 - 2013

Repair Parts for Matrix Commercial VY-D96-02 VYFW255

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VYFW255

Model Name: VY-D96-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16543.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

721888	1000386133	AB1	Main Frame;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721889	1000386134	AB1	Main Frame;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721890	1000386135	AB1	Main Frame;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719132	1000356197	AB2	Adjustment Slide;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719133	1000356198	AB2	Adjustment Slide;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
719134	1000356199	AB2	Adjustment Slide;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
721891	1000386149	AB3	Pad weldment;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
721892	1000386150	AB3	Pad weldment;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
721893	1000386151	AB3	Pad weldment;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6,12,13,14
713811	1000308424	B4	SPRING PIN ASSEMBLY	No	Model Compatibility List	$45.60 / Each
718575	1000351807	B5	DIAMOND PLATE - 9" x 14";Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719135	1000356210	B6	Chrome Tube w/ Decal;D96	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,12,13,14
714004	1000310106	B8	STAR HANDLE	No	Model Compatibility List	$60.22 / Each	11
713938	1000309842	B19	1 1/2" X 2" END CAP	No	Model Compatibility List	$5.04 / Each	9
713806	1000308417	B20	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
714152	1000312231	B21	1 1/2" Round End Cap	No	Model Compatibility List	$2.18 / Each	9
713833	1000308451	B29	5" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
714006	1000310108	B30	16" 1" ID Grip - 13.52" Long	No	Model Compatibility List	$18.56 / Each	11
721519	1000383599	B34	1" CRR;3/4";	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
729261	See Pad Matrix	J7	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714672	1000316932	K3	1" Grip;Order by 1" increments	No	Model Compatibility List	$0.00 / Each Out Of Stock
720070	1000368439	V23	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720071	1000368441	V23	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
713842	1000308473	V24	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
721551	10003840006	V25	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
721552	1000384006	V25	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714538	1000315894	V26	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714589	1000316282	V27	DECAL,MATRIX LOGO 6.5 X .56(166MM)	No	Model Compatibility List	$0.00 / Each Out Of Stock
714302	1000313470	V28	Decal, ROM	No	Model Compatibility List	$5.04 / Each	7,3
714235	1000312700	Z10	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
713818	1000308436	Z11	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713827	1000308445	Z12	5/16" - 3" BOLT	No	Model Compatibility List	$2.18 / Each
720298	1000371230	Z13	Screw;HH;.375-16 x 3;ZN	No	Model Compatibility List	$0.00 / Each Out Of Stock
713941	1000309848	Z14	SCREW;HH;.500-13 x 3.50;ZN;	No	Model Compatibility List	$5.04 / Each	2
713814	1000308428	Z16	3/8" NUT	No	Model Compatibility List	$1.43 / Each
714127	1000312161	Z17	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
714254	1000312901	Z33	SHCS - 1/4-20 x 1 1/4"	No	Model Compatibility List	$2.24 / Each	1
