Matrix Commercial - VY-DOPT13-04 - 2016

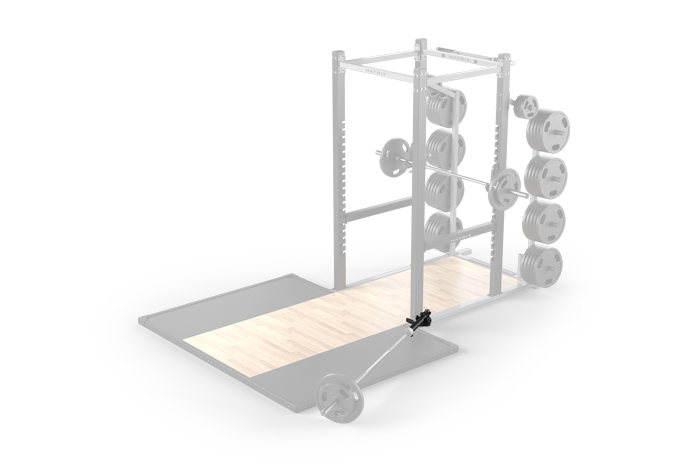

Repair Parts for Matrix Commercial VY-DOPT13-04 VY-DOPT13-04,Land Mine Attachment

Brand: Matrix Commercial

Category: Rack Options & Components

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

VY-DOPT13-04,Land Mine Attachment

Model Name: VY-DOPT13-04

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16656.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713814	1000308428	Z34	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713816	1000308434	Z17	1 1/64"ID MACHINE BUSHING	No	Model Compatibility List	$1.43 / Each	8,4,5,6
713824	1000308442	B11	SCREW;SET; .3125-18 X 1.00;SS	No	Model Compatibility List	$1.43 / Each
713842	1000308473	V45	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
713940	1000309847	Z66	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
713950	1000309858	Z52	3/4" FLAT WASHER	No	Model Compatibility List	$1.33 / Each
713988	1000310085	B4	1"ID x 1 1/4"OD" FLANGED BUSHING	No	Model Compatibility List	$10.92 / Each
714176	1000312298	Z15	1/2" BRASS BUSHING	No	Model Compatibility List	$5.04 / Each
714181	1000312308	B21	1" SPLIT COLLAR	No	Model Compatibility List	$16.87 / Each	1
721552	1000384006	V13	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
722235	1000389385	Mount Hardware	Option Hardware Kit 4	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
722720	1000398098	AB2	WELDMENT; BAR HOLDER - OPT13	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722836	1000398829	Z10	SCREW;SHLDR;.500 x 4.75L	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
722837	1000398830	B16	2" ROUND END CAP	No	Model Compatibility List	$0.00 / Each Out Of Stock
723084	1000403375	Service Assy	Knuckle Assy;OPT13-04;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
723085	1000403376	AB3	WELDMENT; PIVOT KNUCKLE, OPT13	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,3
723166	1000404452	B12	Half Round Rubber Bumper;Hard;	No	Model Compatibility List	$0.00 / Each Out Of Stock
724322	1000418038	AB1	PLASMA; 3/8" - MOUNTING PLATE;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3,4,5,6

View Drawing
