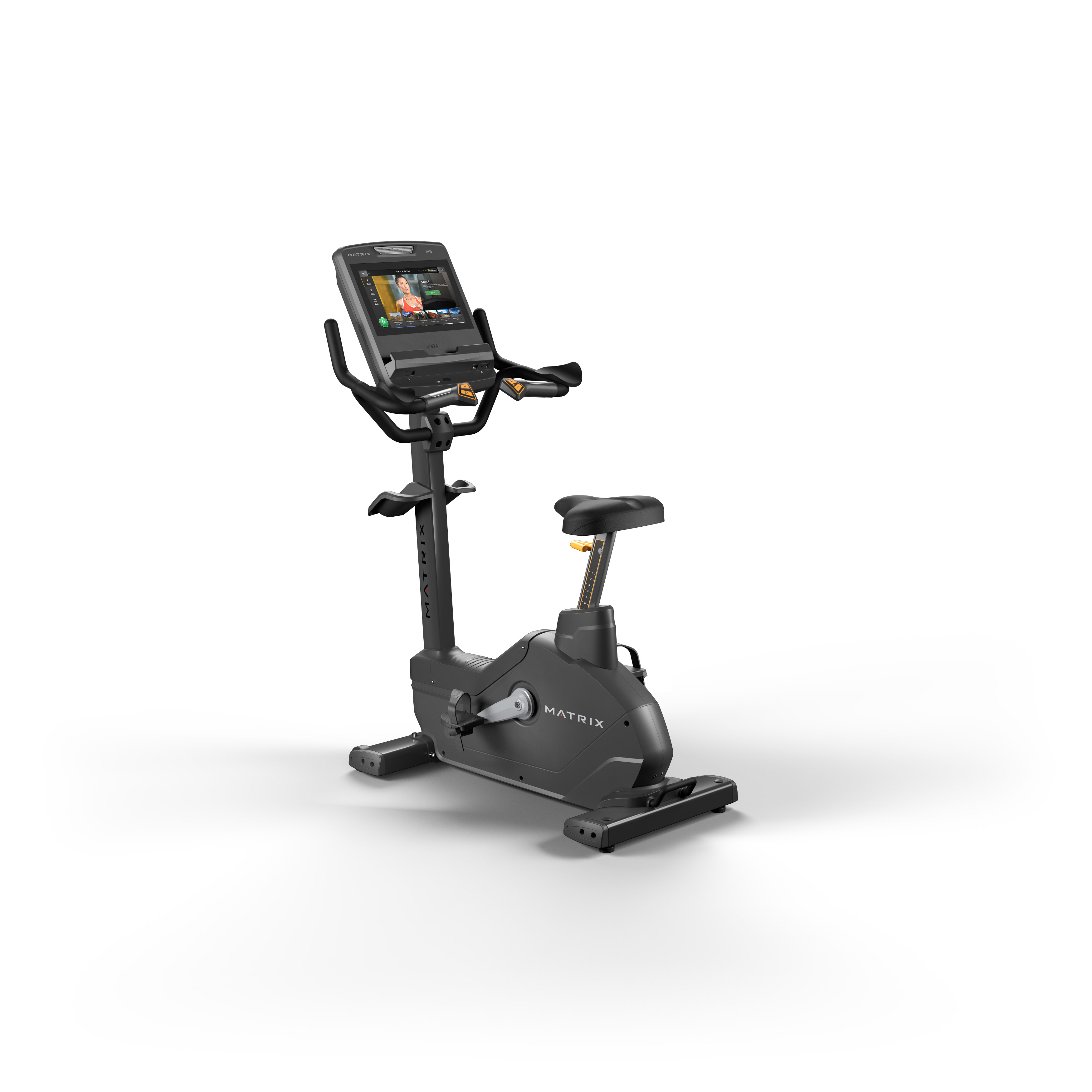

Matrix Fitness - Endurance Series Upright Cycle (U-ES-F) - CB206 - 2020 - 2020-2030

Repair Parts for Matrix Fitness Endurance Series Upright Cycle (U-ES-F) - CB206 - 2020 CB206C, CB206, CB206B

Brand: Matrix Fitness

Category: Upright

Type: Stationary Bikes

Model Name: Endurance Series Upright Cycle (U-ES-F) - CB206 - 2020

Serial Number Prefix: CB206C, CB206, CB206B

Version: 2020-2030

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Screw Round Hex Socket M8-1.25-20MM (Used) 1020692 1000211360 0 1 Screw Round Hex Socket M8-1.25-20MM (Used) No Model Compatibility List $3.25 / Each

Foot Pedal Set w/Strap 9/16” 1004804 0000090518 0 1 Foot Pedal Set w/Strap 9/16” Yes Model Compatibility List $56.99 / Each

SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 020069-00 020069-00 0 1 SCREW, SH, M8X1.25PX12L, HS, BP, G12.9 Yes Model Compatibility List $6.99 / Each

Cap;C-SAFE;NYION 6/6;BL;T1x; 730127 0000089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

Screw;TRUSS Head;M5X0.8PX13L-9L;;Phillip 730149 1000400424 Q47 Screw;TRUSS Head;M5X0.8PX13L-9L;;Phillip No Model Compatibility List $1.28 / Each

Key;Quick;L;2KEY;CB96; 730299 1000434722 N25 Key;Quick;L;2KEY;CB96; No Model Compatibility List $11.68 / Each

Key;Quick;R;2KEY;CB96; 730300 1000434749 N26 Key;Quick;R;2KEY;CB96; No Model Compatibility List $11.68 / Each

Quick Key Base;;left down;ABS PA746;BL/B 730301 1000433358 N49 Quick Key Base;;left down;ABS PA746;BL/B No Model Compatibility List $2.58 / Each

Quick Key Base;;right down;ABS PA746;BL/ 730302 1000433359 N50 Quick Key Base;;right down;ABS PA746;BL/ No Model Compatibility List $2.58 / Each

Quick Key Set;;left;;CS33; 730453 1000433338 AG25 Quick Key Set;;left;;CS33; No Model Compatibility List $15.58 / Each

Quick Key Set;;right;;CS33; 730454 1000443648 AG26 Quick Key Set;;right;;CS33; No Model Compatibility List $15.58 / Each

Seat Pad;Black;LS-A26;Triple;CB66 730464 0000082214 D08 Seat Pad;Black;LS-A26;Triple;CB66 No Model Compatibility List $59.90 / Each

Grip Pulse Wire;;;;;UL2464 22AWG;1150;TK 730477 1000439522 P22 Grip Pulse Wire;;;;;UL2464 22AWG;1150;TK No Model Compatibility List $11.68 / Each

Quickly Key Wire;;;;;UL2464 26AWG;1150;T 730478 1000434371 P23 Quickly Key Wire;;;;;UL2464 26AWG;1150;T No Model Compatibility List $12.98 / Each

Screw;Button Head;M5x10L;GND;Cutting;Phi 730479 1000417018 P25 Screw;Button Head;M5x10L;GND;Cutting;Phi No Model Compatibility List $1.02 / Each

Adapter;;100-240V/50-60Hz;12.6V/7.6A; 730481 1000438725 P30 Adapter;;100-240V/50-60Hz;12.6V/7.6A; No Model Compatibility List $111.78 / Each

Extensionernal Power Wire;US/CA;;;;;;600 730482 1000414854 P31 Extensionernal Power Wire;US/CA;;;;;;600 No Model Compatibility List $6.48 / Each

SCREW HEX M8X1.25X55 730506 004488-AB Z08 SCREW HEX M8X1.25X55 No Model Compatibility List $0.00 / Each
Out Of Stock
Bushing;SS41;NKL;IDLER; 730508 1000217582 U02 Bushing;SS41;NKL;IDLER; No Model Compatibility List $0.00 / Each
Out Of Stock
Seat Pad;Black;LS-A26;Triple;CB66 730509 0000090274 D08 Seat Pad;Black;LS-A26;Triple;CB66 No Model Compatibility List $0.00 / Each
Out Of Stock
Handlebar Set;Assembly;;Black Matte;CB20 730576 1000446759 1 Handlebar Set;Assembly;;Black Matte;CB20 No Model Compatibility List $220.98 / Each

Hand Pulse Set;Quickly Key;left;;CS33; 730577 1000437064 57 Hand Pulse Set;Quickly Key;left;;CS33; No Model Compatibility List $71.48 / Each

Hand Pulse Set;Quickly Key;right;;CS33;; 730578 1000437065 58 Hand Pulse Set;Quickly Key;right;;CS33;; No Model Compatibility List $71.48 / Each

Console mast set;;;Black Matte;;;CB206; 730579 1000434457 AC01 Console mast set;;;Black Matte;;;CB206; No Model Compatibility List $54.58 / Each

Seat Tube Set;;;;;;CB206; 730580 1000434468 AD02 Seat Tube Set;;;;;;CB206; No Model Compatibility List $159.88 / Each

Pulse Sensor Set;Grip;left;;CS33;; 730581 1000433339 AG21 Pulse Sensor Set;Grip;left;;CS33;; No Model Compatibility List $27.28 / Each

Pulse Sensor Set;Grip;right;;CS33;; 730582 1000438707 AG22 Pulse Sensor Set;Grip;right;;CS33;; No Model Compatibility List $27.28 / Each

Stabilizer set;;front;;BLACK MATTE;;RB16 730583 1000395732 AJ3 Stabilizer set;;front;;BLACK MATTE;;RB16 No Model Compatibility List $51.98 / Each

Stabilizer set;;back;;BALCK MATTE;;RB162 730584 1000395733 AJ4 Stabilizer set;;back;;BALCK MATTE;;RB162 No Model Compatibility List $51.98 / Each

Adjustable Plate;Seat Pad;;POM+20%FRP;Bl 730585 1000340851 B37 Adjustable Plate;Seat Pad;;POM+20%FRP;Bl No Model Compatibility List $10.96 / Each

Rubber;1.0t;CB66; 730586 0000080058 B39 Rubber;1.0t;CB66; No Model Compatibility List $6.48 / Each

Screw;Wagon;M8x1.25Px20L;BLACK 730587 0000082661 B41 Screw;Wagon;M8x1.25Px20L;BLACK No Model Compatibility List $0.54 / Each

Screw;BH;M4x8L;-;PS;-;BED;-;G12.9; 730588 078382 D29 Screw;BH;M4x8L;-;PS;-;BED;-;G12.9; No Model Compatibility List $1.48 / Each

Cap;;;PP-MT1600;;;TM446-2KM; 730589 1000227463 K14 Cap;;;PP-MT1600;;;TM446-2KM; No Model Compatibility List $1.68 / Each

Hardware Set;;;;CB206; 730590 1000434493 Not Shown Hardware Set;;;;CB206; No Model Compatibility List $12.98 / Each

crank set;;;For KITS;RB315;; 730591 1000417073 Not Shown crank set;;;For KITS;RB315;; No Model Compatibility List $1471.58 / Each

Fixing Plate;E-PORT;;SPHC;78.6x40x70x1.6 730592 1000434564 P01 Fixing Plate;E-PORT;;SPHC;78.6x40x70x1.6 No Model Compatibility List $2.58 / Each

DC Power Wire;;;;;;103B00G+H6630R1-06+H6 730593 1000438728 P04 DC Power Wire;;;;;;103B00G+H6630R1-06+H6 No Model Compatibility List $18.18 / Each

Network Signal Wire;;;;;;1450;(3203A4242 730594 1000436613 P05 Network Signal Wire;;;;;;1450;(3203A4242 No Model Compatibility List $28.58 / Each

Boot;Base Tube;;TPE;Q520-7-3;;CB206; 730595 1000434491 Q05 Boot;Base Tube;;TPE;Q520-7-3;;CB206; No Model Compatibility List $7.78 / Each

Console back-lay;;;ABS/PA757;80435;;CB20 730596 1000434513 Q06 Console back-lay;;;ABS/PA757;80435;;CB20 No Model Compatibility List $11.68 / Each

Rear Cover 2 Hole Fixing Plate;CST;RB85; 730597 0000080059 Q11 Rear Cover 2 Hole Fixing Plate;CST;RB85; No Model Compatibility List $1.28 / Each

Screw;Button Head;M6X1.0PX12L;-;Phillip; 730598 0000082604 Z13 Screw;Button Head;M6X1.0PX12L;-;Phillip; No Model Compatibility List $6.48 / Each

Frame set;Assembly;;??(Black Matte);CB20 730599 1000441585 AB03 Frame set;Assembly;;??(Black Matte);CB20 No Model Compatibility List $0.00 / Each
Out Of Stock
Manual;Assembly/Manipulate;;;;CB206 730600 1000440319 Not Shown Manual;Assembly/Manipulate;;;;CB206 No Model Compatibility List $0.00 / Each
Out Of Stock
Pedal;w/o Belt;R;JD-1A-B 90D;Black1;;RB8 730601 0000090568 T08 Pedal;w/o Belt;R;JD-1A-B 90D;Black1;;RB8 No Model Compatibility List $0.00 / Each
Out Of Stock
Handlebar Set-Exreawork;grip;;Dipping pl 730602 1000434597 AG2 Handlebar Set-Exreawork;grip;;Dipping pl No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Grip;;left;NYLON PA6;BL/Black C;; 730603 1000437066 G19 Sensor Grip;;left;NYLON PA6;BL/Black C;; No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Grip;;right;NYLON PA6;BL/Black C; 730604 1000437067 G20 Sensor Grip;;right;NYLON PA6;BL/Black C; No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Fix Plate;Pulse;left up;PC 510+TP 730605 1000437068 N23 Sensor Fix Plate;Pulse;left up;PC 510+TP No Model Compatibility List $0.00 / Each
Out Of Stock
Sensor Fix Plate;Pulse;left down;PC 510+ 730606 1000433349 N43 Sensor Fix Plate;Pulse;left down;PC 510+ No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;Hex Socket;BH;M8x1.25Px50L(Tooth20) 730607 004787-00 B32 Screw;Hex Socket;BH;M8x1.25Px50L(Tooth20) No Model Compatibility List $0.00 / Each
Out Of Stock
Handlebar Set;Assembly;;202020;CB206C;;S 733345 1000448157 1 Handlebar Set;Assembly;;202020;CB206C;;S No Model Compatibility List $222.28 / Each

console mast set;Assembly;;nut;CB206C;; 733346 1000448139 AC01 console mast set;Assembly;;nut;CB206C;; No Model Compatibility List $54.58 / Each

Stabilizer Tube Set;Assembly;front;20202 733347 1000448155 AJ3 Stabilizer Tube Set;Assembly;front;20202 No Model Compatibility List $61.08 / Each

Stabilizer Tube Set;Assembly;back;202020 733348 1000448156 AJ4 Stabilizer Tube Set;Assembly;back;202020 No Model Compatibility List $61.08 / Each

Frame set;Assembly;;202020;CB206C;;nut 733349 1000448136 AB03 Frame set;Assembly;;202020;CB206C;;nut No Model Compatibility List $0.00 / Each
Out Of Stock
grip-Extrawork;grip;;Dipping plastic;;CB 733350 1000448148 AG2 grip-Extrawork;grip;;Dipping plastic;;CB No Model Compatibility List $0.00 / Each
Out Of Stock
Handlebar Set;Assembly;;;CB206B;; 733351 1000446771 1 Handlebar Set;Assembly;;;CB206B;; No Model Compatibility List $220.98 / Each

console mast set;Assembly;;;CB206;; 733352 1000446652 AC01 console mast set;Assembly;;;CB206;; No Model Compatibility List $54.58 / Each

Frame set;Assembly;;??;CB206B;; 733353 1000444207 AB03 Frame set;Assembly;;??;CB206B;; No Model Compatibility List $0.00 / Each
Out Of Stock
grip-Extrawork;grip;;Dipping plastic;;CB 733354 1000444214 AG2 grip-Extrawork;grip;;Dipping plastic;;CB No Model Compatibility List $0.00 / Each
Out Of Stock
Nylon Lock Nut M8x1.25P (New) 976932 004926-00 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each
