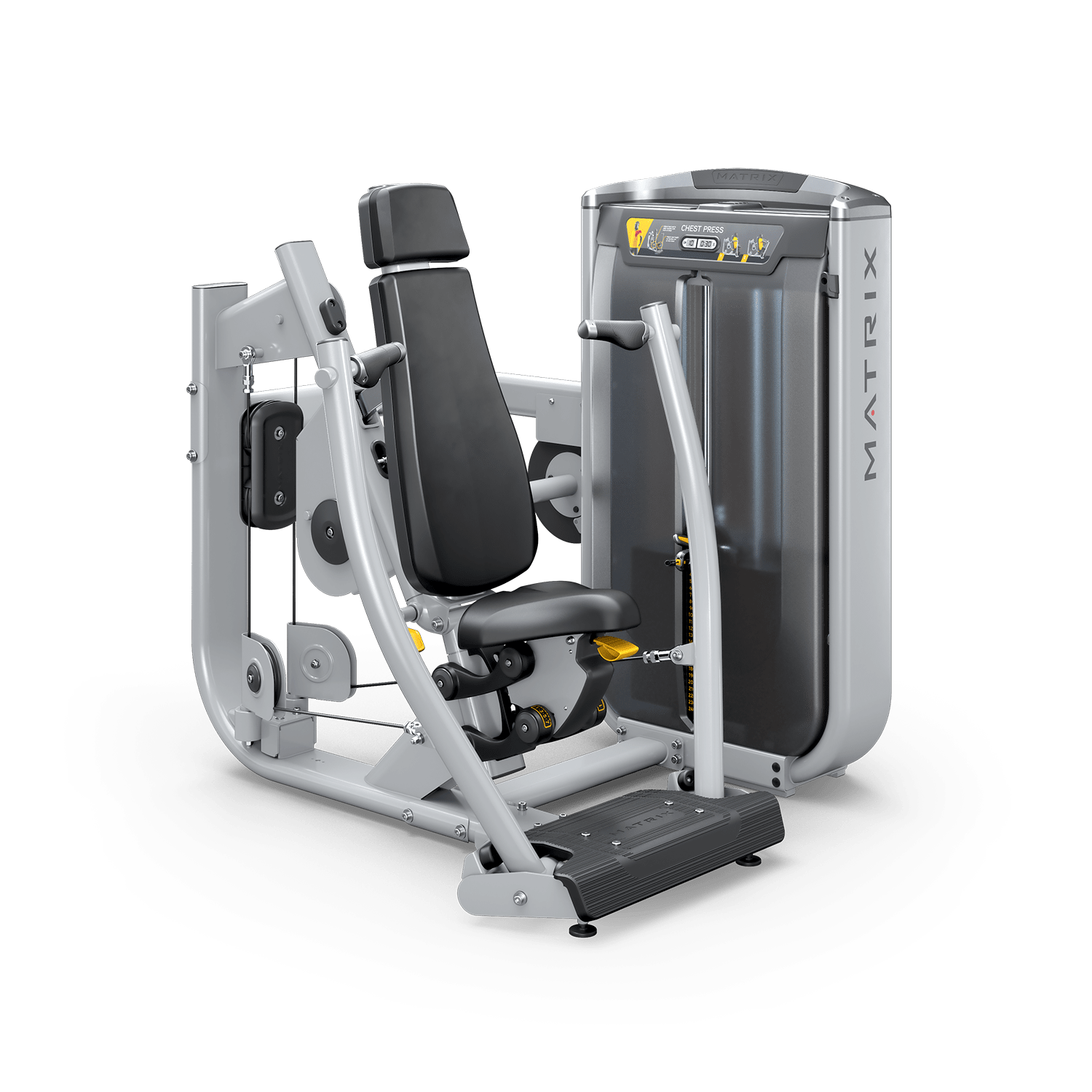

Matrix Fitness - G7-S13-02 - Converging Chest Press - G7GM118 - 2018 - 2018

Repair Parts for Matrix Fitness G7-S13-02 - Converging Chest Press - G7GM118 - 2018 G7GM118, AS1861

Brand: Matrix Fitness

Category: Single Station

Type: Strength Systems

Model Name: G7-S13-02 - Converging Chest Press - G7GM118 - 2018

Serial Number Prefix: G7GM118, AS1861

Version: 2018

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700152 000522-D L12 Leveler Yes Model Compatibility List $11.60 / Each

700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

701412 004462-Z Z21 Screw;Hex Socket;Round;M6x1.0Px15L; No Model Compatibility List $1.33 / Each

Screw;Round;Hex Socket;M10x1.5Px80L 701470 004519-AE Z14 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

701618 004636-AD J45 Screw;BH;4X15L;SM;PH;;CHM;;POT No Model Compatibility List $0.81 / Each

Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

701691 004719-AB B26 Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 No Model Compatibility List $0.39 / Each

701767 004789-AC Z04 Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 No Model Compatibility List $3.69 / Each

701772 004793-00 F02 Screw;Button Head;M10X1.5PX15L;;Hex Sock No Model Compatibility List $3.02 / Each

Set Screw;M6X1.0PX4L 701836 004855-AC Z06 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Screw;Plain Tapping;Rail Lock;5x15L 701851 004870-00 Z19 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

Nut;Nylon;M8x1.25P;Chromed 701901 004929-00 F12 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

Nut;Nylon;M6X1.0P;Chromed 701911 004938-00 K009 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

Washer;Spring;SW10 10.2X18.4X2.5T;Chromed 701981 005017-00 B41 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro 702006 005043-7 Z28 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.66 / Each

Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

Washer;Flat;8.4x17.0x1.0T;Black Zinc 702086 005118-00 Z25 Washer;Flat;8.4x17.0x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

702106 005135-A G26 WASHER;FLT;Diam.8.5XDiam.35.0X2.0T;;; No Model Compatibility List $0.00 / Each
Out Of Stock
2
Washer;Flat;8.2x19.0x2.0T;Chromed 702119 005145-AC Z22 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

702167 005207-A C53 Washer;Flat;Diam.20.2xDiam.30.0x2.0T;Tef No Model Compatibility List $0.00 / Each
Out Of Stock
702178 005220-00 Z20 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

C-Clip;External;S-20 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

Clamp;E-Shaped Ring;E-15 702250 005377-00 E33 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

Cable Tie;Nylon;Black;160L 702299 005811-00 N58 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

702325 006078-00 V18 Decal;Grounding;TM08 No Model Compatibility List $1.90 / Each

Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

Rubber Bumper;Weight Stack 703901 019151-AA K17 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

703996 020081-00 Z17 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

704079 020196-A C24 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

Screw;BH;M5X0.8PX10L;;HS;;CHM;; 704110 020256-AD Z14 Screw;BH;M5X0.8PX10L;;HS;;CHM;; No Model Compatibility List $0.70 / Each

Washer;Flat;M10.2X25PX2.0T;Chromed 704193 020465-AB Z03 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Washer;Flat;10.2X20.0X2.0T;Chromed 704204 020478-AC Z03 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P- 705105 035882-AB C21 Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P- No Model Compatibility List $9.10 / Each

705313 040816-A P19 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

705696 055200-AB Z19 Screw;Hex;M10X1.5PX25L;;HE;;CHM;; No Model Compatibility List $9.10 / Each

Nut;NLK;M4X0.7P;;BZN;; 706885 066570-00 N10 Nut;NLK;M4X0.7P;;BZN;; No Model Compatibility List $1.79 / Each

707428 1000092642 J20 Spring;RCL;;4130CrMo;Spray teflon;GM40 No Model Compatibility List $106.00 / Each

707434 1000092654 AL4 ADJ Base Three;Incremental Weight Plate; No Model Compatibility List $75.37 / Each

707435 1000092656 L43 Nut;HX;M10X1.5PX10L;SS41;CHM;; No Model Compatibility List $0.86 / Each

Plastic Cover;Back Pad;GM40 707439 1000092669 J28 Plastic Cover;Back Pad;GM40 No Model Compatibility List $65.42 / Each

707440 1000092670 J29 Plastic Cover;Head pad;GM40 No Model Compatibility List $19.79 / Each

Rubber Pad;Fixing;GM40 707824 1000096017 Not Shown Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

707826 1000096021 L21 Screw;SET;M10X1.5P No Model Compatibility List $0.81 / Each

707828 1000096023 L32 Half-moon Key;20#;GM40 No Model Compatibility List $0.88 / Each

707829 1000096024 Q08 Fixing Base;PC;GM40 No Model Compatibility List $3.35 / Each

707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

707833 1000096167 L15 Axle Sleeve Two;Weight Plate;Rubber;GM40 No Model Compatibility List $9.62 / Each

8,3
707861 1000096514 B34 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $50.67 / Each

Speed Sensor Wire;1200mm(2.5-5P);GM40 707864 1000096531 B33 Speed Sensor Wire;1200mm(2.5-5P);GM40 No Model Compatibility List $21.84 / Each

707982 1000097385 J33 Stopper Sleeve;CON Rod Axle;ABS;GM40 No Model Compatibility List $2.57 / Each

708027 1000097850 J40 SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 No Model Compatibility List $3.35 / Each

708032 1000098050 D22 Pulley Cover;Small;Base;ABS;GM40 No Model Compatibility List $8.79 / Each

708062 1000098704 C50 Stopper Pad;Black;GM43 No Model Compatibility List $8.24 / Each

708355 1000102211 E09 Nut;Hex;Left Knob;M10x1..5P;Cr No Model Compatibility List $0.81 / Each

2
708385 1000102555 C59 Screw;PH;M10x1.5Px40L-15L;MT;G12.9;BLK A No Model Compatibility List $0.10 / Each

2
Stopper Block;Pull Pin;GM43 708402 1000102675 H15 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

708408 1000102696 L13 Dial;GM41 No Model Compatibility List $3.95 / Each

Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

Screw;Hex Socket;Round;M10x1.5Px60L;Cr P 708448 1000102864 Z09 Screw;Hex Socket;Round;M10x1.5Px60L;Cr P No Model Compatibility List $8.14 / Each

Screw;Hex Socket;Round;M10x1.5Px70L;Cr P 708449 1000102865 Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr P No Model Compatibility List $8.42 / Each

2
Circlip;External C Type;S-12;BED 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

Screw;Cross;BH;Tapped;4x10L;A Class;ke 708563 1000103438 C15 Screw;Cross;BH;Tapped;4x10L;A Class;ke No Model Compatibility List $0.57 / Each

708565 1000103444 J43 Cover;Seat;GM40-KM No Model Compatibility List $4.65 / Each

Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; 708649 1000104672 Z03 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP 708662 1000104691 H26 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

Nut;Nylon;M10x1.5P;G12.9;CHM 708730 1000105174 Z09 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

708983 1000107893 J15 Screw;FH;M6x1.0Px12L;HS;CHM;G8.8 No Model Compatibility List $3.87 / Each

2
709061 1000108793 F22 Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 No Model Compatibility List $0.21 / Each

709064 1000108796 B18 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 709067 1000108799 H14 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $3.56 / Each

Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 709069 1000108801 Z08 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

709070 1000108803 L33 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.34 / Each

709071 1000108804 L36 Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.70 / Each

Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 709072 1000108805 B06 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

709076 1000108910 L46 Washer;Flat;12.5x23x1.0t;CHM No Model Compatibility List $1.33 / Each

Decal;Pinch Point ;MS21KM-G3 709081 1000109127 V02 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

709113 1000109833 C44 Screw;RND;M10x25L;-;HS;-;CHM;BP;G12.9; No Model Compatibility List $0.00 / Each
Out Of Stock
709189 1000110802 D36 Grip;Pedal Arm ;wrap rubber;GM40-KM No Model Compatibility List $15.52 / Each

709517 1000200981 K07 Guide Rod;Weight plate No Model Compatibility List $124.83 / Each

709696 1000202036 J16 SCREW;RND;-;-;-;SEAT ADJ;-; No Model Compatibility List $6.73 / Each

709718 1000202352 K13 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

709875 1000204186 18 Top Weight Plate Set No Model Compatibility List $379.65 / Each

710475 1000210485 L50 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

710580 1000211102 AJ2 Seat Grip Set No Model Compatibility List $71.92 / Each

Fixing Plate;Cable Head-;45#;BED;GM40; 710685 1000212388 F08 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $21.53 / Each

711205 1000217603 B63 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $3.35 / Each

711206 1000217605 L40 PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; No Model Compatibility List $20.41 / Each

712322 1000228417 F29 Screw;FH;M5x30L;-;PH;-;WZN;BP;-; No Model Compatibility List $2.18 / Each

SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; 712934 1000231572 B40 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

Plastic Cover;Nut;;;;;; 713740 1000307173 C33 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

713764 1000307771 C58 Pin;Spring;Diam.X3.0X14L;;BED; No Model Compatibility List $1.33 / Each

714882 1000319417 L30 Fixing Rack;Counte;;painting;;Iced Slive No Model Compatibility List $13.49 / Each

714884 1000319422 Not Shown Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $16.87 / Each

716192 1000334510 B17 Fixing Plate;;down;NBR;;;GM40; No Model Compatibility List $16.87 / Each

716193 1000334511 C15 Rubber Foot Pad;Base;;NBR;;;GM40; No Model Compatibility List $10.11 / Each

717402 1000344796 B65 Insulator;PET;12Wx40Lx0.2T;GM Battery ca No Model Compatibility List $0.00 / Each
Out Of Stock
Stopper Ring;Guide Rod;;;Chrome;GM41;; 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

717511 1000345659 J12 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

717691 1000346841 Z22 Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; No Model Compatibility List $3.02 / Each

Screw;Socket Head;M4x0.7Px8L;;Hex Socket 719240 1000358289 Z02 Screw;Socket Head;M4x0.7Px8L;;Hex Socket No Model Compatibility List $1.66 / Each

719513 1000362248 G18 Stopper Block;;;SBR;BL/Black C;;PL08B-KM No Model Compatibility List $6.73 / Each

4,5,6
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock
719683 1000363766 V02 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. 720322 1000371560 C18 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $6.73 / Each

720325 1000371600 C56 Key;Flat;6x6x7.5;S45C;Zinc;GM107 No Model Compatibility List $2.18 / Each

9
720723 1000375328 C33 Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 No Model Compatibility List $10.11 / Each

722653 1000397041 C52 Chain;Transmission;;;CHM;;PITCH 12.7 No Model Compatibility List $10.11 / Each

722682 1000397599 Q01 Stopper Plate;Steel Rope;;PA66+GF30%;;13 No Model Compatibility List $32.08 / Each

722683 1000397609 F11 Pulley;;;NYLON 66+G30%(Anti-fire);Black; No Model Compatibility List $55.74 / Each

722701 1000397869 Q99 Cover;;up;ABS/PA757;Deep Grey;740.0x173. No Model Compatibility List $47.29 / Each

722702 1000397883 Q93 Cover;;back;ABS/PA757;Limpid;1104.8x648. No Model Compatibility List $184.18 / Each

722703 1000397892 Q94 Decorte Cover;;up;ABS/PA757;Deep Grey;33 No Model Compatibility List $15.18 / Each

722704 1000397899 Q95 Cover;Frame;Bright Silver;Up;Painting;AD No Model Compatibility List $224.74 / Each

722705 1000397910 Q98 Kettle Plate;;left;ABS;;252.6x121.0x16.0 No Model Compatibility List $16.87 / Each

722706 1000397914 Q97 Kettle Plate;;right;ABS;;252.6x121.0x16. No Model Compatibility List $16.87 / Each

722707 1000397915 Q96 Kettle Plate;;mid;TPU;426C/80393;113.0x7 No Model Compatibility List $6.73 / Each

722709 1000397921 Z06 Screw;Socket Head;M10X1.5PX180L-35L;;Hex No Model Compatibility List $6.73 / Each

722732 1000398249 L18 Handle Set;Assembly;;Incremental weight No Model Compatibility List $47.29 / Each

Adjustment Pin Assembly;Assembly;;weight 722734 1000398254 L59 Adjustment Pin Assembly;Assembly;;weight No Model Compatibility List $123.34 / Each

722735 1000398255 F18 Cam;;left;VHMWPE;Deep Grey;;GM114; No Model Compatibility List $0.00 / Each
Out Of Stock
722839 1000398860 J18 CON Rod;Seat Adjustment;ADC12;;Black Mat No Model Compatibility List $48.98 / Each

722845 1000398921 C19 Pulley Cover;Base;Big;ABS/PA757;Deep Gre No Model Compatibility List $0.00 / Each
Out Of Stock
722970 1000401872 Q26 Hanging Hook;Main Tube;;TPU;Black 6C;;GM No Model Compatibility List $27.01 / Each

722982 1000402051 F31 Stopper Plate;Cam Stopper;;PA66;;;GM124; No Model Compatibility List $3.02 / Each

723049 1000402785 D34 Fixing Ring;Grip;;;Chrome;ADC12; No Model Compatibility List $20.25 / Each

723050 1000402787 D35 Cap;Grip;Diam.41.8x28.8L;;Chrome;ADC12; No Model Compatibility List $20.25 / Each

723068 1000403218 C26 Space Plate;Base;;POM;;45x58x6.0T;GM118- No Model Compatibility List $3.02 / Each

3,4,5,6
723069 1000403240 H02 Axle, Swivel;Adjustable Grip;;20#;Anti-r No Model Compatibility List $6.73 / Each

8,11
723070 1000403242 H03 Limit Axle;Adjustment;;20#;White Zinc;GM No Model Compatibility List $6.73 / Each

8
723071 1000403244 H05 Plastic Sleeve;Adjust Plate;;PA6;;Diam.2 No Model Compatibility List $5.04 / Each

9,3
723072 1000403271 J11 Location Board;Back Pad Adjustable;;SUS3 No Model Compatibility List $33.77 / Each

4,5,6,12,13,14
723073 1000403274 H06 Air Stick;;12KG;Diam.18X388L;;;GM118; No Model Compatibility List $23.63 / Each

1
723074 1000403297 F12 Cam;Steel Rope;Little;VHMWPE;Deep Grey;; No Model Compatibility List $0.00 / Each
Out Of Stock
1
723075 1000403312 Not Shown hardware set;Assembly;;;GM118-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
3
723076 1000403317 C25 Axle, central;back pad;;45#;Anti-rust oi No Model Compatibility List $23.63 / Each

8,4,5,6,12,13,14
723077 1000403319 D06 SLEEVE;Pedal Arm;;20#;White Zinc;GM118;D No Model Compatibility List $10.11 / Each

8,9,3
723078 1000403320 D09 Axle, central;Pedal Arm;;20CrMo;White Zi No Model Compatibility List $47.29 / Each

723079 1000403323 F15 Steel Rope-Extrawork;Steel Rope;;Press R No Model Compatibility List $138.55 / Each

1
723080 1000403324 F13 Steel Rope-Extrawork;Steel Rope;;Press R No Model Compatibility List $97.99 / Each

1
723081 1000403354 V01 Instructional Labe;Cover;;;PC;Front;Engl No Model Compatibility List $33.77 / Each

9
723082 1000403355 V03 Instructional Labe;Cover;;;PC;Rear;Engli No Model Compatibility List $33.77 / Each

9
723083 1000403356 Not Shown Manual set;Semi-Assy;;;;;GM118-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
723124 1000404050 C47 Grip;Adjustable Handle;down;ABS/PA746;Ye No Model Compatibility List $11.80 / Each

723125 1000404051 C68 Grip;Adjustable Handle;up;ABS/PA746;Yell No Model Compatibility List $8.42 / Each

723129 1000404084 AL2 Incremental Weight Plate Set;Semi-Assy;; No Model Compatibility List $91.23 / Each

3
723222 1000405545 F03 Cover;Pulley;mid;ABS/PA757;Gray/80435;15 No Model Compatibility List $13.49 / Each

723281 1000406193 C22 Pull Pin;ADJ;;42CrMo;White Zinc;GM118-KM No Model Compatibility List $23.63 / Each

12,13,14
723325 1000406367 C43 Cap Ring;;;NBR;;90x50x60;GM118-KM; No Model Compatibility List $8.42 / Each

9
723326 1000406374 C41 Rubber Pad;Foot Pad;;SBR;;638.5x299.5x84 No Model Compatibility List $136.86 / Each

9,3,12,13,14
723356 1000406464 K62 Socket;Power Switch;;PA66+G20%;;110x58x1 No Model Compatibility List $6.73 / Each

723482 1000407026 B12 Stopper Plate;Steel Rope;2;PA66+GF30%;;9 No Model Compatibility List $16.87 / Each

723483 1000407033 C45 Spring;Compression;1.8x13.8x57L;65Mn;W No Model Compatibility List $3.02 / Each

2
723522 1000407605 D27 Cap;Base;back;TPU;;;GM114; No Model Compatibility List $6.73 / Each

723548 1000408040 Q03 Stopper Plate;Steel Rope;;PA66+GF30%;;14 No Model Compatibility List $16.87 / Each

723552 1000408107 F21 Ring;Protect;Side;ABS PA757S;;Diam.146x1 No Model Compatibility List $5.04 / Each

723566 1000408504 K09 Fixing Axle;Steel Rope Head;Short;45#;Ch No Model Compatibility List $0.00 / Each
Out Of Stock
8
723567 1000408760 V17 Bar Code Label;;;;;;;GM118-KM No Model Compatibility List $0.00 / Each
Out Of Stock
1
723584 1000409299 F32 Screw;Flat Head;M4x0.7P-30L;;Hex Socket; No Model Compatibility List $1.33 / Each

723595 1000410042 Z03 Screw;Socket Head;M8X1.25PX70L;;Hex Sock No Model Compatibility List $2.18 / Each

723611 1000410426 D15 Washer;Plastic;Diam.17.6xDiam.36.0x2.0T; No Model Compatibility List $3.02 / Each

2,9
723678 1000411770 V07 EN LABEL;;;;PETP;;;GM118 No Model Compatibility List $1.33 / Each

1
723679 1000411786 V15 Spec Label;Weight Plate;10LBS;;PC;;;GM11 No Model Compatibility List $16.87 / Each

723682 1000411799 V12 Direction Label;Seat ADJ Tube;55X20mm;;P No Model Compatibility List $2.18 / Each

723683 1000411801 V13 Spec Label;Seat ADJ Tube;55X20mm;;PC;Rig No Model Compatibility List $2.18 / Each

723685 1000411806 B36 Manipulate Overlay;;;;;GM111 No Model Compatibility List $2.18 / Each

723686 1000411812 V16 Direction Label;Incremental Weight Plate No Model Compatibility List $3.02 / Each

723691 1000411819 V04 Direction Label;Back Pad Adjustable;15x1 No Model Compatibility List $3.02 / Each

4,5,6,12,13,14
723860 1000412812 AZ9 Label set;;;;Silver Gray;Advanced config No Model Compatibility List $0.00 / Each
Out Of Stock
723861 1000412813 AZ9 Label set;;;;Orange;Advanced configurati No Model Compatibility List $0.00 / Each
Out Of Stock
1
723862 1000412814 AZ9 Label set;;;;Brown;Advanced configuratio No Model Compatibility List $0.00 / Each
Out Of Stock
723863 1000412815 AZ9 Label set;;;;Pink;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
723864 1000412816 AZ9 Label set;;;;Gray;Advanced configuration No Model Compatibility List $0.00 / Each
Out Of Stock
1
723896 1000413258 AJ11 Seat Bushing Fabricate Drawing;Semi-Assy No Model Compatibility List $0.00 / Each
Out Of Stock
723910 1000413364 AC4 Fixed Set;Rotate;M;;;Iced Sliver;GM114; No Model Compatibility List $16.87 / Each

723922 1000413439 K16 Fixing Plate;Cam;;;;Iced Sliver;GM114; No Model Compatibility List $10.11 / Each

723925 1000413459 K11 Fixing Plate;Cam;D;;;Iced Sliver;GM114; No Model Compatibility List $3.02 / Each

723935 1000413485 B14 Fixing Rack Cover;;D;;;Iced Sliver;GM113 No Model Compatibility List $33.77 / Each

723939 1000413494 B44 Support Board;Cover;Reat-Up;;;Iced Slive No Model Compatibility List $25.32 / Each

723941 1000413504 B13 Fix Base;Pulley;;painting;;Iced Sliver;G No Model Compatibility List $37.15 / Each

723943 1000413515 B11 Fixing Rack;BRACKET COVER;U;;;Iced Slive No Model Compatibility List $10.11 / Each

723954 1000413637 G20 Fixing Plate;CON Tube;;;;Iced Sliver;GM1 No Model Compatibility List $40.53 / Each

723984 1000413887 K02 Incremental Adjustable Rod-Exreawork;Inc No Model Compatibility List $0.00 / Each
Out Of Stock
3
724081 1000414737 E06 Bearing;Rod End;SAL10T/K;M10;;Left-hand No Model Compatibility List $16.87 / Each

8,9,3
724082 1000414738 E07 Bearing;Rod End;SA10T/K;M10;;Right-hand No Model Compatibility List $16.87 / Each

8,9,3
724126 1000415375 F07 Pulley Fixing Set;Pulley;Big;;;Iced Sliv No Model Compatibility List $25.32 / Each

8
724138 1000415609 Not Shown Manual;Assembly;;NA/EU;;GM118 No Model Compatibility List $0.00 / Each
Out Of Stock
3
724164 1000416029 AB1 Frame Set;;;painting;;Iced Sliver;GM118- No Model Compatibility List $0.00 / Each
Out Of Stock
3
724165 1000416036 AC11 Base Set-Exreawork;bushing;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
724166 1000416051 H04 Connect Plate;Grip;;painting;;Iced Slive No Model Compatibility List $32.08 / Each

3,11
724170 1000416073 H11 Connecting Plate-Extrawork;;;;Iced Slive No Model Compatibility List $37.15 / Each

3
724174 1000416114 C34 ConnectingTube;Rod End Bearing;;;;Iced S No Model Compatibility List $37.15 / Each

8,9,3
724177 1000416131 C38 Stopper;;;painting;;Iced Sliver;GM118-KM No Model Compatibility List $2.18 / Each

1
724178 1000416143 AC12 Slider Bar Arm Sub;BACK PAD;;;;Iced Sliv No Model Compatibility List $54.05 / Each

3,4,5,6,12,13,14
724179 1000416153 AG3 Pedal Arm Con Set;;;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724180 1000416160 AJ3 Back Pad Fix Set;;;painting;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
724181 1000416167 1 Sliding Pulley Set;Semi-Assy;;Iced Slive No Model Compatibility List $479.93 / Each

8
724182 1000416177 AF41 Fixing Base Set;;;Iced Sliver;GM118-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724183 1000416197 AF3 Pulley Fixing Set;Pulley;;;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
724184 1000416228 2 Pedal Arm set;Semi-Assy;left;Iced Sliver No Model Compatibility List $324.45 / Each

8,9,3
724185 1000416250 3 Pedal Arm set;Semi-Assy;right;Iced Slive No Model Compatibility List $324.45 / Each

8,9,3
724186 1000416274 4 Swivel Axle Set;Semi-Assy;;Iced Sliver;; No Model Compatibility List $795.96 / Each

8
724187 1000416288 F24 Fixing Plate;;R;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
3
724188 1000416295 F26 Fixing Plate;Cam;;painting;;Iced Sliver; No Model Compatibility List $3.02 / Each

3
724189 1000416303 C24 Fixing Plate;Pulley;;painting;;Iced Sliv No Model Compatibility List $6.73 / Each

8,3
724190 1000416310 C35 Sleeve;;;painting;;Iced Sliver;GM118-KM; No Model Compatibility List $1.33 / Each

3
724191 1000416317 AG1 Disassembly connect set;;D;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724192 1000416324 AG2 Disassembly connect set;;U;;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
3
724193 1000416331 G16 Cover;Cam;;painting;;Iced Sliver;GM118-K No Model Compatibility List $6.73 / Each

9
724194 1000416338 5 Seat Adjustable Set;Semi-Assy;;Iced Sliv No Model Compatibility List $184.18 / Each

12,13,14
724195 1000416345 C21 PEDAL;;D;painting;;Iced Sliver;GM118-KM; No Model Compatibility List $97.99 / Each

8,9
724197 1000416358 AD01 pedal arm set;Assembly;left;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724198 1000416366 AD02 pedal arm set;Assembly;right;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724199 1000416372 AF21 Transmission system Set;Assembly;;Iced S No Model Compatibility List $0.00 / Each
Out Of Stock
3
724361 1000418478 Not Shown Manual set;Semi-Assy;;;;;GM118-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
724363 1000418483 Not Shown Manual set;Semi-Assy;;;;;GM118-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
1
724366 1000418544 V01 Instructional Labe;Cover;;;PC;Front;Fren No Model Compatibility List $0.00 / Each
Out Of Stock
9
724575 1000422325 F34 Bearing;Rod End;SI14TK/K;M14X2.P;;??;?? No Model Compatibility List $25.32 / Each

724713 1000424165 Q95 Cover;Frame;U;painting;;Black Matte;GM11 No Model Compatibility List $174.04 / Each

724773 1000427154 AB1 Frame Set;;;painting;;Planet Fitness Pur No Model Compatibility List $0.00 / Each
Out Of Stock
3
724774 1000427160 AC11 Base Set-Exreawork;bushing;;;;GM118B;??? No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
724775 1000427162 H04 Connect Plate;Grip;;painting;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
3,11
724776 1000427163 H11 Connecting Plate-Extrawork;;;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock
3
724777 1000427166 C34 ConnectingTube;Rod End Bearing;;;;Planet No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724778 1000427167 1 Sliding Pulley Set;Semi-Assy;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
8
724779 1000427168 AF41 Fixing Base Set;;;Iced Sliver;GM118B-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
3
724780 1000427171 AF3 Pulley Fixing Set;Pulley;;;;Planet Fitne No Model Compatibility List $0.00 / Each
Out Of Stock
8
724781 1000427173 C38 Stopper;;;painting;;Planet Fitness Purpl No Model Compatibility List $0.00 / Each
Out Of Stock
1
724782 1000427175 AC12 Slider Bar Arm Sub;BACK PAD;;;;Planet Fi No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6,12,13,14
724783 1000427178 AG3 Pedal Arm Con Set;;;painting;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724784 1000427180 2 Pedal Arm set;Semi-Assy;left;Planet Fitn No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724785 1000427182 AD01 pedal arm set;Assembly;left;;GM118B-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724786 1000427184 3 Pedal Arm set;Semi-Assy;right;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724787 1000427185 AD02 pedal arm set;Assembly;right;;GM118B-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
724788 1000427187 4 Swivel Axle Set;Semi-Assy;;Planet Fitnes No Model Compatibility List $0.00 / Each
Out Of Stock
8
724789 1000427188 AF21 Transmission system Set;Assembly;;;GM118 No Model Compatibility List $0.00 / Each
Out Of Stock
3
724790 1000427190 F26 Fixing Plate;Cam;;painting;;Planet Fitne No Model Compatibility List $0.00 / Each
Out Of Stock
3
724791 1000427196 C24 Fixing Plate;Pulley;;painting;;Planet Fi No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
724792 1000427197 C35 Sleeve;;;painting;;Planet Fitness Purple No Model Compatibility List $0.00 / Each
Out Of Stock
3
724793 1000427198 AG1 Disassembly connect set;;D;;;Planet Fitn No Model Compatibility List $0.00 / Each
Out Of Stock
3
724794 1000427199 AG2 Disassembly connect set;;U;;;Planet Fitn No Model Compatibility List $0.00 / Each
Out Of Stock
3
724795 1000427200 G16 Cover;Cam;;painting;;Planet Fitness Purp No Model Compatibility List $0.00 / Each
Out Of Stock
9
724796 1000427201 5 Seat Adjustable Set;Semi-Assy;;Planet Fi No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
724798 1000427203 C21 PEDAL;;D;painting;;Planet Fitness Purple No Model Compatibility List $0.00 / Each
Out Of Stock
8,9
724812 1000427250 B14 Fixing Rack Cover;;D;;;Planet Fitness Pu No Model Compatibility List $0.00 / Each
Out Of Stock
9,4,5,6
724813 1000427251 B44 Support Board;Cover;Reat-Up;;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
724815 1000427268 AC4 Fixed Set;Rotate;M;;;Planet Fitness Purp No Model Compatibility List $0.00 / Each
Out Of Stock
1
724817 1000427273 B13 Fix Base;Pulley;;painting;;Planet Fitnes No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
724818 1000427276 B11 Fixing Rack;BRACKET COVER;U;;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
2,9,3,4,5,6
724830 1000427305 K11 Fixing Plate;Cam;D;;;Planet Fitness Purp No Model Compatibility List $0.00 / Each
Out Of Stock
3
724837 1000427312 L30 Fixing Rack;Counte;;painting;;Planet Fit No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
724838 1000427313 G20 Fixing Plate;CON Tube;;;;Planet Fitness No Model Compatibility List $0.00 / Each
Out Of Stock
3
724839 1000427314 Z100 Frame Fix Plate;;;painting;;Planet Fitne No Model Compatibility List $0.00 / Each
Out Of Stock
3
724863 1000427469 AJ11 Seat ADJ Set;Assembly;;include bushing;G No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,12,13,14
724892 1000427549 F07 Pulley Fixing Set;Pulley;Big;;;Planet Fi No Model Compatibility List $0.00 / Each
Out Of Stock
8
724895 1000427564 K16 Fixing Plate;Cam;;;;Planet Fitness Purpl No Model Compatibility List $0.00 / Each
Out Of Stock
3
725265 103406 D38 Washer;Flat;8.2x20.0x1.8t;Cr Plat; No Model Compatibility List $0.21 / Each

725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

726162 080409 C38 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.66 / Each

726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.66 / Each

726881 085774 E08 Nut;HX;M10X1.5P;SS41;CHM;; No Model Compatibility List $0.86 / Each

Foot Pad;Adjustable;M12X58H;12.9;EP304; 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $33.85 / Each

728703 096046 J32 Axle;CON Rod;45#;GM40 No Model Compatibility List $19.53 / Each

728707 096088 AK1 Weght Plate Set;12.5P;GM41 No Model Compatibility List $67.57 / Each

728731 096216 J35 Stopper Sleeve;WASHER;GM40 No Model Compatibility List $0.21 / Each

728914 098972 J21 Spring;EXT;;SWP;ZNC;GM40 No Model Compatibility List $1.79 / Each

728920 098985 Q02 Weight Stack Shield;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

728923 098988 Q04 Cover;Front;ABS;GM40 No Model Compatibility List $147.63 / Each

728927 099030 J10 ADJ Plate;Seat;ZG20;GM40 No Model Compatibility List $99.45 / Each

728928 099035 J13 Axle;Pull Pin;42CrMo;GM40 No Model Compatibility List $42.43 / Each

728929 099036 J14 Axle Sleeve;Pull Pin;42CrMo;GM40 No Model Compatibility List $16.64 / Each

728930 099052 L12 ADJ Base;L;Incremental Weight Plate;GM40 No Model Compatibility List $23.50 / Each

728931 099053 L03 ADJ Base;R;Incremental Weight Plate;GM40 No Model Compatibility List $1.98 / Each

728933 099056 L07 U;Cover;IncrementalWeightPlate;20#;GM40 No Model Compatibility List $23.50 / Each

728937 099064 L17 Sleeve;D;IncrementalWeight Plate;POM;GM4 No Model Compatibility List $5.64 / Each

729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
Foot Leveler 1003512 000522-D Foot Leveler Yes Model Compatibility List $15.99 / Each

Lithium and Iron Disulfide Battery 730059 1000096574 B35 Lithium and Iron Disulfide Battery No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Spring;8.2X15.4X2.0T;Chromed 730061 005009-00 Z28 Washer;Spring;8.2X15.4X2.0T;Chromed No Model Compatibility List $0.00 / Each
Out Of Stock
Cable Fix Button;KSS/UC-2 730132 001678-A P33 Cable Fix Button;KSS/UC-2 No Model Compatibility List $1.28 / Each

Screw;Button Head;M5x10L;GND;Cutting;Phi 730479 1000417018 P25 Screw;Button Head;M5x10L;GND;Cutting;Phi No Model Compatibility List $1.02 / Each

Antena board;;;GAT-MAXI LA 3.1;;;EP614C; 730547 1000355791 W12 Antena board;;;GAT-MAXI LA 3.1;;;EP614C; No Model Compatibility List $89.68 / Each

Transmission Set;Semi-Assy;A;;;;PAS1861- 730660 1000414106 1 Transmission Set;Semi-Assy;A;;;;PAS1861- No Model Compatibility List $558.98 / Each

Power Switch Set;Semi-Assy;;;;;AS1861; 730661 1000417259 3 Power Switch Set;Semi-Assy;;;;;AS1861; No Model Compatibility List $158.58 / Each

RFID SET;Semi-Assy;;;;;AS1861; 730662 1000419076 4 RFID SET;Semi-Assy;;;;;AS1861; No Model Compatibility List $384.78 / Each

Sensor set;Semi-Assy;;;;;AS1861; 730663 1000398787 AB03 Sensor set;Semi-Assy;;;;;AS1861; No Model Compatibility List $462.78 / Each

Support Board;;;painting;;Black Matte;AS 730664 1000408949 B01 Support Board;;;painting;;Black Matte;AS No Model Compatibility List $45.48 / Each

Connet Sleeve;;;20#;Zinc;AS1861;Diam.14x 730665 1000398704 B04 Connet Sleeve;;;20#;Zinc;AS1861;Diam.14x No Model Compatibility List $10.38 / Each

Stopper Block;Steel Rope;;PA6+G15%;;50x3 730666 1000399163 B23 Stopper Block;Steel Rope;;PA6+G15%;;50x3 No Model Compatibility List $2.32 / Each

SLEEVE;;;20#;Chrome;AS1861;Diam.20x11.55 730667 1000398534 B26 SLEEVE;;;20#;Chrome;AS1861;Diam.20x11.55 No Model Compatibility List $7.78 / Each

Permanent Magnet;Two-sided;Diam.3x 3.0T; 730668 1000399147 B27 Permanent Magnet;Two-sided;Diam.3x 3.0T; No Model Compatibility List $1.02 / Each

Support Board;Pulley;;painting;;Black Ma 730669 1000402429 B51 Support Board;Pulley;;painting;;Black Ma No Model Compatibility List $18.18 / Each

Cover;Pulley;left;ABS;;130x122.7x16;AS18 730670 1000398706 B91 Cover;Pulley;left;ABS;;130x122.7x16;AS18 No Model Compatibility List $5.18 / Each

Cover;Pulley;right;ABS;;130x122.7x36;AS1 730671 1000398705 B92 Cover;Pulley;right;ABS;;130x122.7x36;AS1 No Model Compatibility List $5.18 / Each

Protect Sleeve;Power Switch;;PA66;;;AS18 730672 1000406463 K04 Protect Sleeve;Power Switch;;PA66;;;AS18 No Model Compatibility List $5.18 / Each

Cover;Power;up;ABS Fire;;;AS1861; 730673 1000415728 K07 Cover;Power;up;ABS Fire;;;AS1861; No Model Compatibility List $27.28 / Each

Cover;Power;down;ABS Fire;;;AS1861; 730674 1000415731 K08 Cover;Power;down;ABS Fire;;;AS1861; No Model Compatibility List $14.28 / Each

Boot-Extrawork;;;line cutting;Diam.10.0x 730675 1000417231 K12 Boot-Extrawork;;;line cutting;Diam.10.0x No Model Compatibility List $2.32 / Each

Foam;;BLACK;223.6x5x3mm;;EP625; 730676 1000375452 N01 Foam;;BLACK;223.6x5x3mm;;EP625; No Model Compatibility List $1.02 / Each

Foam;;BLACK;;;EP625; 730677 1000375453 N02 Foam;;BLACK;;;EP625; No Model Compatibility List $1.02 / Each

Foam;;BLACK;116.2x5x3mm;;EP625; 730678 1000379358 N03 Foam;;BLACK;116.2x5x3mm;;EP625; No Model Compatibility List $1.02 / Each

Exchanged Board;;;HDPD;;;;RFID; 730679 1000402205 N10 Exchanged Board;;;HDPD;;;;RFID; No Model Compatibility List $59.78 / Each

Control Board;;;HFPF;V16;;;Load cell 730680 1000398108 N44 Control Board;;;HFPF;V16;;;Load cell No Model Compatibility List $45.48 / Each

Control Board Module;10 inch;;OS2.1.4.0; 730681 1000441967 N61 Control Board Module;10 inch;;OS2.1.4.0; No Model Compatibility List $0.00 / Each
Out Of Stock
USB Wire;;;;;;150;; 730682 1000405556 N62 USB Wire;;;;;;150;; No Model Compatibility List $5.18 / Each

Console Wire Set;;;;;;800;Molex70066 50- 730683 1000405558 N63 Console Wire Set;;;;;;800;Molex70066 50- No Model Compatibility List $11.68 / Each

Console Extension Wire;;;;;;600;MOLEX 70 730684 1000406930 N64 Console Extension Wire;;;;;;600;MOLEX 70 No Model Compatibility List $14.28 / Each

Console Ground Wire;;;;;;400+150;Diam.5+ 730685 1000407217 N65 Console Ground Wire;;;;;;400+150;Diam.5+ No Model Compatibility List $3.88 / Each

Console Ground Wire;;;;;;500+400;Diam.3+ 730686 1000407223 N66 Console Ground Wire;;;;;;500+400;Diam.3+ No Model Compatibility List $5.18 / Each

Console Ground Wire;;;;;UL1015 16AWG;100 730687 1000408705 N67 Console Ground Wire;;;;;UL1015 16AWG;100 No Model Compatibility List $3.88 / Each

Memory card set;;TF?;Sandisk 8G;;ITC; 730688 1000403396 N68 Memory card set;;TF?;Sandisk 8G;;ITC; No Model Compatibility List $33.78 / Each

hardware set;Assembly;;;PAS1861-2KM; 730689 1000398560 Not Shown hardware set;Assembly;;;PAS1861-2KM; No Model Compatibility List $7.78 / Each

Manual;Console;;;NA/Europe;AS1861?; 730690 1000418071 Not Shown Manual;Console;;;NA/Europe;AS1861?; No Model Compatibility List $0.00 / Each
Out Of Stock
Power Switch Set;;;;;;85+85+85;KST 250x2 730691 1000399107 P01 Power Switch Set;;;;;;85+85+85;KST 250x2 No Model Compatibility List $14.28 / Each

Network Signal Wire;;;;;;800;TKP H6630R1 730692 1000402104 P03 Network Signal Wire;;;;;;800;TKP H6630R1 No Model Compatibility List $9.08 / Each

DC Power Wire;;;;;;2200;Molex70066+CWB:V 730693 1000399109 P05 DC Power Wire;;;;;;2200;Molex70066+CWB:V No Model Compatibility List $9.08 / Each

USB Wire;;;;;;1000;(JST,XAP-06V-1)x2;; 730694 1000399111 P06 USB Wire;;;;;;1000;(JST,XAP-06V-1)x2;; No Model Compatibility List $7.78 / Each

Signal ConnectN Wire;;;;;;70;JST,ZHR-06+ 730695 1000403042 P08 Signal ConnectN Wire;;;;;;70;JST,ZHR-06+ No Model Compatibility List $5.18 / Each

Filter Wire;;;;;;;BF1115B-3A;90+90+80; 730696 1000407137 P10 Filter Wire;;;;;;;BF1115B-3A;90+90+80; No Model Compatibility List $19.48 / Each

Ground Wire;;;;;;2200;RFID;Diam.5+Diam.5 730697 1000410680 P11 Ground Wire;;;;;;2200;RFID;Diam.5+Diam.5 No Model Compatibility List $5.18 / Each

Adapter;;100-240V;Out,12V/3A;; 730698 1000410690 P12 Adapter;;100-240V;Out,12V/3A;; No Model Compatibility List $38.98 / Each

Ground Wire;;;;;16AWG;;Diam.5; 730699 1000415793 P13 Ground Wire;;;;;16AWG;;Diam.5; No Model Compatibility List $1.68 / Each

TIE STRAP ADHESIVE;;KSS/UC-3;;;;AS1861 730700 1000411962 P21 TIE STRAP ADHESIVE;;KSS/UC-3;;;;AS1861 No Model Compatibility List $1.02 / Each

Cover;Display;front;ABS;;332.1x229.8x37. 730701 1000398589 Q01 Cover;Display;front;ABS;;332.1x229.8x37. No Model Compatibility List $22.08 / Each

Cover;Display;back;ABS;;331.1x227.5x53.3 730702 1000398596 Q02 Cover;Display;back;ABS;;331.1x227.5x53.3 No Model Compatibility List $12.98 / Each

Cover;Display;back;ABS;;228.9x179.4x19.1 730703 1000398609 Q03 Cover;Display;back;ABS;;228.9x179.4x19.1 No Model Compatibility List $7.78 / Each

WIFI Wireness module Set;;;;EP625;; 730704 1000385354 W80 WIFI Wireness module Set;;;;EP625;; No Model Compatibility List $148.18 / Each

SCREW;RND;M5X0.8PX8L;;PH;;CHM;; 730705 004326-AB Z12 SCREW;RND;M5X0.8PX8L;;PH;;CHM;; No Model Compatibility List $1.02 / Each

Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr 730706 005155-ZA Z14 Washer;Flat;Diam.6.2xDiam.12.0x2.0T;;Chr No Model Compatibility List $1.28 / Each

Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; 730707 068287-00 Z24 Screw;RND;M3x8L;-;PH;-;WZN;-;-;ROHS; No Model Compatibility List $1.48 / Each

Fix Base;;;painting;;Black Matte;AS1861; 730708 1000398618 AD2 Fix Base;;;painting;;Black Matte;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Sliding Pulley Set;Semi-Assy;;;;;AS1861; 730709 1000398124 B24 Sliding Pulley Set;Semi-Assy;;;;;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Support Board;Console;Inner;painting;;Bl 730710 1000402422 D06 Support Board;Console;Inner;painting;;Bl No Model Compatibility List $0.00 / Each
Out Of Stock
Fixing Base;;;ABS+PC;;195x60x19.2;PAS186 730711 1000398716 N04 Fixing Base;;;ABS+PC;;195x60x19.2;PAS186 No Model Compatibility List $0.00 / Each
Out Of Stock
Foam;;BLACK;80.0x5.0x3.0t;;SSA 730712 1000416684 N14 Foam;;BLACK;80.0x5.0x3.0t;;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
Warning Label;;POWER BOX;;;;;SSA 730713 1000414740 V11 Warning Label;;POWER BOX;;;;;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
CE Label;Console;;;PC;;English;SSA 730714 1000414756 V15 CE Label;Console;;;PC;;English;SSA No Model Compatibility List $0.00 / Each
Out Of Stock
Decal;Console;FCC;;;;;SSA#; 730715 1000414838 V20 Decal;Console;FCC;;;;;SSA#; No Model Compatibility List $0.00 / Each
Out Of Stock
Console set;Semi-Assy;;;;;AS1861; D/C - Part will show as orderable until stock is depleted. 730716 1000414107 2 Console set;Semi-Assy;;;;;AS1861; D/C - Part will show as orderable until stock is depleted. No Model Compatibility List $0.00 / Each
Out Of Stock
Control Board Module;10 inch;;OS2.1.0.0; 730717 1000402112 N61 Control Board Module;10 inch;;OS2.1.0.0; No Model Compatibility List $0.00 / Each
Out Of Stock
Manual set;Semi-Assy;;;;English;AS1861; 730718 1000398533 Not Shown Manual set;Semi-Assy;;;;English;AS1861; No Model Compatibility List $0.00 / Each
Out Of Stock
Washer;Flat;8.4X15.5X1.6T 730719 005040-AB Z07 Washer;Flat;8.4X15.5X1.6T No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;TH;M6X1.0PX25L;;HS;;;;; 730727 0000080409 C54 Screw;TH;M6X1.0PX25L;;HS;;;;; No Model Compatibility List $1.68 / Each

Nut;Hex;M14x2.0Px11T;G10;Chrome; 730728 1000408501 D33 Jam Nut Nut;Hex;M14x2.0Px11T;G10;Chrome; No Model Compatibility List $1.68 / Each

Fixing Plate;Cam;Outer;;;Iced Sliver;GM1 731882 1000439873 K15 Fixing Plate;Cam;Outer;;;Iced Sliver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock
Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP 733193 0000083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.02 / Each

Gear Rower Retainer Clip (New) 957398 005330-00 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each

View Drawing
